CS-80 Bluetooth 5.0 hifi high-power module Amplifier finished board stereo 80W

 This is a stereo, up to 80W output high-efficiency class D audio power amplifier circuit.

Advanced EMIfD system technology allows the use of inexpensive ferrite bead filter in the output port

The EMC requirements can be met by using a cheap ferrite bead filter at the output port. The power amplifier is designed for systems requiring high quality audio power output.

The power amplifier is designed for systems that require high quality audio power output, using surface mount technology, and requires only a small number of peripheral components to make the system

The power amplifier is designed for systems that require high quality audio output power.

The amplifier chip itself has built-in over-current protection, short-circuit protection and over-temperature protection, which effectively protects the chip under abnormal operating conditions.

protects the chip from damage under abnormal operating conditions. It can drive up to 40 loads of

speakers, up to 80W continuous power; with up to 92% efficiency, the

allowing for music playback without additional heat sink.

Large supply voltage range of 5V~24V

Up to 92% efficiency, no heat sink required

Spread Spectrum Function

Audio system with filtering network, standby current less than 20mA

No filtering function

Good short circuit protection and temperature protection with automatic recovery function

Good distortion and anti-poof function

Differential input

Product information:

Brand: BRZHIFI

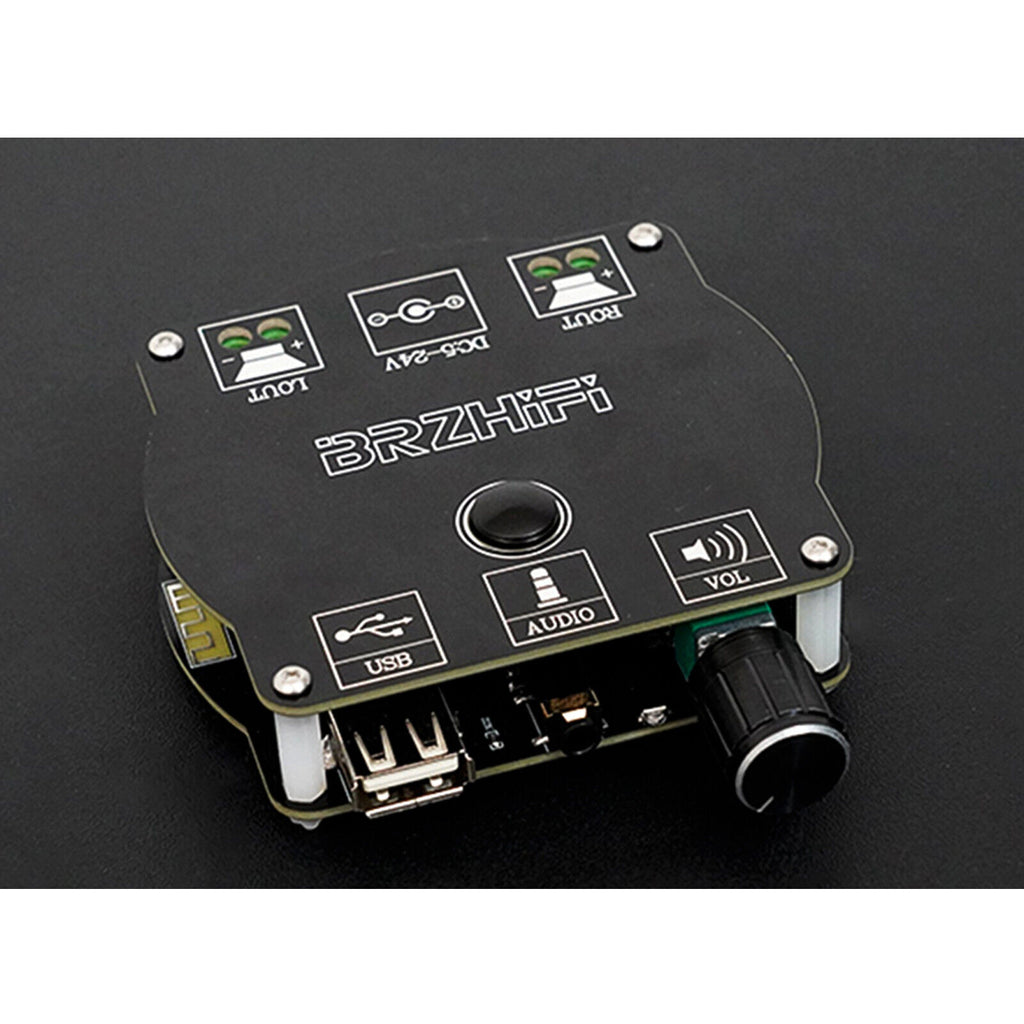

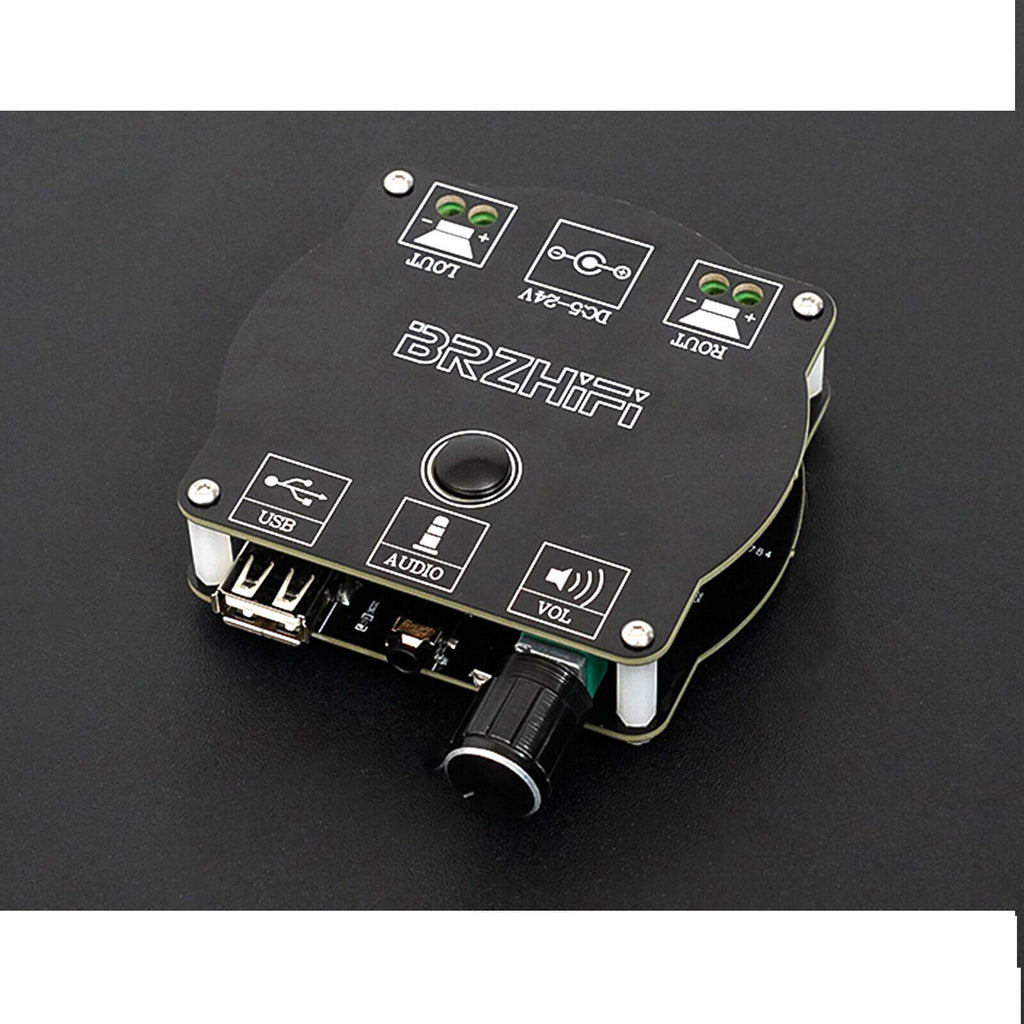

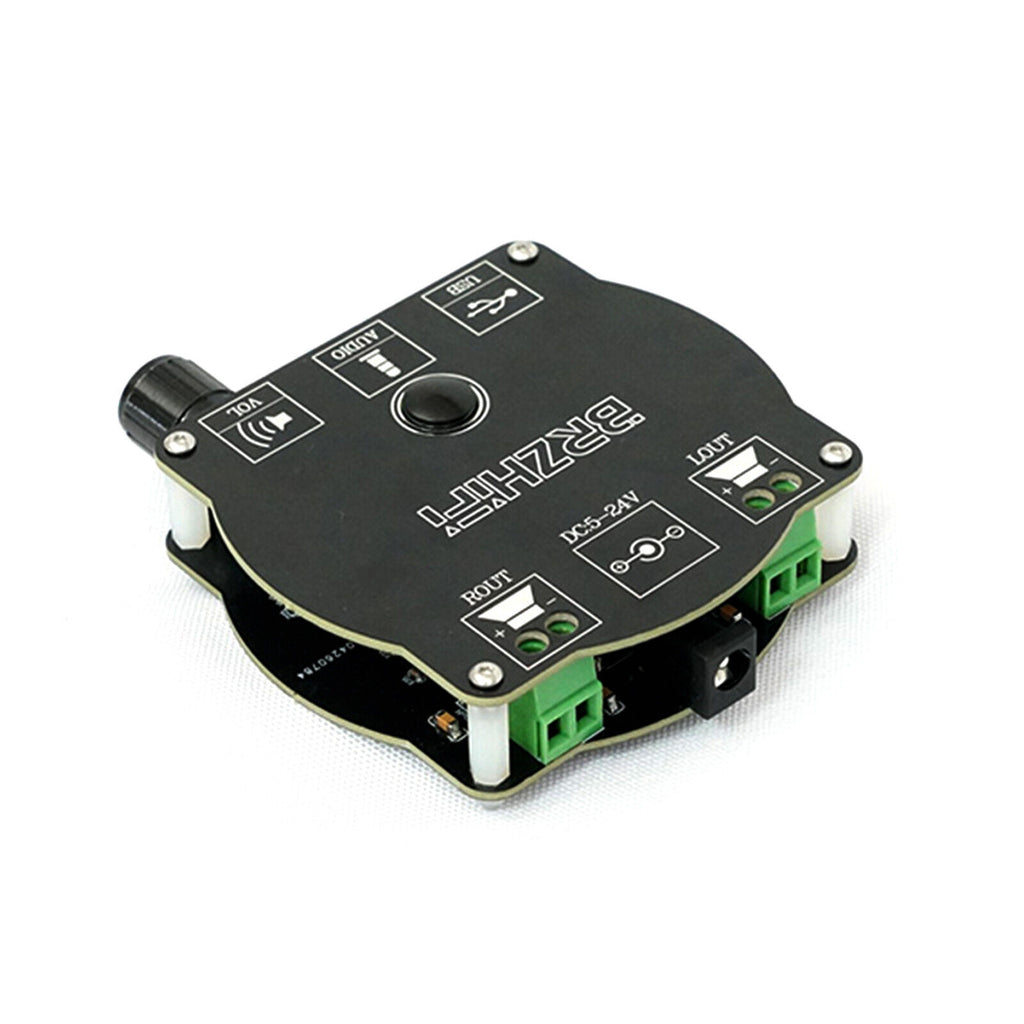

Model: CS-80 amplifier board

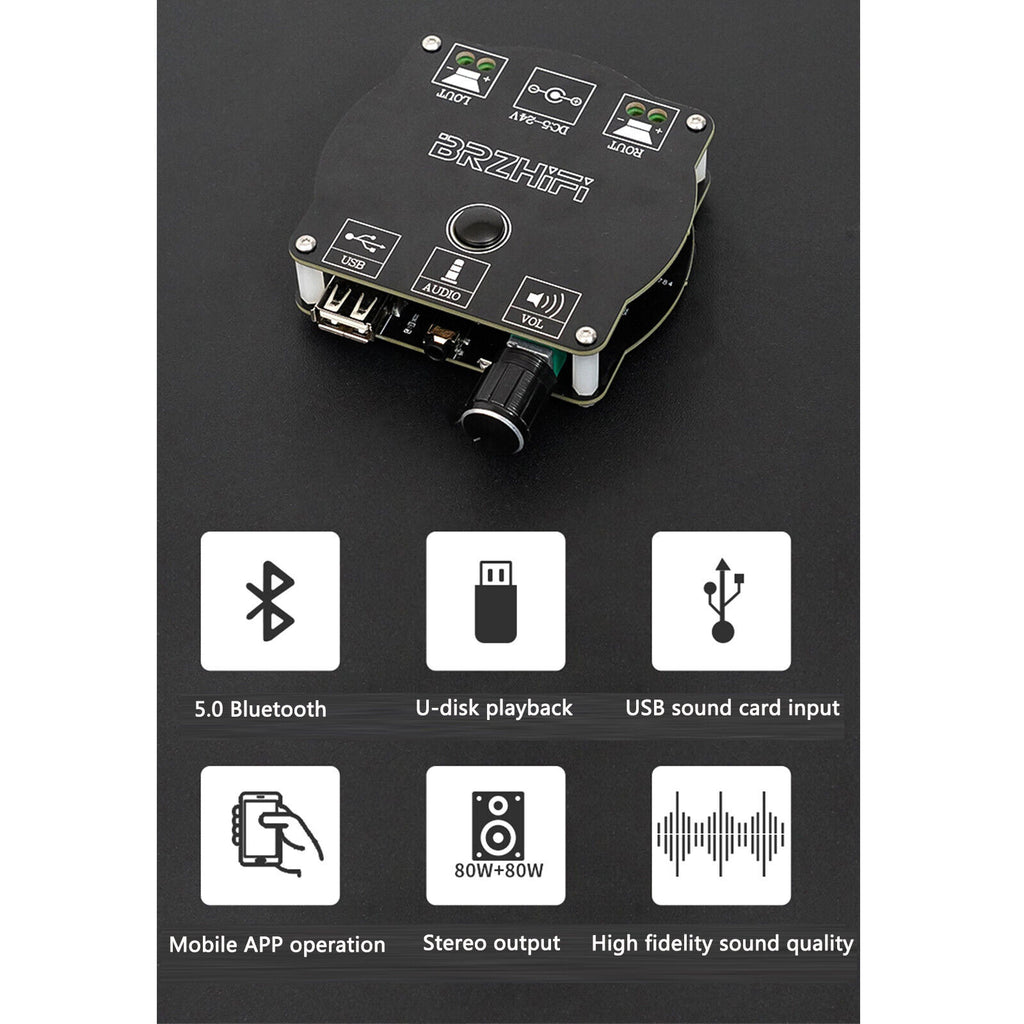

Bluetooth version: 5.0

Transmission distance: 15m (unobstructed)

Power supply voltage: DC5-24V

Adaptable speaker: 10W-200W 408Q

Size: 80*75*18mm

Protection mechanism: power reverse protection, short circuit protection, self-recovery overheating protection

24V@RL=4Q 80W+80W

21V@RL =4Q 64W+64W

24V@RL=8N 42W+42W

21V@RL =8133W+33W

18V@RL=4Q 47W+47W

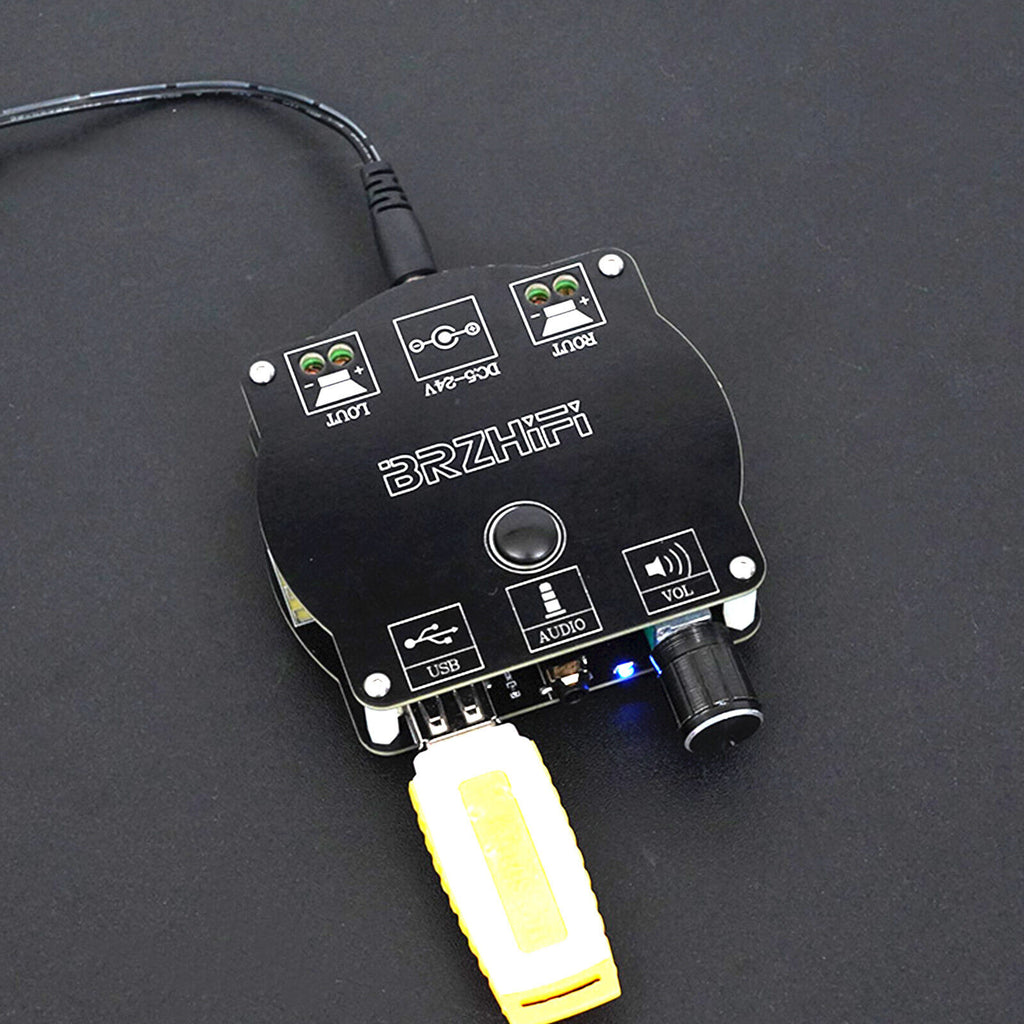

U disk lossless format support: MP1/MP2/MP/3/WMA/WAV/APE/FLAC

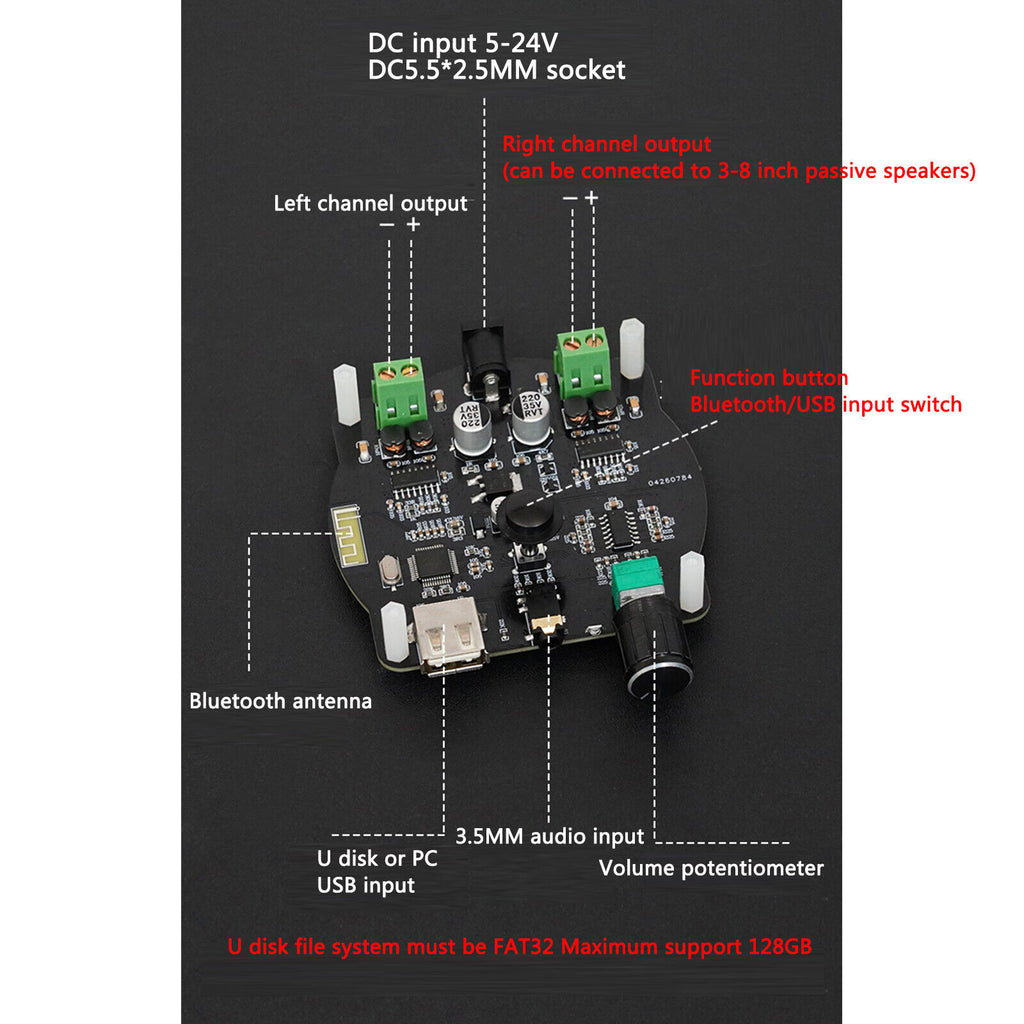

Audio input: AXU / computer / U disk / Bluetooth

Note: The output power of the power supply should be greater than the output power of the power supply, otherwise it will affect the sound quality

Recommended 6V or more power supply

Package:

1pc CS-80 Bluetooth 5.0 hi-fi hifi high-power module amplifier board finished stereo 80W.
