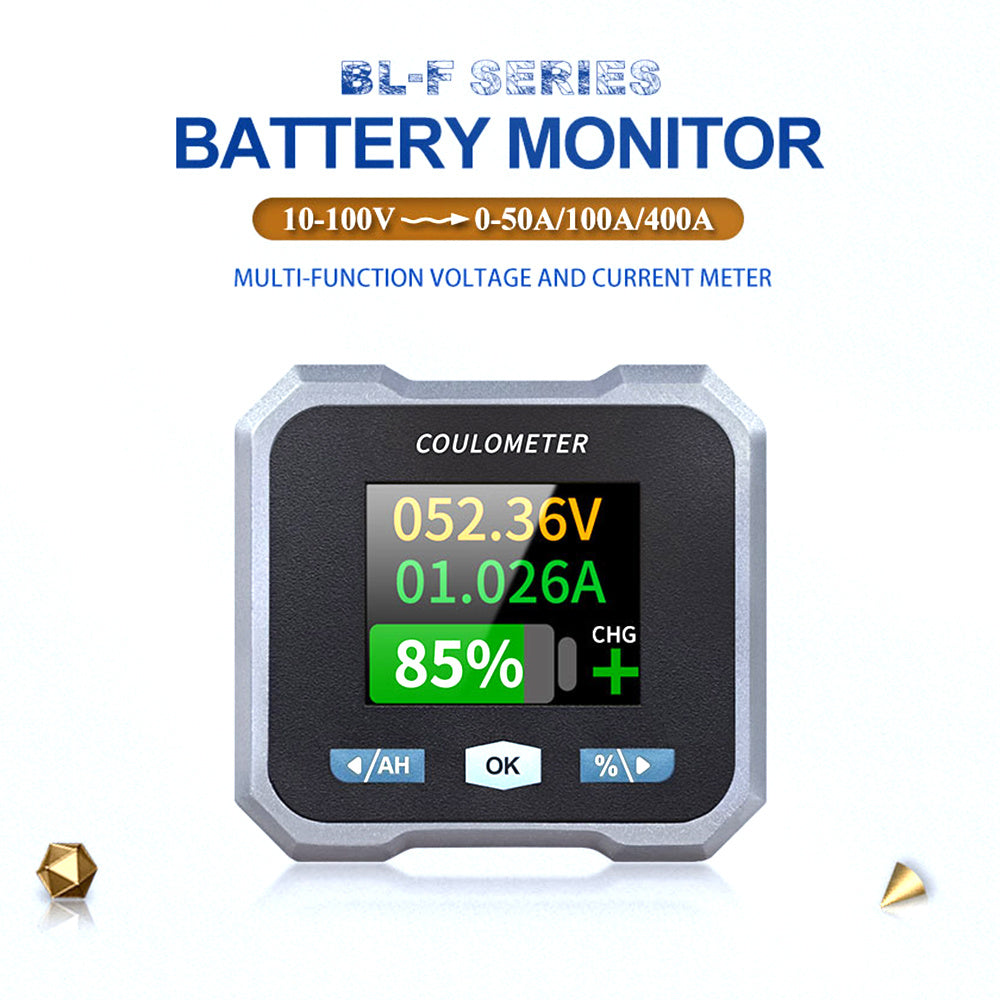

DC 10-100V 0-50A/100A/400A Battery Tester Coulomb Counter Meter 0-5/10/40KW Capacity Indicator Ammeter Voltmeter Battery Monitor

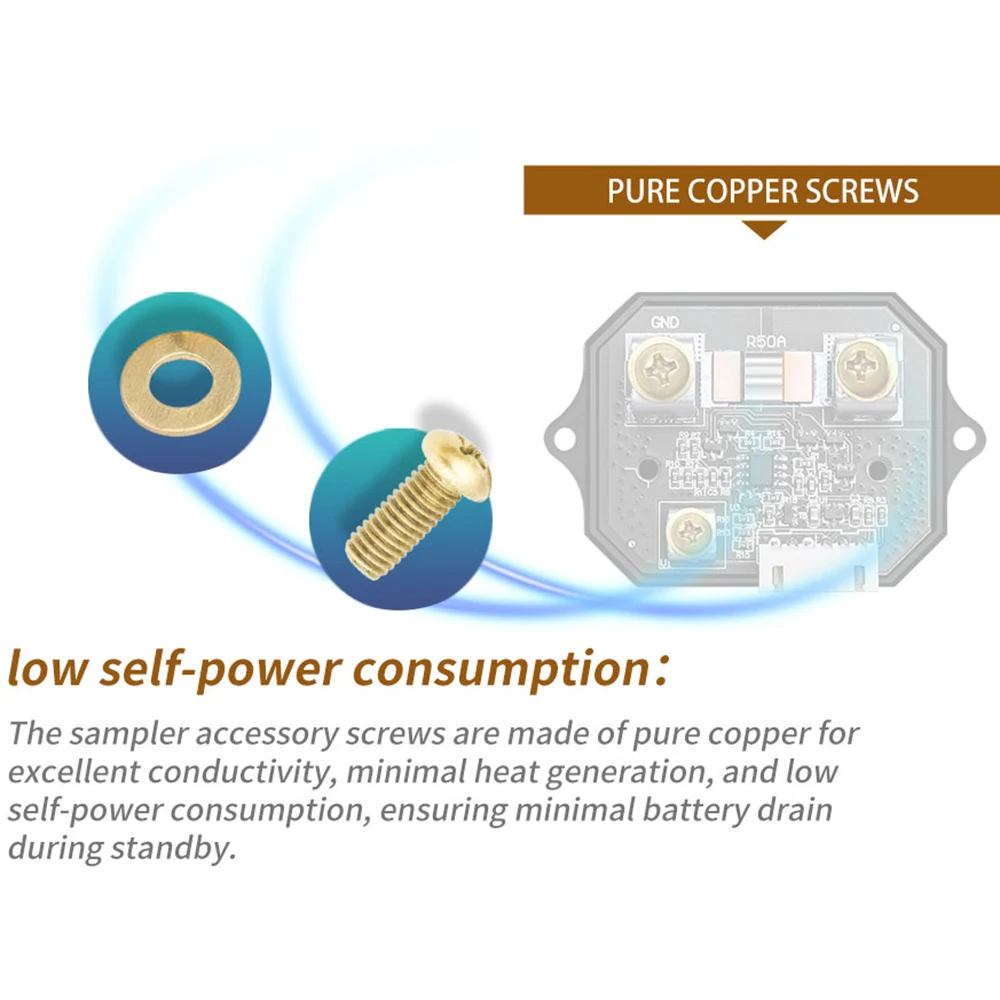

4. Sampler accessories screws are made of pure copper material, good conductivity, low heat, low power consumption.

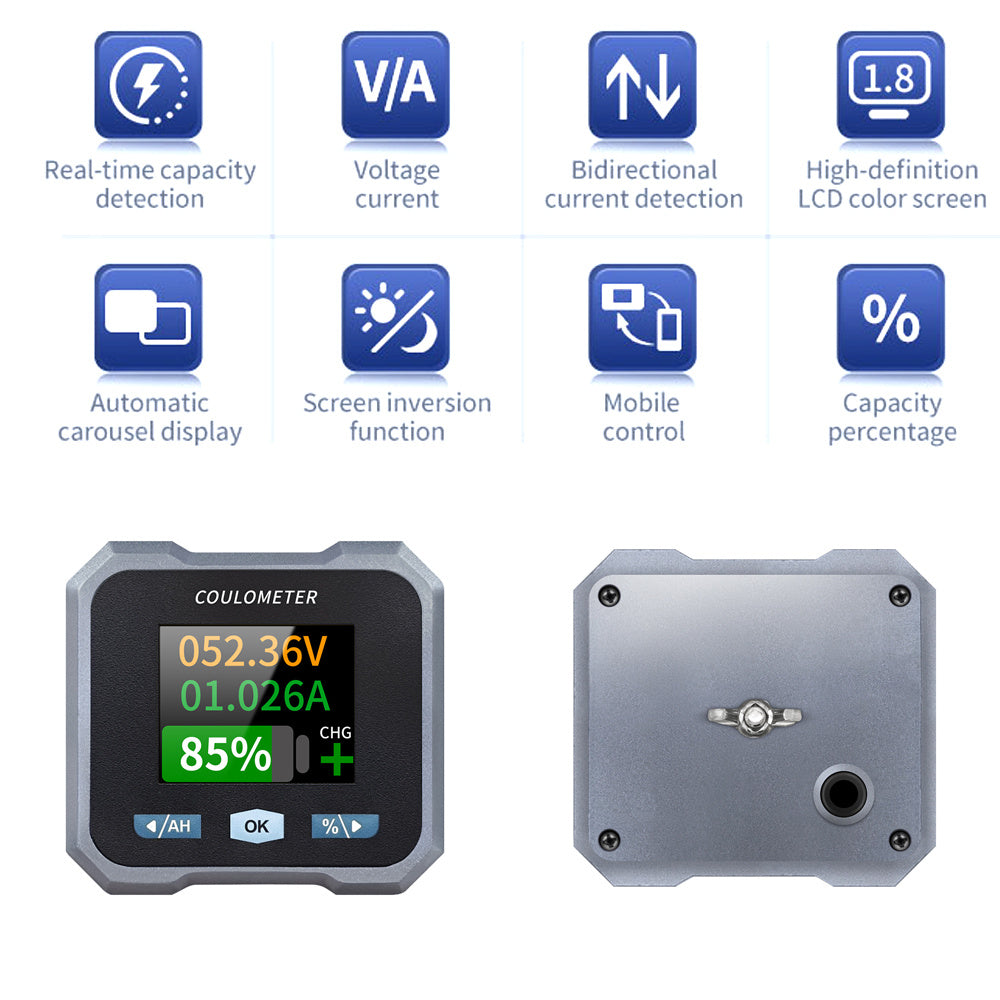

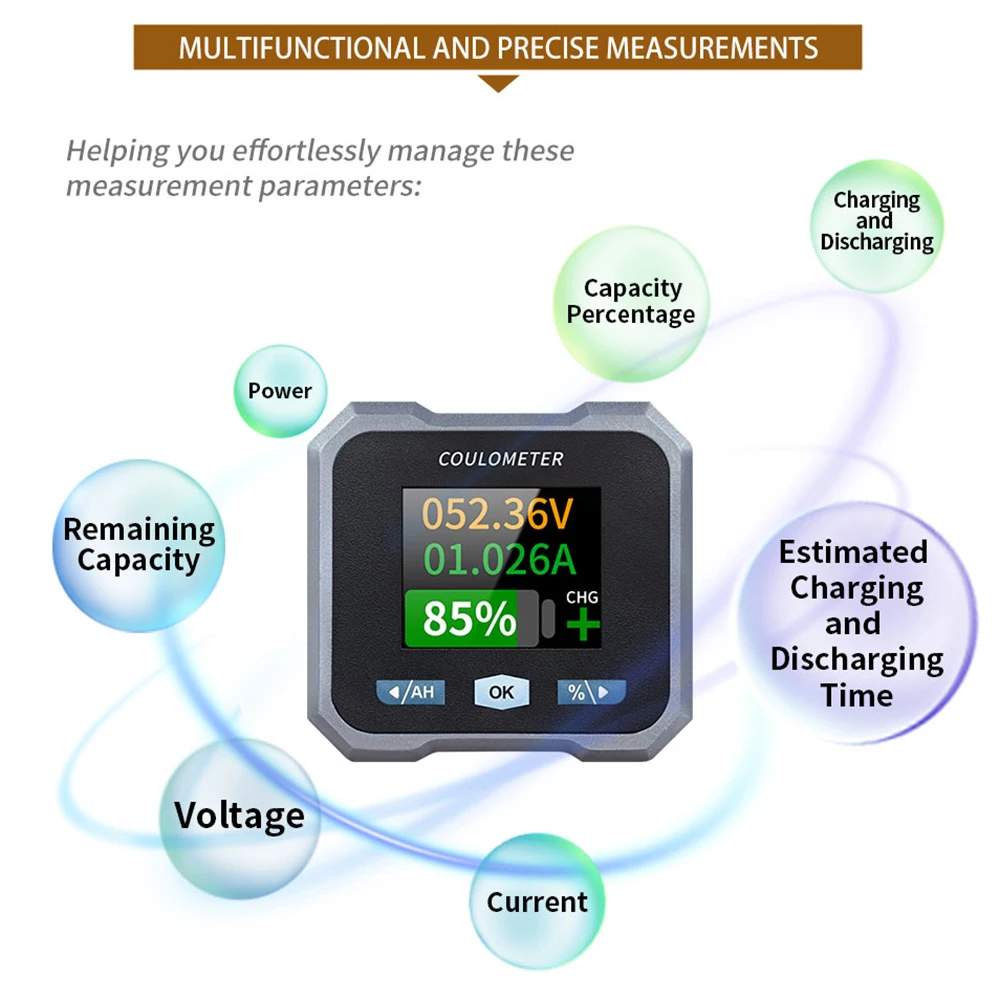

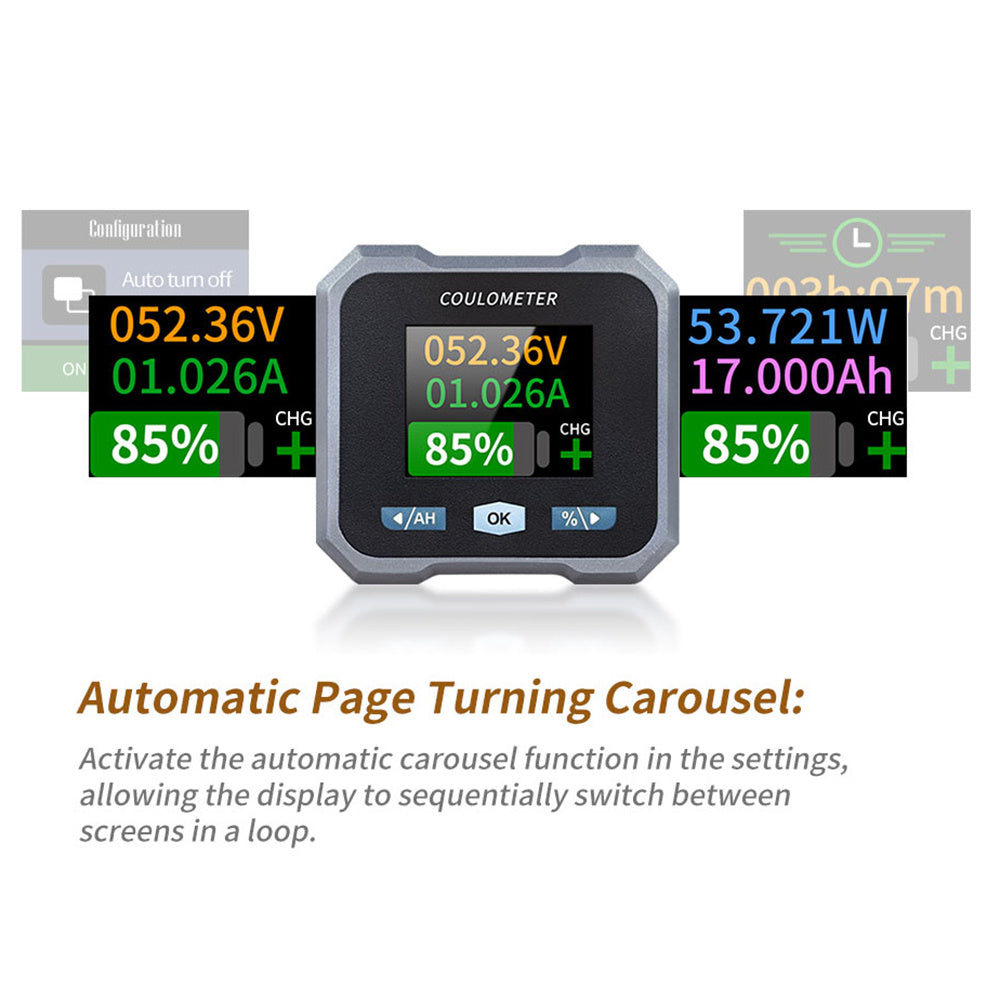

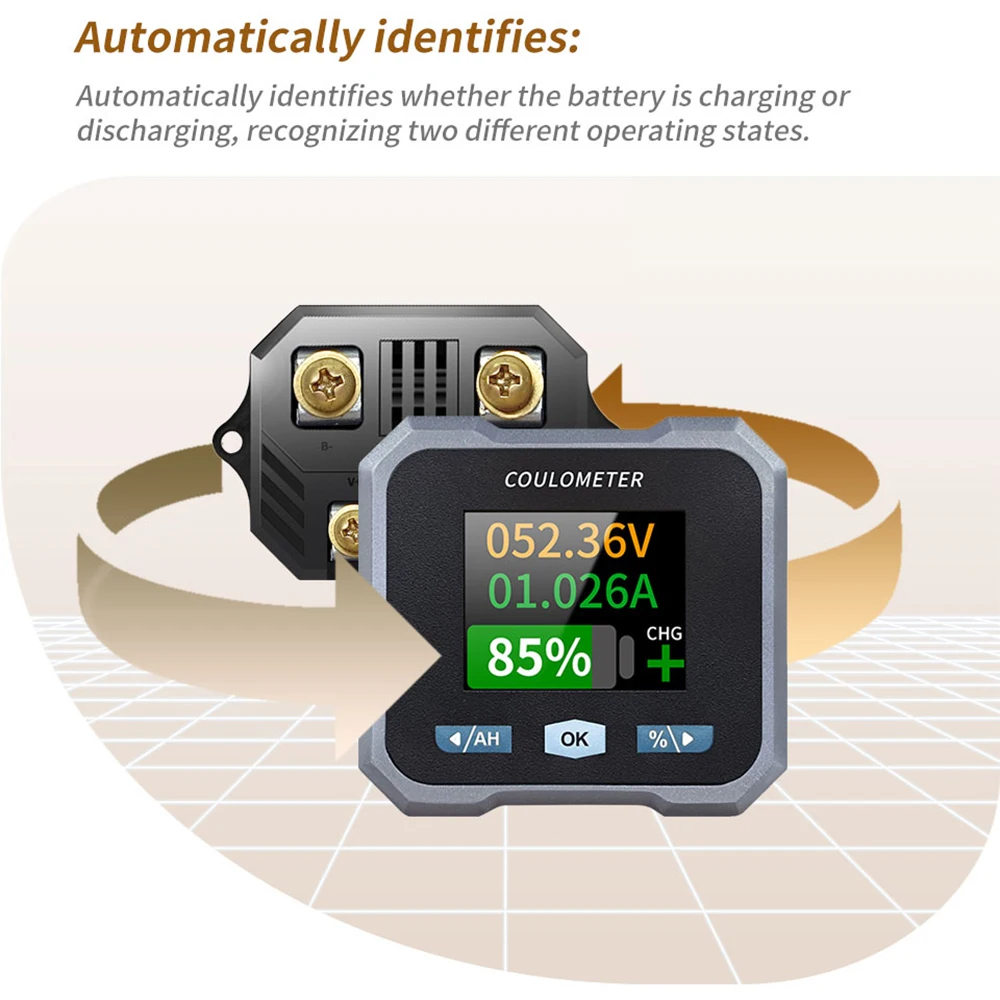

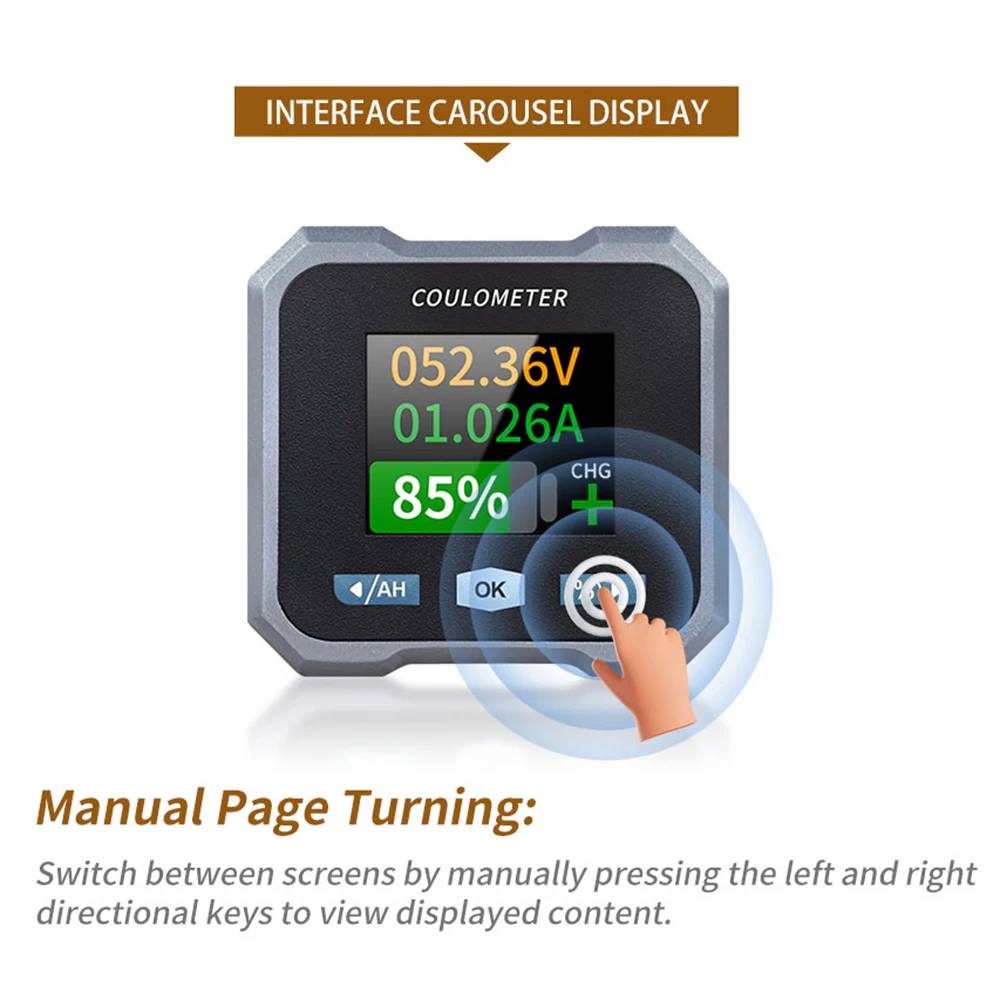

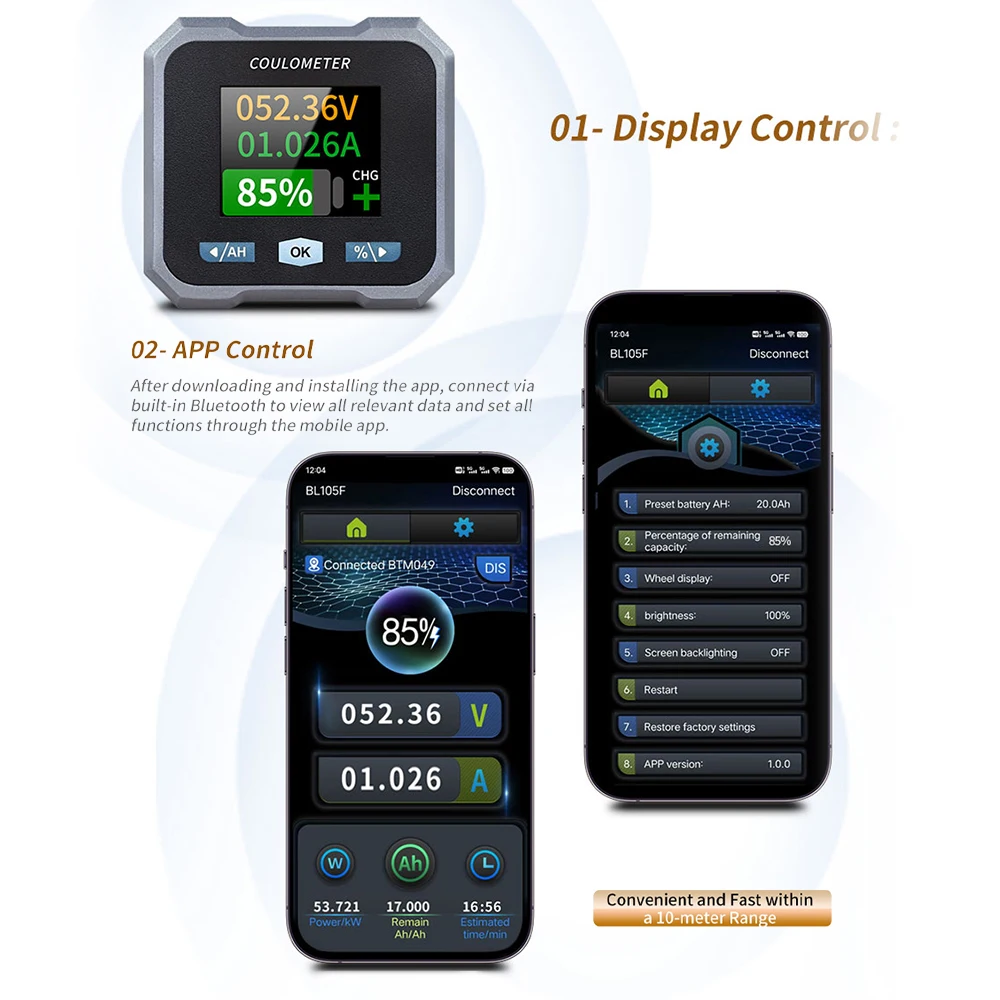

5. With two-way current detection, real-time capacity detection, mobile phone Bluetooth control, interface automatic carousel function.
7. Suitable for all types of batteries, as long as the battery voltage in the measurement range are applicable.

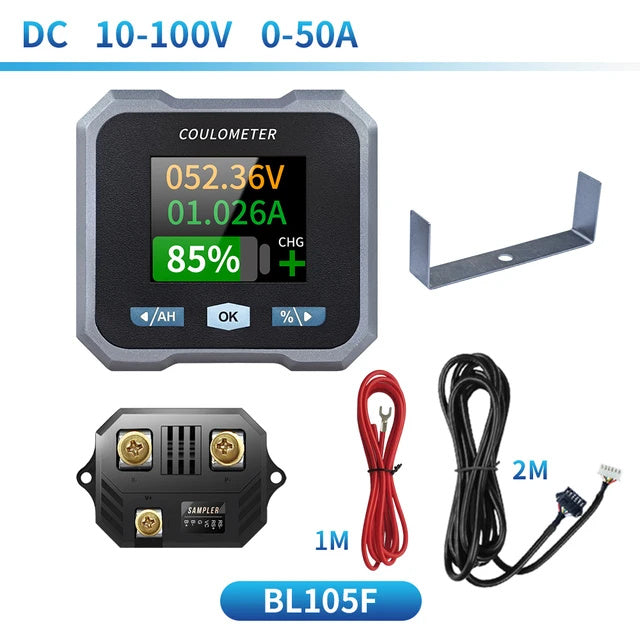

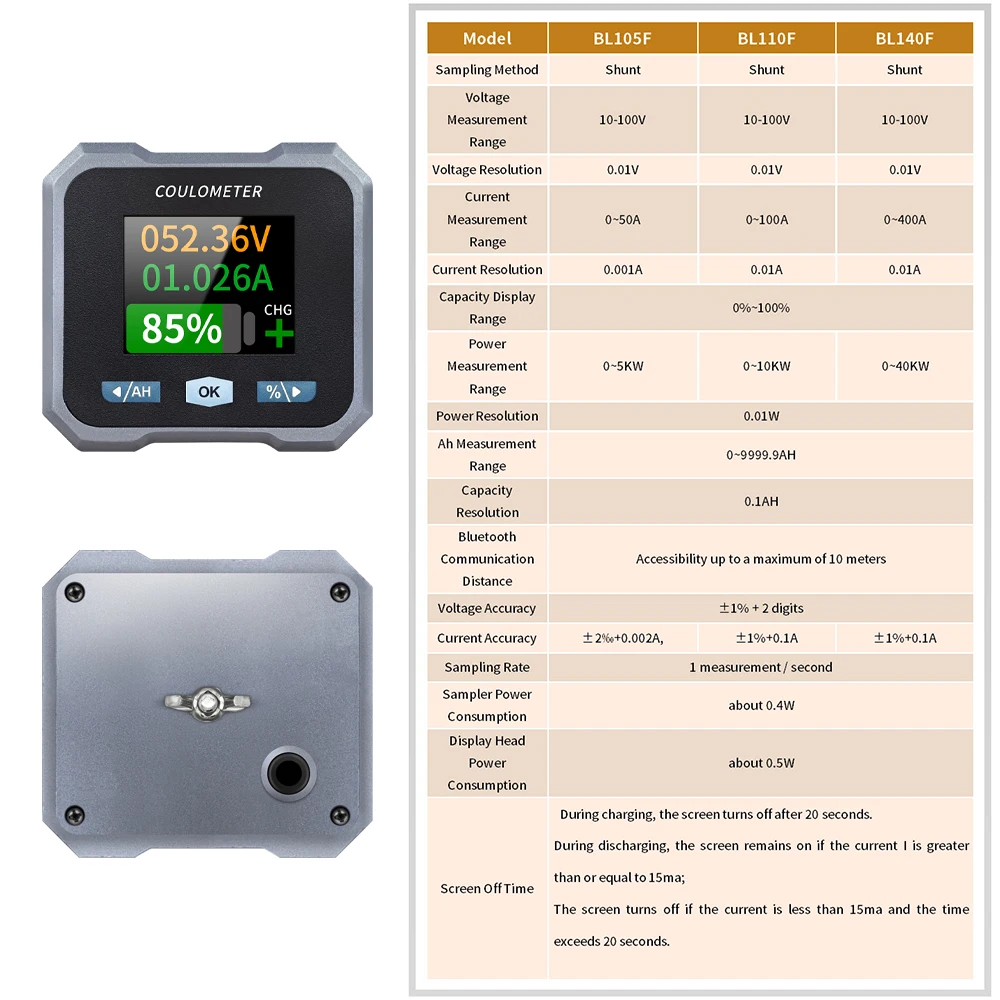

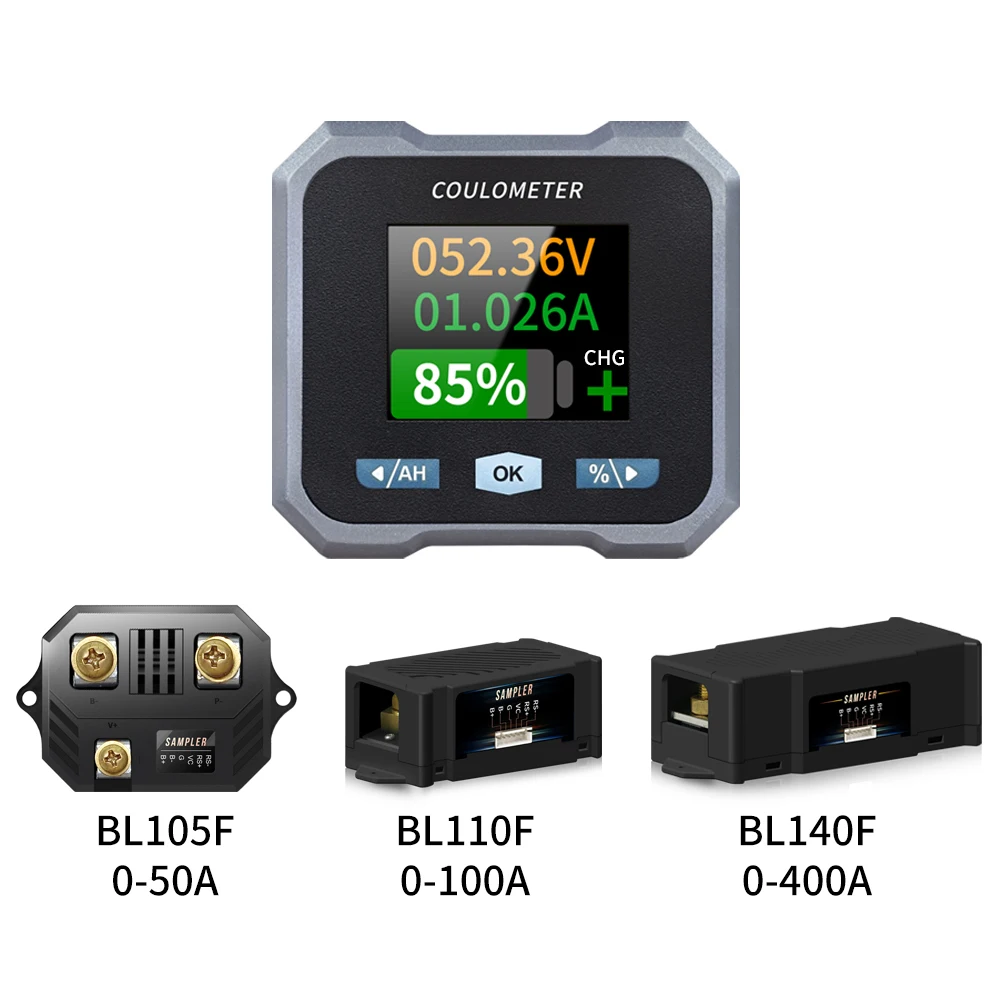

BL105F
Voltage measurement range: 10~100V
Voltage resolution: 0.01V
Voltage accuracy: 1% +2 words
Current measurement range: 0 ~ 50A
Current resolution: 0.001A
Current accuracy: 2% +0.002A
Power display range: 0 ~ 5KW
Power resolution: 0.01W
Capacity display range: 0~100%
Ampere-hour measurement range: 0~9999.9AH
Capacity resolution: 0.1AH

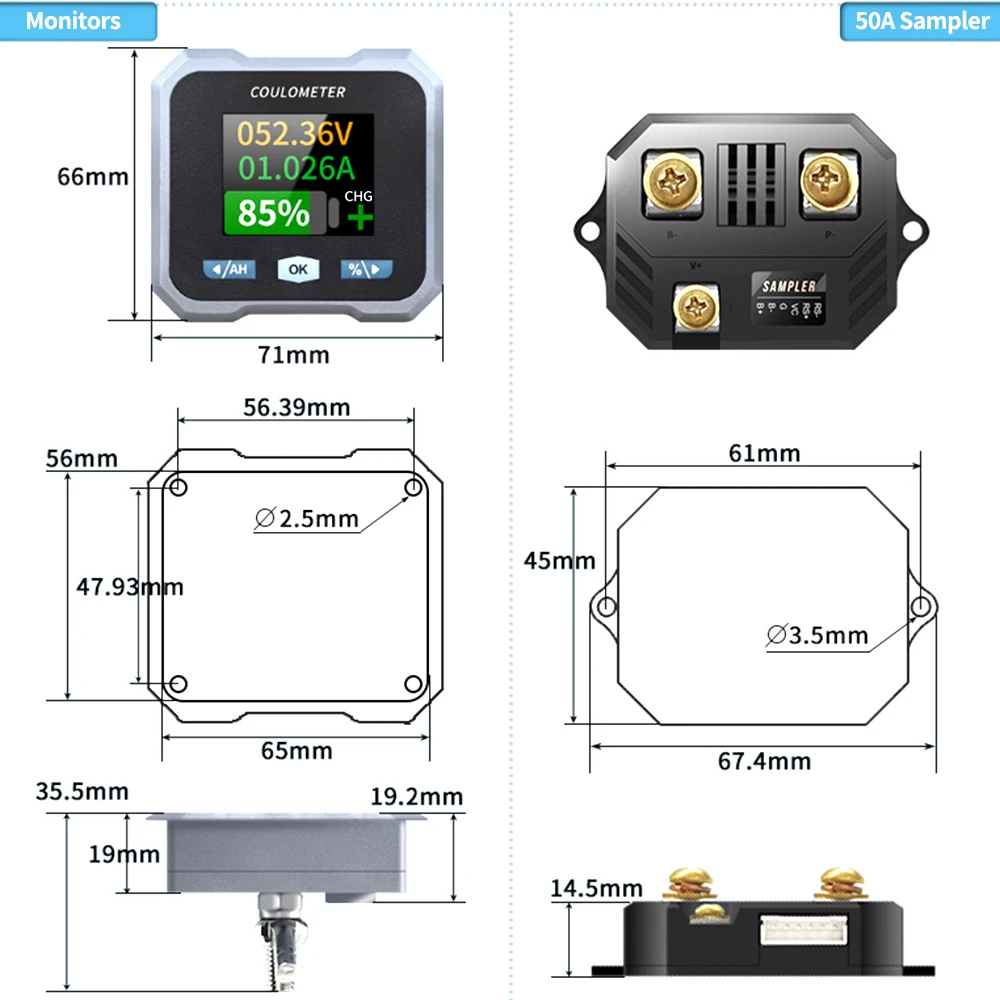

Display size: 71*66*19.3mm

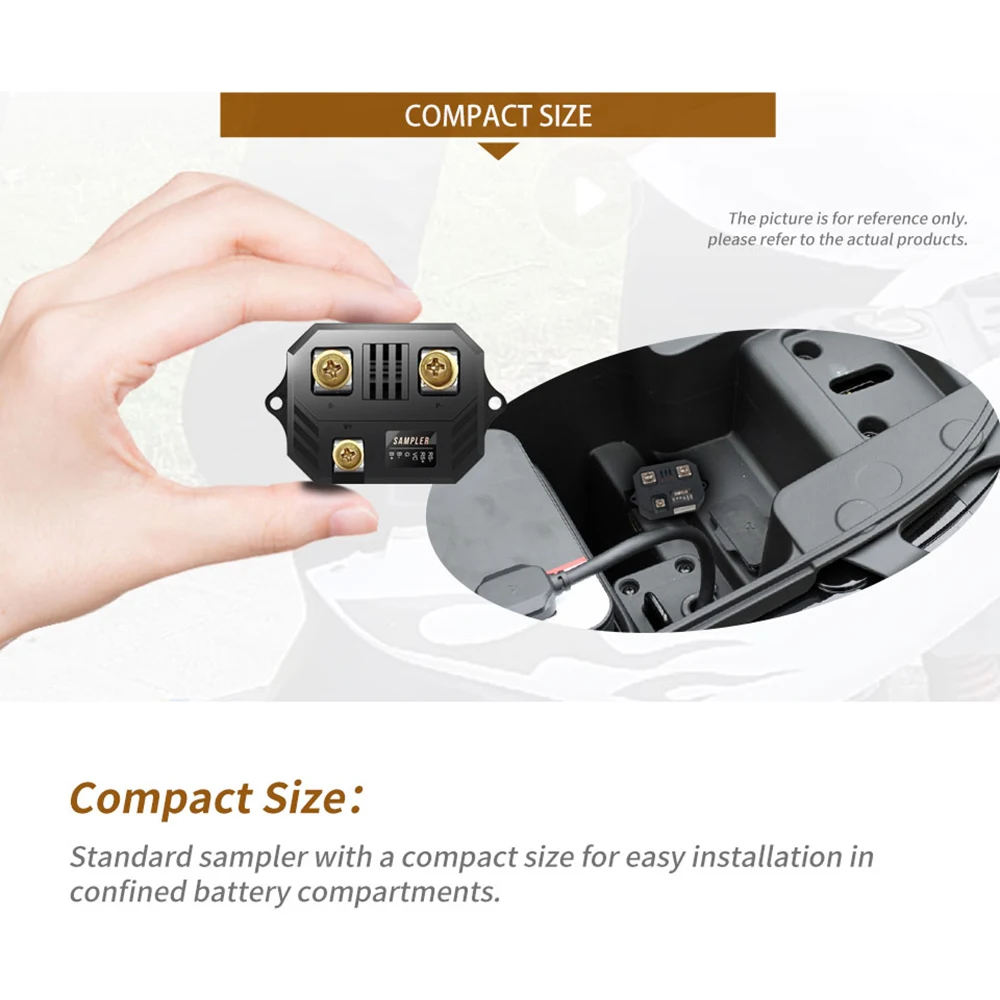

50A sampler size: 67.4*61*14.5mm

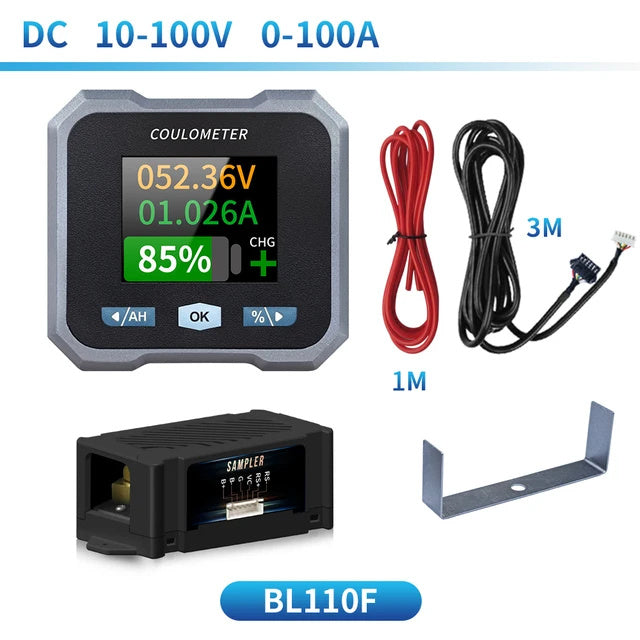

BL110F
Voltage measurement range: 10~100V
Voltage resolution: 0.01V
Voltage accuracy: 1% +2 words
Current measurement range: 0 ~ 100A
Current resolution: 0.01A
Current accuracy: 1% +0.1A
Power display range: 0 ~ 10KW
Power resolution: 0.01W
Capacity display range: 0~100
Ampere hour measurement range: 0~9999.9AH
Capacity Resolution: 0.1AH
Communication Line Length: 3m
Display Size: 71*66*19.3mm

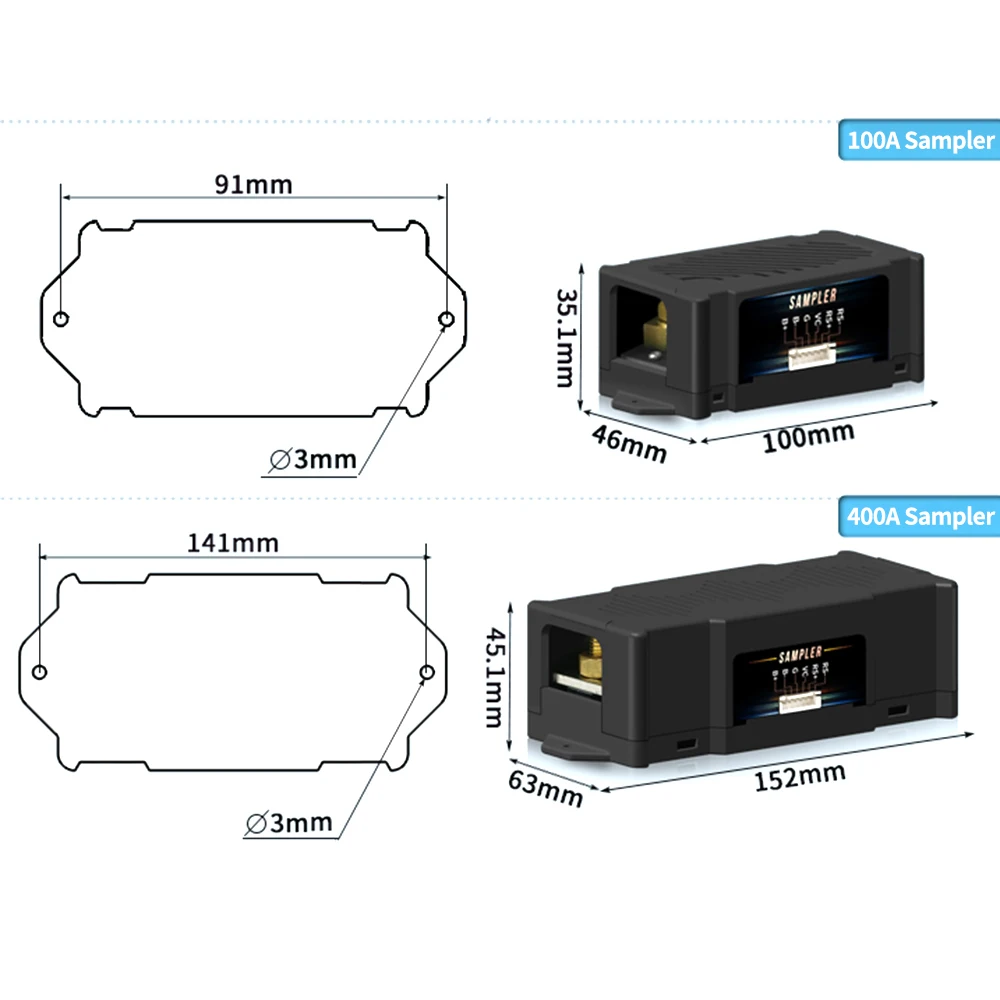

100A Sampler Size: 100*46*35.1mm

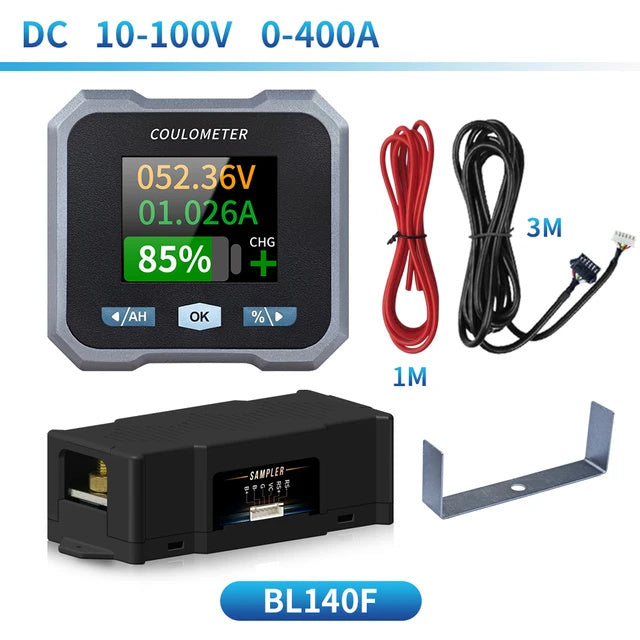

BF140F
Voltage measurement range: 10~100V
Voltage resolution: 0.01V
Voltage accuracy: 1% +2 words
Current measurement range: 0 ~ 400A
Current resolution: 0.01A
Current accuracy: 1% +0.1A
Power display range: 0 ~ 40KW
Power resolution: 0.01W
Capacity display range: 0~100
Ampere hour measurement range: 0~9999.9AH
Capacity Resolution: 0.1AH
Communication Line Length: 3m
Display Size: 71*66*19.3mm
400A Sampler: 152*63*45.1mm

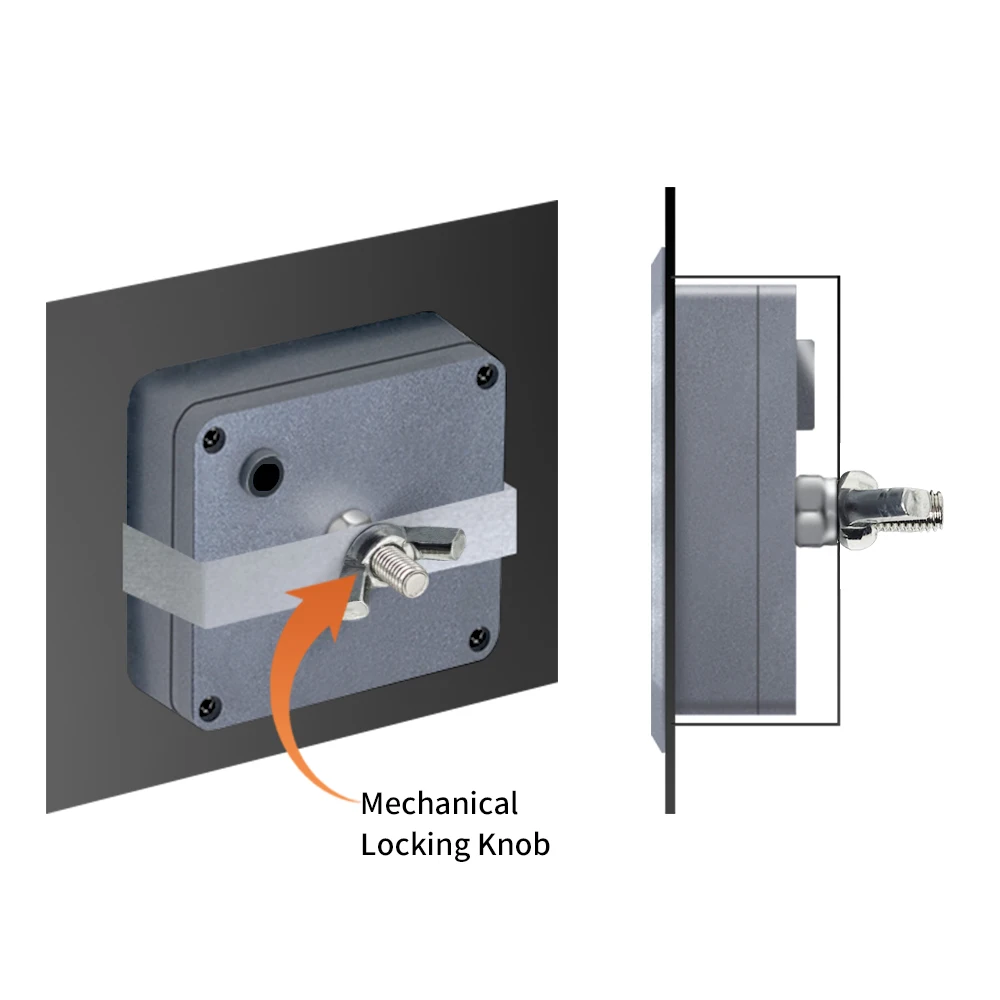

Opening size of display module: 65*56mm
Bluetooth-compatible communication distance: barrier-free maximum 10 m
display power consumption: about 0.75W
off screen time: off screen after 20 seconds during charging; When discharging: | ≥ 15ma bright screen; |15ma and time20s screen out

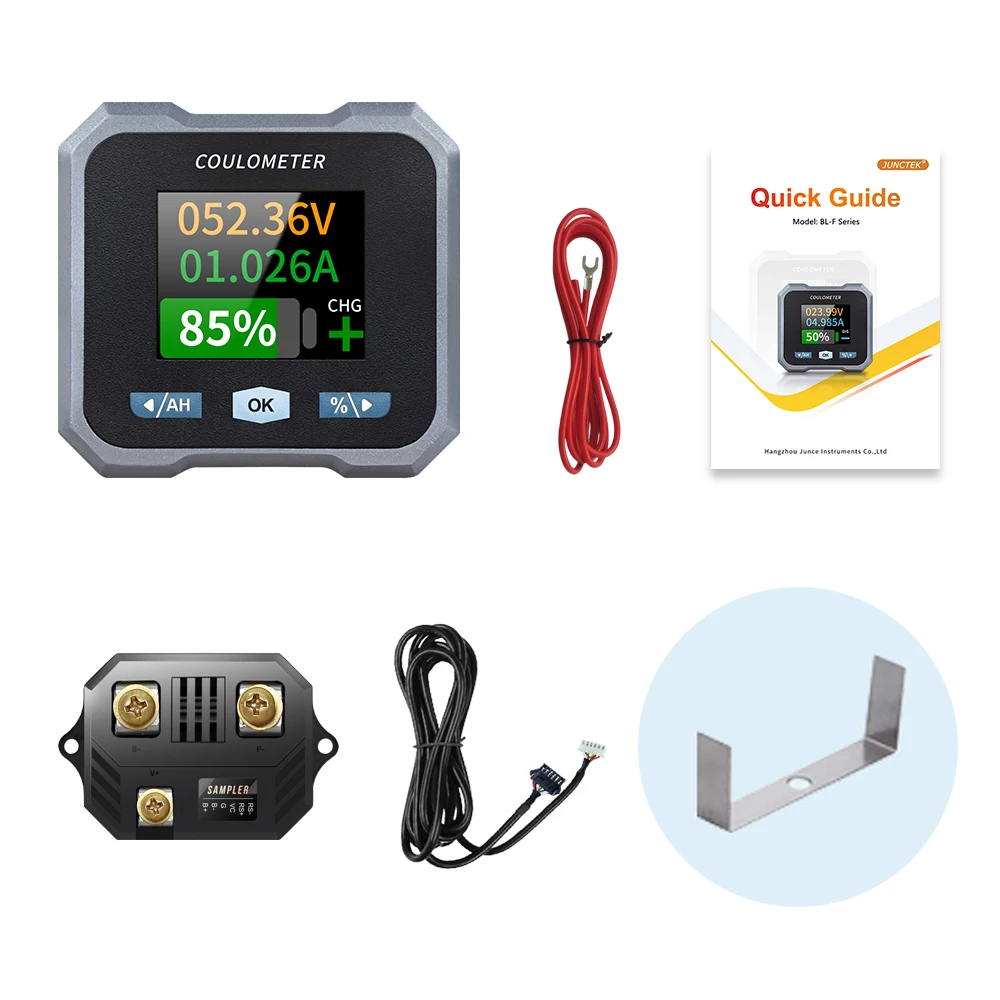

Packing list:
Display * 1
Sampler * 1
Mounting bracket * 1
Instruction * 1
