1: The power supply adopts an isolated design, and the biggest advantage of the isolated power supply is high safety and reliability
2: Input reverse connection protection
3: stable performance
4: Output short circuit protection
5: Solder-free wire terminals, easy to use
Features:
The main parameters:
Power supply properties: isolated step-down constant voltage switching power supply
Input voltage: DC12-90V
Output voltage: DC9V 12V 19V 24V
Output current: 9V 12V 19V maximum 4A, continuous operation 3A. 24V max 3A, continuous 2.5A.
Output ripple: 100mv (measured at 12v2a)
Input anti-reverse: yes (mos anti-reverse)
Output short-circuit protection: yes (can not be short-circuited for a long time)
Conversion efficiency: about 88%, measured at 48 rpm at 12V 2A

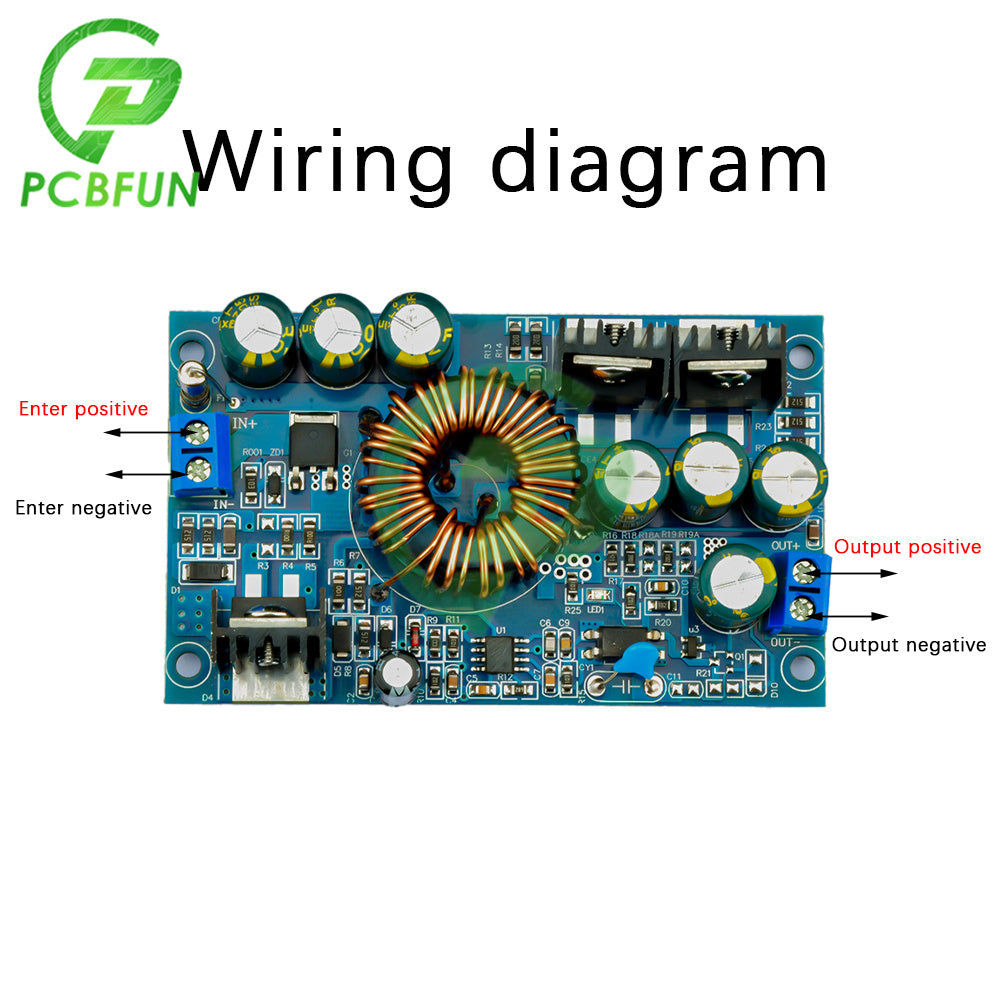

Wiring method: solderless wire terminal

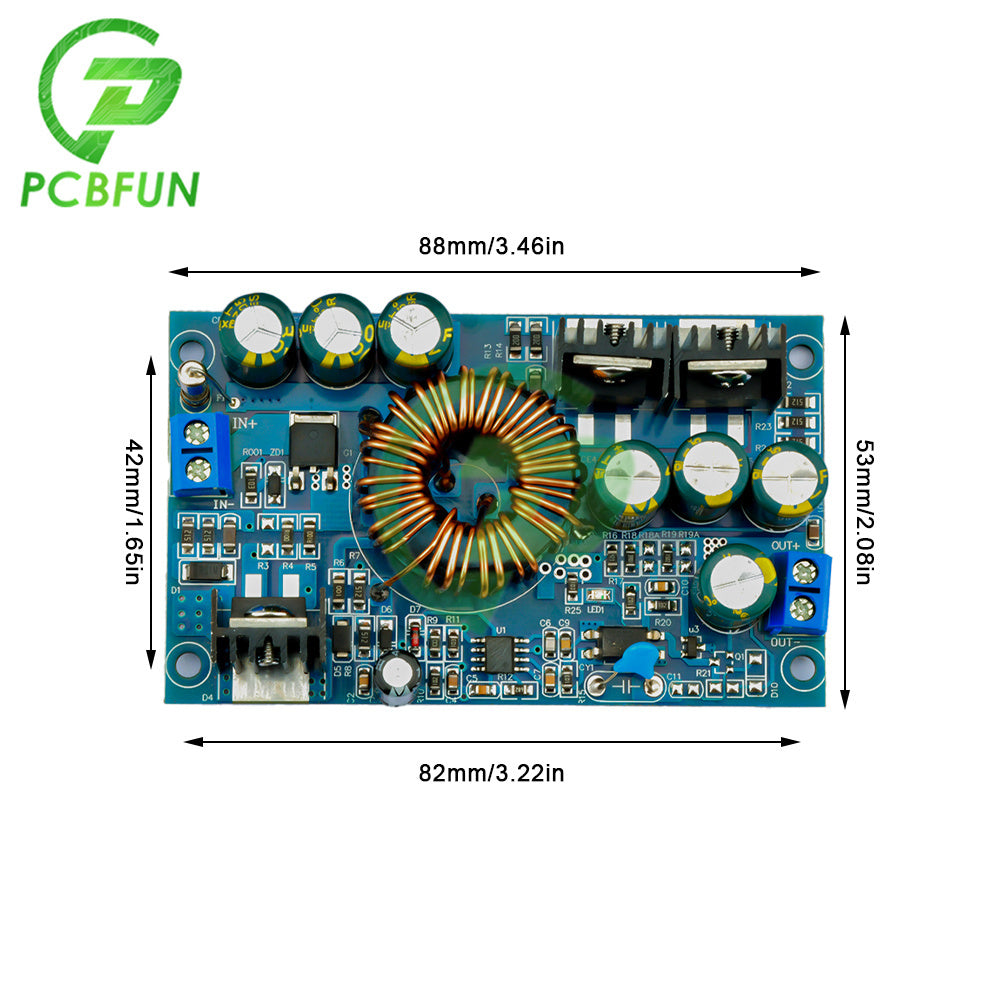

Product size: length 88* width 53* height 22mm
Packing method: electrostatic bag packing
Note:
1. This product is a constant voltage power supply and cannot be used in products that require constant current, such as charging batteries or driving LED lights with constant current. . . .
2. The power supply can be buck and regulated, and can also be boosted and regulated. For example, the output is 19 volts, and the input 12 volts-90 volts can be stable at 19V output. under boost conditions. The load capacity will be reduced by half.
