Input voltage DC 12V ~ 40V, maximum input current 50A (short circuit), recommended input voltage range DC 24V ~ 36V
The power supply used for heating must be large enough
Use protective power, do not use batteries or battery power
For long-term use, brass tubes with water must be used for cooling
This is mainly for heating
Note:
It is the working voltage, the input voltage when the coil is turned on or heated. It is not the no-load voltage. When 12V power supply, the current is not less than 20A; when 24V power supply, the current is not less than 30A; when 36V power supply, the current is not less than 50A. For long-term use, a brass tube with water must be used for cooling. The copper tube of the output port can be installed with a copper tube with a diameter of 10mm at most; when the copper diameter is not more than 4mm, the copper tube can be welded to the clamp, and then the copper tube can be fixed; when the diameter is not more than 2mm, the output terminal can be connected.
This model is mainly used for heating and is suitable for heating power below 300W.
Colour: Black
Material: PCB
feature:

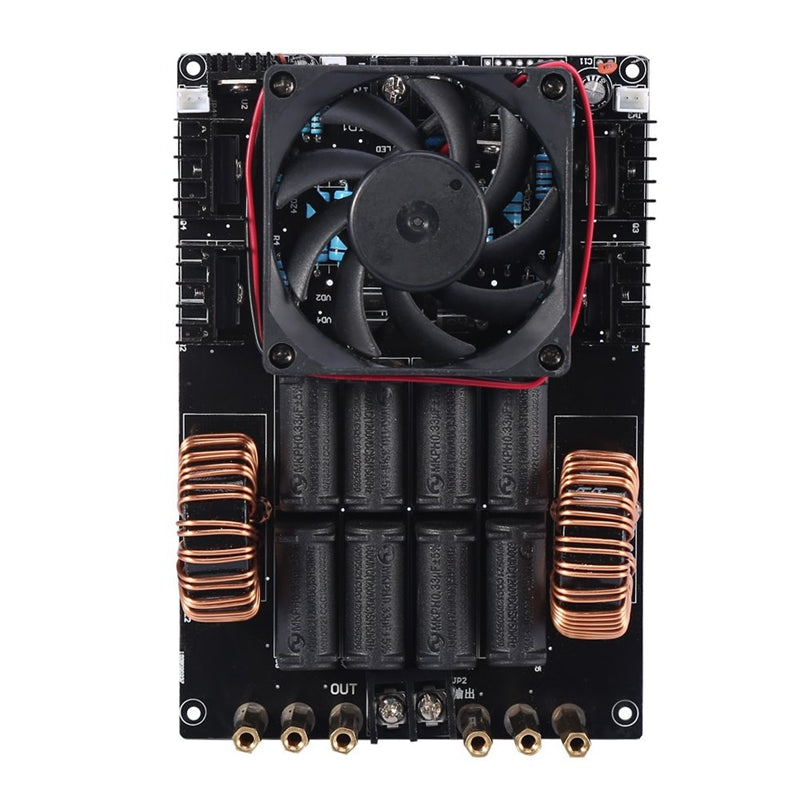

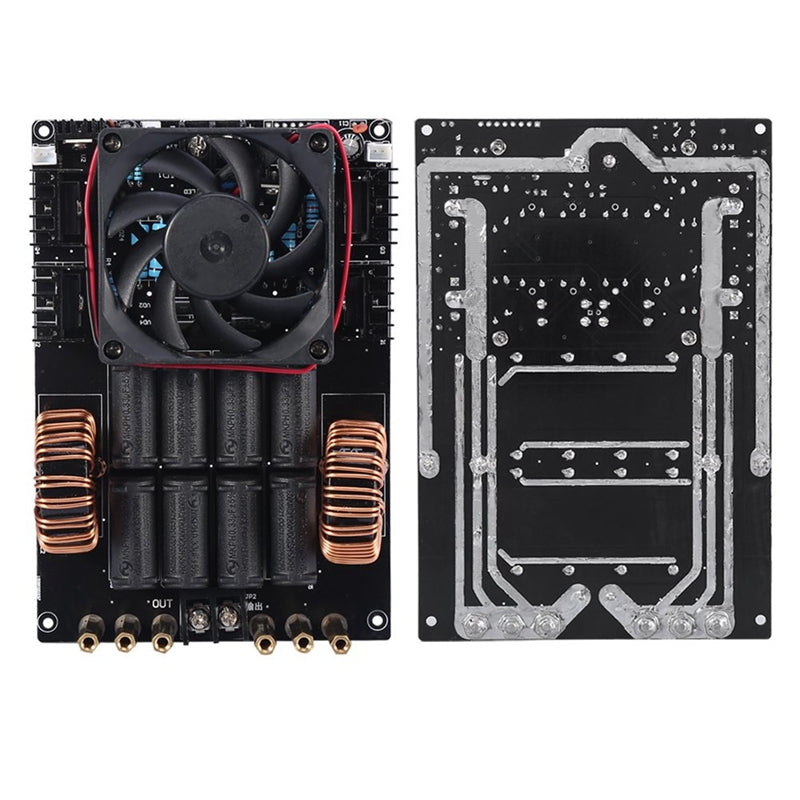

PCB board size: 165.1 x 112.41 x 1.6mm/6.5 x 4.4 x 0.063 inches
Input voltage DC 12V ~ 40V
Maximum input current 50A (short circuit)
Recommended input voltage range DC 24V ~ 36V
Weight: 780g
When used for heating power supply, the power supply must be large enough!

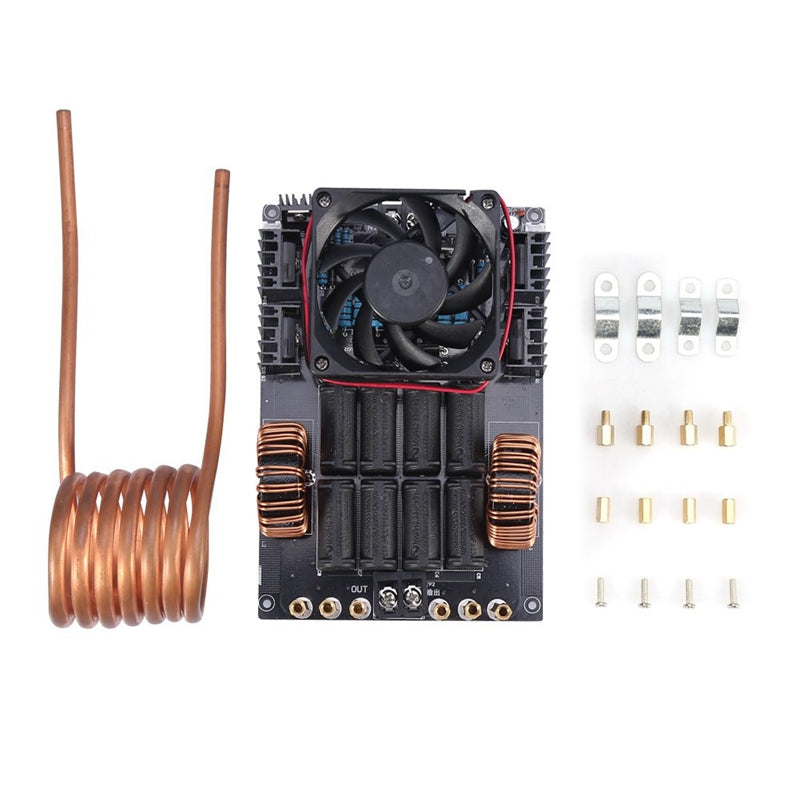

Package Contents:
1 x 50A/1000w ZVS induction heating machine product voltage
1 x 48V brass tube
1 set x brass cylinder and screws
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
