Specifications:
Working voltage: 6-60V

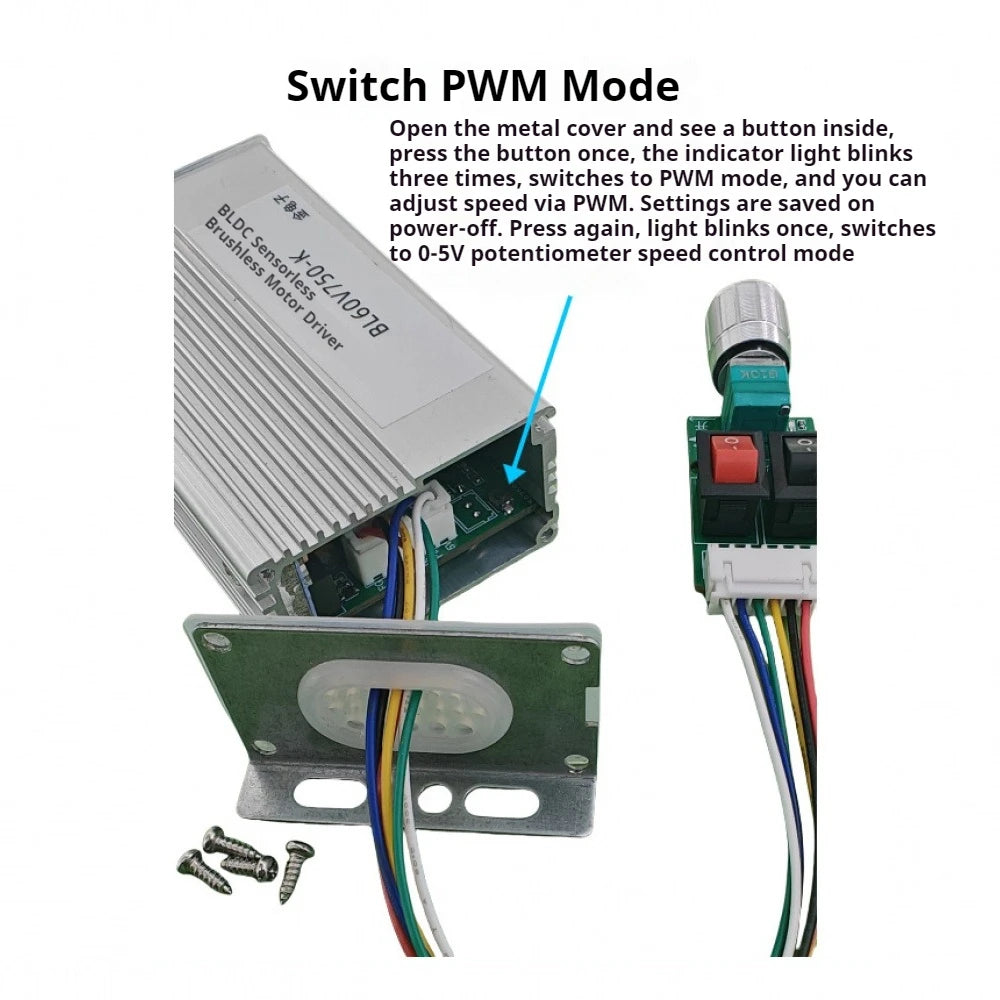

Control mode: 0-5V/PWM/potentiometer speed regulation
Peak current: 50A
Maximum long-distance current: 20A
Rated power: 500W
Peak power: 750W

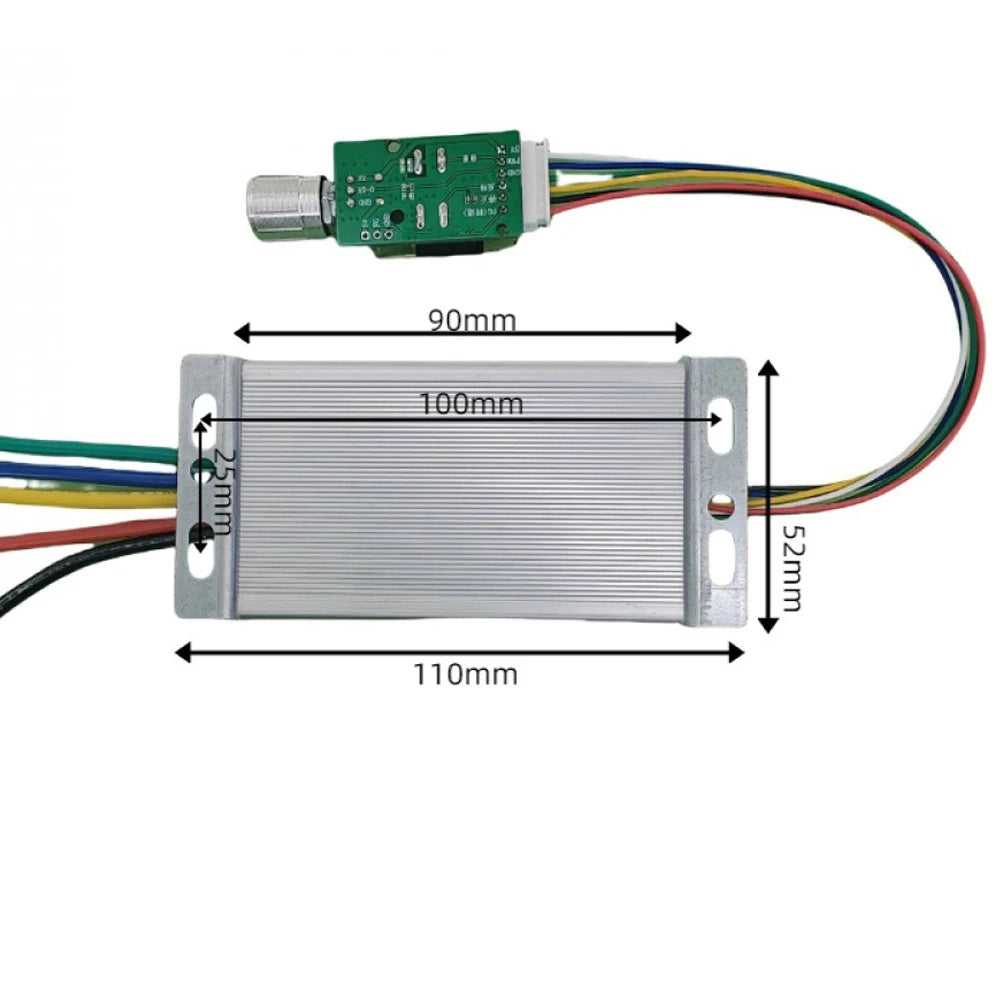

Dimensions: 11.1mm*52mm*31mm
Maximum speed: 130,000 RPM
Temperature protection: 100°C (85°C recovery)

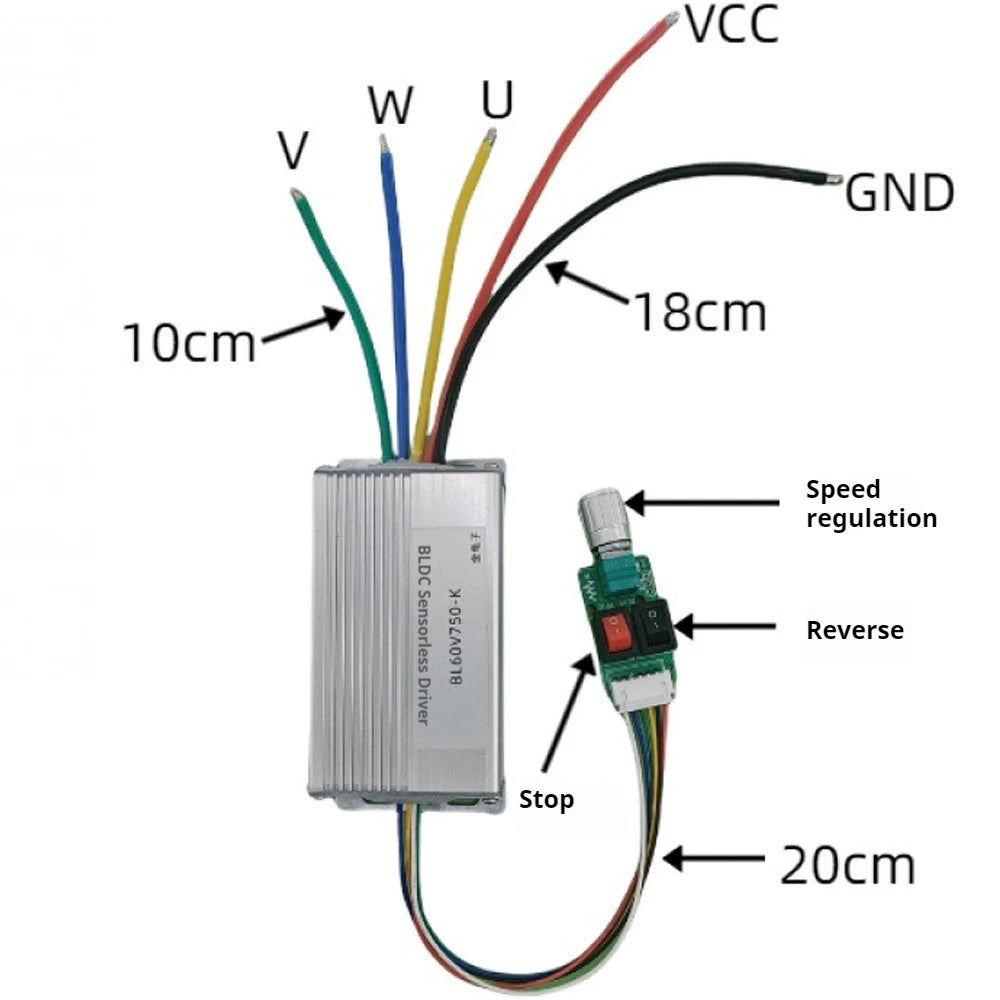

Others: Stop control/Forward and reverse control/FG rotational speed frequency output
Note:
1.Due to the light and screen difference, the item's color may be slightly different from the pictures.
2.Please allow 1mm-1cm differences due to manual measurement.
Package Included:
1x Motor Driver Module
