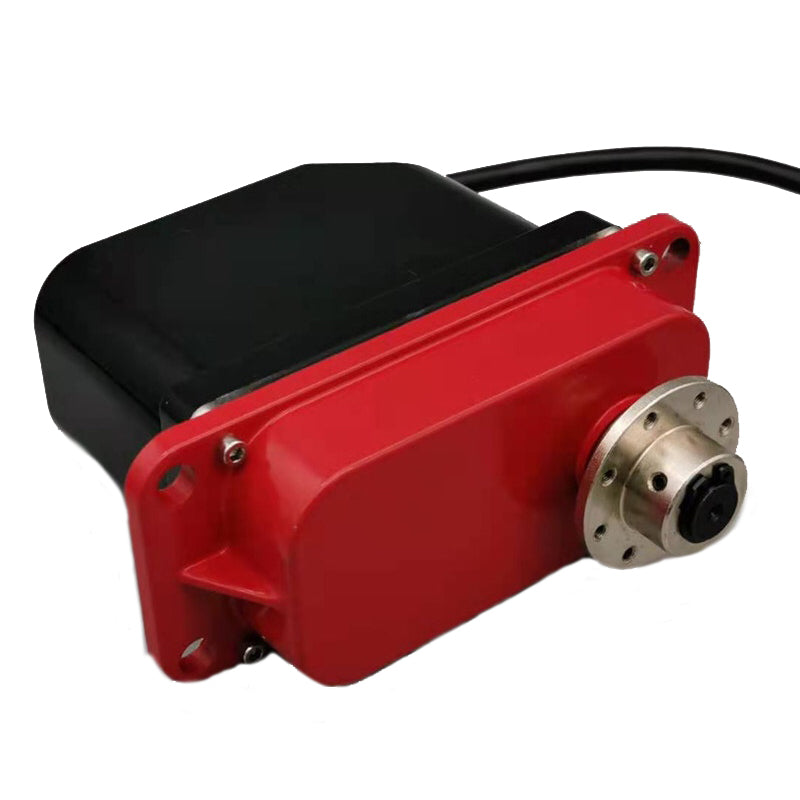

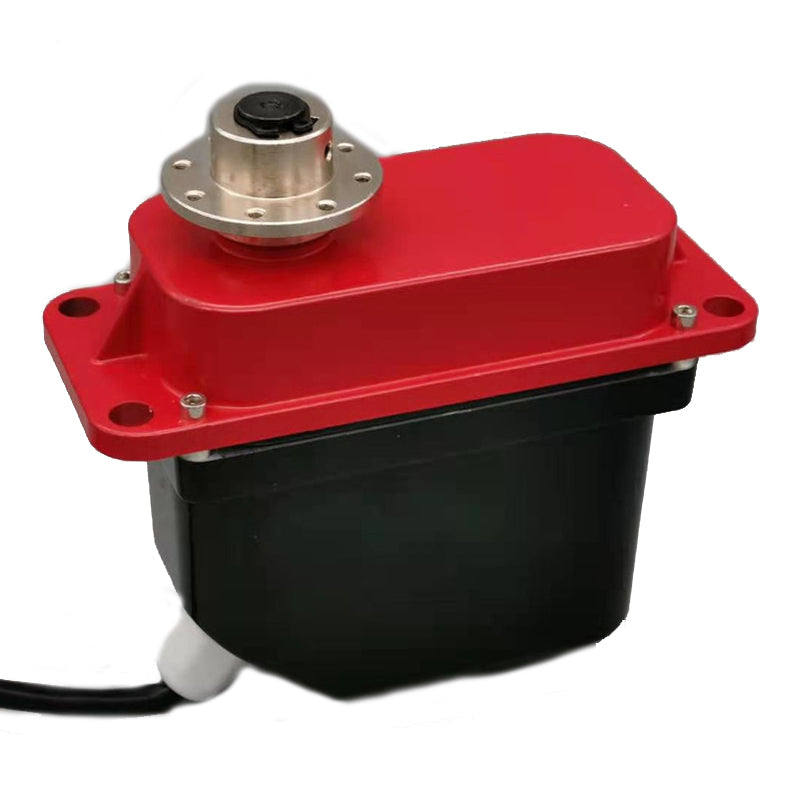

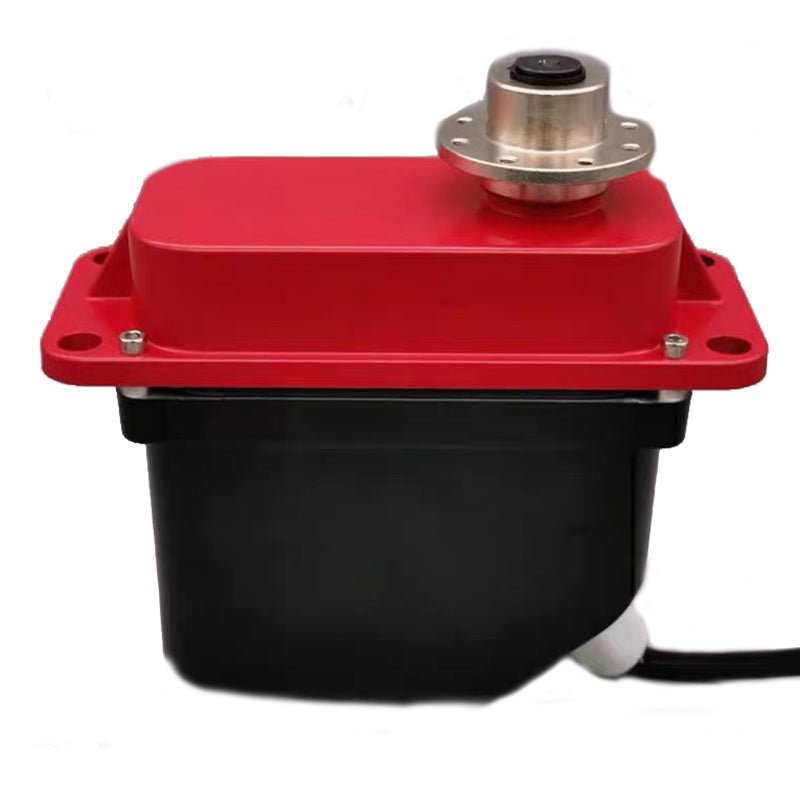

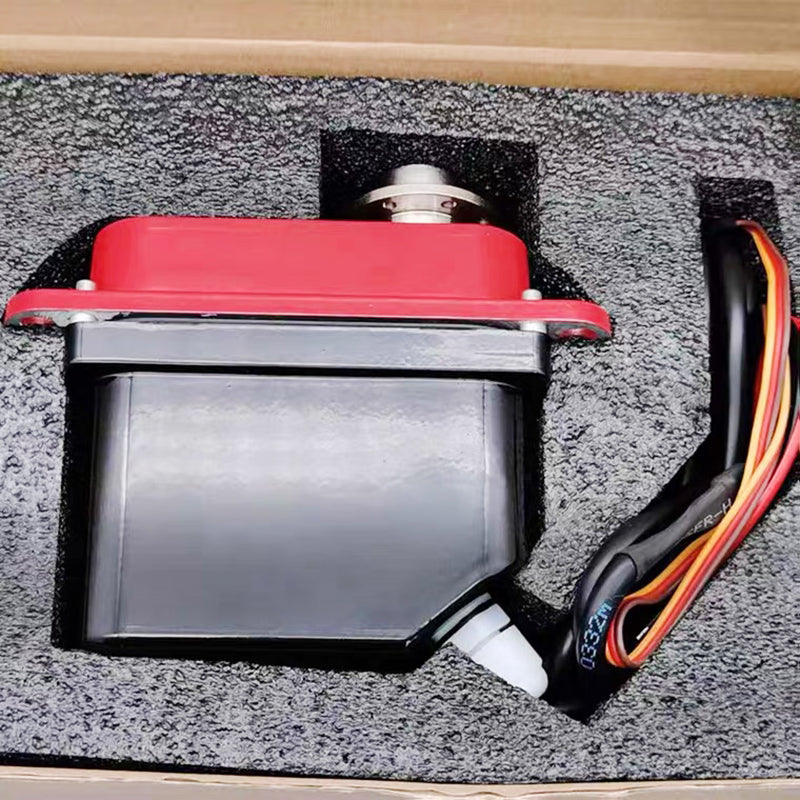

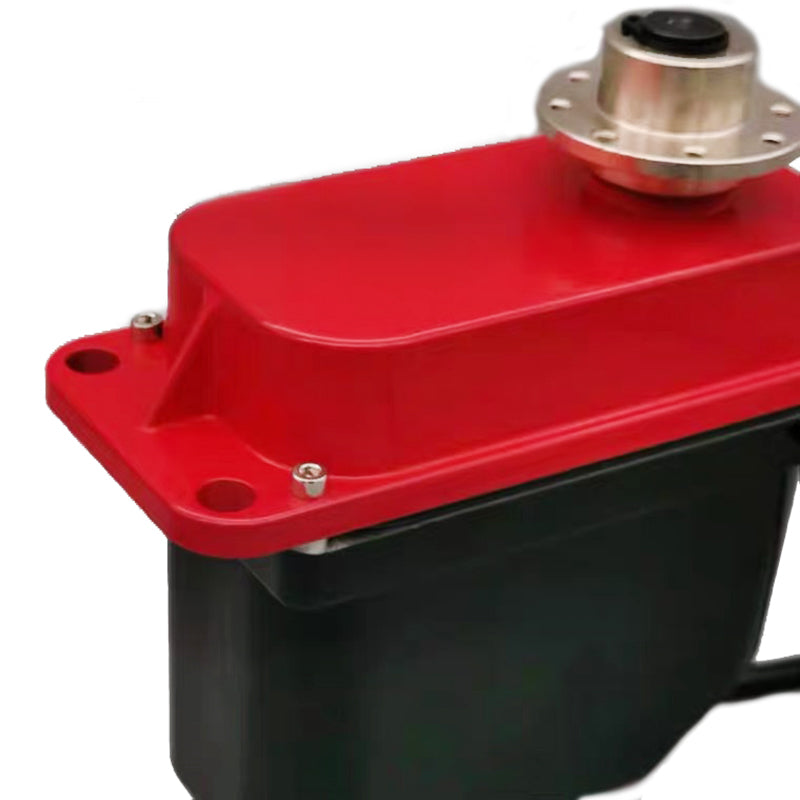

DDTS380 large 400KG/CM 24V power supply precision steering gear high torque industrial field FPV

-18%

DDTS380 large 400KG/CM 24V power supply precision steering gear high torque industrial field FPV

Name: DDTS380 large 400KG/CM 24V power supply precision steering gear high torque industrial field FPV
Brand: mickcara
SKU: c6a752-1-
Price: 225.77 USD
Availability: InStock

2 sold in last 8 hours

Brand: mickcara

Product Code: c6a752-1-

Availability: In stock

🔥BUY 3 GET 4th 50% OFF 🔥 CODE:MK50
🔥BUY 2 GET 3rd 35% OFF🔥 CODE: MK35
🔥BUY 1 GET 2nd 35% OFF🔥 CODE: MK20

$277.74 $225.77

Quantité:

Total: $225.77

283 customers are viewing this product

Tags:

Description

Rated voltage: DC 24V (12V-30V can work, 12V torque and speed are halved) (the lower the voltage, the lower the speed torque, and it will not work below 12V)

No-load current: < 500MA (the maximum load current is 5A, the actual current is related to the load. It is recommended to use a switching power supply or battery with 10A or greater than 10A, the larger the power supply current output capability, the better)

Angle: 1MS Mode: 1.0-2.0MS: 360 degrees

2MS mode: 0.5-2.5MS: 360 degrees (the default delivery is 2MS mode. The size of the pulse width determines the size of the angle. If you need other angles, please increase or decrease the pulse width by yourself or adjust the angle knob of the servo, the maximum is 360 degrees)

Control mode: PWM

(Pulse format: 50-333HZ. Period 20MS, pulse width 0.5-2.5MS. If it is 1MS mode, the pulse width is 1-2MS)

Material: gears and shafts: alloy steel, hardened steel, plastic nested steel (to reduce noise);

Shell: aluminum alloy

Speed: 0.55/60° (equivalent to 20RPM )

Mechanical life: >600000 times/ ( 30KG/CM )

Ultimate torque: 400KG/CM (tooth collapse load, it is not recommended to work at this torque)

Starting torque: 380KG/CM (short time work)

Conventional torque: 140KG/CM (can work for a long time)

Feedback method: magnetic coding feedback

Theoretical accuracy: 0.087° ( 4096 ) 12-bit IIC magnetic encoding chip feedback

Motor type: DC brushed motor

Initial position: The initial position is adjustable (the initial position is the middle position)
