er LS201 Single Side Laser Measure Insulated Double Triple
Pane Glass Air Space IG Thickness
I. LS201 Digital Glass Thickness Meter Introduction
Linshang LS201 digital glass thickness meter uses the optical reflection principle to measure the glass thickness on one side of the glass. It is especially suitable for the measurement where general measurement tools such as scales or vernier calipers that cannot or are not easy to operate. Such as the thickness measurement of laminated glass and hollow glass. For the measurement of laminated glass, the thickness of multilayer glass and intermediate air layer can also be measured at the same time. The instrument uses CCD detection, liquid crystal display. It also has simple operation, fast and reliable measurement.
LS201 laminated glass thickness gauge features
II. LS201 Digital Glass Thickness Meter Parameters
Measurement accuracy
± 0.1mm
Measurement range
Glass thickness 70mm，air layer thickness 45mm
Weight
330g
Battery
4 AAA alkaline dry batteries
Display
240 * 160 dot matrix LCD
Dimension
130mm×72mm×33mm (L*W*H)

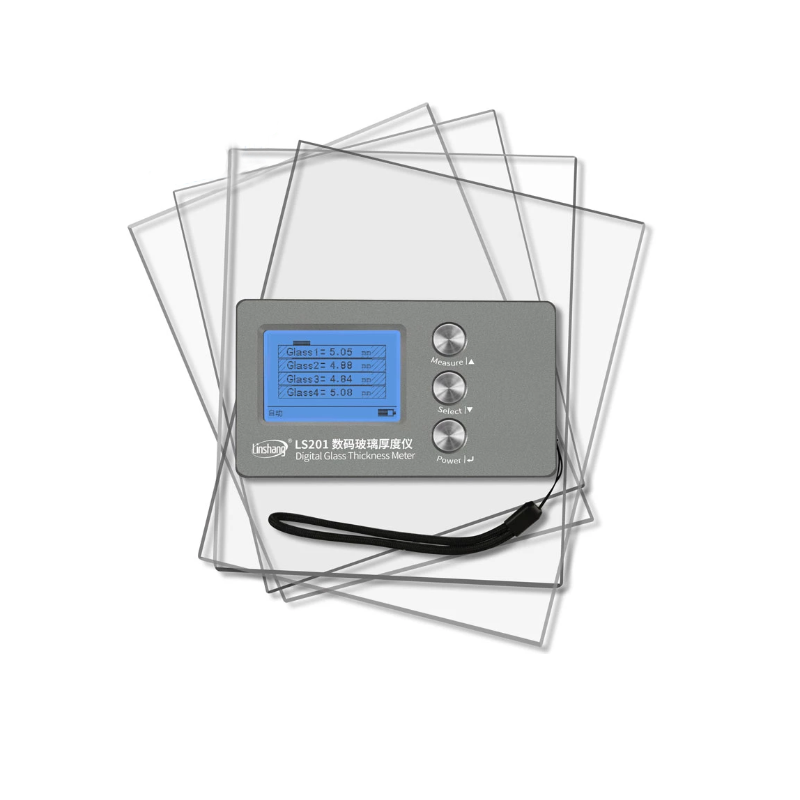

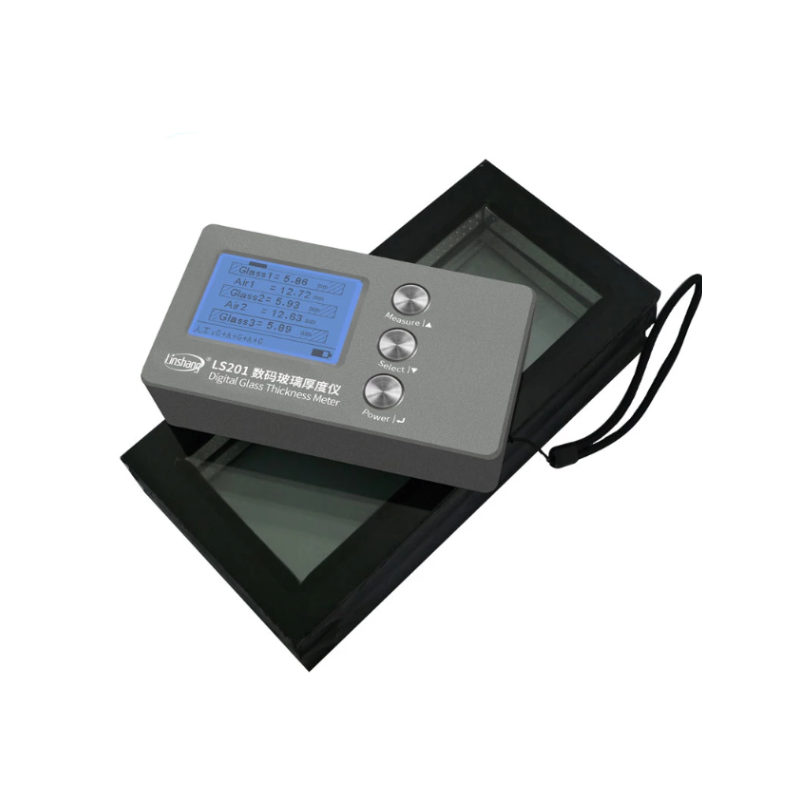

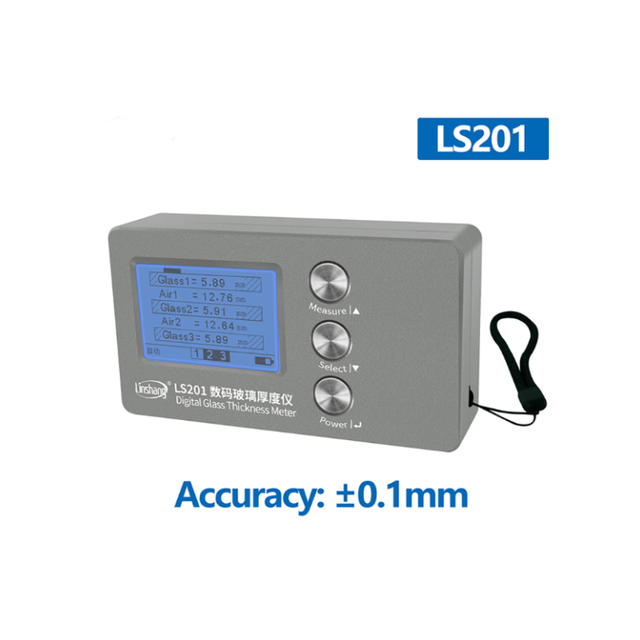

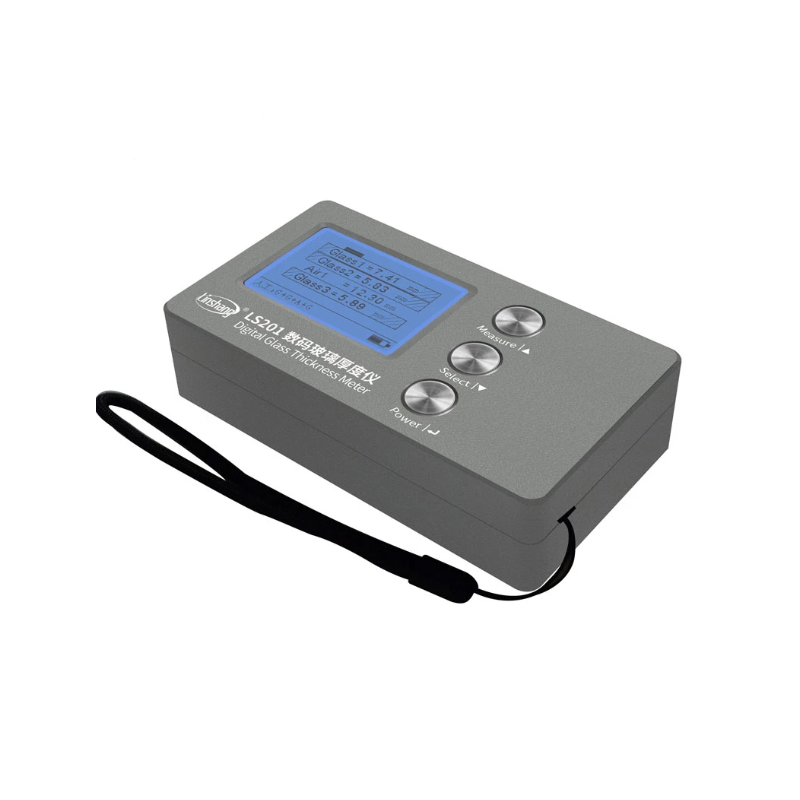

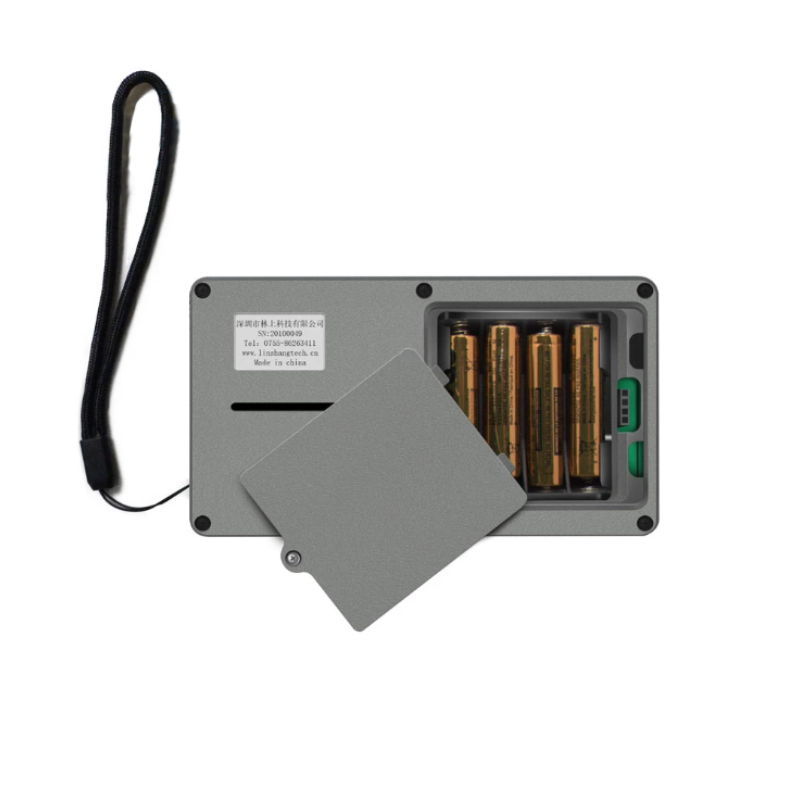

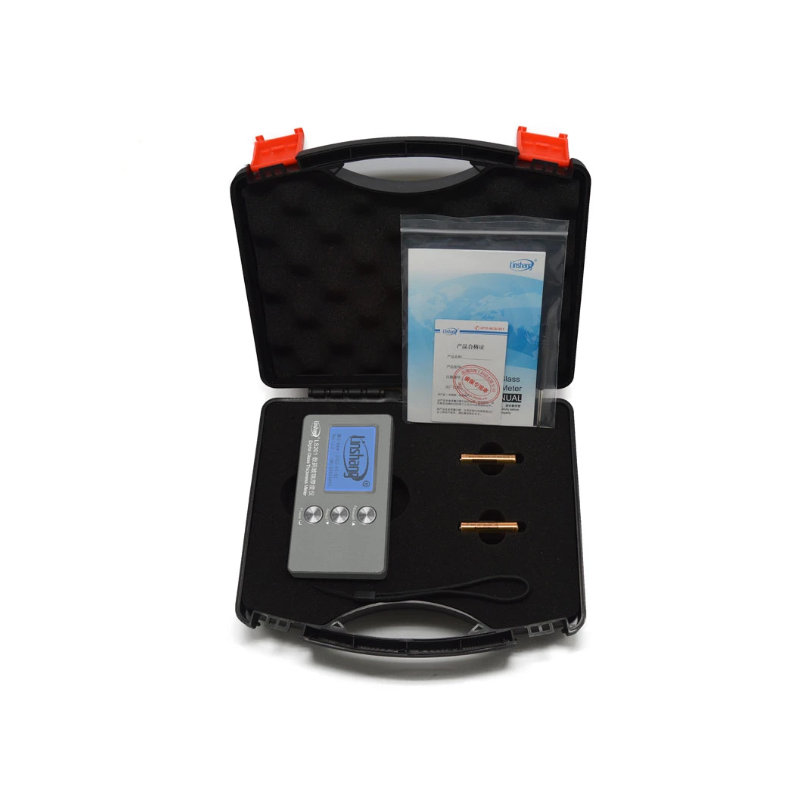

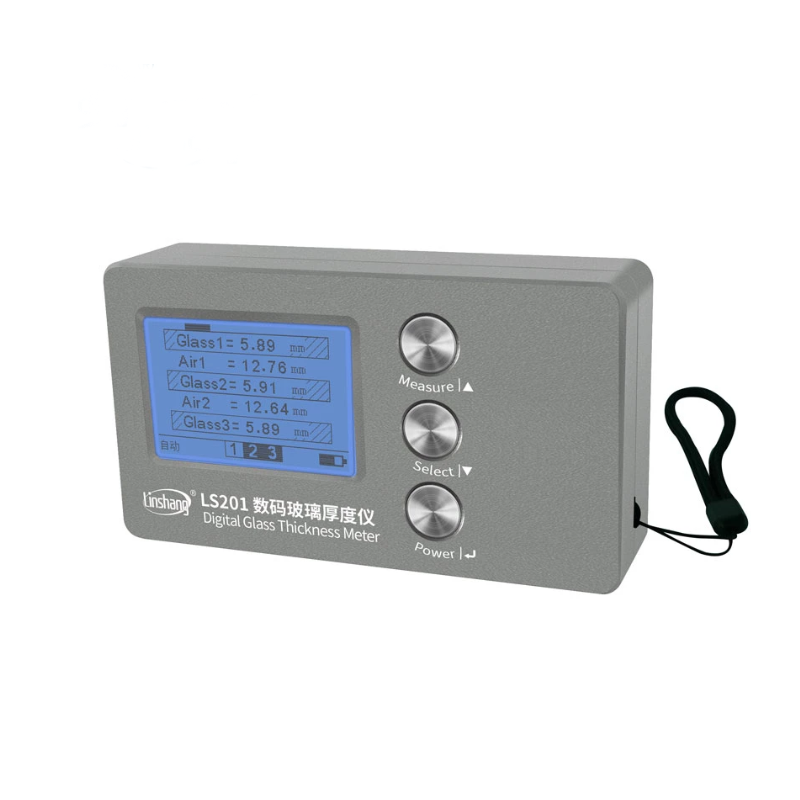

LS201 glass thickness meter appearance
III. LS201 Digital Glass Thickness Meter Characteristics
1. The digital glass thickness meter can nondestructively test the glass thickness. With laser reflection principle, the glass thickness can be measured on single side of the glass.
2. The accuracy of the glass thickness meter can be 0.1mm.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
