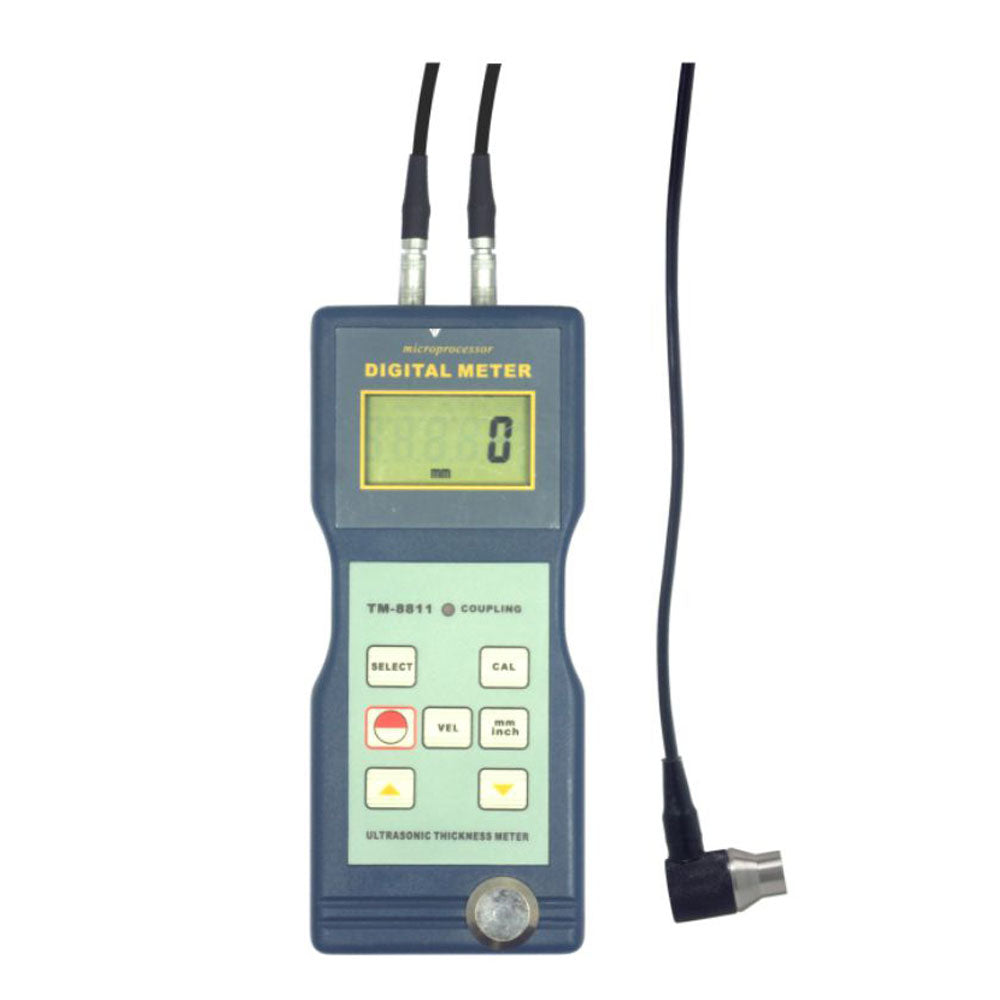

Ultrasonic Thickness Gauge

 Model : TM-8810

     Product Description

      Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.

     * Wide Measuring Range and high resolution. With high power emission and broad band receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.

    * Applicable to measure the thickness of many materials, e. g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.

    * Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.

    * Automatic power off to conserve power.

    * Digital display gives exact reading with no guessing or errors.

                      Display        4 Digit, 10 mm LCD                  Operating Principle        Ultrasonic                  Measuring Range (metric / Imperial)        1.2~200 mm / 0.05~8 inch                  Battery Indication        Low Battery Indication                  Sound Velocity        1000~9000 m/s                  Lower Limit Steel Pipes        Determined By Transducer                  Calibration Block        Included                  Resolution        0.1 mm                  Accuracy        ± (0.5%n + 0.2)                  Operating Conditions        Temperature: 0~40 °C, Humidity: < 85 %RH                  Power Supply        4 x 1.5 V AA (UM-3) Battery                  Dimensions        160 x 68 x 32 mm (5.5 x 2.8 x 1.2 inch)                  Weight        About 208 g (Not Including Batteries)

   Standard Accessories:

   1. Main Unit

   2. 5M/8 Standard Sensor

   3. Coupling Agent

   4. Carrying Case

   5. Operating Manual

   Optional Accessories:

   1. 6M /  6 mm thin Material Probe: Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C

   2. 5M /  12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C

   3. Curved Surface Probe

     Packaging & Shipping

     1 unit is 1kg. carton size: 26*26*8.5cm
