DIY Drone 560mm Carbon Fiber Foldable Frame With 700KV Brushless Motor 40A ESC 1455 Propellers APM2.8 With compass RC Helicopter

      Frame kit is unassembly,any quesions , pls contact us freely .

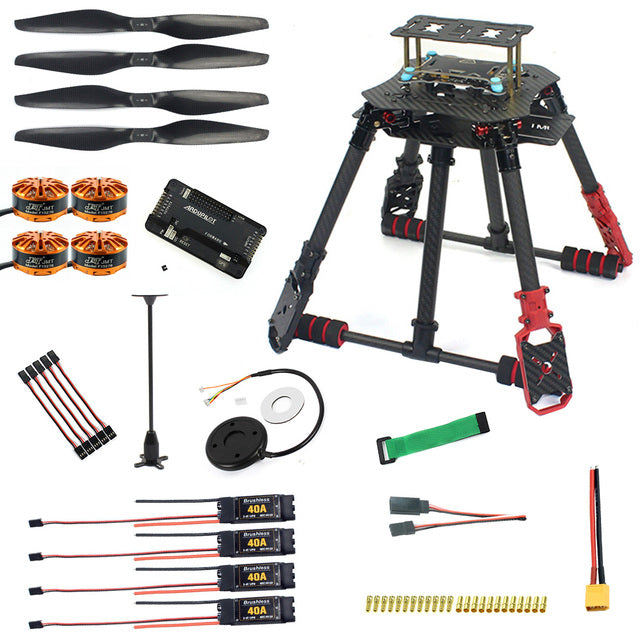

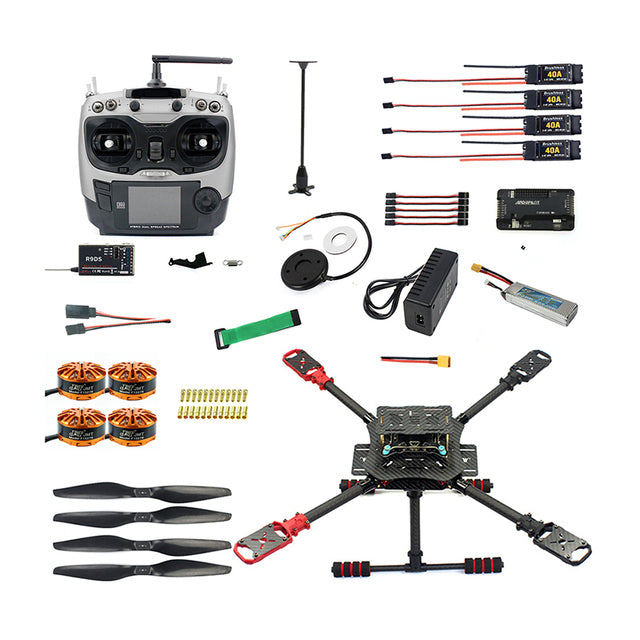

     Set B package included :

     Carbon fiber folding frame kit x1

     HYD3508 700kv brushless motor x4

     1455 carbon fiber propeller x2

     XT60 cable x1

     black reverse buckle tie x1

     Non-folding Landing gear x1

     Antenna Holder x1

     GPS X1

     APM2.8 With compass X1

     MWC connection cable X5

     15cm Servo extention cable x1

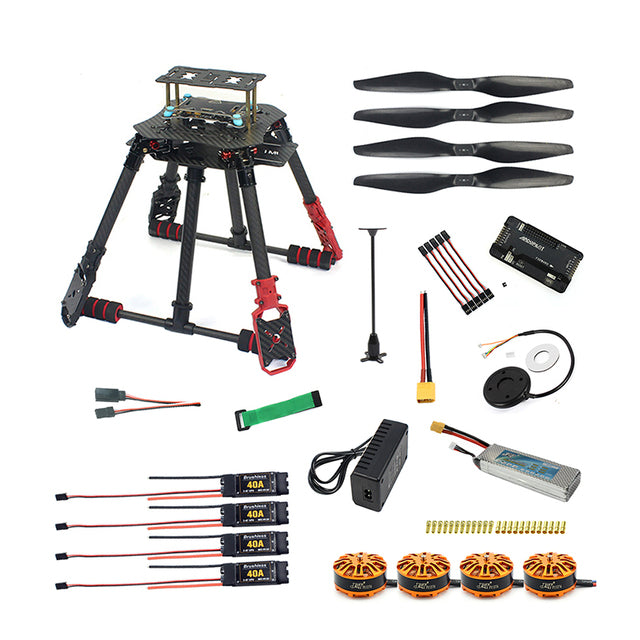

     Set C package included :

     Carbon fiber folding frame kit x1

     HYD3508 700kv brushless motor x4

     1455 carbon fiber propeller x2

     XT60 cable x1

     black reverse buckle tie x1

     Non-folding Landing gear x1

     Antenna Holder x1

     GPS X1

     APM2.8 With compass X1

     MWC connection cable X5

     15cm Servo extention cable x1

     11.1V 4400MAH XT60 Battery x1

     B3 pro Charger x1

     Set D package included :

     Carbon fiber folding frame kit x1

     HYD3508 700kv brushless motor x4

     1455 carbon fiber propeller x2

     XT60 cable x1

     black reverse buckle tie x1

     Non-folding Landing gear x1

     Antenna Holder x1

     GPS X1

     APM2.8 With compass X1

     MWC connection cable X5

     15cm Servo extention cable x1

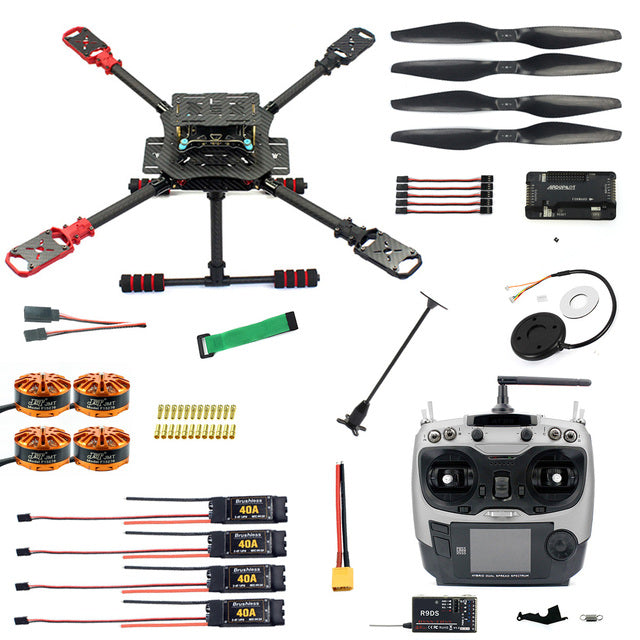

     Radiolink AT9S Radio with RD9S Receiver  x1

    Set E pacakge included :

    Carbon fiber folding frame kit x1

    HYD3508 700kv brushless motor x4

    1455 carbon fiber propeller x2

    XT60 cable x1

    black reverse buckle tie x1

    Non-folding Landing gear x1

    Antenna Holder x1

    GPS X1

    APM2.8 With compass X1

    MWC connection cable X5

    15cm Servo extention cable x1

    Radiolink AT9S Radio with RD9S Receiver  x1

    11.1V 4400MAH XT60 Battery x1

    B3 pro Charger x1

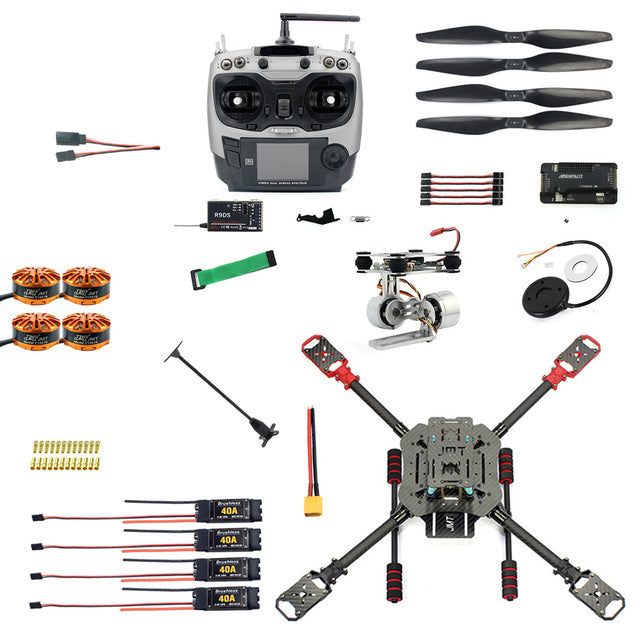

    Set F pacakge included :

    Carbon fiber folding frame kit x1

    HYD3508 700kv brushless motor x4

    1455 carbon fiber propeller x2

    XT60 cable x1

    black reverse buckle tie x1

    Non-folding Landing gear x1

    Antenna Holder x1

    GPS X1

    APM2.8 With compass X1

    MWC connection cable X5

    15cm Servo extention cable x1

    Radiolink AT9S Radio with RD9S Receiver  x1

    Gimbal x1

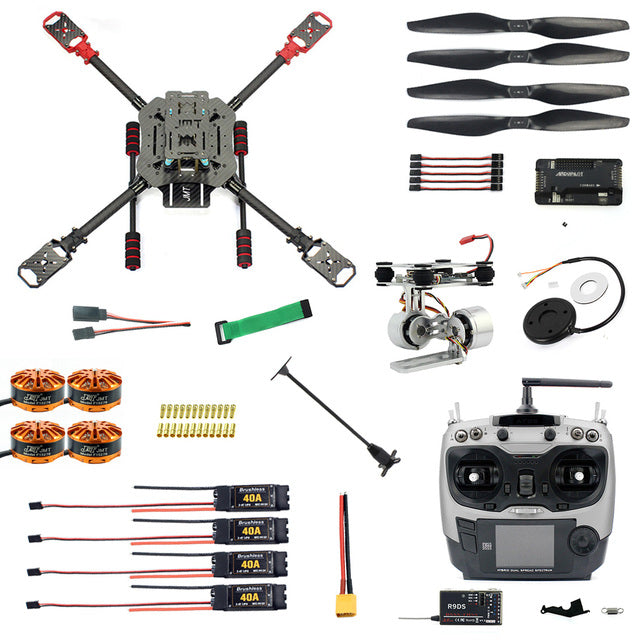

    Set G pacakge included :

    Carbon fiber folding frame kit x1

    HYD3508 700kv brushless motor x4

    1455 carbon fiber propeller x2

    XT60 cable x1

    black reverse buckle tie x1

    Non-folding Landing gear x1

    Antenna Holder x1

    GPS X1

    APM2.8 With compass X1

    MWC connection cable X5

    15cm Servo extention cable x1

    Radiolink AT9S Radio with RD9S Receiver  x1

    Gimbal x1

    More Details :

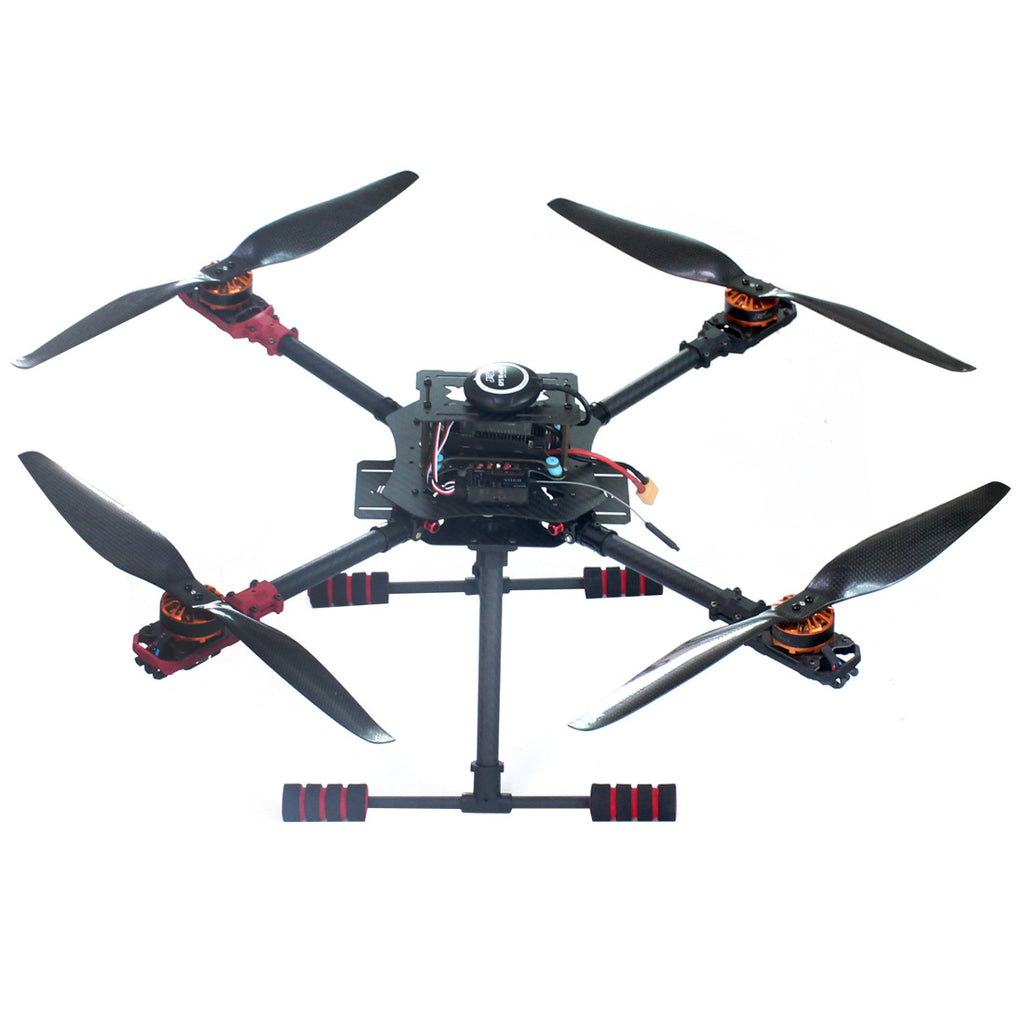

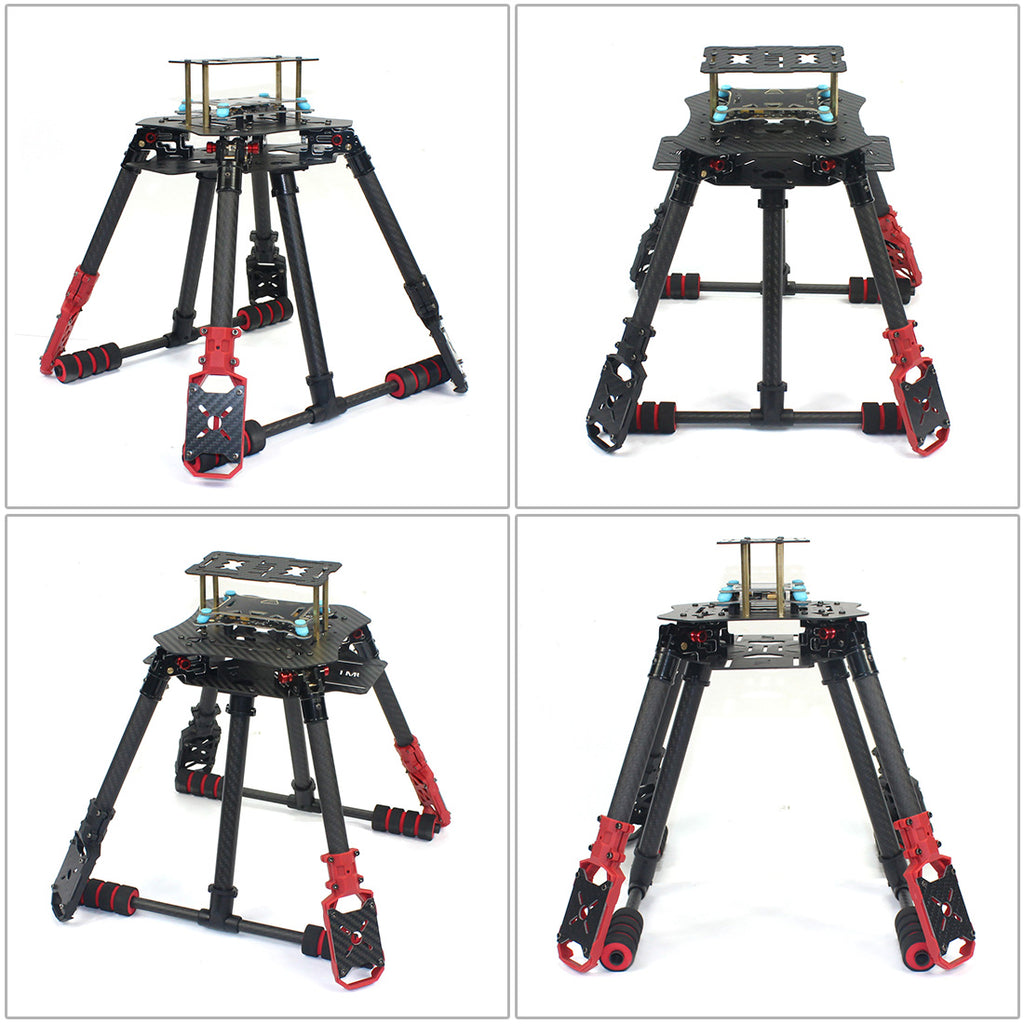

    Frame kit:

         Wheelbase: 560mm

     Fit for Motor:2212-3508(920kv - 700kv)

     Fit for ESC: 20A-40A

     Height of the Landing Skid: 190mm

     Fit for Propeller: 10-12 inch

    Propeller:

    High quality 100% 3K all carbon fiber board which imported from Japan improve material.

    Each pair of propellers has perfect dynamic poise and static balancing which balance by manpower.

    Especially improves the air-powered efficiency and aerofoil stability.

    High quality ultra-light carbon fiber propellers especially designed for multicopters.

    Carbon fiber forward propeller*1

    Carbon fiber reverse propeller*1

    Length:14inch,Pitch 5.5,Main Hole Dia 4mm,Side Holes Dia 3mm,Center distance 12mm

    Motor:

    Motor KV: 700KV

    Shaft: 4.0mm

    No-load Currency (A): 0.4A

    Maximum Currency (A): 18.0A

    Power: 198W

    Weight: about 90g

    Input Voltage: 2-4S LOPO

    Suitable Propeller: 12"-15" Props

    ESC:

    Types: long, short

Current:  40A

Output capacity: continuous current 40A, short-time current 55A (not less than 10 seconds)

Power input: 2-4 lithium batteries(Not Included)

BEC output: 5V@3A (linear regulator mode - linear mode)

Maximum speed: 210,000 rpm for 2-pole motor, 7000 rpm for 6-pole motor, 35,000 rpm for 12-pole motor

Size: (Approx) 68x25x8mm

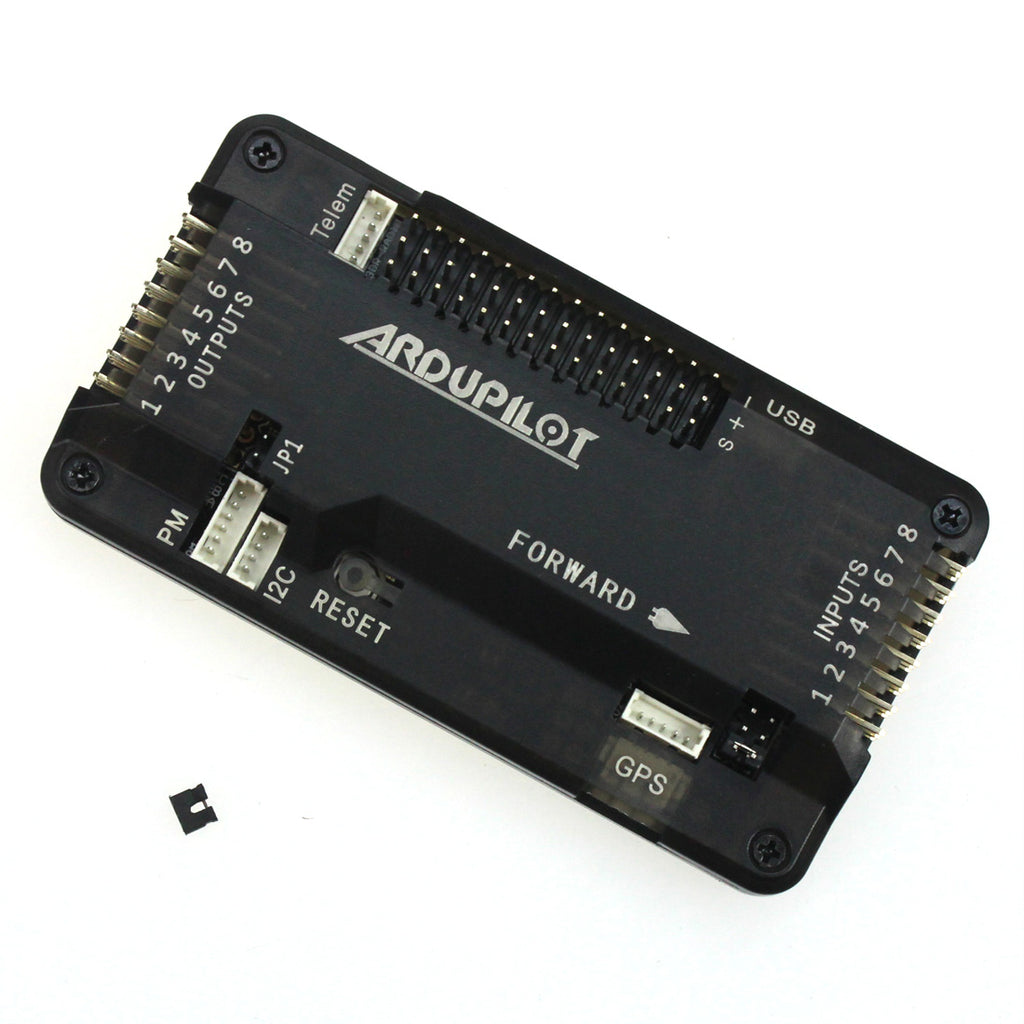

    APM2.8

    - Arduino Compatible!

    - Can be ordered with top entry pins for attaching connectors vertically, or as side entry pins to slide your connectors in to either end horizontally

    - Includes 3-axis gyro, accelerometer and magnetometer, along with a high-performance barometer

    - Onboard 4 MegaByte Dataflash chip for automatic datalogging

    - Optional off-board GPS, uBlox LEA-6H module with Compass.

    - One of the first open source autopilot systems to use Invensense's 6 DoF Accelerometer/Gyro MPU-6000.

    - Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.

    - Atmel's ATMEGA2560 and ATMEGA32U-2 chips for processing and usb functions respectively.

    Charger :

    Input Voltage : 100 - 240V AC50 / 60Hz

         Output Current: 3*800mA

         Suitable for 2 cell and 3 cell Li-Po Batteries

         Led Indicator:

         When power is on : Orange

         Stand by mode : Green

         Battery Charging : Red

    Battery Full : Green

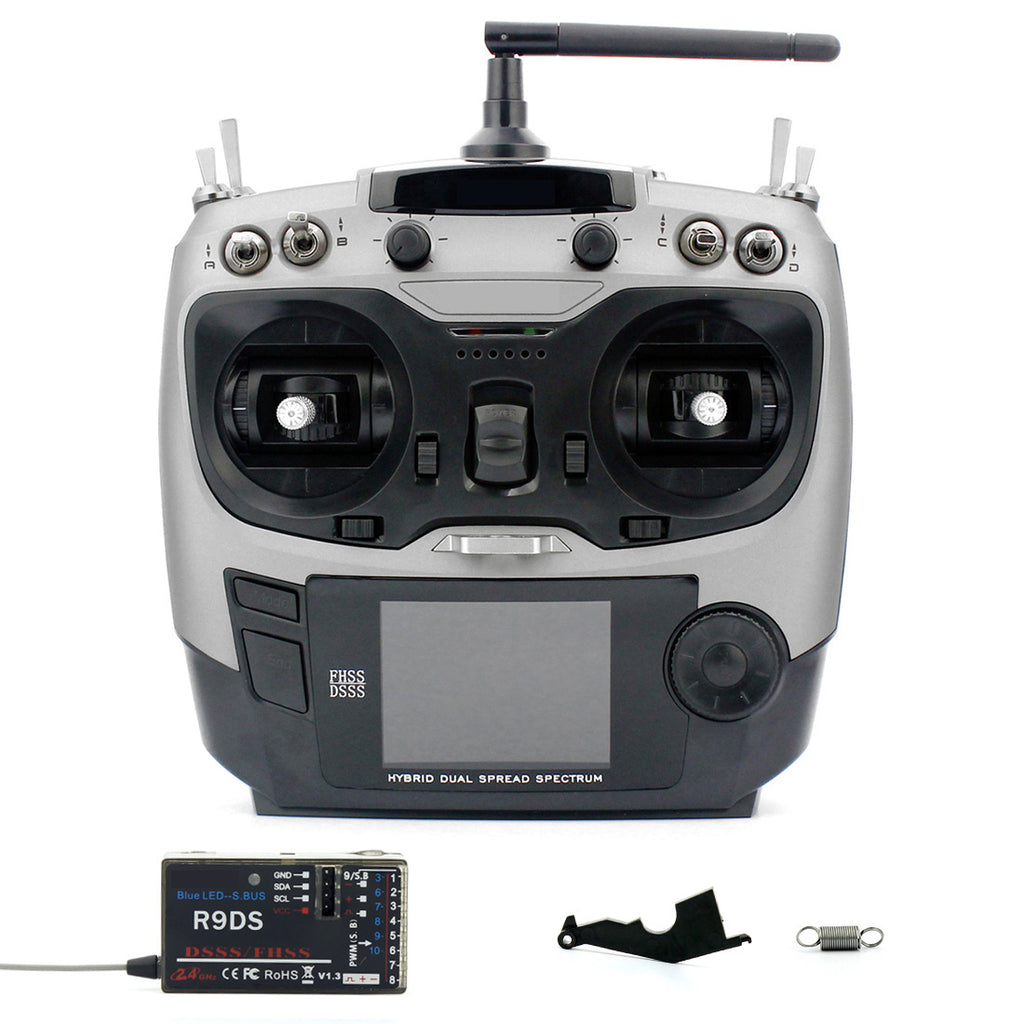

    AT9S Transmitter :

    Channels: 10ch/12ch

    Mode: Mode 1 or Mode 2

    Signal: SBUS/PWM/PPM/CRSF

    Frequency: 2.4GHz ISM bands (2400MHz to 2483.5MHz)

    Channel Bandswidth: 5.0 MHz

    Spread Spectrum: DSSS&FHSS/CRSF

    Modulation Mode：QPSK

    Adjacent Channel rejection: >38dbm

    Transmission Power:

    DSSS & FHSS  <100mW(20dbm)

    CRSF: 10mW/25mW/100mW/500mW/1W/2W(Optional)

    Operating Current: DSSS&FHSS < 90mA@12V

    CRSF  Depends on the transmission power selecte

    Operating Voltage: 7.4~18.0V

    4096 Section Precision

    Screen: 2.8 inches 16 colorful screen, 240*320 pixels

    Channel: 10 channels , 5-10 channels are customized

    Size: AT9S- 183*100*193mm

    Weight: 0.88kg

    Control Range: DSSS&FHSS - 4KM in the air (Maximum range is tested in an unobstructed area free of interference)

    Compatible receivers:

    12CH - R12DSM, R12DS,

    10CH- R9DS, R6DS,R6DSM

    CRSF: RX from BLACKSHEEP

    R12DSM Receiver Specifications

    Signal: SBUS/PPM

    Channel: 12CH

    Control Distance: 4000m on air

    Working Voltage: 4.8-6V

    Working Current: 40-180mA（input voltage: 5V）

    Size: 30*15mm

    Weight: 2.5g

    Gimbal:

    - Simple structure and light weight,CNC aluminum alloy structure

- Brushless motor direct drive

- With anti-vibration rubber balls,easy to adjust

- Compatible with Gopro3+, 3,2,1

- with 2pcs 2208 motors and V3 gimbal controller,sensor

- with motor protector which can help heat dissipation

- gimbal weight: 400g

    Note:

1.This gimbal is not include gopro 3.

2.Users need learn how to install the component and test its effects.

It's will get better results after a period of testing.

    3.Assembled tuning good, no assembly instructions
