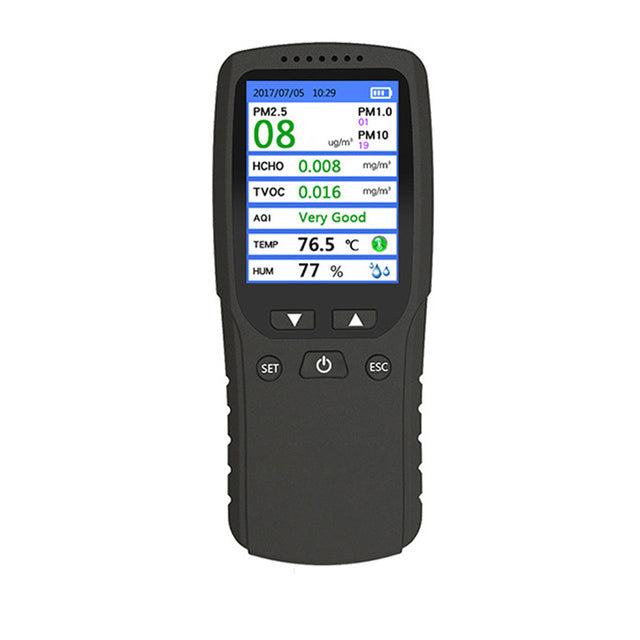

DM106A Portable Multi-Function Gas Detector PM2.5 Formaldehyde(HCHO) Air Quality Monitor Analyzer Meter Dust Sensor USB Charge

           Product Description:

      This product is a multifunctional air quality detector that detects Formaldehyde (HCHO), Total Volatile Organic Compounds (TVOC), Particulate Matter <2.5 micron-sized particles (PM2.5/1.0/10), Temperature, and Humidity with clock and record function. As a scientific air quality detection device, it combines multiple 4 high-precision independent air sensors with a built-in fan to allow real-time monitoring of formaldehyde (HCHO), total volatile organic compounds (TVOC), PM2.5/1.0/10, temperature, and humidity on its digital LCD display.

           Product Specifications:

      Display method: 2.8'' LCD screen display, 320 x 240 pixels

Atmospheric pressure: 86Kpa - 106Kpa

Detection method for PM: Laser Scattering

Sampling time: 1.5 seconds

Product Size: 164 x 69 x 44 mm

Detection temperature: -10°C to 50°C; 14°F to 122°F

Relative humidity: 20% - 85%

Storage temperature: -10°C to 60°C; 14°F to 140°F

Concentration unit for PM (PM2.5/1.0/10) : ug/m³

Concentration unit for HCHO and TVOC: mg/m³

Power source: Lithium battery with 2000 mAh capacity; 5V DC power charging via micro USB port

Product weight: 183g

           Features:

      -2.8'' color liquid crystal display (LCD), 320x240 pixels

-Test variables: PM2.5/1.0/10, formaldehyde, TVOC, temperature, humidity

-Large 2000mAh capacity Lithium battery

-On-board fan to draw in ambient air for more accurate real-time results

-5V Micro USB charging

-Low battery warning

HCHO (formaldehyde) ideal range: <=0.10 mg/m3(0.08 ppm/m3)

TVOC ideal range: <= 0.6 mg/m3(0.45 ppm/m3)

The formaldehyde alarm threshold is 0.1 mg/m3. If levels of HCHO exceed this alarm threshold, the device will alarm with short beeps.

(4) About Charging

When low battery icon is displayed, the device needs to be charged. Insert the included or another compatible micro USB charging cable into the device. Attach the other end to a USB DC charger (such as a smartphone charger) that outputs DC 5V at >=1000mA. Fully charge for at least 2-3 hours before use. Avoid charging with a USB computer port which only outputs 500mA.

(5) Technical Parameter

PM2.5/PM1.0 /PM10 detection

Detection principle: Laser scattering principle

Number of test particles: 2.5um, 1.0um, 10um

Detection method: concentration (per liter)

Detection range: 0-999ug /m³

-Formaldehyde detection

Detection range: 0-1.999mg /m³

Detection Technology: Semiconductor sensor

Adopt Method: diffuse collection

Concentration unit: mg /m³

-TVOC detection

Detection range: 0.000-9.999ma / m³

Detection Technology: Semiconductor

Sensing Technology Sampling technology: diffusion collection

Concentration unit: mg/m³

           Packing List:

      Air Quality monitor x 1

Micro USB charging cable x 1

Product Manual x 1
