Product Features

     # Separable design ,4.3 inch screen canbe used as small monitor on radio controller or with tripod

     # High brightness 4.3 inch LCD specially tuned for FPV racing or Model airplane

     # Buit-in super sensitiveness 5.8GHz 40ch receiver,especially with RaceBand.

     # Come with advanced auto-searching function ad show yout the working frequency on screen

     # Buit-in 3.7V/2000mA battery ,each full charge revive around 2 hours woking time

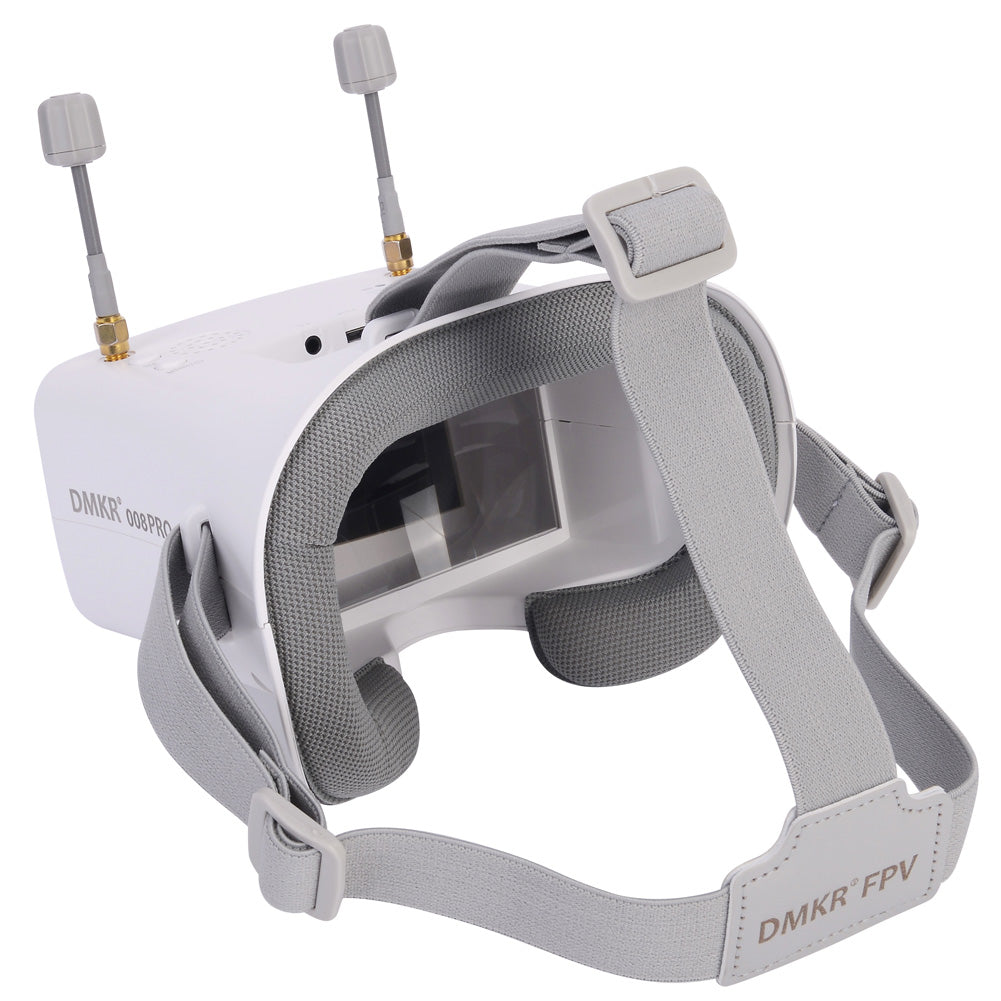

     # Ergonomic design fit your faces

     # 92%transparent lens adopted ,no distort,no blur on the adage of screen;

     # Light weight 375g with 2hr 2000mAh battery,RTF for any scale,racing ,Model airplane game

     # 4.3 inch 480*320px HD high brightness LCD

     Product Specification:

     Body

     Dimension: 155x144x113mm

     Weight: 375g with 2hr 2000mAh battery

     Belt: three-Ways adjustable belt

     Screen

     screen size: 4.3 inch

     Screen resolution:480*320(No blur after

enlarge by the lens)

     Screen brightness; 300cd/m2 with special

high brightness backlight LED for outdoor FPV

     View Angle: 12 O’CLOCK

     Lens

     2.8x boost of the video to acquire intense

feel-in-there video

     92% transparent rate no distort of light

     Band and Channel selection

                          CH

        CH 1

        CH 2

        CH 3

        CH 4

        CH 5

        CH 6

        CH 7

        CH 8

                      GROUP

                      A

        5865 MHZ

        5845 MHZ

        5825 MHZ

        5805 MHZ

        5785 MHZ

        5765 MHZ

        5745 MHZ

        5725 MHZ

                      B

        5733 MHZ

        5752 MHZ

        5771 MHZ

        5790 MHZ

        5809 MHZ

        5828 MHZ

        5847 MHZ

        5866 MHZ

                      D

        5705 MHZ

        5685 MHZ

        5665 MHZ

        5645 MHZ

        5885 MHZ

        5905 MHZ

        5925 MHZ

        5945 MHZ

                      E

        5740 MHZ

        5760 MHZ

        5780 MHZ

        5800 MHZ

        5820 MHZ

        5840 MHZ

        5860 MHZ

        5880 MHZ

                      R

        5658 MHZ

        5695 MHZ

        5732 MHZ

        5769 MHZ

        5806 MHZ

        5843 MHZ

        5880 MHZ

        5917 MHZ

     Product Specification:

     Dimension: 155x144x113mm

     Weight: 375g with 2hr 2000mAh battery

     Belt: three-Ways adjustable belt

     creen size: 4.3 inch

     Screen resolution: 480*320(No blur after enlarge by the lens)

     Screen brightness; 300cd/m2 with special high brightness backlight LED for outdoor FPV

     View Angle: 12 O’CLOCK

     px progressive

     Support up to 32G TF card (C10 recommend)

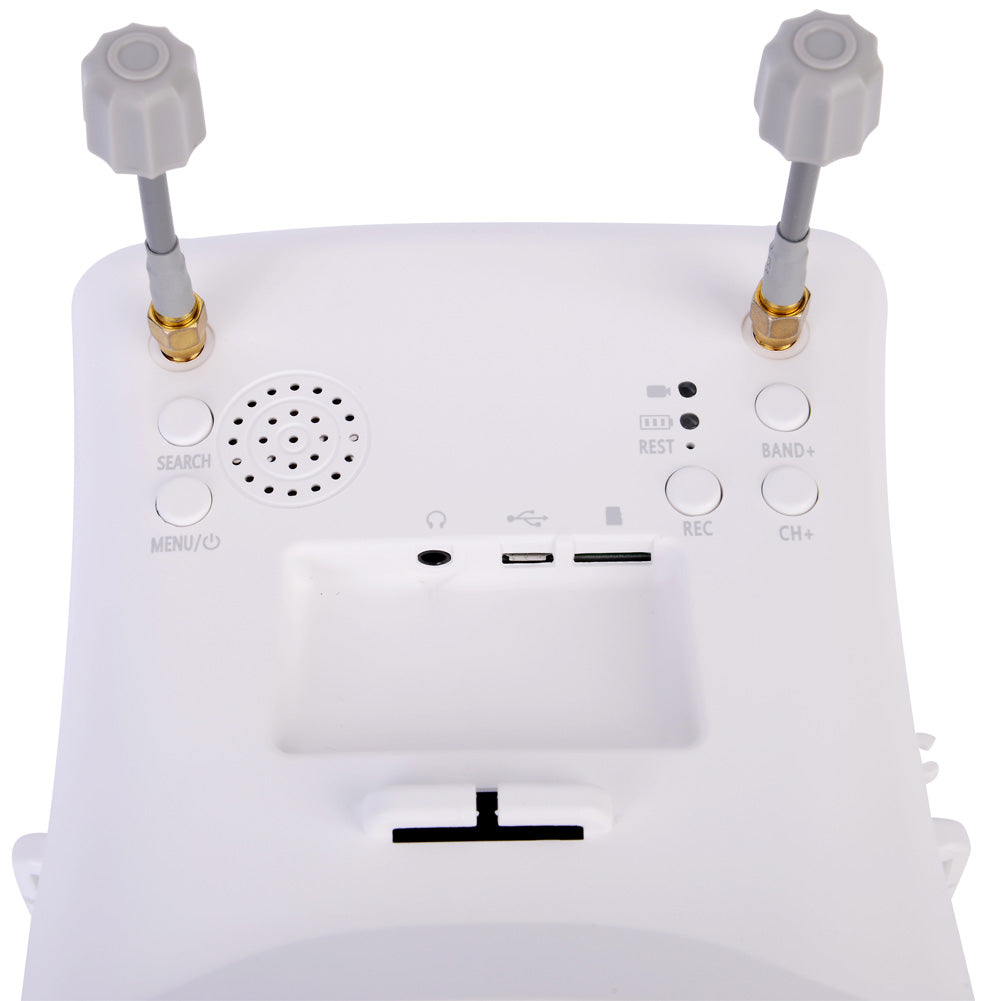

     K2: Playback menu (volume control/file delete/protect)

     K4: UP/ fast backward<<

     K5: DOWM/ fast backward>>

     K3: Select/Play/ Pause

     K1: Quit Playback mode
