Note:Due to transportation restrictions, calibration fluid is not included,
thank you!

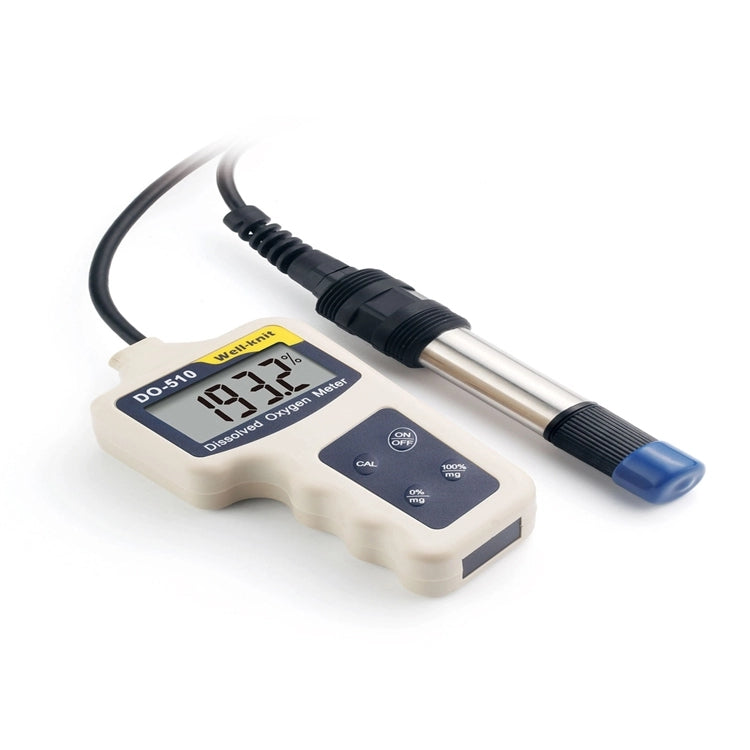

DO-510 Digital Dissolved Oxygen Analyzer Oxygen Concentration Dector 0.0~255% ATC DO Tester Water Quality Meter 0.00~19.99mg/L
This economy microprocessor-based palm-top meter has a large custom LCD(Liquid Crystal Display)for clear and easy reading.
The DO-510 offers the measurement of dissolved oxygen in the percentage saturation mode and in the concentration mode.
The meter ensures accurate measurement of the Dissolved Oxygen values through its temperature compensation features.
Please read this manual thoroughly before operating your meter.
During measurement, care must be taken to ensure that the probe's membrane surface does not touch anything.Stir around the solution to prevent any air bubbles from being trapped on the membrane before taking a reading.
Specification:
Measuring Range:0.00~19.99mg/L ; 0.0~255%
Resolution:0.01mg/L or 0.1%
Accuracy:±1.5%F.S
Automatic temperaturCompensation:0~45℃
Power Supply:1x9V Battery(not included)
Dimensions:123mm×72mm×33mm
IMPORTANT:
Since the DO probe consumes oxygen from the sample,the sample must constantly flow past the membrane to achieve more accurate readings.
You can use a stirrer to accomplish this.
To take measurements:
Remove the protective cap of electrode.
Rinse the probe well with de-ionized(DI) water or rinse solution.

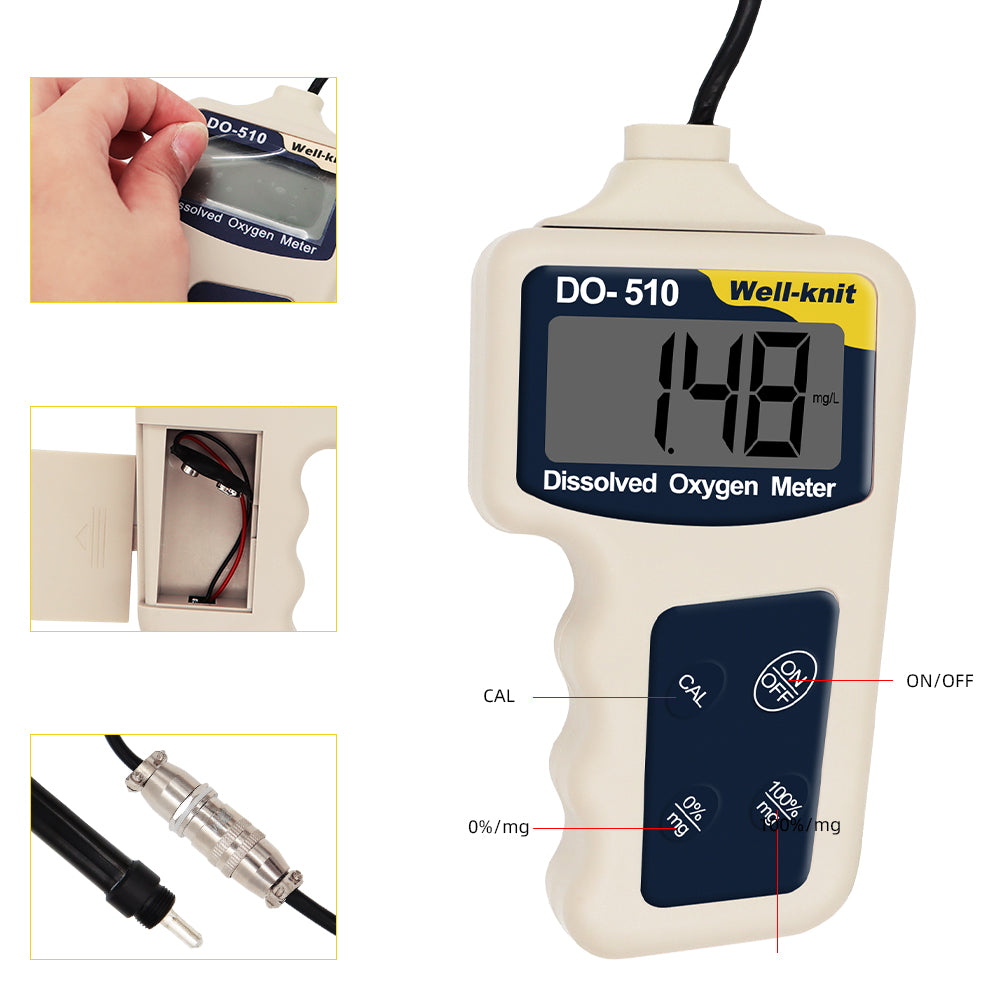

Select the appropriate measurement mode.Press the [100%/mg] or [0%/mg] Key to toggle between Percentage Saturation(%) measurement mode and Concentration(mg/L)measurement mode.
Dip the probe into the sample.Stir the solution gently to homogenize the sample.Make sure that the sample is continuously flowing past the membrane sensor.
Take your measurements once your meter reading has stabilized.(It is about ten minute)
Note: Always replace the protective cap after use.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
