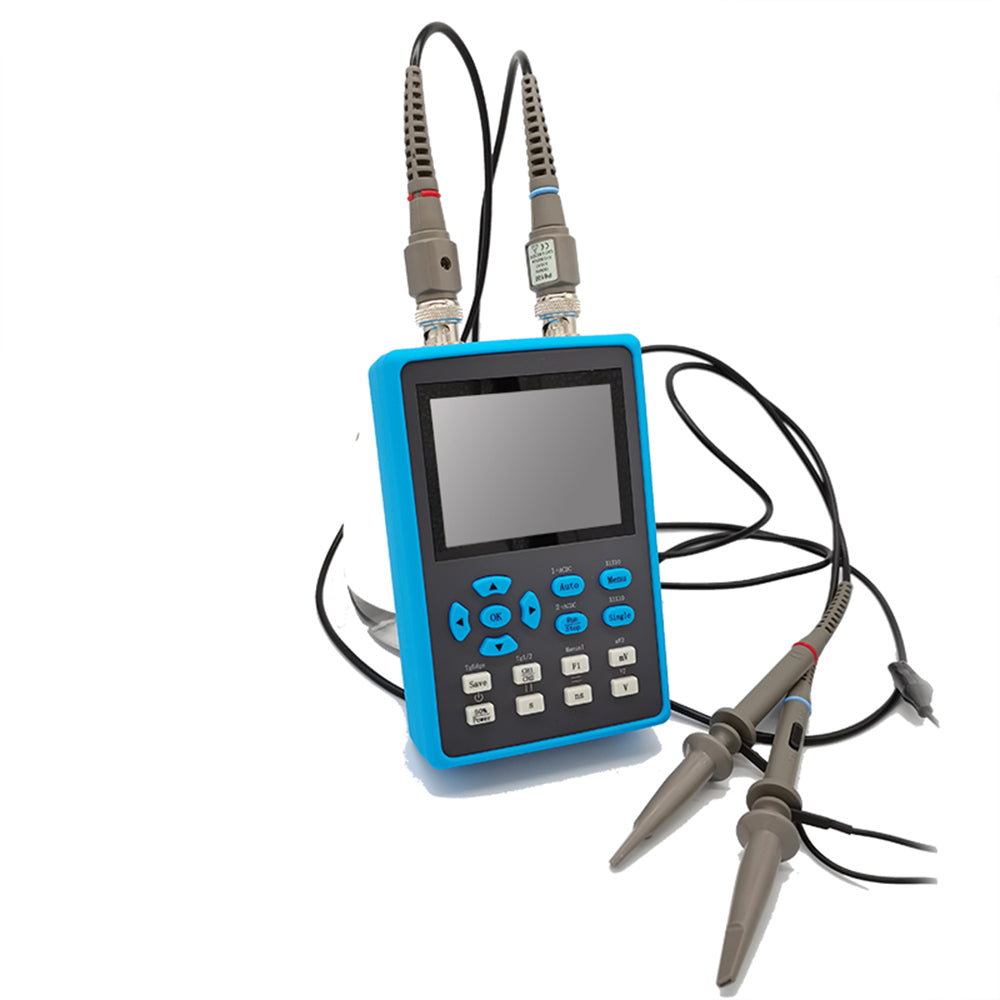

DSO2512G 2.8 Inch Handheld Digital Oscilloscope 120M Bandwidth Dual Channel Oscilloscope Signal Generator XY Mode 500M Sampling
Features:
High bandwidth and rich functions to meet various circuit debugging, auto repair, maintenance and other purposes
The product is small and exquisite, it does not take up space, it is very convenient to hold and carry
Powerful, stable, high-precision, anti-burning, durable
Adopt ARM+FPGA+ADC solution to provide high-speed signal acquisition and high-speed data processing
Manual cursor measurement FFT spectrum analysis
120M bandwidth (single channel mode) 60M bandwidth (dual channel mode)

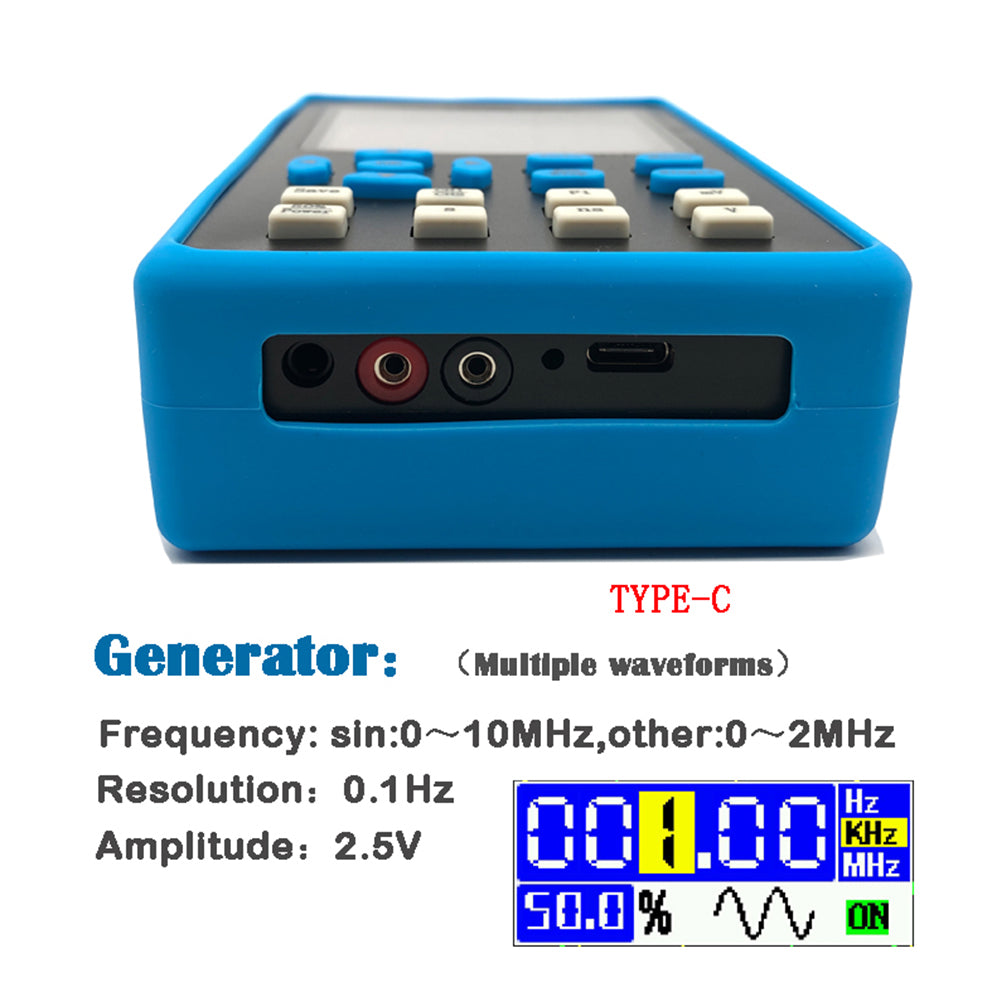

Signal Generator - 10MHz
14 parameter measurements
One-button automatic (Auto) single trigger (Single)
2.8-inch high-definition large screen
Waveform screenshot export to computer
Specifications:
Model: DSO2512G
Channel Coupling: AC/DC
Number of channels: 2
One-click automatic: support
Screen size: 2.8 inches
Waveform measurement: 14 types
Screen resolution: 320*240
Measurement accuracy: ±2%
Analog bandwidth: 120M (single CH1) 60M (CH1+CH2)

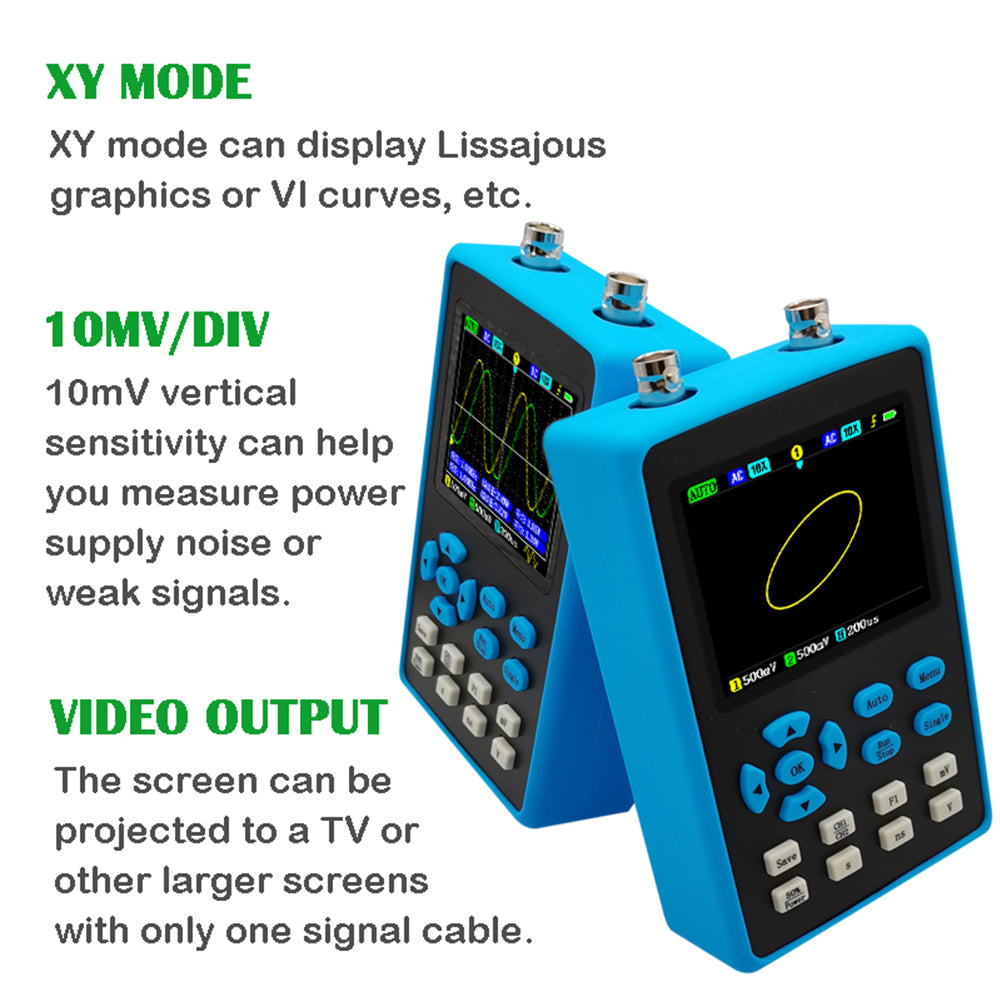

XY mode: support
Sampling rate: 500M
Waveform save: support
Rise time: <3ns
Frequency accuracy: ±0.01%
Storage depth: 128Kb
Single trigger: support
Input impedance: 1MΩ
FFT: support
Time base range: 5ns-10s
Signal source amplitude: 2.5V
Vertical sensitivity: 10mV/div-100V/div
Signal source frequency: sine 0-10M, other 0-2M
Charging equipment: computer or mobile phone charging head, etc.
Package Included:
Probe line X2
USB cable X1

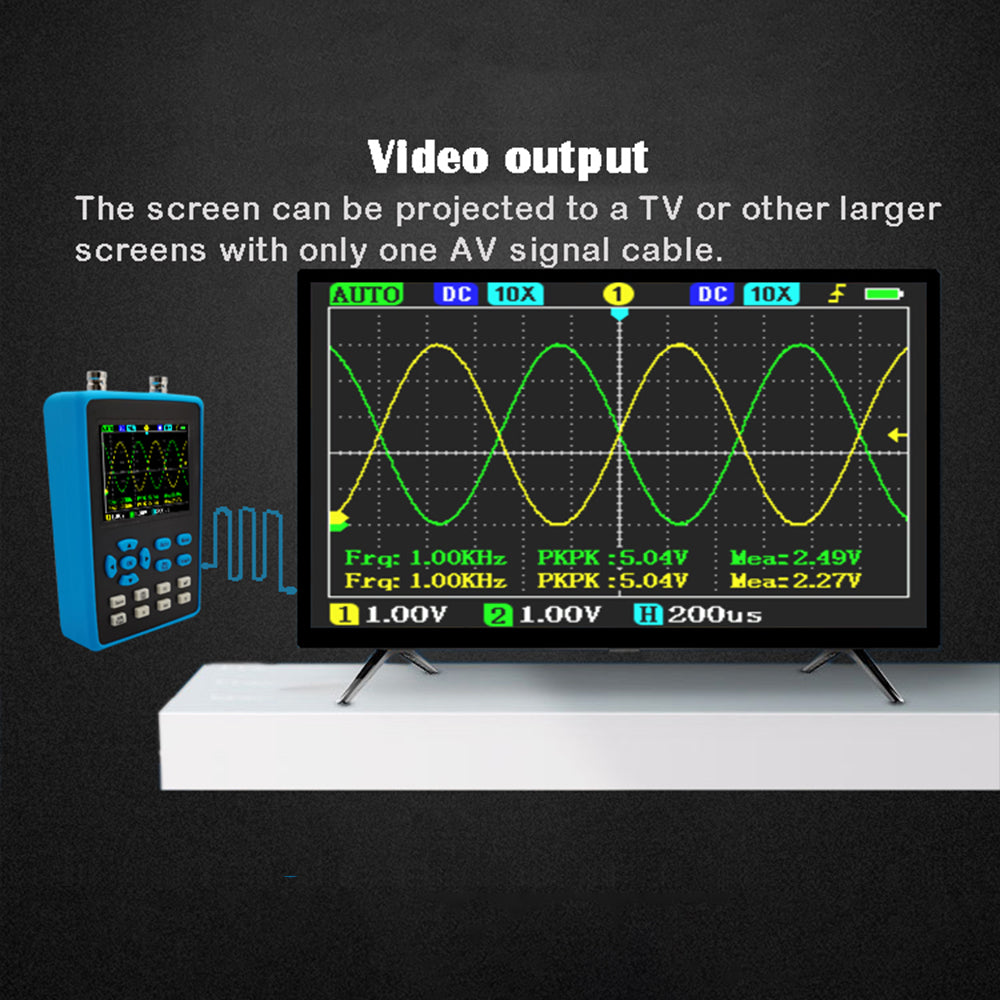

Video output line X1
Signal generator line X1
Storage bag X1
Manual X1
Oscilloscope X1
