Features:

 Resolution: Equipped with 320*240 resolution color display, with bright colors and high contrast, you can see the data clearly.

 Bandwidth and sampling rate: With 120M bandwidth and 500M sampling rate, more stable and with higher precisions.

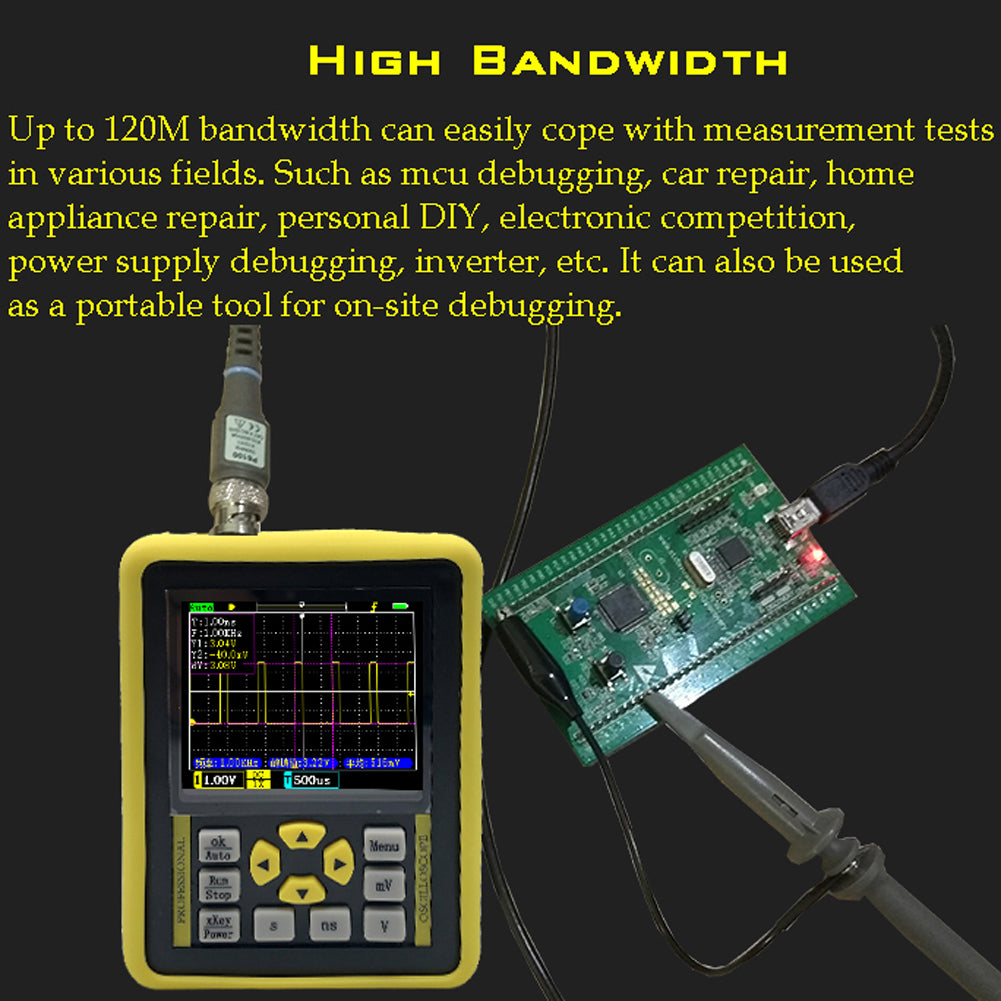

 High bandwidth: Up to 120M bandwidth can easily cope with measurement tests in various fields.

 There are 14 measurement options available as follows: Frequency, Peaks-to-Peaks, Duty cycle, Amplitude, RMS, Average, Period, +Pulse width, -Pulse width, Max, Min,Top, Base, -Duty cycle.

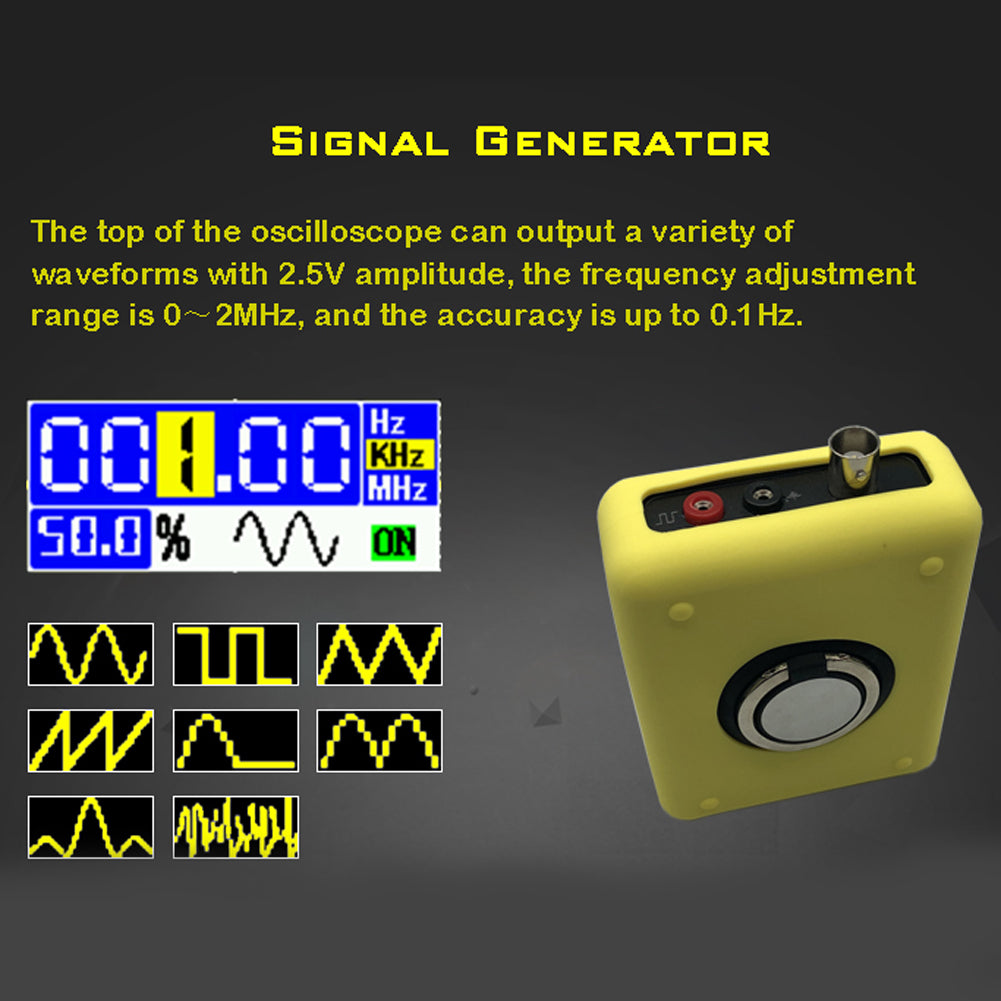

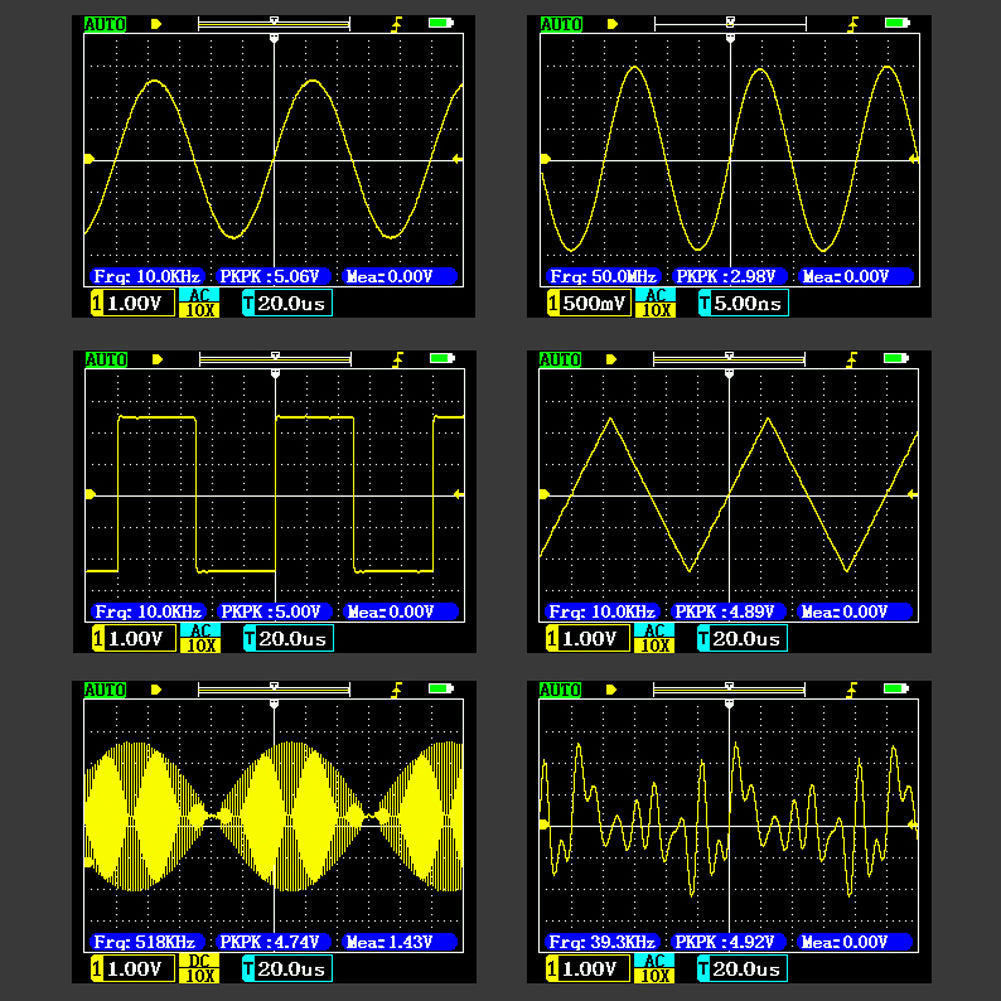

 Support switch the output waveform: sine wave, square wave, triangle wave, etc.

 FFT: FFT is used to convert time domain waveforms into frequency domain and is widely used in harmonic analysis and other fields. Support three display modes: logarithmic, linear, and music spectrum.

 Reference waveform: you can measure the waveform first, lock the current waveform on the screen, and the normally refreshed waveform will not be affected. Reference waveforms are useful for single-channel oscilloscopes. With reference waveforms, you can easily compare the waveforms of two channels.

 Complete trigger: Trig mode: Auto/Normal; Trigger types: Rise/Fall, Trigger level: Manual/Auto

 Vertical sensitivity and time base: The scope's vertical sensitivity is ranges from 10mV/div to 10V/div (1X ranges). The oscilloscope time base is ranges from 5ns to 10s.

 Waveform save: One-click to save the screen waveform, and also support delete or browse historical screenshots..

 Connect to PC: The screenshot pictures can be exported to a computers via a USB connection.

 Video output: The 3.5mm headphone jack at the bottom can output AV video simulating signal, which can be connected to a TV or projector.

 Power-supply: built-in rechargeable lithium battery, 3.7V, 3000mAh large caparity, full-charged can provides long working time.

 Compact size: lightweight and portable, also can be used as a portable tool for on-site debugging.

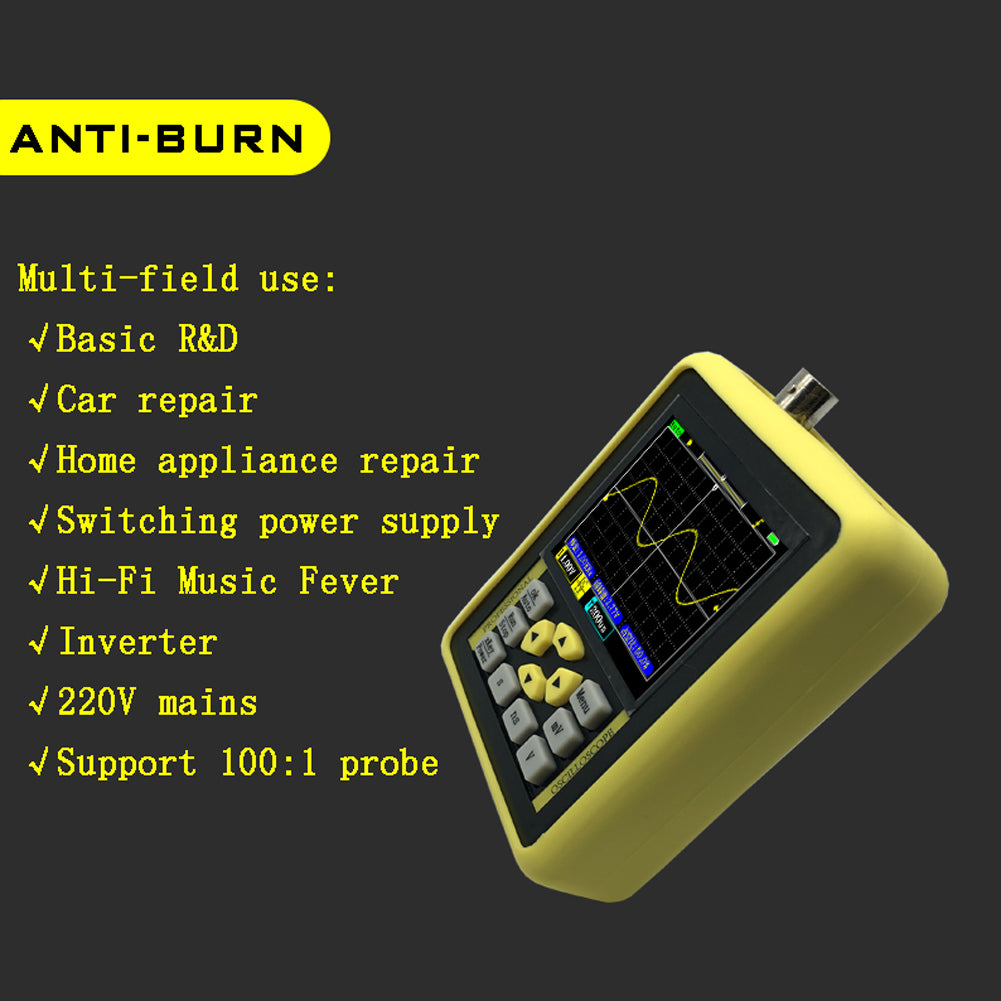

 Widely applications: suitable for mcu debugging, car repair, home appliance repair, DIY electronic competition, power-supply debugging, inverter, etc.

 Specicifations:

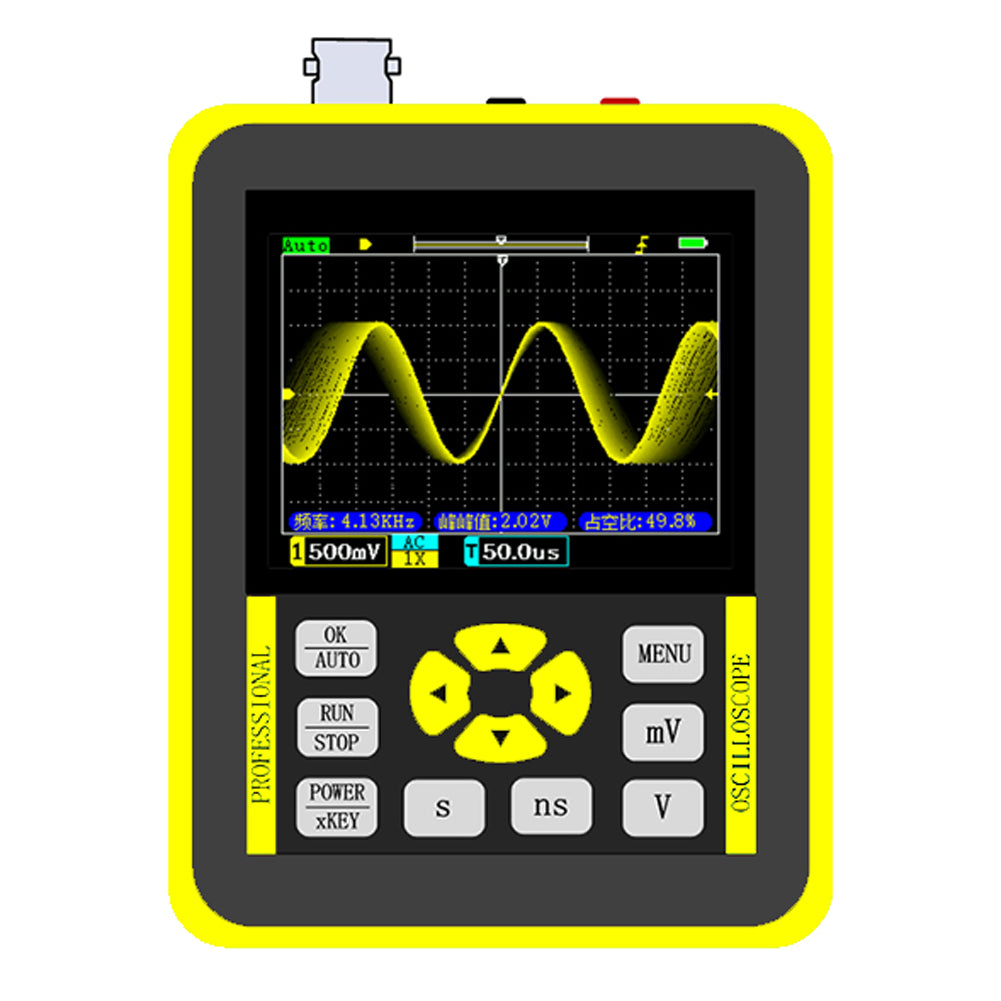

 Name: Oscilloscope

 Model: DSO1511G

 Color: yellow, green (optional)

 Battery: 1 * 2.5V, 3000mAh battery (included)

 Channels: 1

 Screen size: 2.4 inch

 Measurement: 14 types

 Resolution: 320*240

 Bandwidth: 120M

 Sampling rate: 500M

 Rise time: <3ns

 Storage depth: 128Kbit

 Impedance: 1MΩ

 Time base: 5ns–10s

 Ver sensitivity: 10mV/div-10V/div

 Max voltae: ±40V(x1); ±400V(x10)

 Trigger mode: Auto/Normal

 Trigger type: rise/fall

 Display mode: YT/Roll

 Persistence: None/1s / ∞

 Coupling: Direct Current/Alternating Current

 AUTO: Support

 Precision of V: ±2%

 Reference: Support

 Screenshot: Support

 Single: Support

 FFT: Support

 Frequency: ±0.01%

 Generator: 0-2Mhz/2.5V

 50%: Support

 Language: CN/EN

 Recharging: USB TypeC-5V 1A/2A/5A

 Item size: 73 * 93 * 32mm / 2.87 * 3.66 * 1.26in

 Item weight: 166g / ounce

 Package size: 190 * 100 * 130mm / 7.48 * 3.94 * 5.12in

 Package weight: 500g / 1.10lb

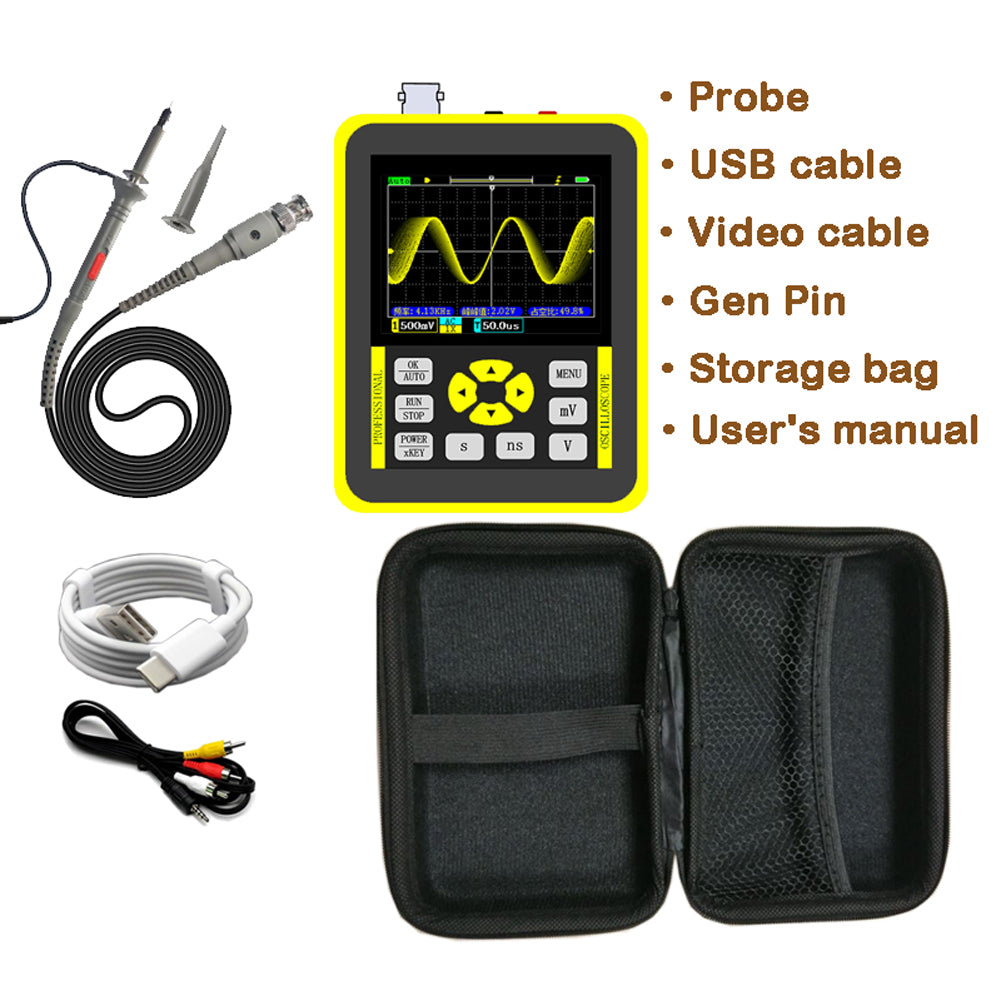

 Packing List:

 1 * Oscilloscope
