The recommended battery is a 7.4V rechargeable battery, and the recommended motor is a 390 motor. It is not allowed to use a 775 large current motor. Two motors are the same specification, and the current cannot exceed 10A
If a high-voltage high rate battery (such as 12V) is used and drives a high-speed and high-power motor (with a load current greater than 8A), it is easy to burn out the receiving board due to excessive power
The receiving board is equipped with a built-in compass chip. Please install it according to the direction indicated on the back of the receiving board, so that the ship can automatically travel in a straight line
When gps cannot be activated: Try checking the code again, The GPS module should be placed outdoors, with the white side facing upwards.

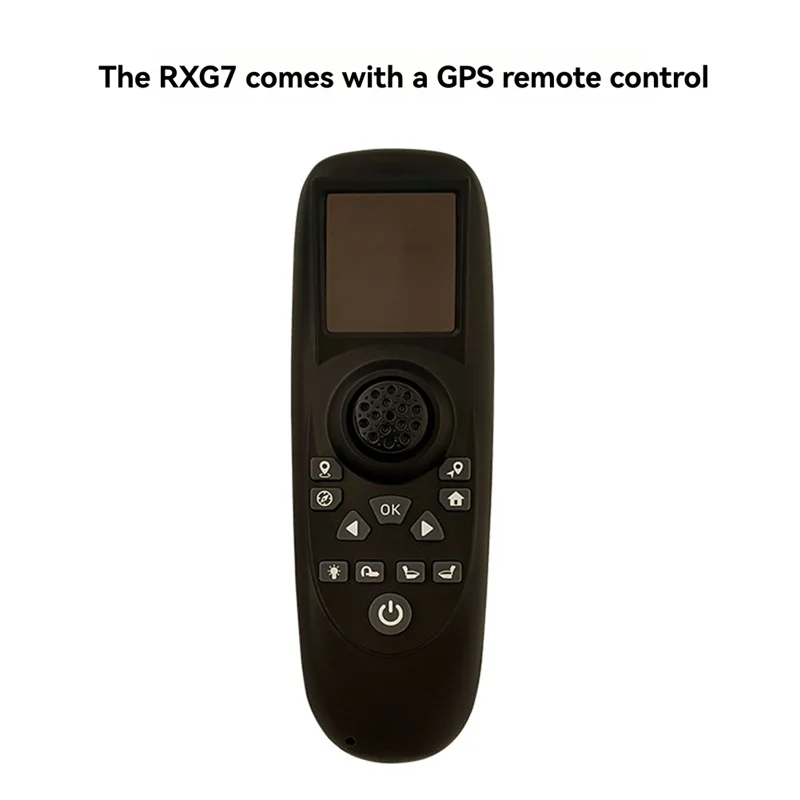

Specification for remote controller:
1.54inch colored screen display

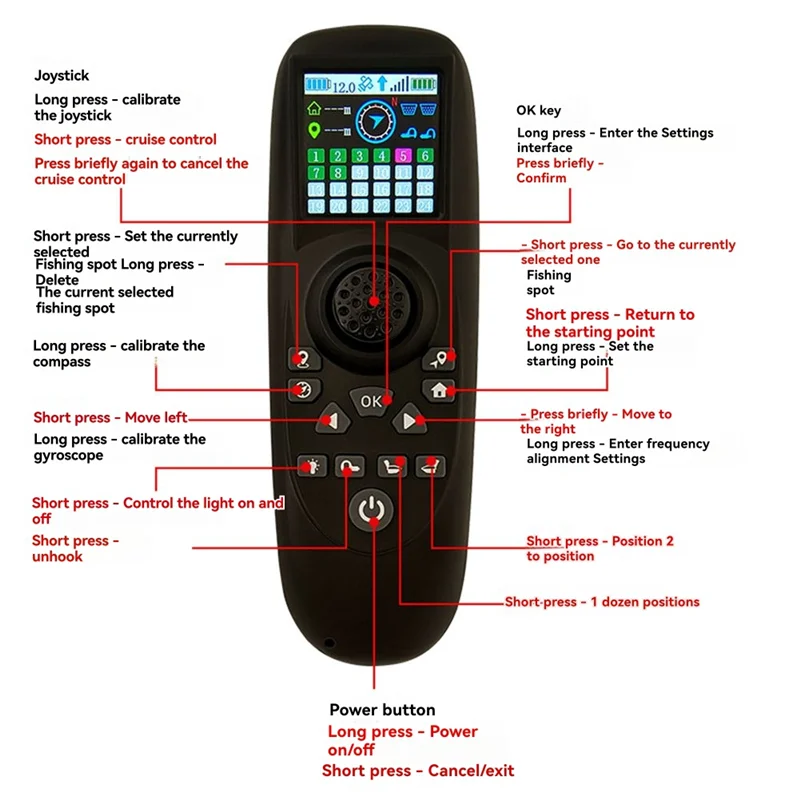

Silicone buttons,and clear button functions
Built-in rechargeable battery 1500mah
Type-C charging port
Long term endurance of 18 hours
Easy selection of 24 fishing points

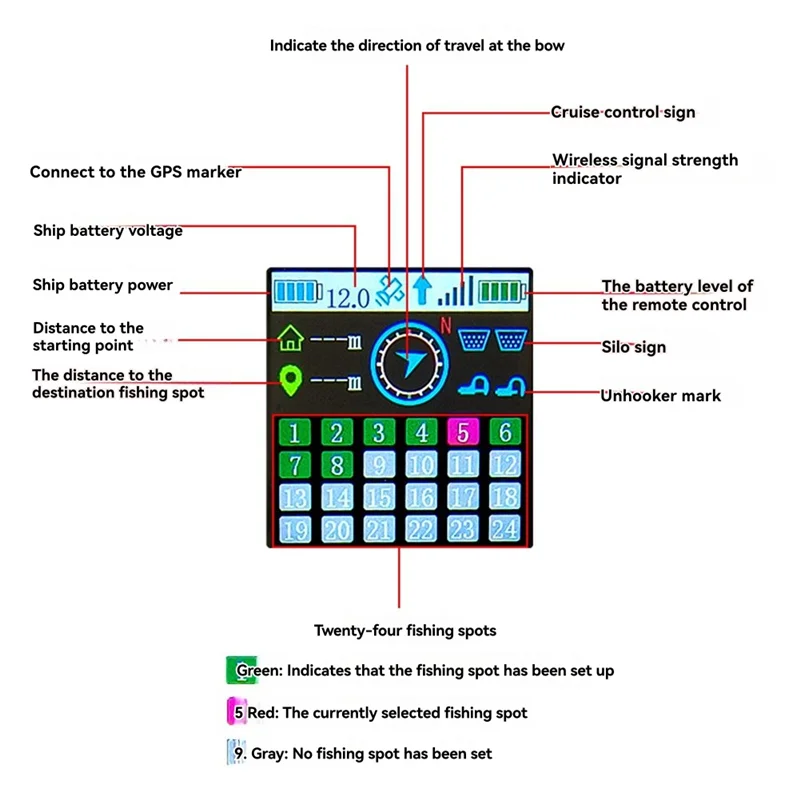

Distance, power, signal, direction, and status feedback display

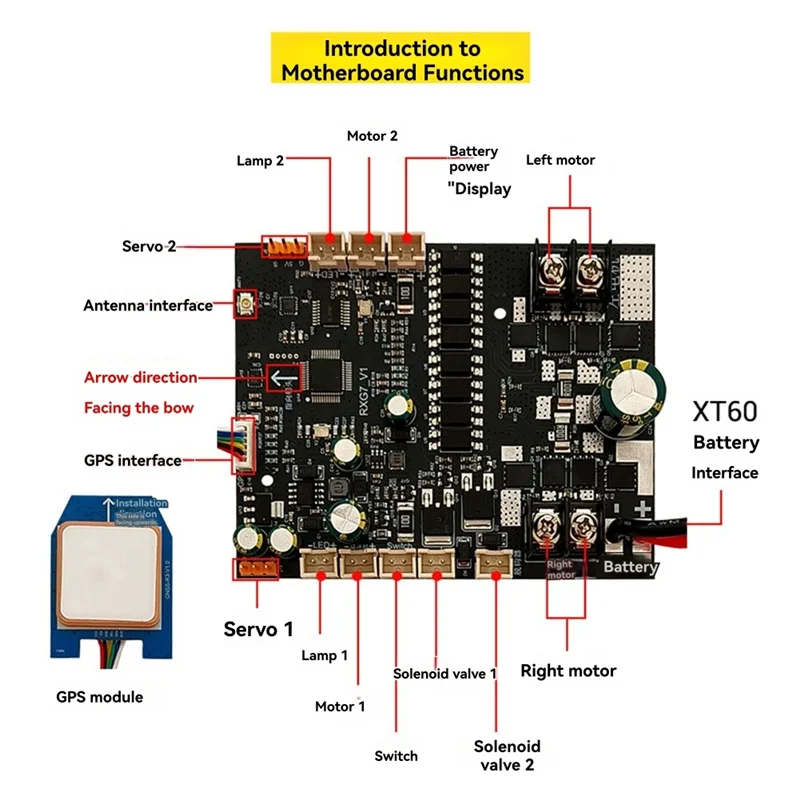

Specification for receiver board:
Adapted battery: 6V,7.2V,7.4V,11.1V,12V lipo battery(Do not use dry battery,as their poor current output capacity can cause the motor to fail to start)
Adapted motor:380 390 motor
Max output current:10A
Motor interface:single way rated current 10A, peak current 20A
LED light interface:directly connected to the LED light, the circuit board has already connected a 200ohm resistor internally
Communication method:bidirectional communication, power, distance, voltage, wireless signal, GPS signal, status information bidirectional transmission
Control distance:500meters
Remote controller power consumption:80mA
Receiver power consumption:130mA
(The product printed words may vary depending on the batch, but this does not affect use)
Color:As Shown
Material:plastic

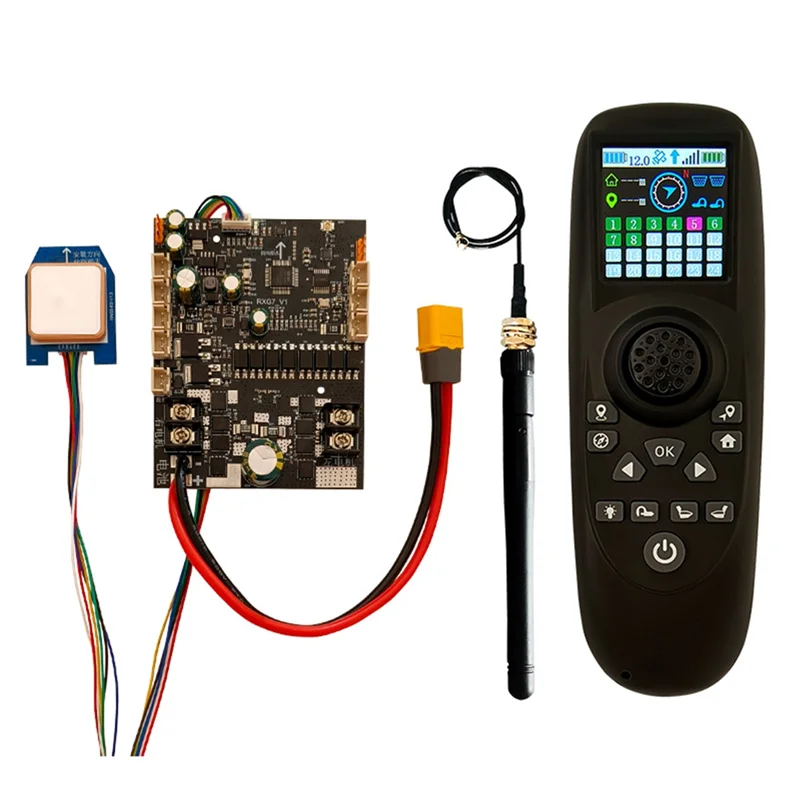

Package Contents:
1 * remote controller
1 * Board With GPS
