2.POM gears are upgraded to PEEK (30% glass fiber) gears. PEEK material has excellent properties such as high temperature resistance, heat insulation, and wear resistance, which can effectively block the heat generated by the motor and solve the problem of blockage.
3.High-quality hard steel nano-coated gears, wear-resistant, good precision, and long life.
4.There is a tube metal joint at one end, which can be adapted to more models in close and long distance.
5.Spur gears with mold steel matching and nano-coating surface treatment process are configured, which has more stable transmission and longer service life.
Scope of application: for VORON, CR-10, CR10S, CR-10 4S, CR-10 5S, CR-10 MINI, CR-20, for ENDER-2, for ENDER-3, for ENDER-3 PRO, for ENDER-3 V2, for Gasherbrum K3. If you can design the mounting bracket, it is suitable for almost all FDM 3D printers.
Note: The motor in the picture is not included
Notes:
The E-axis step value of the extruder needs to be modified, for example: the E-axis step value of for Ender 3 is 870.

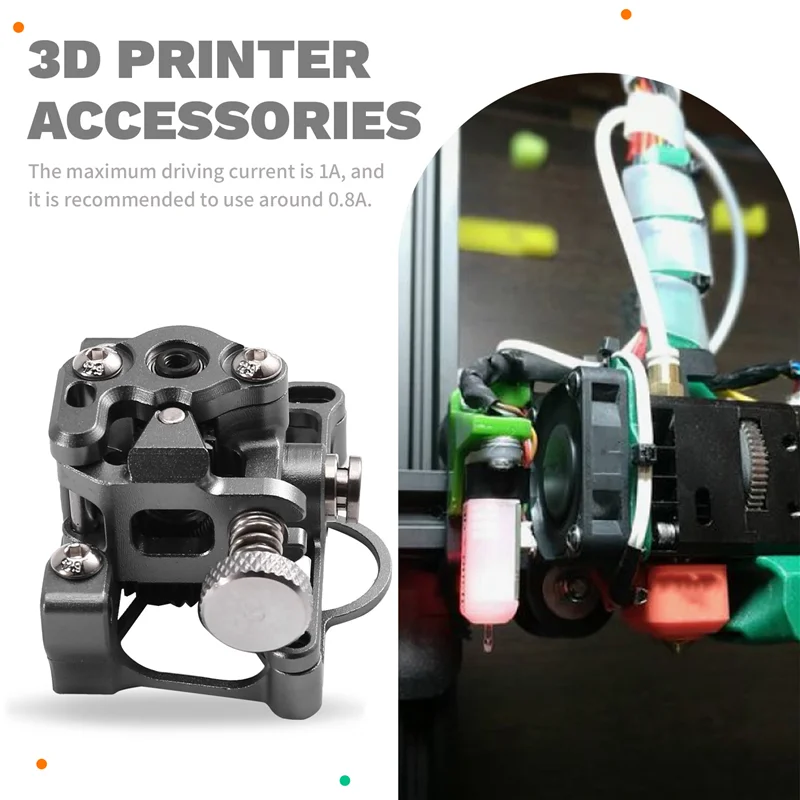

The maximum extruder drive current is 1A, and it is recommended to use it at around 0.8A, which will not cause excessive heat.
Reason for adjusting the current: to obtain a more suitable torque and prevent the motor from overheating.

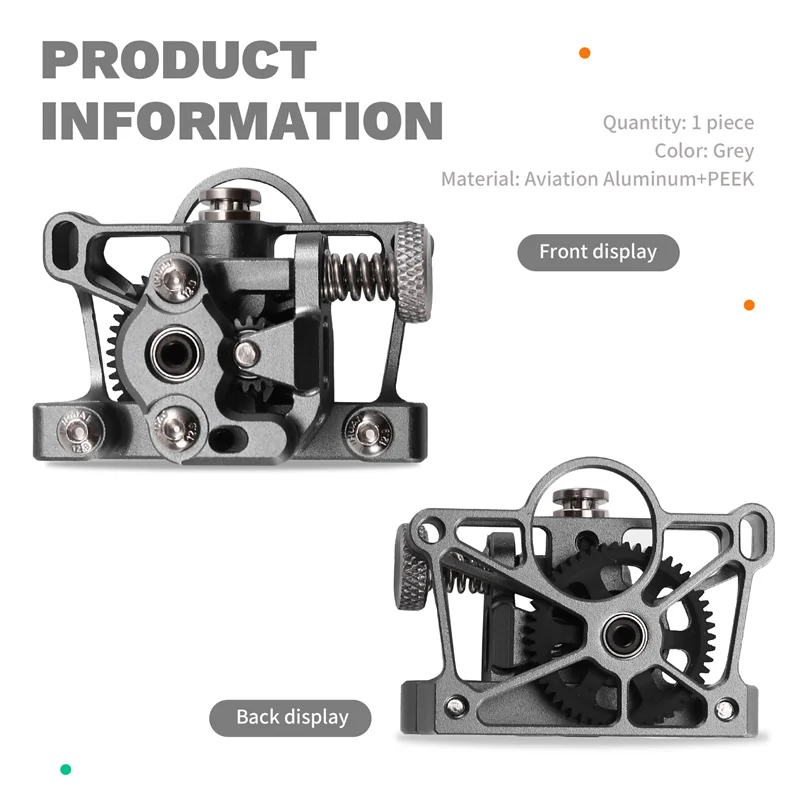

Color: Green/Grey

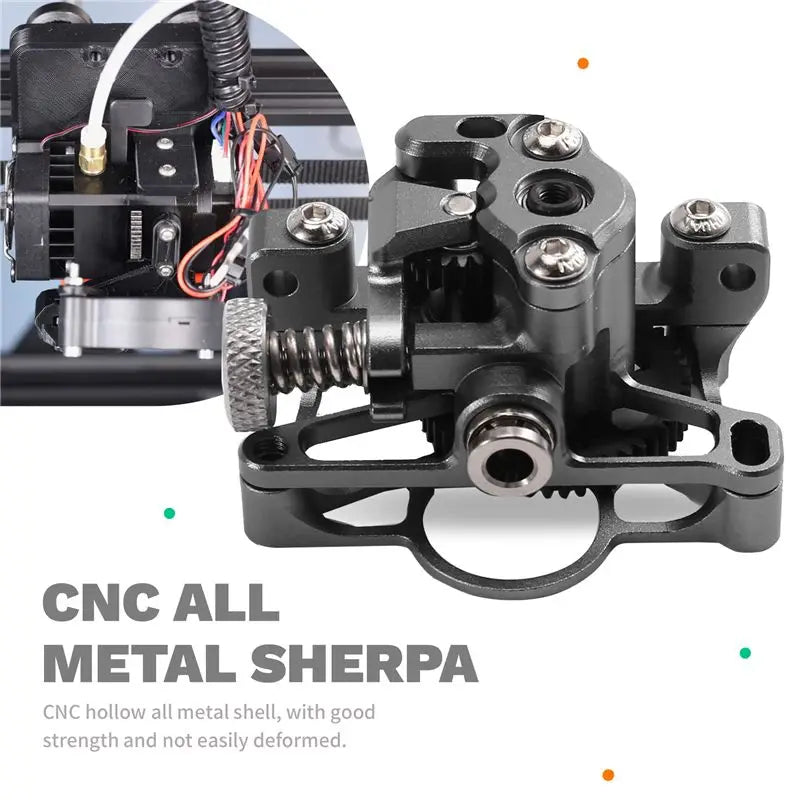

Material: Aviation Aluminum + PEEK

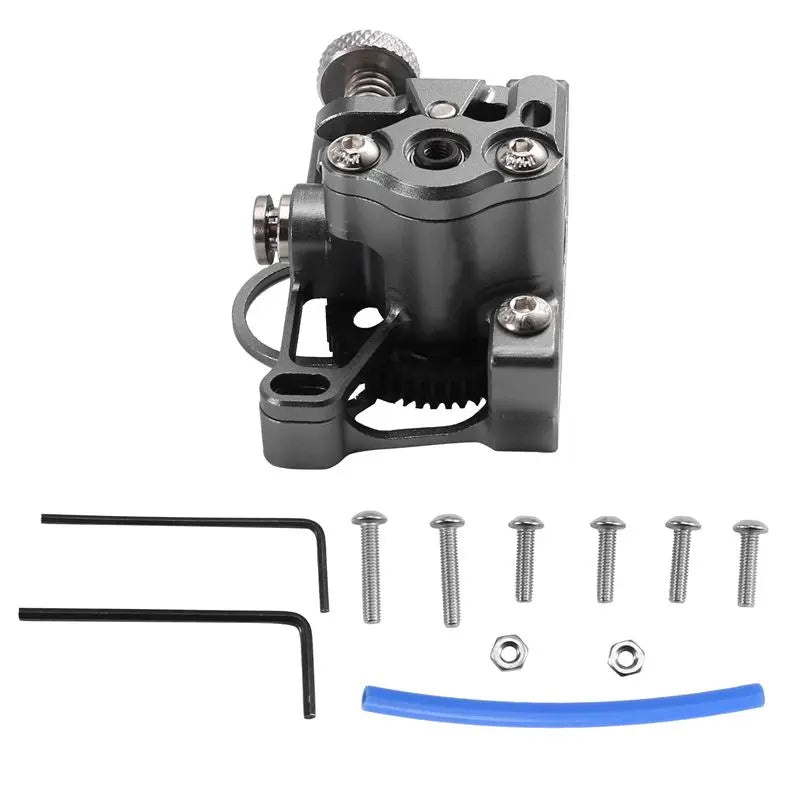

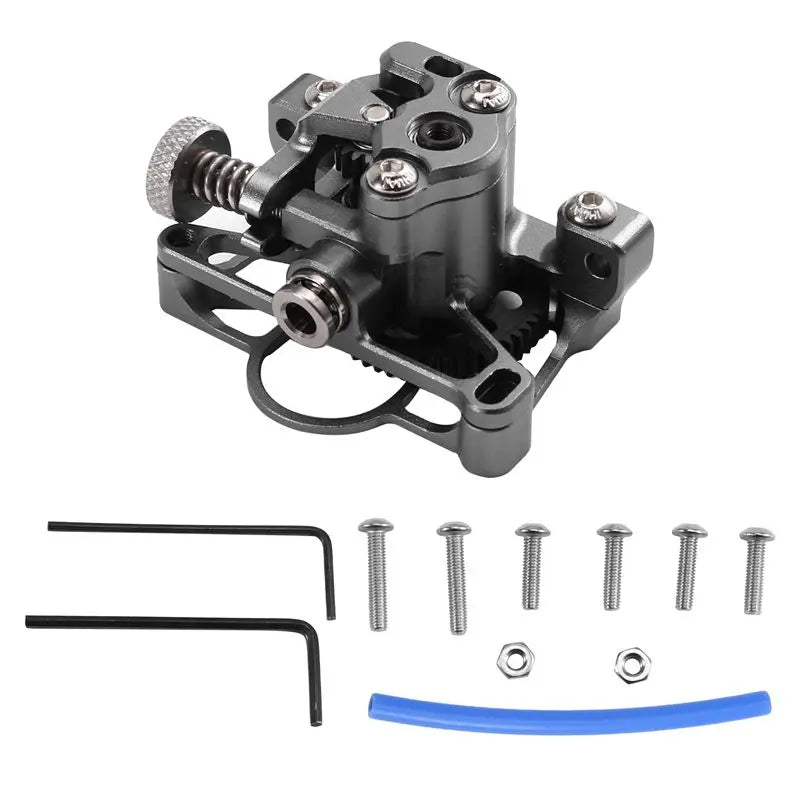

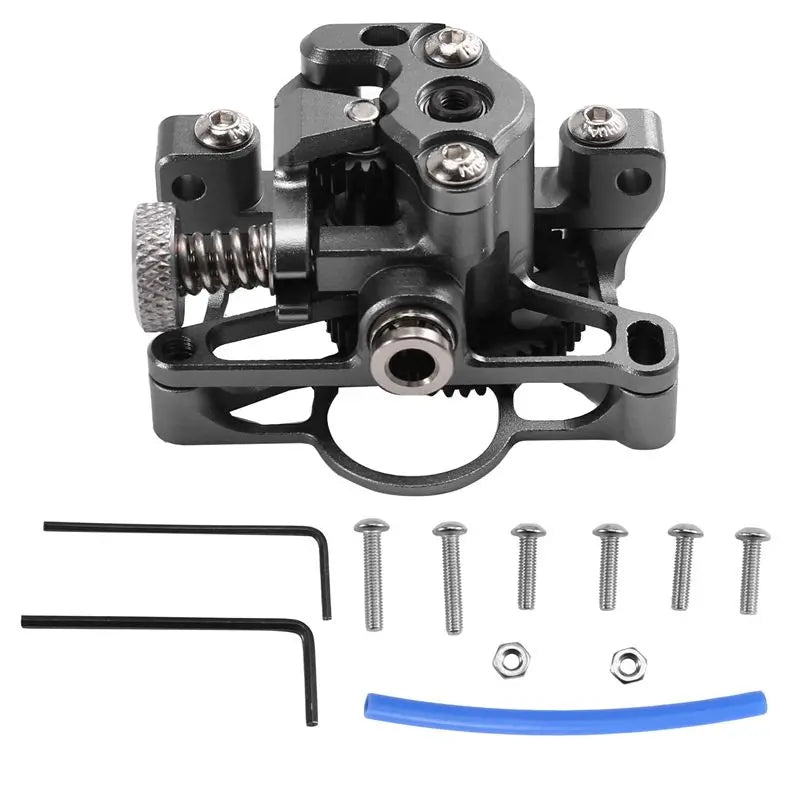

Package Contents:
1 x for Sherpa V3 Extruder
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
