Features:

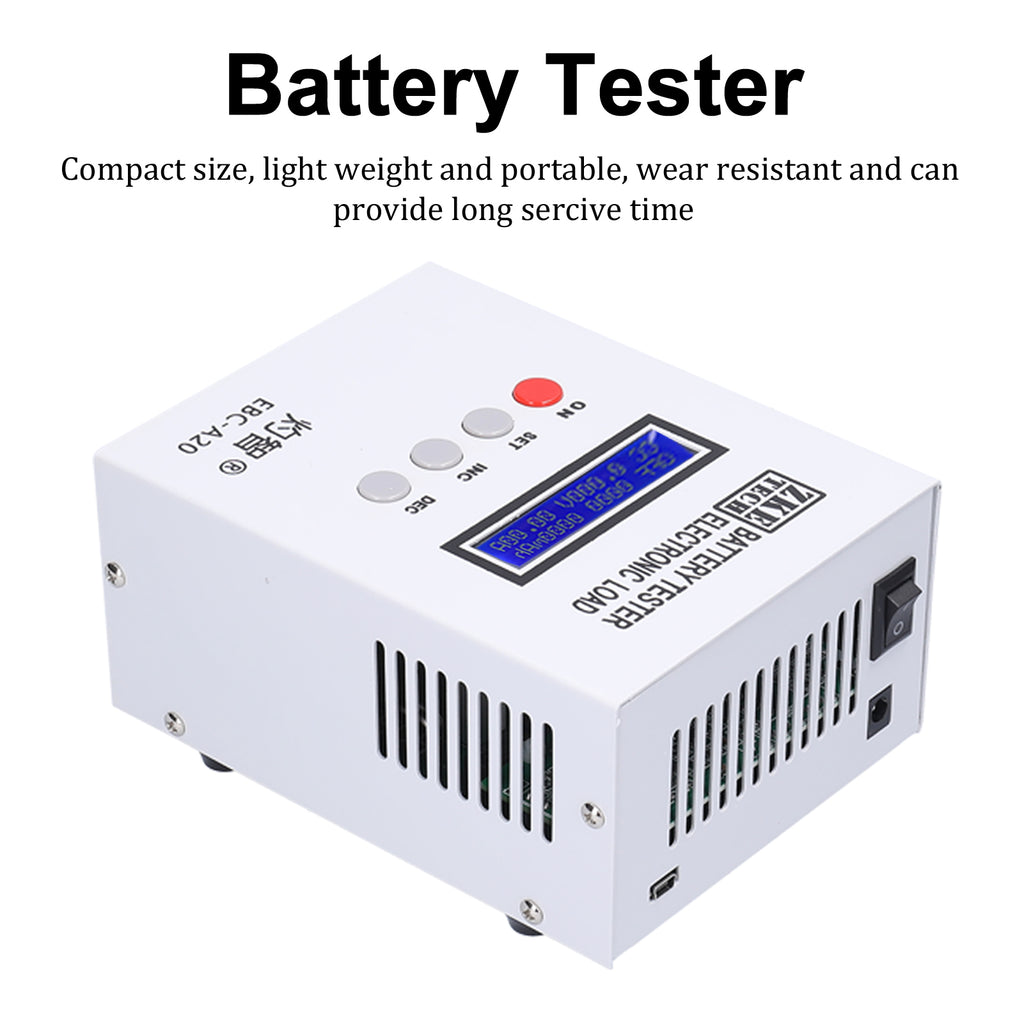

 Compact size, light weight and portable, wear resistant and can provide long sercive time.

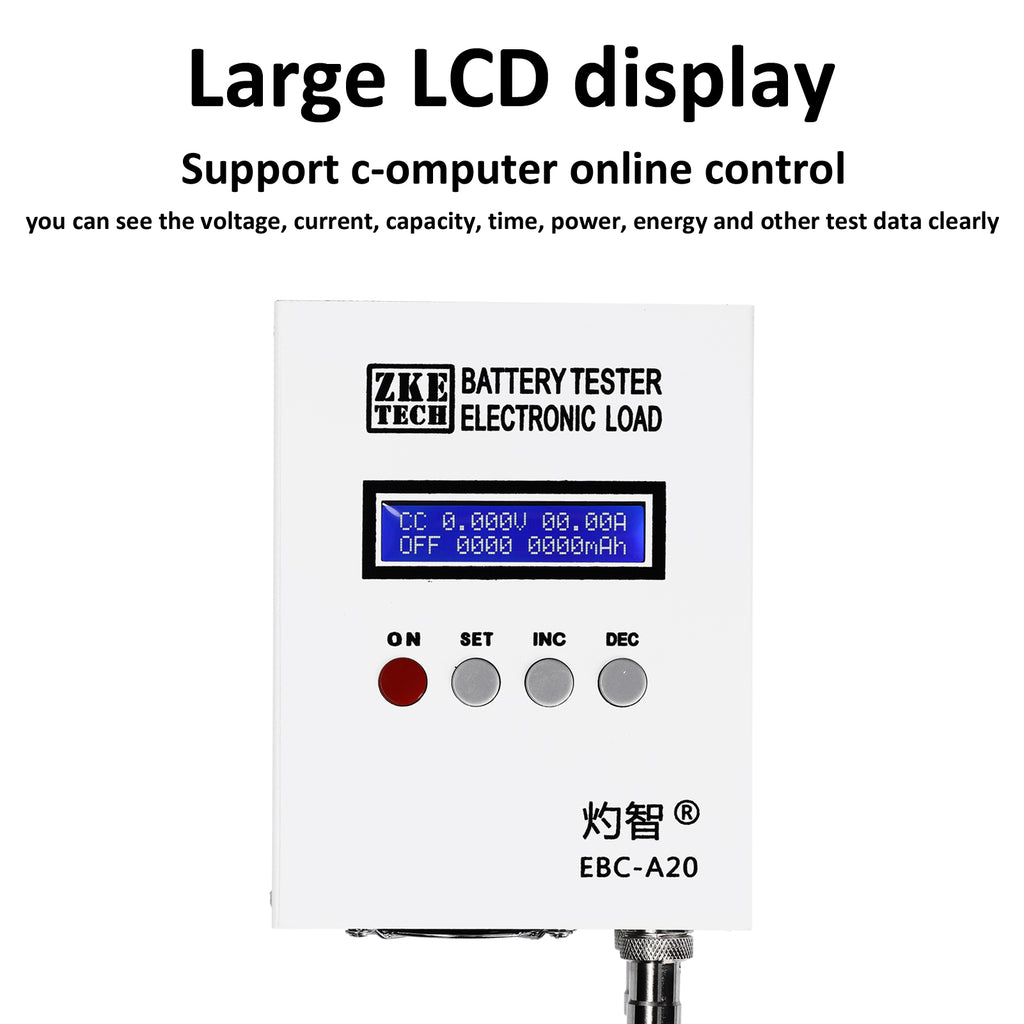

 Large LCD display, you can see the voltage, current, capacity, time, power, energy and other test data clearly.

 5A recharging, 20A discharge, the maximum power is 85W.

 3 working modes settable design, you can set DSC-CC, DSC-CP, CHG-according to your demands.

 Multifunctional, it can be used to test the battery capacity, simulate constant power equipment, and test lithium and leadacid battery.

 Support separate recharge and discharge and recharge-discharge-recharge test.

 Support c-omputer online control, curve plotting, calibration benchmarking, firmware upgrade, cycle recharge/discharge etc..

 Two configurations optional, you can choose according to your demands.

 Specifications:

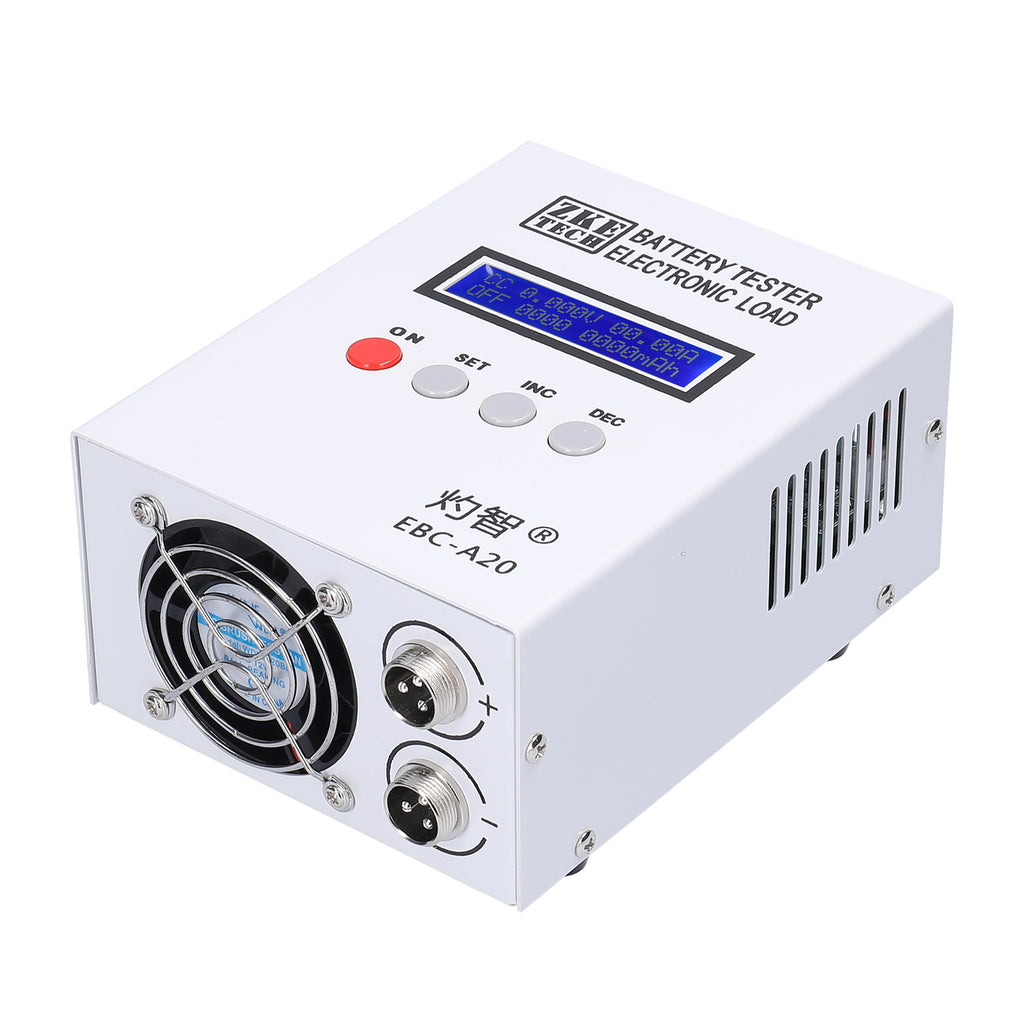

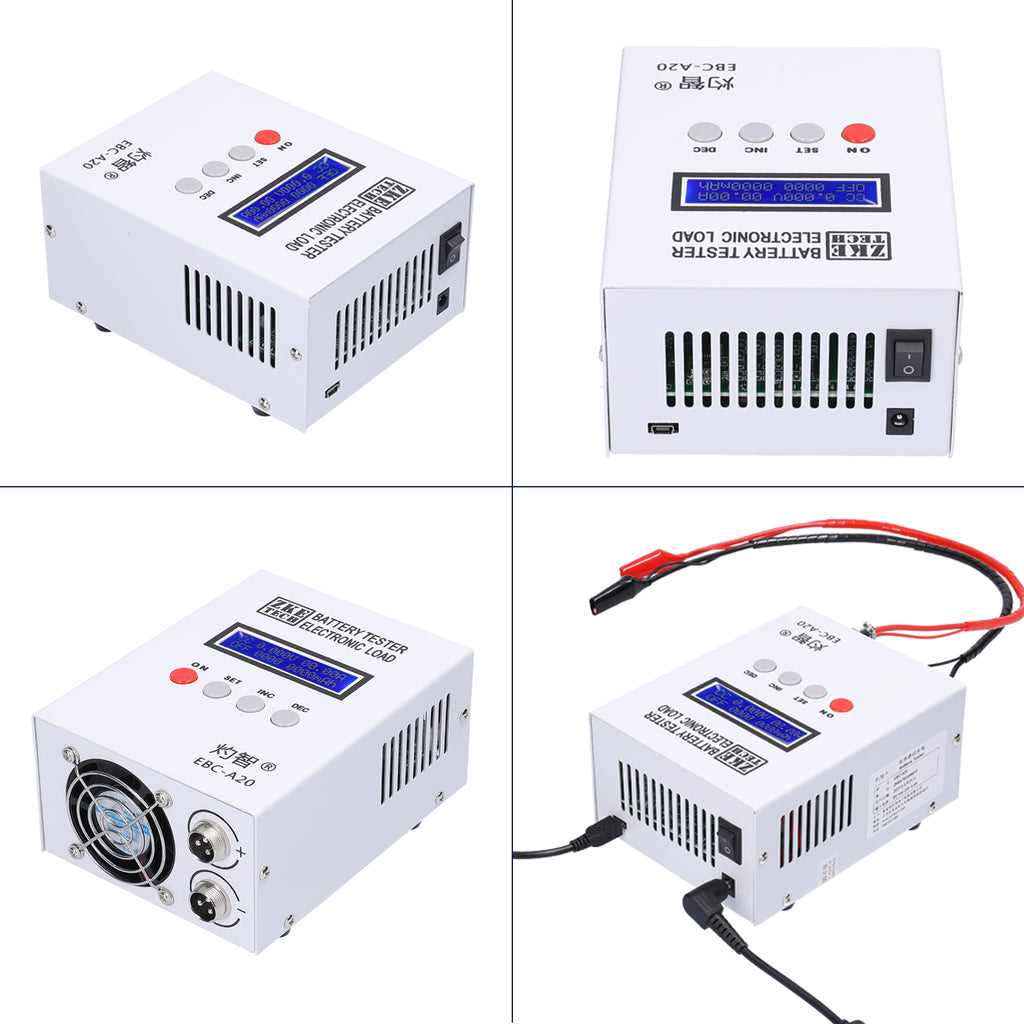

 Name: Battery Tester

 Model: EBC-A20

 Material: aluminum alloy

 Configuration: simple configuration, standard configuration EU-Plug, standard configuration US-Plug (optional)

 Voltage setting: Discaharge: 0.00-30.00V, the minimum step 0.01V

                            Recharge: 0.00-18.00V, the minimum step 0.01V

 Current setting: Discharge: 0.10-20.00A Minimum step 0.01A (automatic limit current when power is overrun)

 Recharge: 0.10-5.00A Minimum step 0.01A (the maximum current is less than the s-upply current when the voltage is above 10V )

 Mode setting: DSC-CC: discharge current is constant, it can be used to test the battery capacity

 DSC-CP discharge power is c onstant, used to simulate constant power equipment

 CHG-: constant current constant voltage recharging, applicable to test lithium and leadacid battery

 Automatic recharging and discharging: support "automatic recharging - discharge - recharging mode", it can be used to test battery capacity

 Voltage test: 0.000-4.500V (low pressure gear) accuracy to 0.003V, error  ±0.5%

 4.50V-30.00V (high presure gear) accuracy to 0.01V, error  ± 0.5%

 Current test: 0.10-20.00A, accuracy to 0.01A, error  ± 0.5%

 Capacity test: 10Ah, the resolution is 0.001Ah

 10Ah-100Ah, the resolution is 0.01Ah

 above 100Ah,  the resolution is 0.1Ah

 Connection: four-wire detection, voltage test and current channel are separate wiring, to ensure measurement accuracy

 LCD display: voltage, current, capacity, time, power, energy and other test data

 C-omputer Online: dedicated USB to TTL serial port (Mini USB port, not an ordinary USB cable) c-omputer control, curve plotting, calibration benchmarking, firmware upgrade, cycle recharge/discharge etc

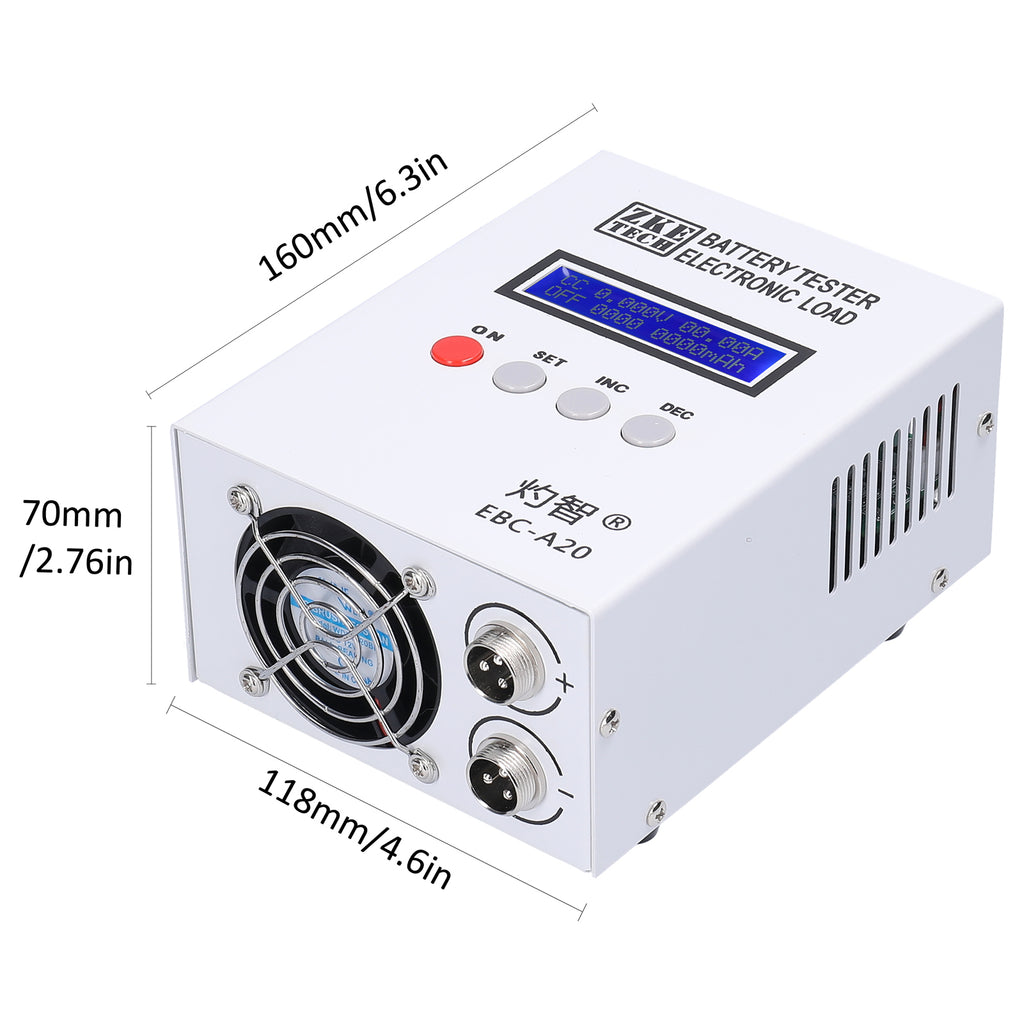

 Package size: 280 * 240 * 150mm / 11.02 * 9.45 * 5.91in

 Package weight:

 Simple configuration: 1200g / 2.65lb

 Standard configuration: 1800g / 3.97lb

 Packing List(simple configuration):

 1 * Battery Tester

 1 * Test Lines

 OR

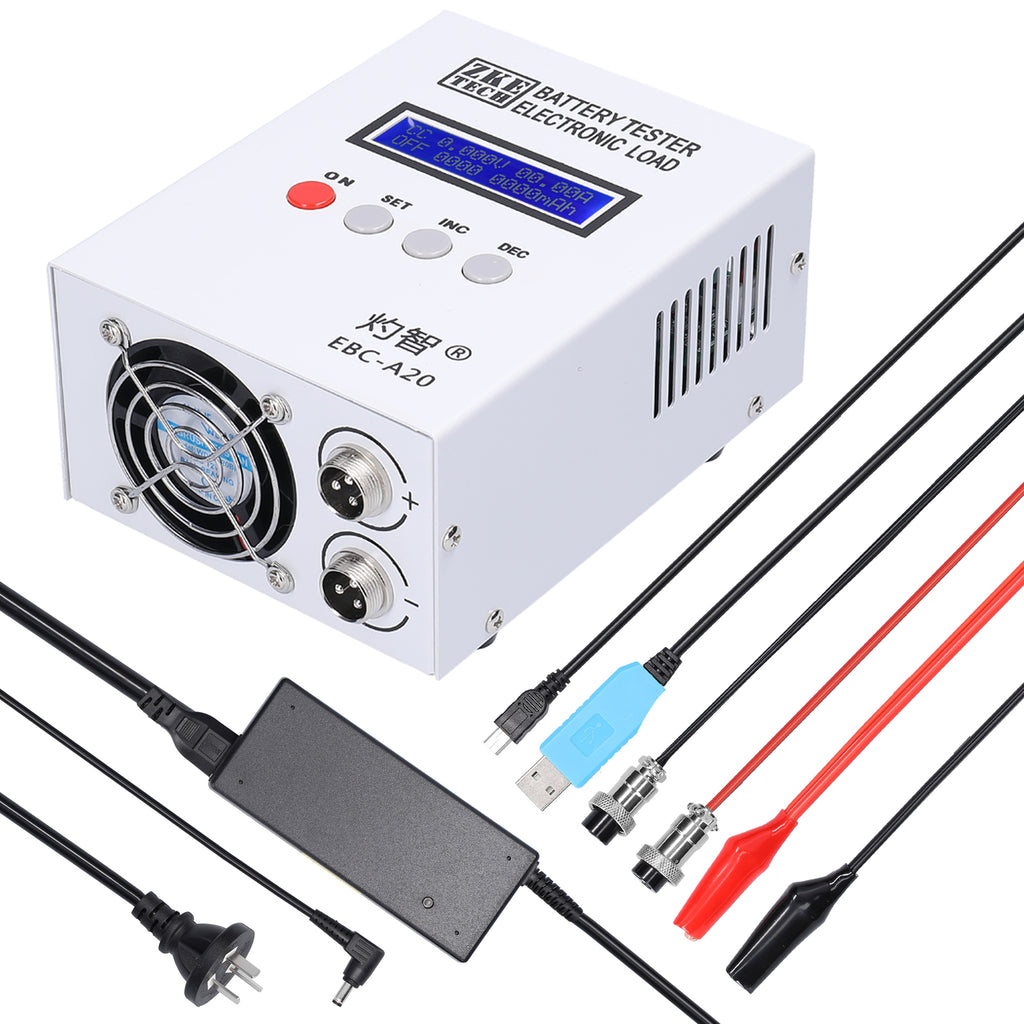

 Packing List(standard configuration):

 1 * Battery Tester

 1 * Test Lines

 1 * USB to TTL Serial Port Line

 1 * 19V 4A Power S-upply
