Software download link:www.zketech.com
Features:

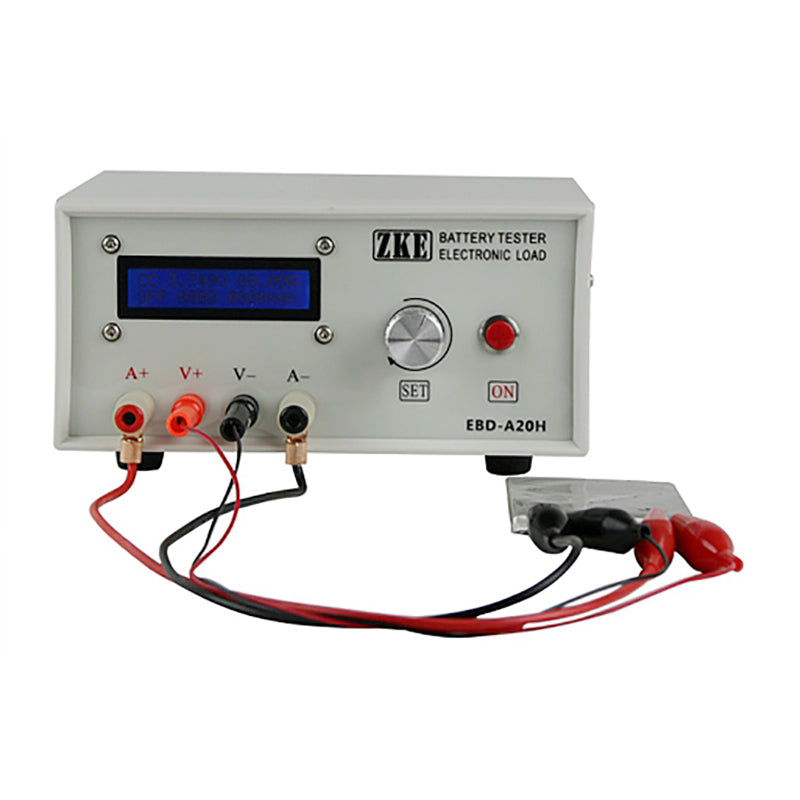

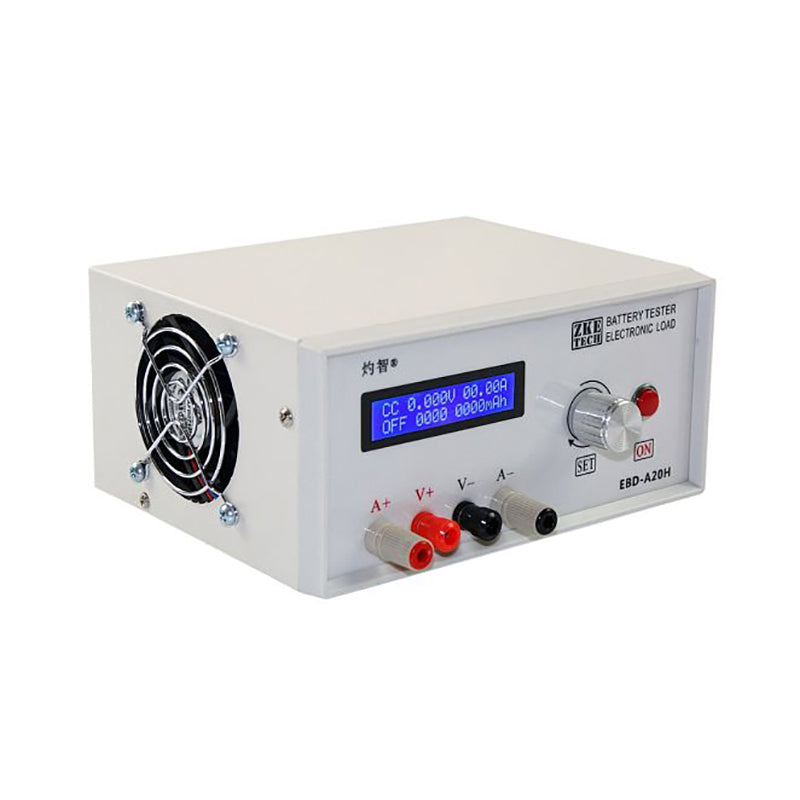

EBD-A20H is an electronic load with a variety of discharge modes. It can be used in various battery capacity tests, power tests, support for connecting computers, and more extensions via online software.
Product Parameter
Power supply: 110-220VAC or 12V DC
Voltage setting: 0.00-30.00V, the minimum step 0.01V
Current setting: 0.1-20.00A Minimum step 0.01A (Automatic limit current when power is
Test mode: DSC-CC: discharge current is constant, used to test battery capacity or supplycurrent
DSC-CP: dischage power is constant, used to simulate constant power equipment or test power
Voltage test: 0.000-4.500V (low pressure) accuracy to 0.003V, error ±0.5%
4.50V-30.00V(high presure) accuracy to 0.01V, error ± 0.5%
Current test: 0.10-20.00A, accuracy to 0.01A, error ± 0.5%
Capacity test: 10Ah, the resolution of 0.001Ah
10Ah-100Ah, the resolution of 0.01Ah
above 100Ah, the resolution 0.1Ah
Dischage power: Max 200W. It should be controlled within 90% for a long time working
Connection: four-wire detection, voltage and current channel separate wiring, to ensure measurement accuracy
LCD display: voltage, current, capacity, time so on test data
Computer Online: dedicated USB to TTL serial port (Mini USB port, not an ordinary USB cable) . curve plotting, automatic current test, calibration reference,upgrade equipment

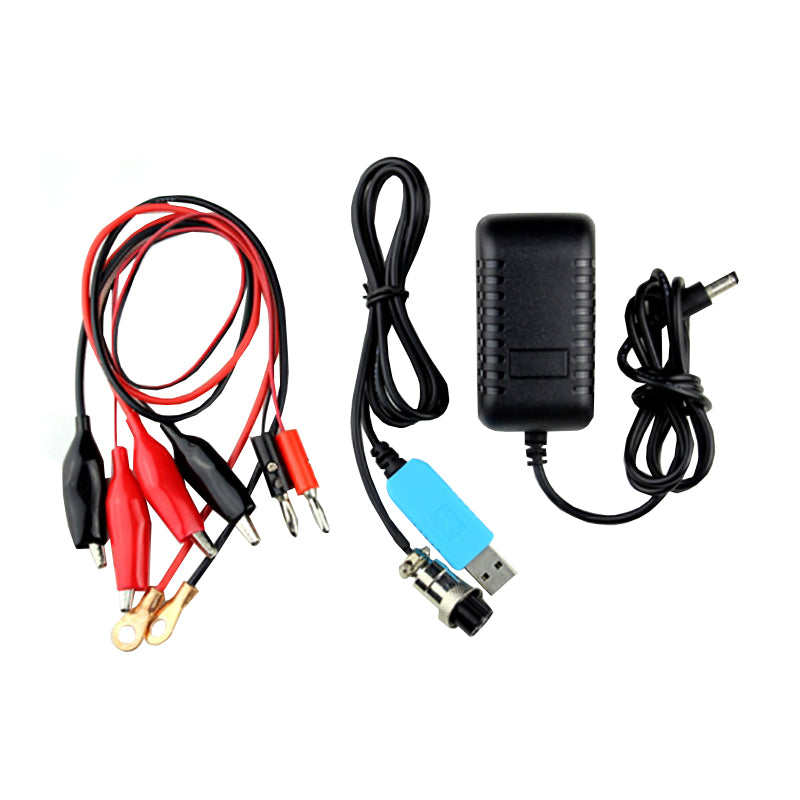

Product list:
1x tester
1x onelinetestline
1 x power cord
1 x pair of test clamps
