1. One click SOS button for help. One clicks for a fast cal. Low battery alarm. Ringtone to find the bracelet,Talking clock. This is a high-precision chip SOS device. The sensor we use is the best material.

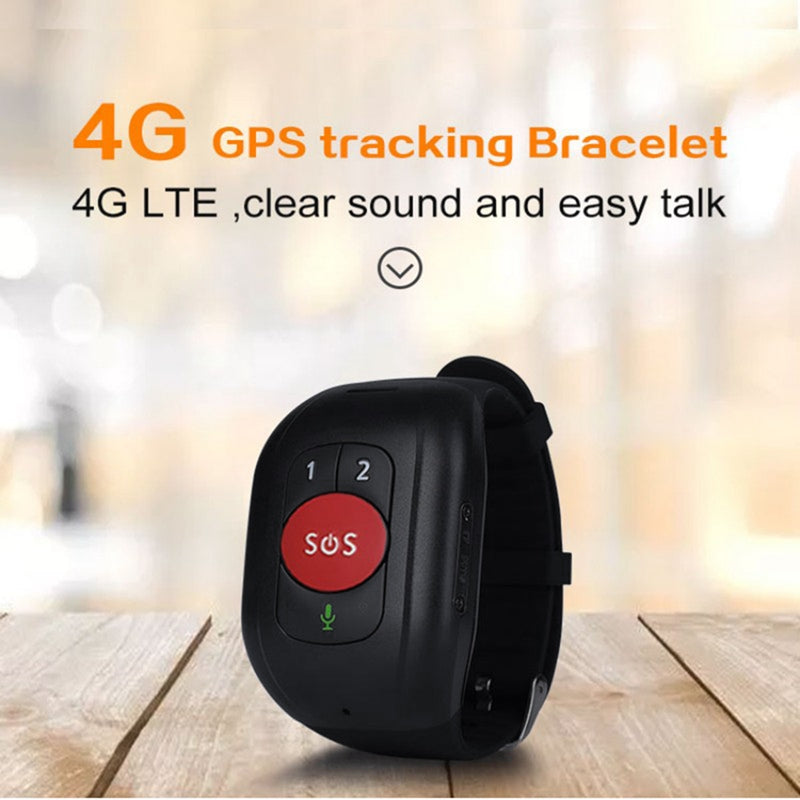

2. Network: 4G LTE + 2G GSM, Working Days:5-6 Days (Typical). Positioning method: GPS + Beidou global satellite + WIFI + LBS. Health: Heart rate, blood pressure and temperature detection. Pill reminder, step counting and health management

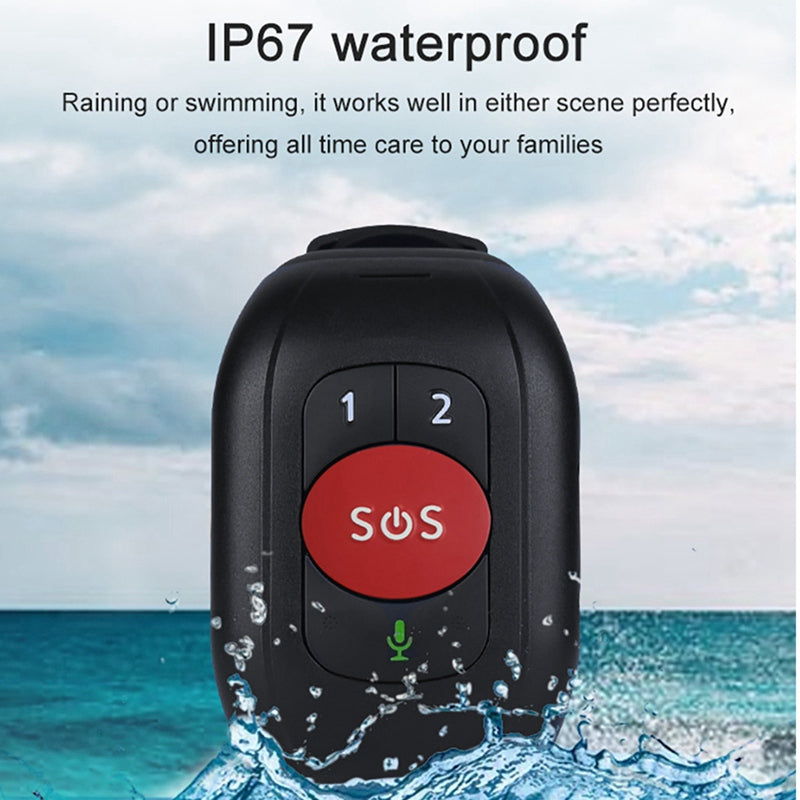

3. Waterproof grade IP67. Web platform/ Mobile App/ SMS commands check. Fall alarm. Remove the alarm

4. GPS positioning accuracy: 5-15 meters (outdoor open sky). Battery capacity:1000mA. Standby Time:7 to 10 days

5. WIFI positioning accuracy: 15-100 meters (Under WIFI range). Working temperature: -20°C - +70°C. Operating humidity: 5% - 95% RH

How To Configuration Your Watch

Step 1 - Insert the SIM card

After inserting the SIM, dial the SIM's number.

If get through with no answer, the device works.

Step 2 - Set APN

Send the following command by you phone:

pw,123456,apn,apndata,username,user password,network code#

Eg: pw,123456,apn,cmnet,cm,pd,46000#

(cmnet, user name:cm, password:pd, MCC:460, MNC:00)

Note: if apn information wrong, it didnt works

Step 3 - Set Fall Alarm

Send the following command by your phone:

pw,123456,falldown,1,1#

Set Ip (if you need integrate it into your server)

Send the following command by your phone:

pw,123456,ip,www.gps123.org,8888#

Set to factory

Send the following command by your phone:

pw,123456,reset#

Notice:All commands be correct forms & don't go to next step before receiving reply from the device.

Operating:

1. Heart rate, blood pressure and temperature detection

2. Pill reminder, step counting and health management

3. Fall Alarm(Phonebook),Take Off Alarm

4. Voice/Vibration Mode

Version A bands combination:

Europe,Asia,Africa, Such As Korea,Israel,Spain,France,Netherlands etc.

4G-FDD:Band 1/2/3/5/7/8

4G-TDD:Band 38/39/40/41

2G-GSM:Band 2/3/5/8

/

Version B bands combination:

South America, North

4. Voice/Vibration Mode

Version A bands combination:

Europe,Asia,Africa, Such As Korea,Israel,Spain,France,Netherlands etc.

4G-FDD:Band 1/2/3/5/7/8

4G-TDD:Band 38/39/40/41

2G-GSM:Band 2/3/5/8

Colour:Black-Red

Material:plastic

Package Contents:

1 * GPS Tracking Watch

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
