Introduction:

     1. Consistent improvement is the goal of our team at EMAX but this comes at a cost. With more upgrades to our micro indoor racing drones which cater to more experienced pilots, we further alienate potential budding pilots looking to explore the world of FPV. This is why our engineers have come up with a solution through the EZ Pilot Pro.

     2. The all new EZ Pilot Pro is our ultimate solution for beginner FPV pilots which factors in a budget conscious design without any sacrifices in overall quality. Utilizing powerful brushless motors, beginners can expect racing performance in an indoor ducted drone with extreme durability over other competing variants in the field.

     3. With durability in mind, the EZ Pilot Pro features a reimagined frame centered around the proven original Tinyhawk design which established itself as the baseline for all brushless indoor racing drones in its class. Taking the design to the next level involved more overall thickness and increased structural integrity making this drone the most indestructible design ever produced by our engineers.

     4. Included in the Ready To Fly Kit is the reimagined Transporter 2 FPV Goggle featuring a detachable screen which can optionally be paired to the brand new E8 transmitter, allowing pilots to customize their flying experience to suit their needs. Built into the Transporter 2 is a powerful receiver in order to give pilots the cleanest video feed possible. Utilizing high quality gimbals, the E8 transmitter offers unparalleled control over the drone, providing smoothness and precision over previous generations.

     5. In our ever expanding effort to introduce FPV to the masses, the EZ Pilot was engineered with STEM programs in mind by making the kit more user friendly for budding pilots under adult supervision, while keeping the price of the kit affordable so schools across the country will be able to inspire a new generation of aviators regardless of their program's budget.

     6.The EZ Pilot Pro combines the past and future in order to create the ultimate beginner FPV flying experience possible.

     Description:

                          Item

        Specifications

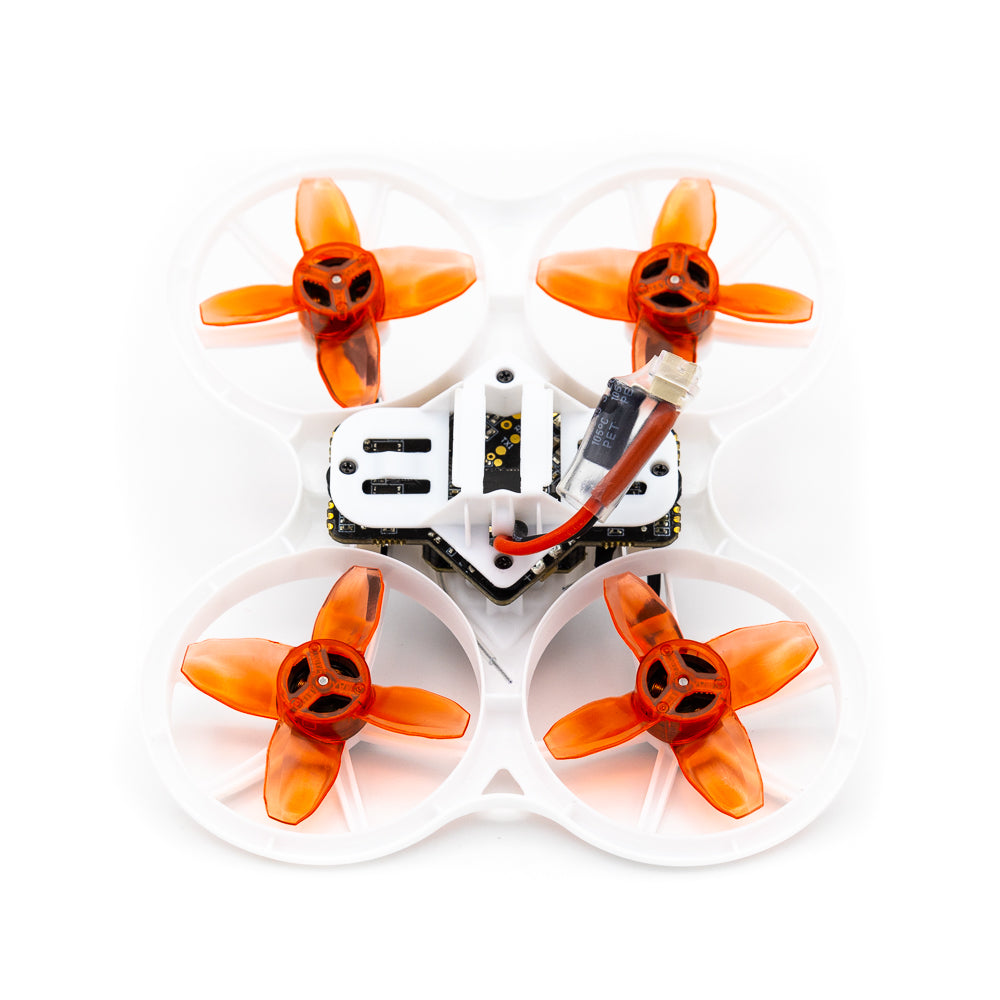

                      Emax EZ Pilot Pro

        Brand: Emax

Wheelbase: 80mm

Size: 114x98x40mm

Weight: 34g without battery

Motor: 08025 15000Kv Motor

Propeller: AVAN TH Turtlemode 4-Bladed Prop

Main Board: F4 (STM32F411 firmware) (4in1 / 5A ESC EMAX Tiny Receiver (SPI / Frsky_D8)

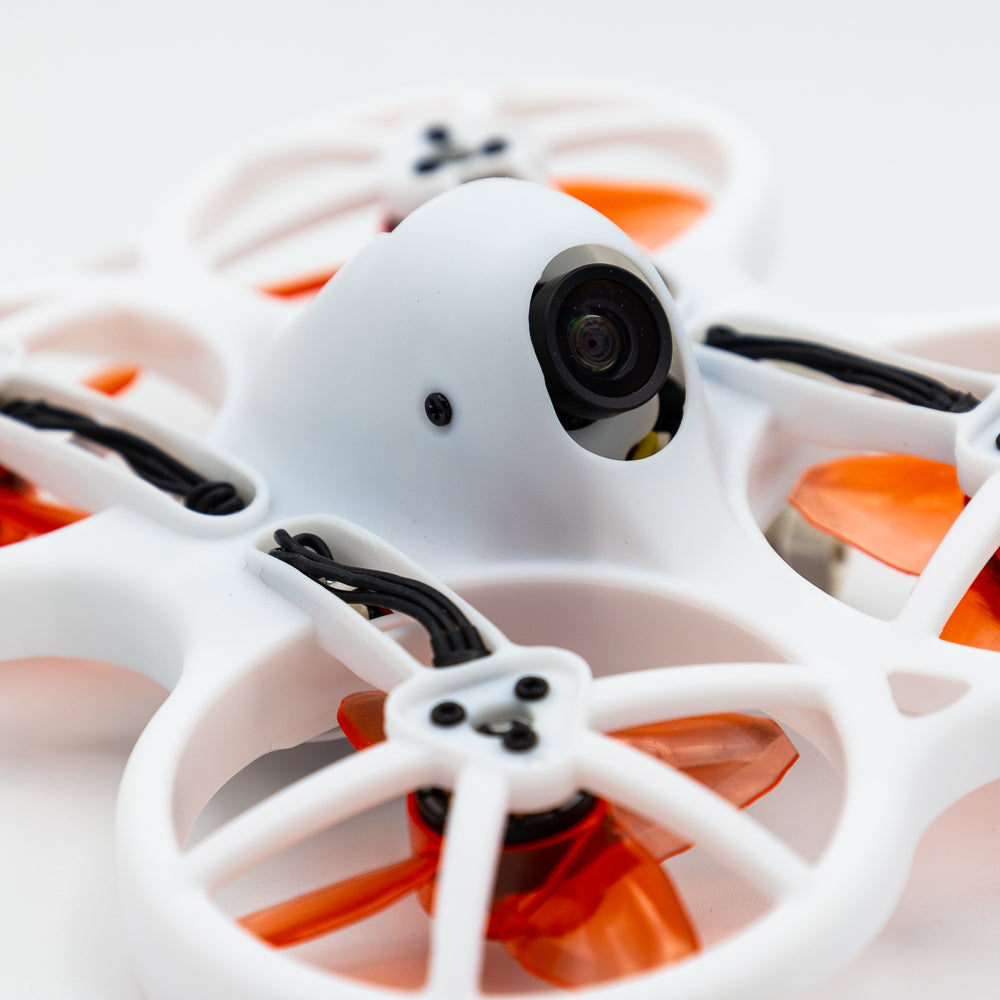

Carera: 1200TVL E01

VTX: 200-100-25mW 37CH (adjustable frequency) SmartAudio support

Battery: 1S HV 450mAh

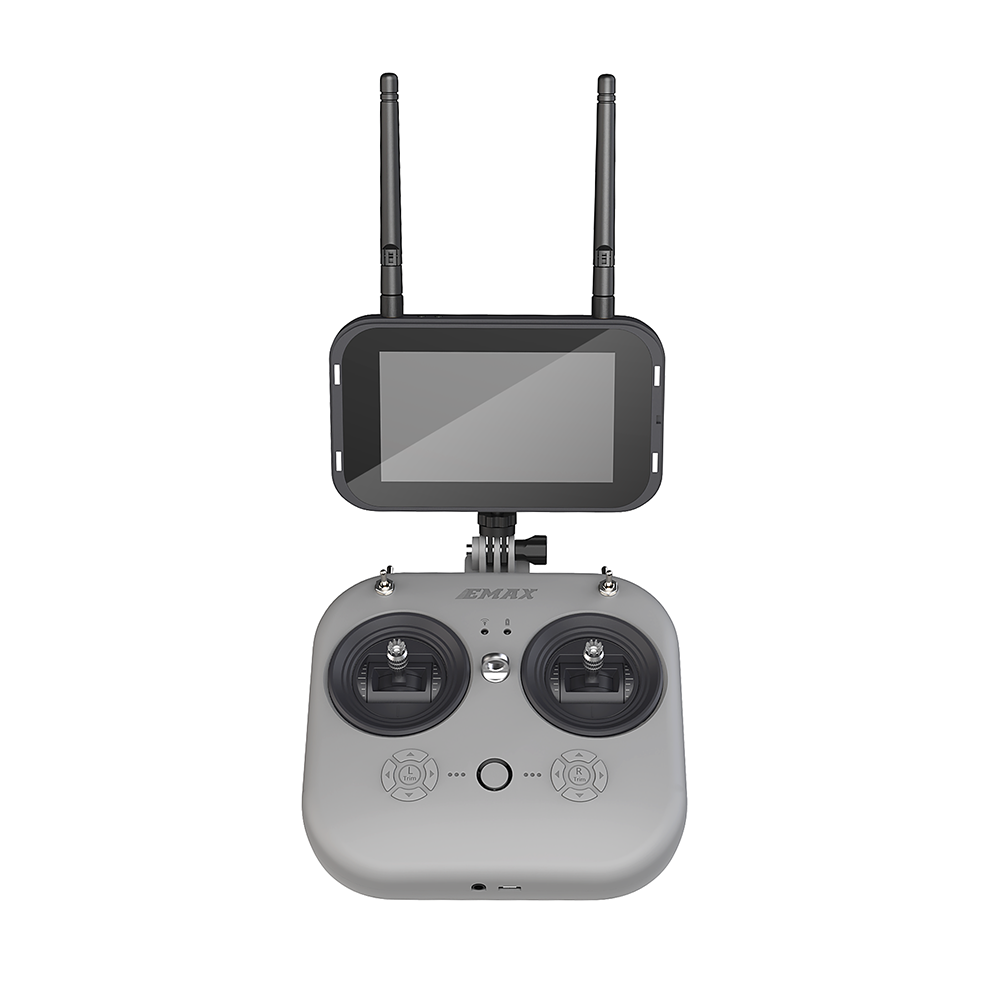

                      EMAX E8 Transmitter

                           Number of channels: 8CH

                              Frequency: 2.4GHz (2400MHz-2483.5MHz)

                     Output: 22dbm

                                 Battery: 18650 Li-ion battery

                                    Charging System: Built-in USB 1A Linear Li-ion Battery Charging System

                                       Working voltage: 3.7V-4.2V

                                          External interface: Micro USB, 3.5mm audio interface (wired trainer interface)

                                             Maximum size: L * W * H = 150x140x45mm

                               Weight (without battery): about 260g

                      EMAX Transporter 2（without DVR）

                           Screen Resolution: 480X272

                   Screen size: 4.3 inch

                   Battery: 1300mAh Li-ion battery

                   Working voltage: 3.7V-4.2V

                   Frequency: 5.8GHz (5658MHz-5945MHz)

                   Charging System: Built-in USB 1A Linear Li-ion Battery Charging System

                              Maximum size (without antenna, folded): L * W * H = 145x155x92mm

                     Weight (without battery): about 398g

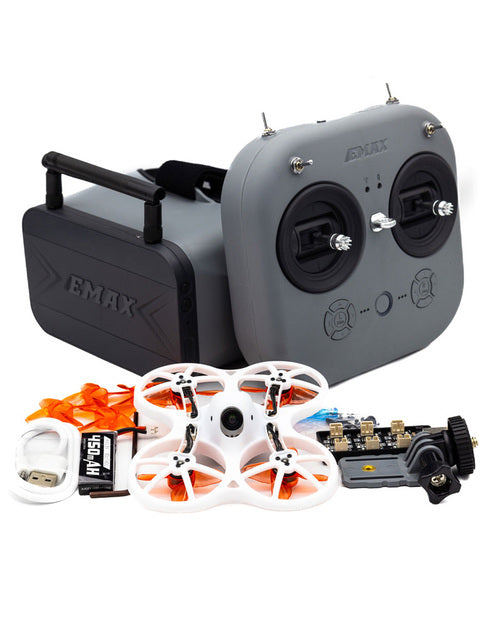

                                                                                                              Package Included:

                             1x EZ Pilot Pro RTF FPV Drone

           1x EMAX Transporter 2 (without DVR)

           1x EMAX E8 Transmitter

           4x AVAN TH Turtlemode 4-Bladed Prop

           1x USB charger

           1x 1S HV 450mAh Battery

           1x Screwdriver

           2x Antenna
