Main technical indexes：
Model
ET430
ET431
ET432
ET433
Testing frequency
100Hz, 120Hz,
1KHz, 10KHz,
40kHz, 100KHz
100Hz, 120Hz, 1KHz, 10KHz
100Hz, 120Hz, 1KHz, 10KHz, 40kHz, 100KHz
100Hz-100KHz
Continuously adjustable,
a step of 1 Hz
Basic accuracy
0.3%
0.2%
0.2%
0.2%
Display screen
2.8” TFT LCD screen
Number of display digits
Principal parameter: 5 digit
Secondary parameter: 5 digit
Measured parameter:
Principal parameter: L/C/R/Z
Secondary parameter: X/D/Q/θ/ESR
Electrolytic capacitor mode
√
√
√
√
DCR mode
×
√
√
√
Measurement range
L：0.000µH～2000H，
C：0.000pF～20.000mF，
R：0.0001Ω～20.000MΩ
Measuring display speed
1 time/s (slow), 2 times/s (medium), 4 time/s (fast)
Internal bias
×
0-500mV adjustable, at a step of 1mV.
Testing level
0.6Vrms
0.1Vrms, 0.3Vrms, 0.6Vrms,1Vrms
0-1V adjustable
Calibration function
Open circuit calibration, short circuit calibration
Screening function
The limit range of screening can be set to 1%-50%, and the fixed points are 1%, 5%, 10% and 20%.
Deviation measurement
Used for comparing and displaying deviation percentage of component and the set nominal value
Others
Adjustment of backlight brightness, Chinese and English are optional,USB device and automatic power-off time

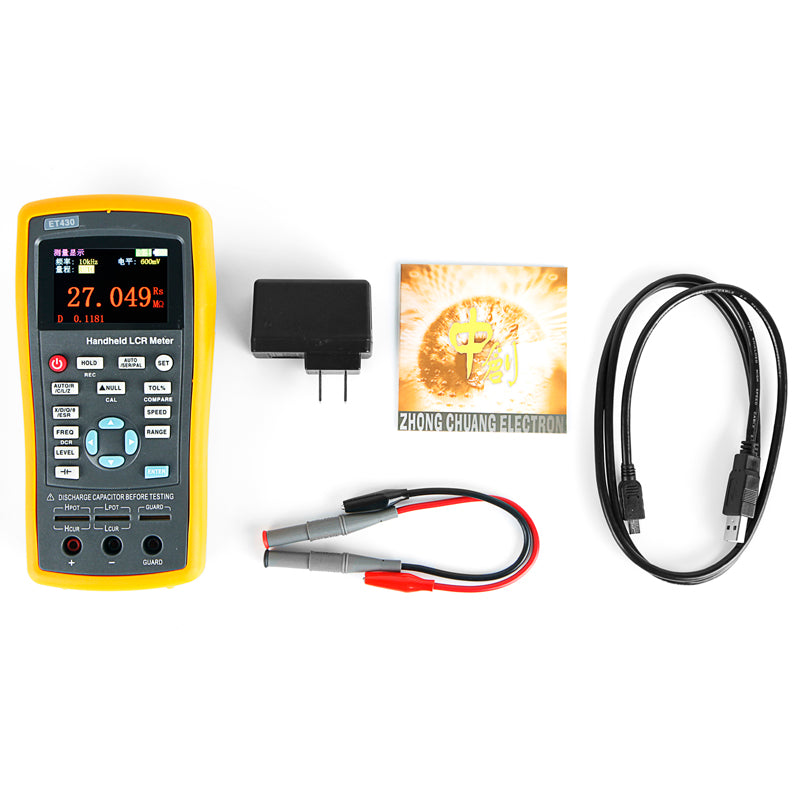

Accessories
Standard configuration
1. Mini-USB cable; 2. Power adapter; 3. Short circuit bar;
4. Red and black rubber plug;
/
Kelvin clips
Optional configuration
Kelvin clips
SMD clips
SMD clips
