Specifications:
Functions: DC current, AC current measurement, peak holding, online monitoring
Power supply: alkaline dry battery 6LR61 9v, continuously used for 40 hours
Test mode: clamp CT, non-contact measurement
Display mode: 4-bit LCD display
Instrument size: height, width and thickness: 175mm × 70mm × 38mm
LCD size: 35mm × 21.5mm; Display field: 32mm × 15mm
Sampling rate: 2 times/second
Frequency response: AC: 45Hz~400Hz
Polarity indication: automatic identification and display of "_" during DC current detection number
Jaw size: 30mm × 35mm
Wire position: the detected wire is in the center of the jaw, and the deviation from the center position error increases by 1.5% rdg at most
Gearshift: fully automatic switching
Line voltage: line test below 600V

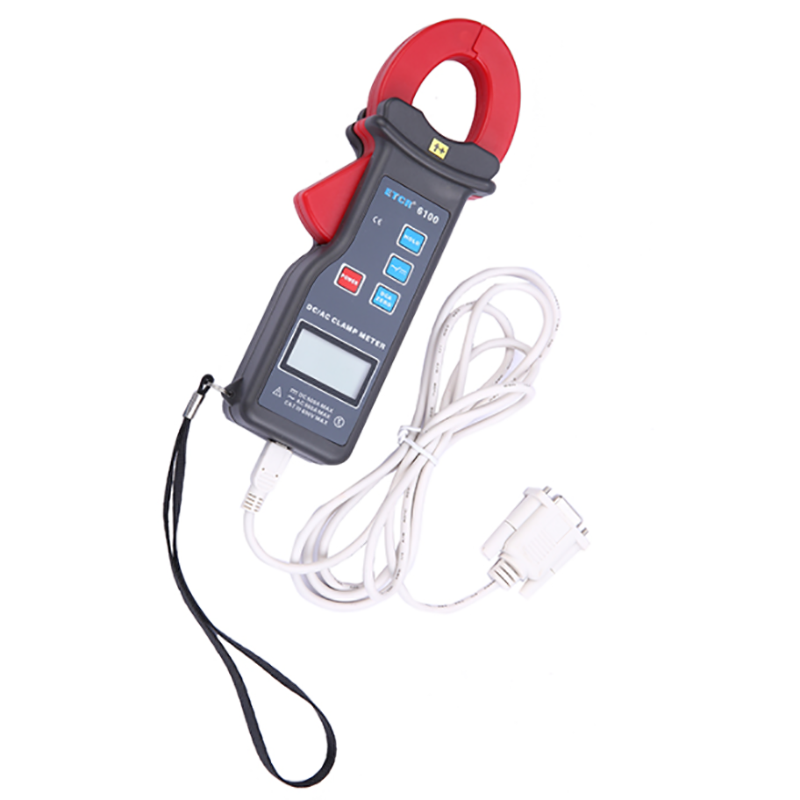

Communication interface: with RS232 interface, the stored data can be uploaded to the computer and monitored by software
Communication parameters: baud rate 9600, data bit 8, stop bit 1, check bit NONE
Data storage: 99 groups, flashing "FULL" symbol indicates that the storage is full
Peak holding: peak capture and holding function, long press HOLD during the test to display the peak value
Data retention: data retention function: "DH" symbol display
Overflow display: Overrange overflow function: "OL" symbol display
Automatic shutdown: the instrument automatically shuts down 5 minutes after startup to reduce battery consumption
Battery voltage: When the battery voltage drops to 7.2V, the low battery voltage symbol "-" is displayed to remind you to replace the battery
Instrument weight: 200g (including battery)
Working current: 10mA
Operating temperature and humidity: - 10 ℃～ 50 ℃; Below 80% rh
Limit temperature error: - 10 ℃～ 0 ℃ and 40 ℃～ 50 ℃, with maximum error increase of 1% rdg
Storage temperature and humidity: - 10 ℃～ 60 ℃; Below 70% rh
Insulation strength: AC2kV/rms (between iron core and box)
Applicable safety regulations: IEC1010-1, IEC1010-2-032, pollution level 2, CAT III (600v)
