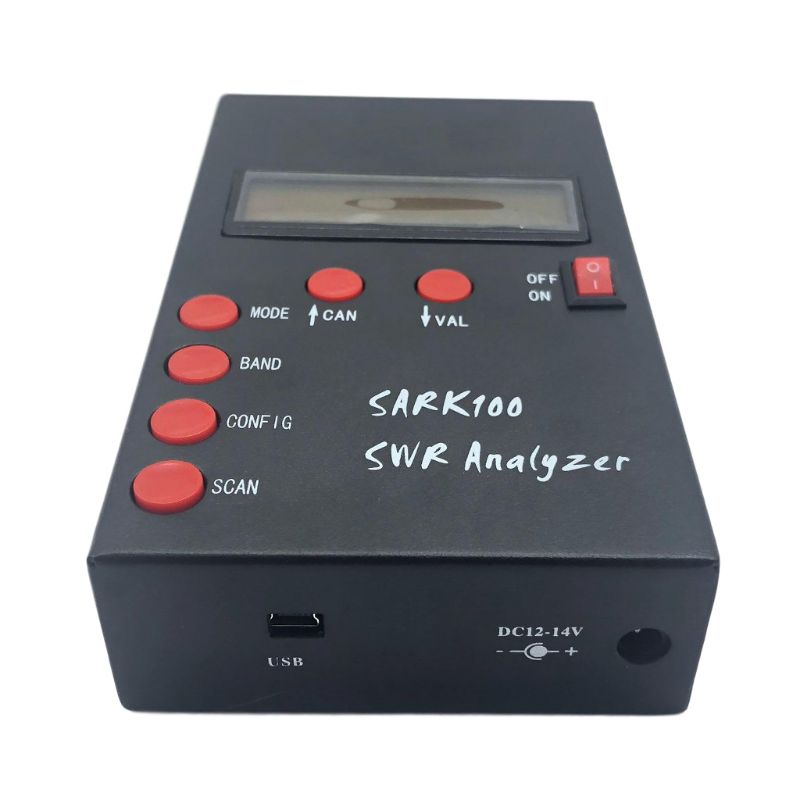

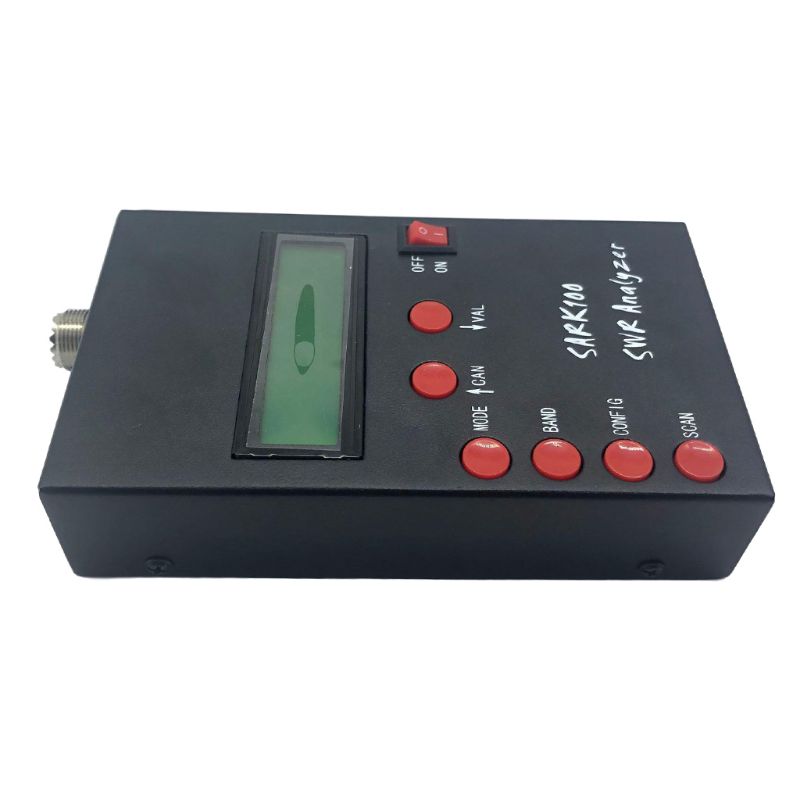

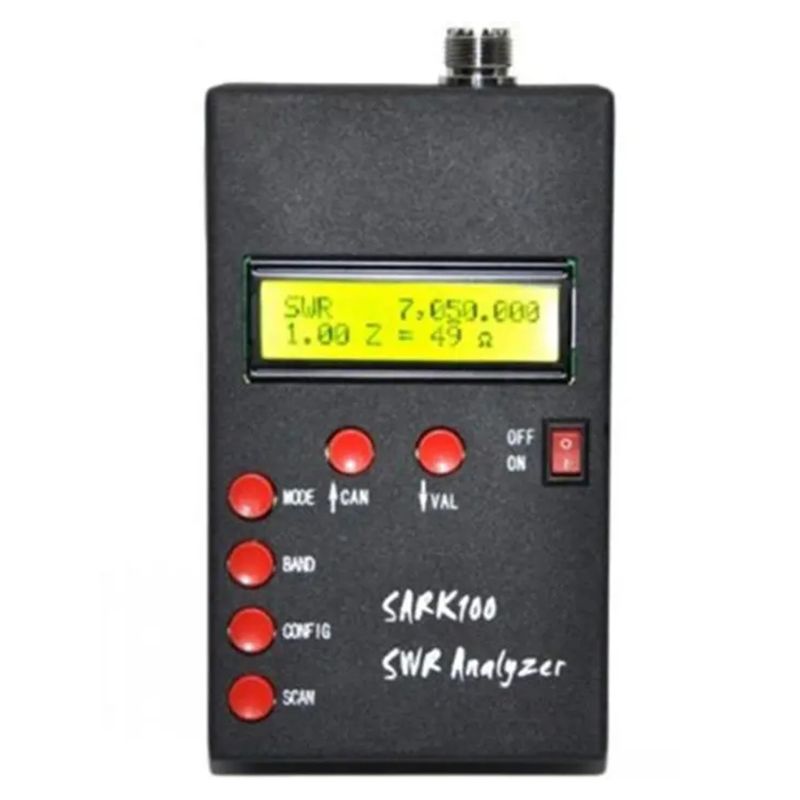

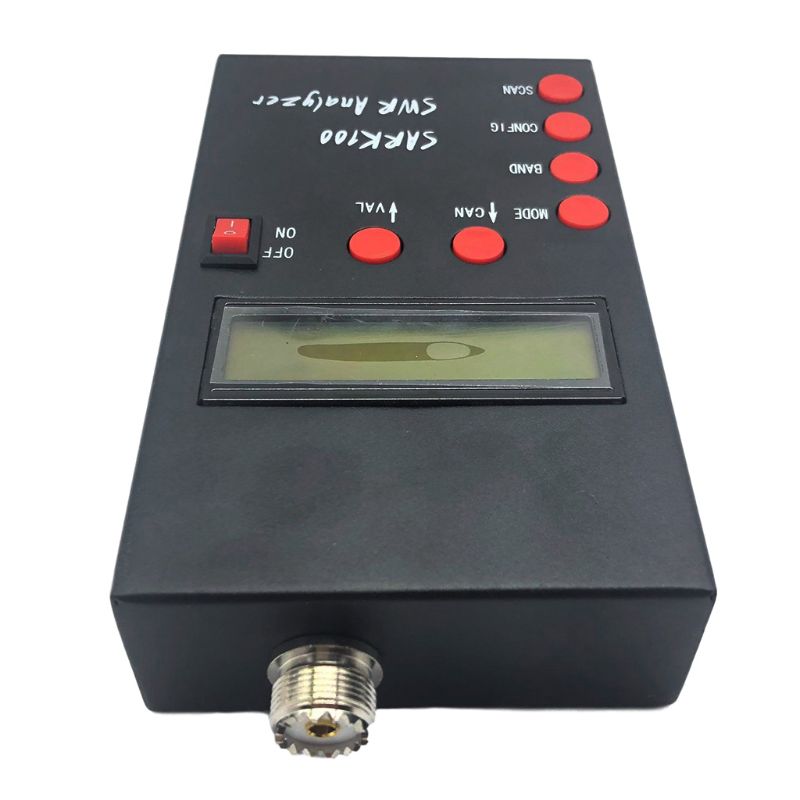

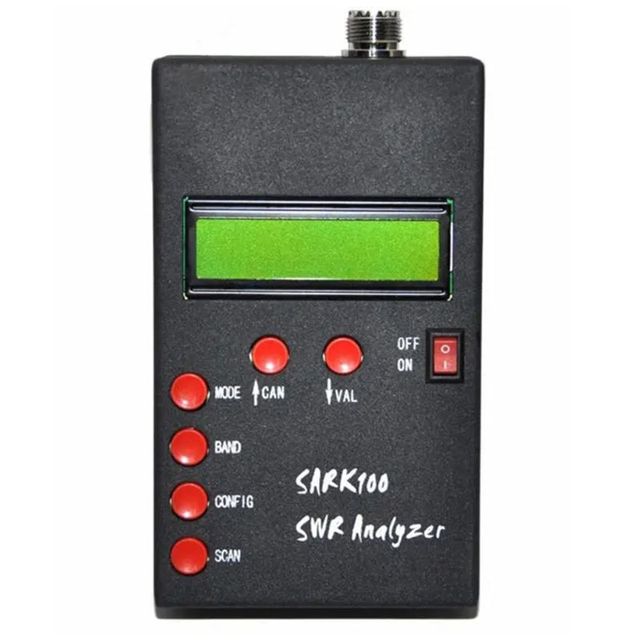

F19E 1-60MHz HF ANT SWR Antenna Analyzer Meter Standing Wave Tester for Ham Radio Impedance Capacitance Measurement
OOTDTY
Description:
100% brand new and high quality
Feature:
This is an antenna analyzer for ham radio hobbyists.
It can measure 50 ohms source impedance with the error of (+/-)1 ohm.
It is also a meter for standing wave, impedance, capacitance.
With some operation buttons, easy and convenient to operate.
Support measuring data waveform analysis via connecting computer with USB cable(not included).
Installed black case, just connect the power(not included) and then work.
Applications:
Measure antenna electrical parameters: SWR, impedance(resistance+reactance), capacitance, inductance;
Measure feed point impedance;
Measure ground loss;
Adjust antenna tuners and determine loss;
Measure inductors and capacitors;
Measure coax transmission line(SWR, length, velocity factor, approximate Q and loss, resonant frequency, and impedance);
Measure and determine optimum settings for tuning stubs: SWR, approximate Q, resonant frequency, bandwidth, impedance;
Determine characteristic impedance of transmission line;
Measure magnetic loop resonance and SWR.
Specifications:
Item Type: Antenna Analyzer
Material: plastic+metal

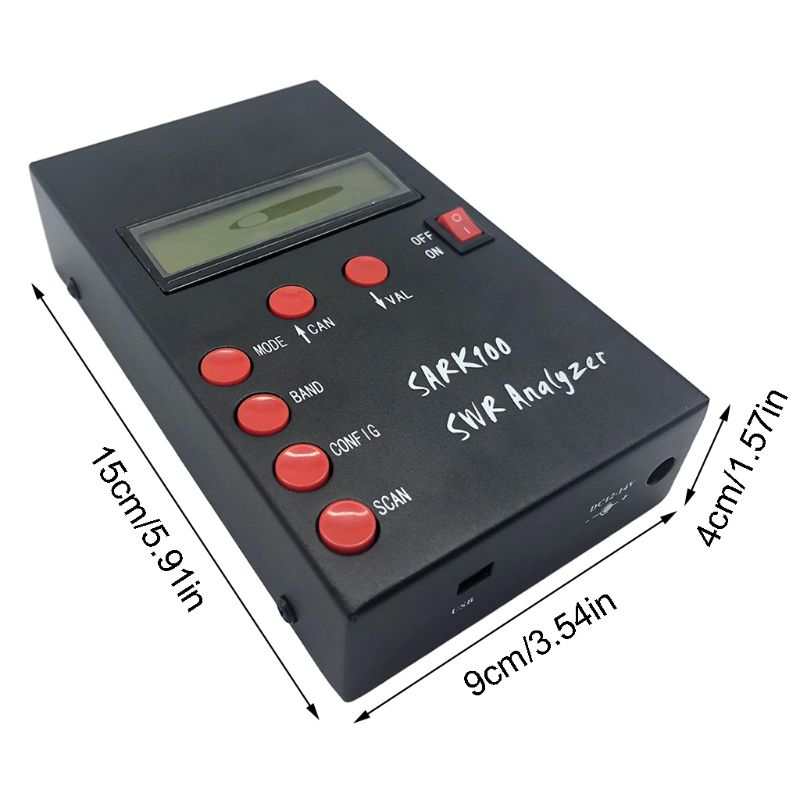

Size: 150x90x40mm/5.9x3.5x1.5in
Color: Black
Frequency generation/control: 1-60MHz
Source Impedance: 50 ohms
Usable Measurement Range: SWR: 1.0 to 9.99
Quantity: 1 PC
Note:
No retail package.
Transition: 1cm=10mm=0.39inch
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Includes:
1 x Antenna Analyzer
(other accessories demo in the picture are not included!)
