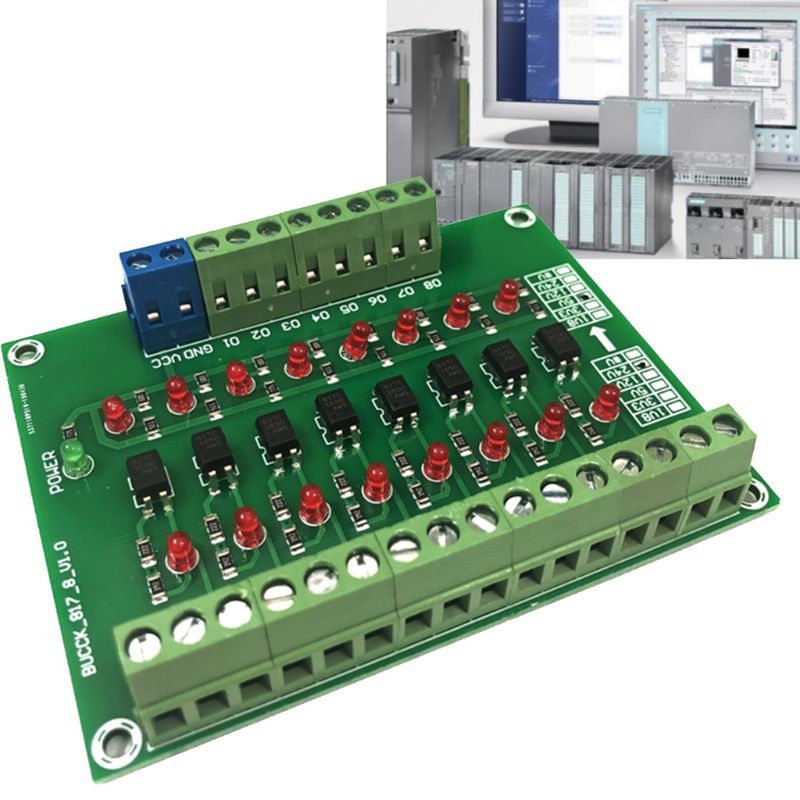

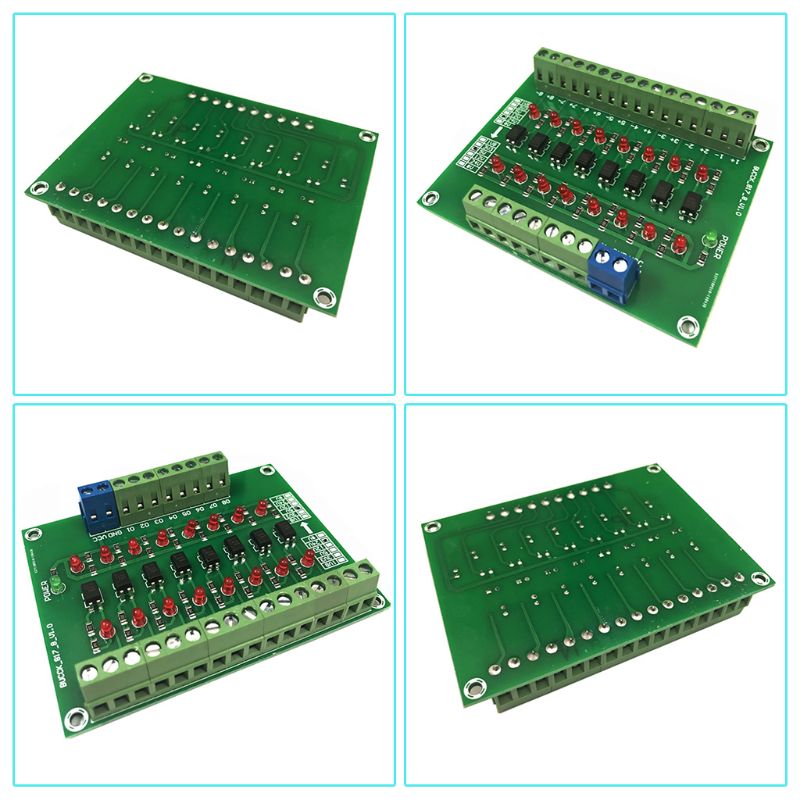

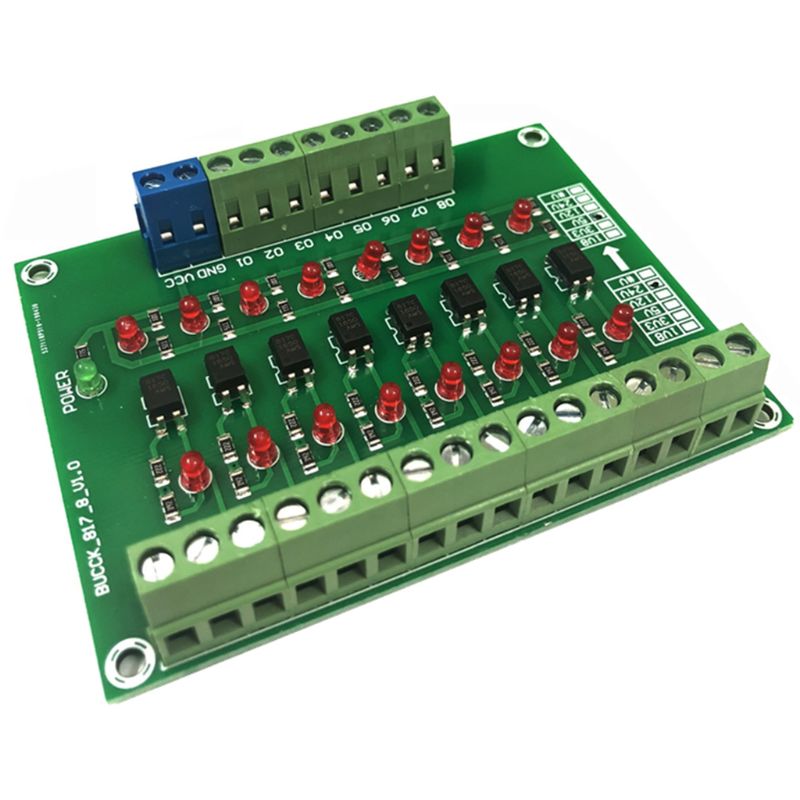

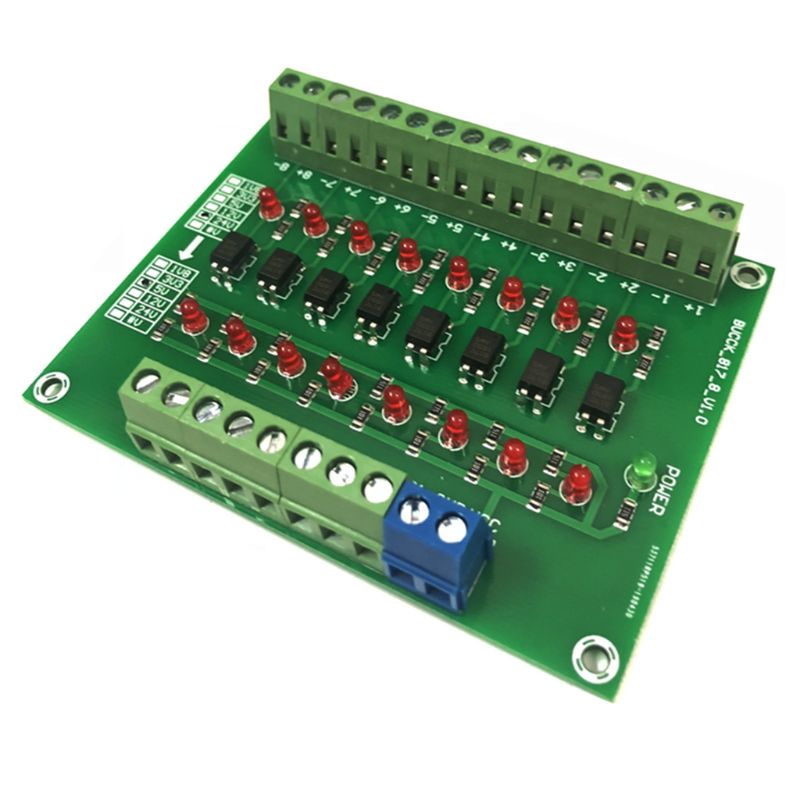

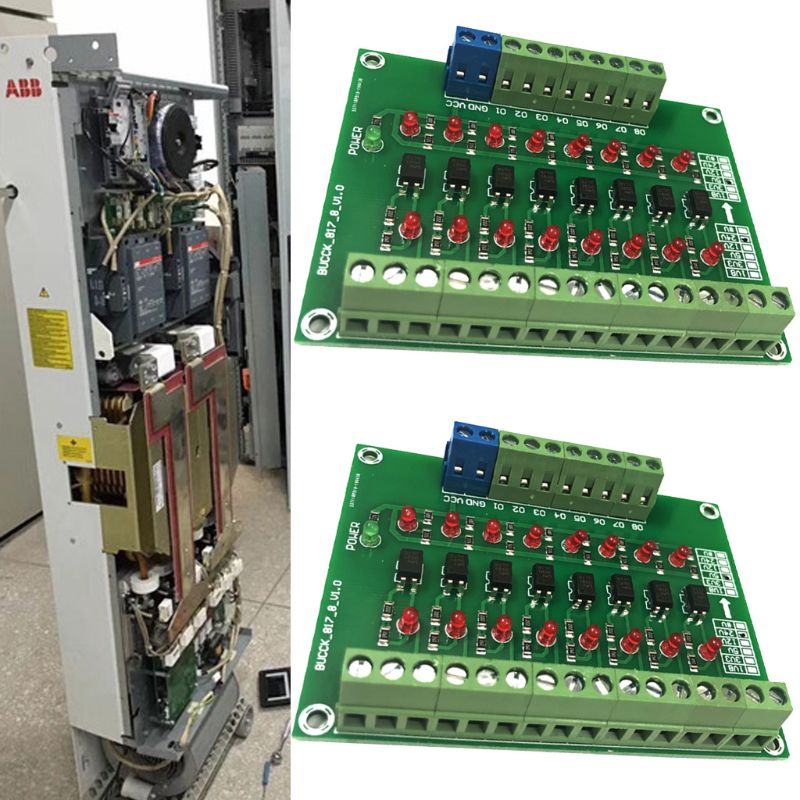

F19E 8 Channel 8bit Photoelectric Isolation Module Level Voltage Converter PNP Output PLC Signal Converter Adapter
OOTDTY
100% brand new and high quality
Features:
It can be used for signal isolation
PLC signal level converting
PNP/NPN signal to NPN signal
Applications for signal isolation; MCUs and PLCs level conversion of signals; transform PNP, NPN singal into PNP signal; signal level voltage convert.
Pin Definition:
1.1+:the first channel signal input positive
2.1-:the first channel signal input negative
3.2+:the second channel signal input positive
4.2-:the second channel signal input negative
5.3+:the third channel signal input positive
6.3-:the third channel signal input negative
7.4+:the fourth channel signal input positive
8.4-:the fourth channel signal input negative
9.5+:the fifth channel signal input positive
10.5-:the fifth channel signal input negative
11.6+:the sixth channel signal input positive
12.6-:the sixth channel signal input negative
13.7+:the seventh channel signal input positive
14.7-:the seventh channel signal input negative
15.8+:the eighth channel signal input positive
16.8-:the eighth channel signal input negative
17.VCC:DC power supply positive
18.GND:DC power supply negative
19.O1:the first channel signal output
20.O2:the second channel signal output
21.O3:the third channel signal output
22.O4:the fourth channel signal output
23.O5:the fifth channel signal output
24.O6:the sixth channel signal output
25.O7:the seventh channel signal output
26.O8:the eighth channel signal output
Specification:
Limit conversion frequency: 20KHZ.

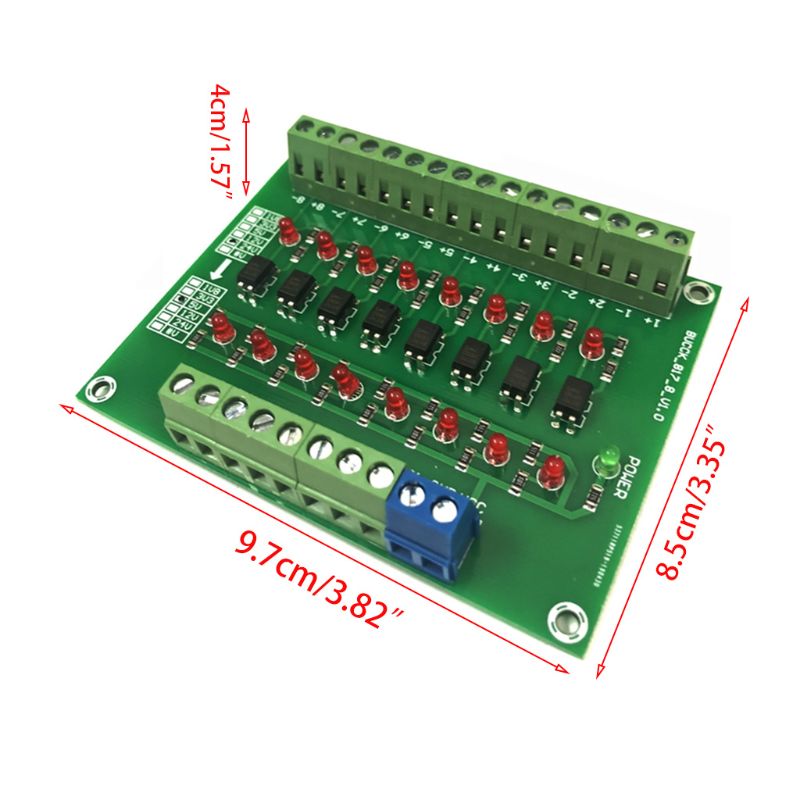

Size: app.9.7x8.5x4cm/23.82x3.35x1.57in
Color: As pictures shown
Quantity: 1 Pc
Note:
No retail package.
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:
1 x c
