2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation.
MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
Specifications:

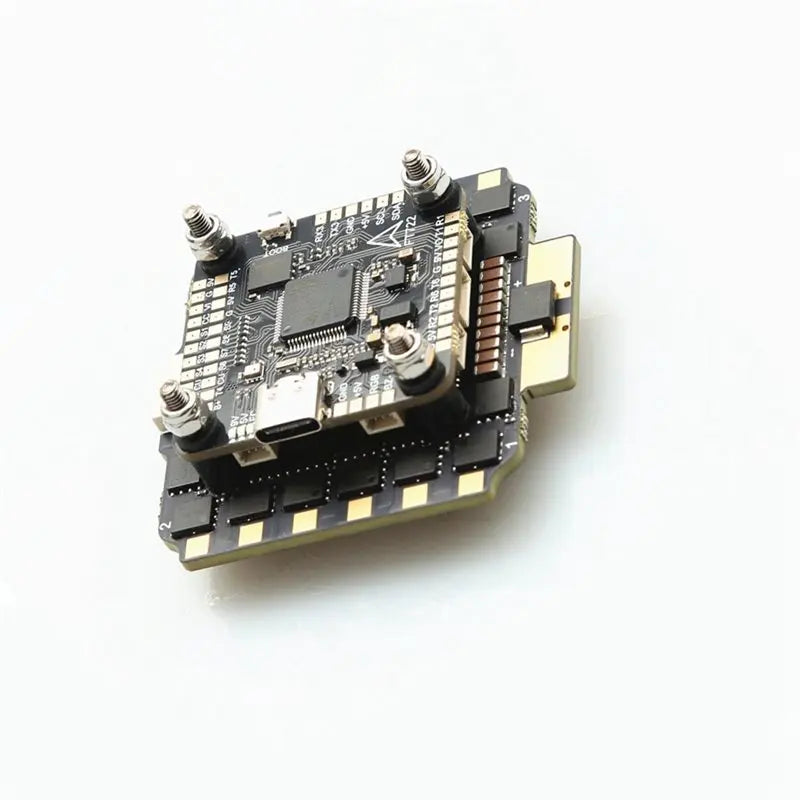

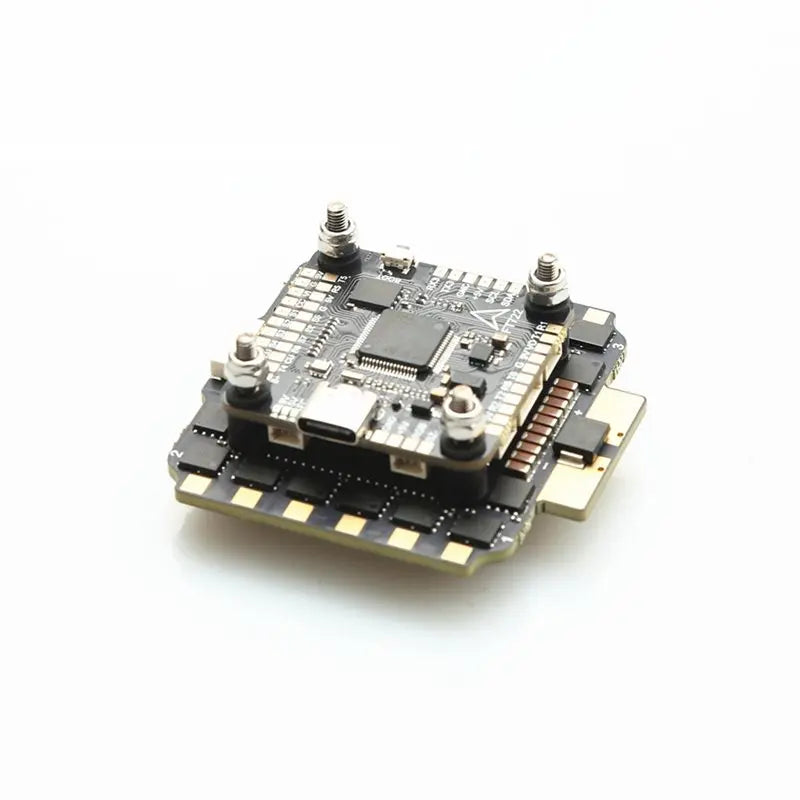

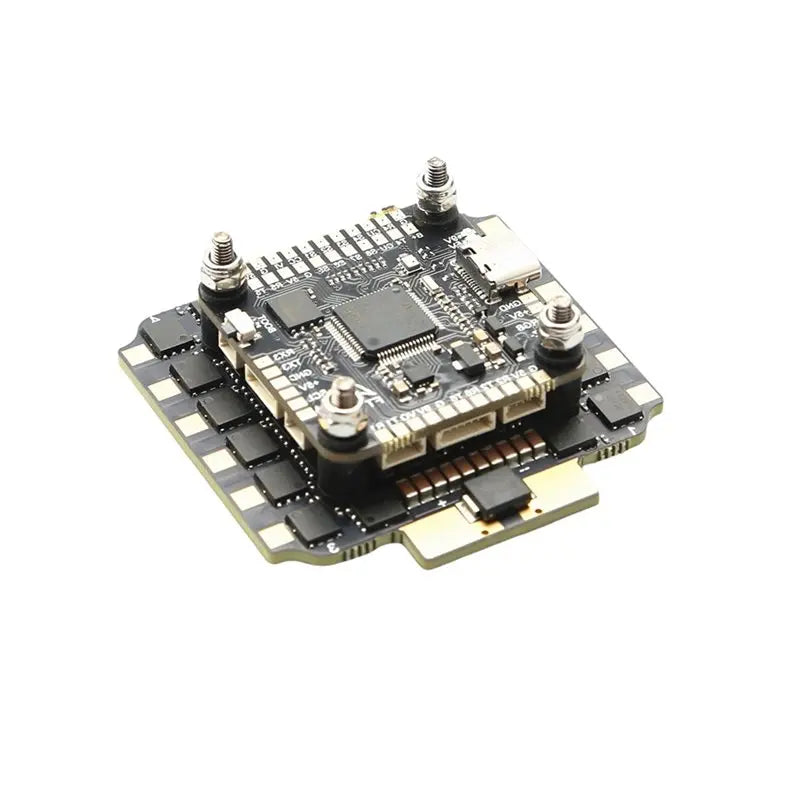

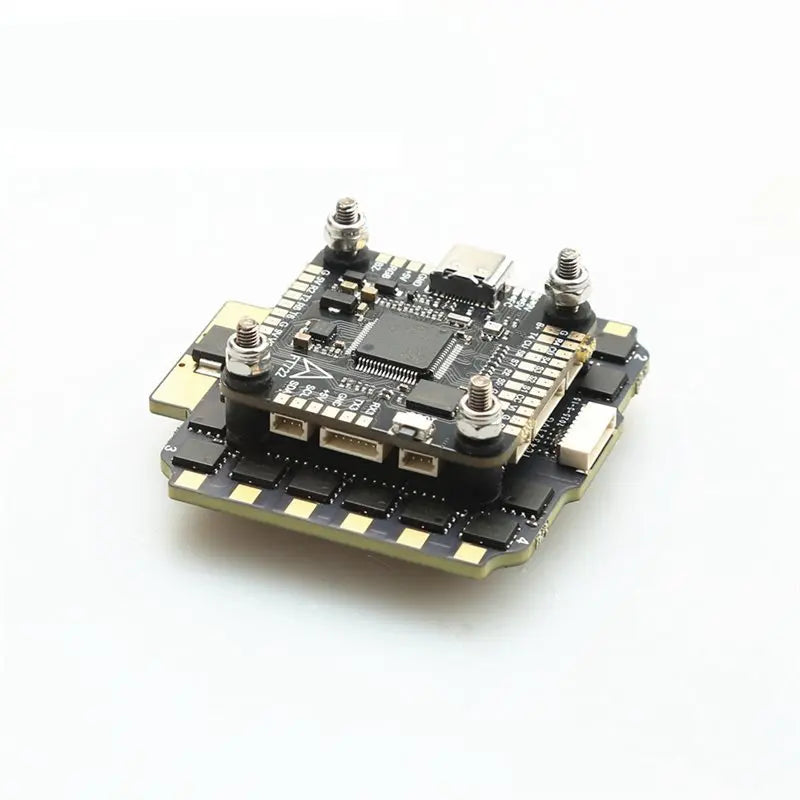

(Model): TEARCKEP F722 Flight Controller
(MCU) STM32F722RET6
(IMU) ICM-42688
(OSD): AT7456E
(Baro) SPL06-001
(Blackbox): 16MB
(Input voltage): 3-8S Lipo(11.4-36V)
5V-BEC: 5V/2.5A ±0.1V
10V-BEC: 10V/2A(USER1)
IO2: USER2
(Receiver): ELRS(CRSF), TBS(CRSF), SBUS.IBUS.DSM2.DSMX
UART: UART1/2/3/4/5/6
IIC: 12C1
Led Strip:YES
(Buzzer): 5V
(ESCsignal): Support PWM, Oneshot125, Oneshot42. Multishot Dshot150, Dshot300, Dshot600
USB: TYPE-C
(Current port): YES
(Voltage sensor) YES
DFU (DFU button): YES
(Firmware):AXISFLYINGF7PRO

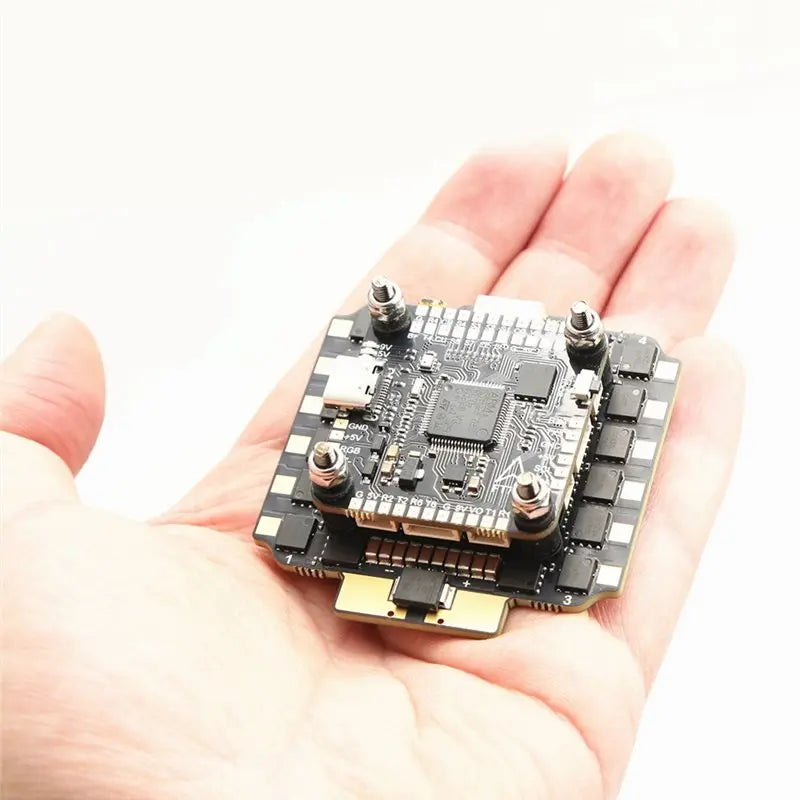

(Size): 36*36MM
(Mounting Hole) 30.5*30.5*4MM
FT32 80A-AM32 4-in-1 ESC
Continuous current: 80A*4
Peak current: 90A*4
Input voltage: 3-8S LIPO
ESC feedback: Supported
Firmware: AT32DEV-AM32,2.16
ESC protocol: DSHOT150/300/600&Multot/OneShot/Proshot/PWM .
Dimension: 56.0*51.2mm
Mounting hole: M3 30.5*30.5mm
Color: As Shown
Material: PCB

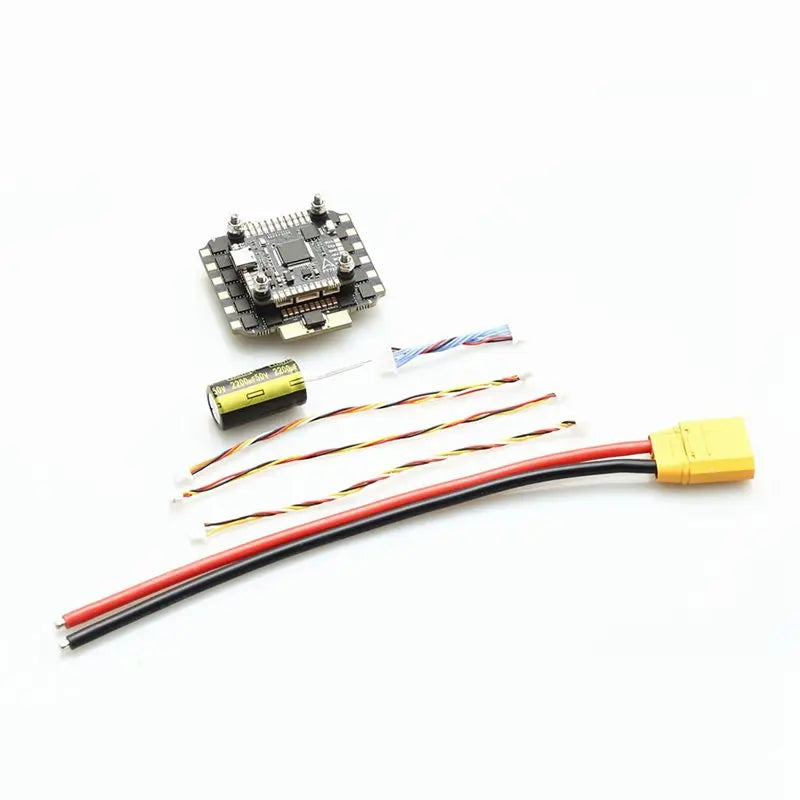

Package Contents:
1*FPV Stack Kit
