Feature:
Plug Type:EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on
How to use this device?

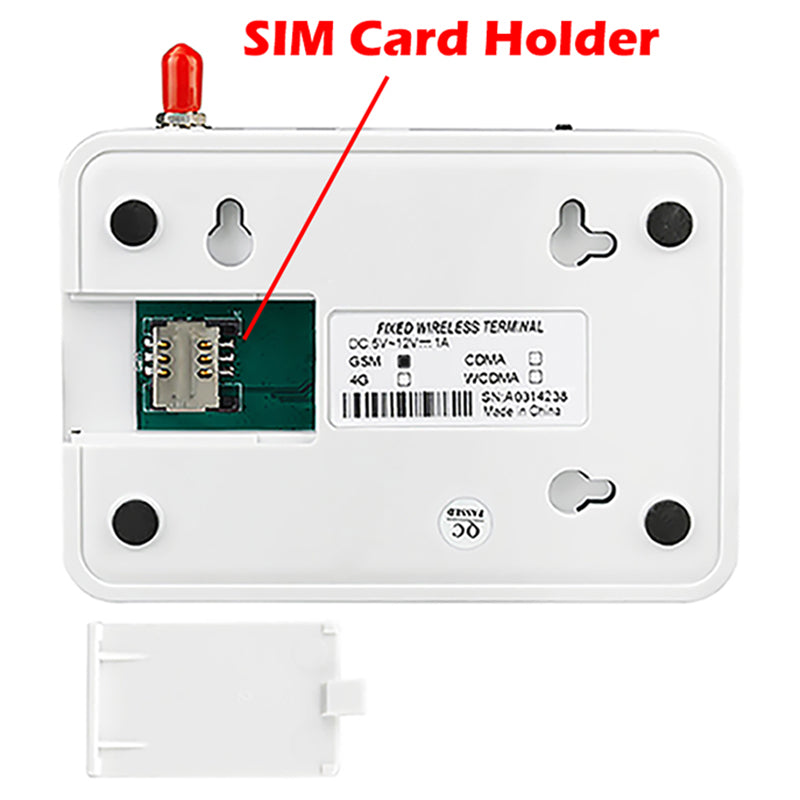

Step 1: Install a SIM Card: Insert the SIM card only when the terminal is switched off and the AC adapter is unplugged

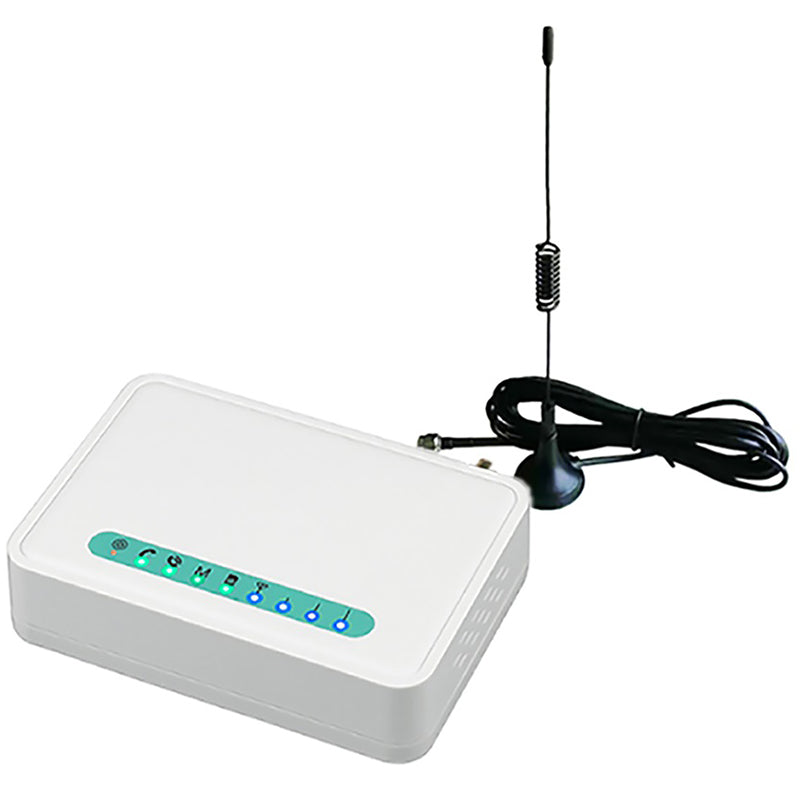

Step 2: Connect the Antenna: For antenna connection, you can use your mobile phone to search for the place where the strongest signal is, then put the antenna there. Please do not make the antenna too close to the terminal. It will disturb the signal of the terminal.
Step 3:Connecting your terminal with desktop phone

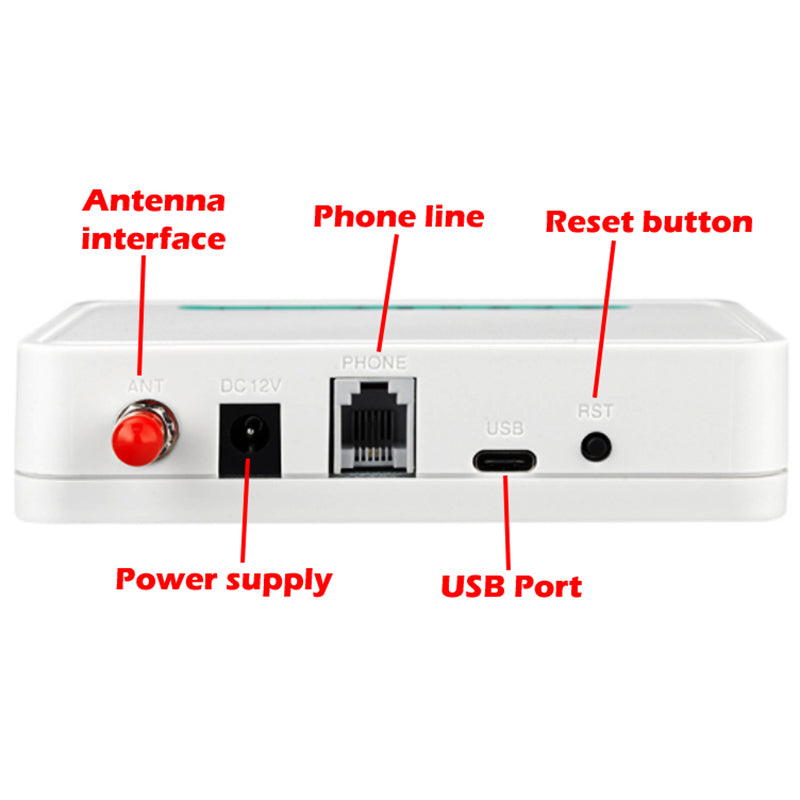

To make calls, you should connect the telephone line with RJ11 phone port of GSM terminal and telephone set
There is one communication portal at the side of the terminal.You can connect one desktop phones with terminal.
Step 4: Connect power adapter and switch on the power.
Step 5: For a while, the device get GSM signal and enter normal working status.
Step 6: Make phone call with your telephone set that connected with terminal.
Specifications

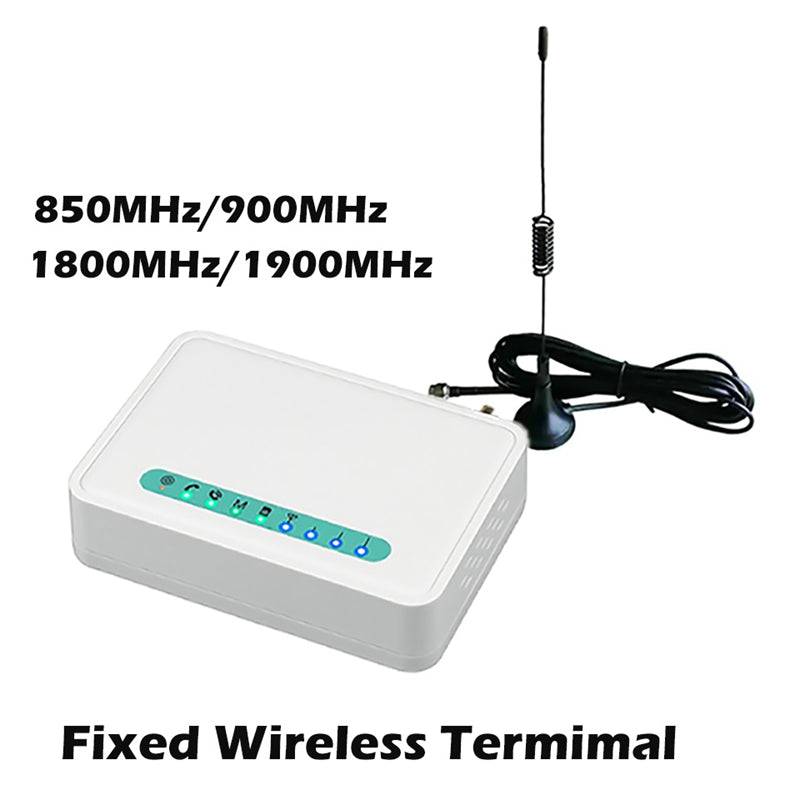

1.Networks support: GSM850/900/1800/1900MHz
2.Frequency range:
GSM 850MHz(Transmits: 824-849MHz, Receives: 869-894MHz)
GSM 900MHz(Transmits: 890-915MHz, Receives: 935-960MHz)
GSM 1800MHz (Transmits: 1710-1785MHz, Receives: 1805-1880MHz)
3.Voltage DC 5V-12V
4.Telephone line length: 150cm
Colour: white
Material: plastic

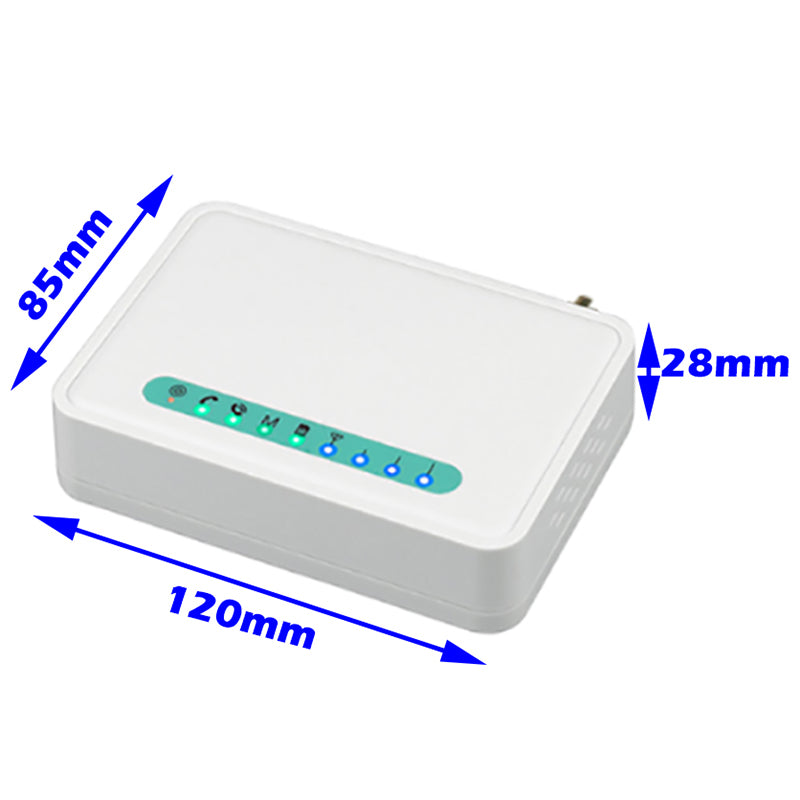

Size: 120 x 85 x 28mm
Package Contents:
1 x Wireless terminal
1 x antenna
1 x EU plug
1 x Telephone line
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
