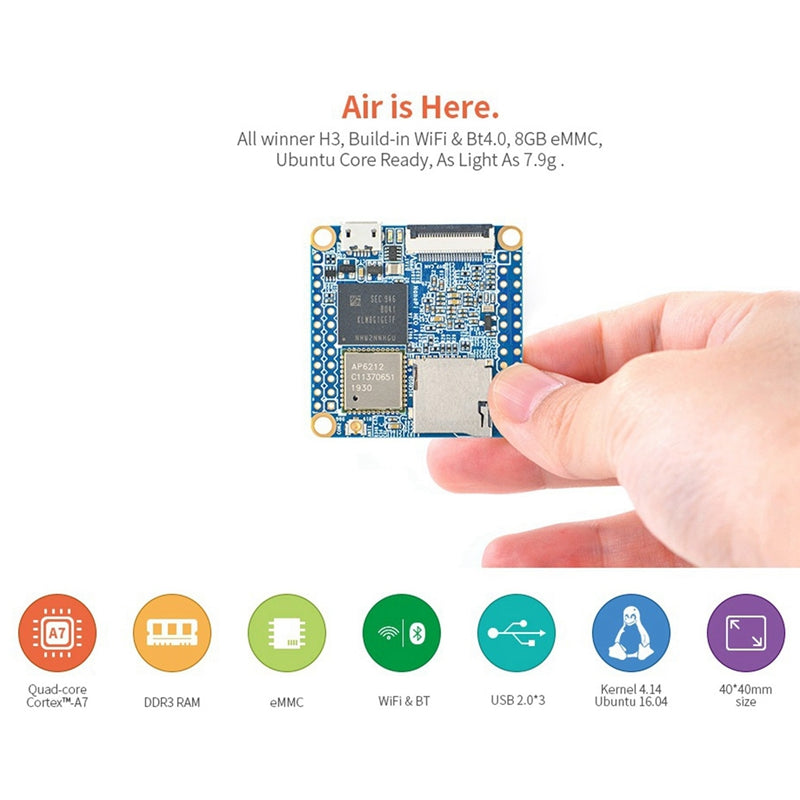

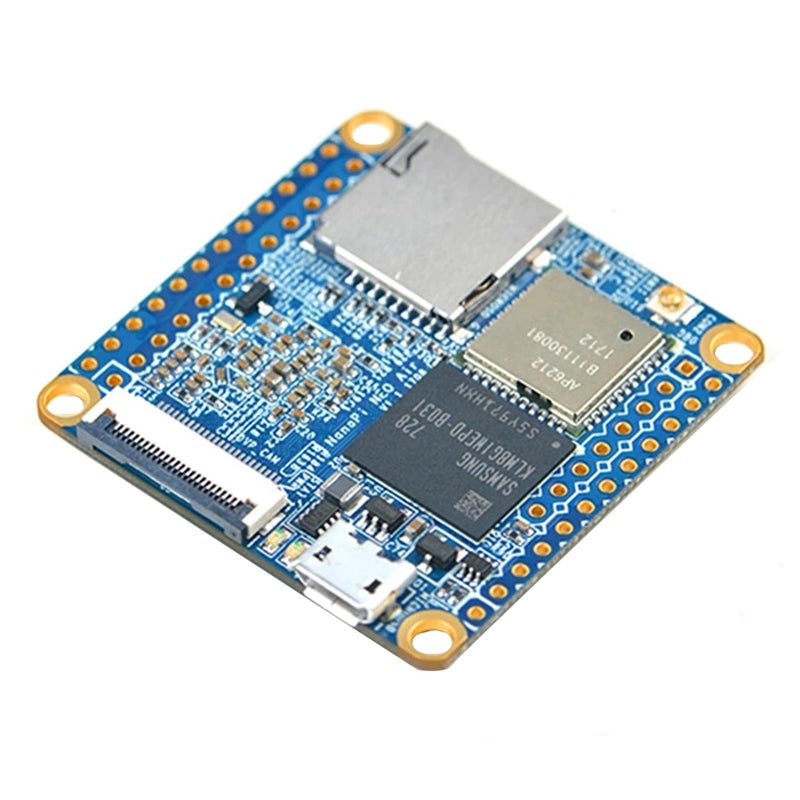

The for NanoPi NEO Air is a 40 x 40mm open-source ARM board.
It uses the 1.2GHz AllWinner H3 quad core A7 processor. Its pins are compatible with NanoPi NEO (V 1.2),
Its 24 pin connector is compatible with the GPIO pin connector of Raspberry Pi.
The for NanoPi NEO AIR is equipped with 512MB 16 bit wide DDR3 RAM, 8GB eMMC and a MicroSD slot.
It has WiFi, Bluetooth and DVP camera interface (YUV422). DVP camera interface can support friendlyarm's 5MP camera module
color: blue
Material: PCB
It has enhanced power circuit design and better heat dissipation.

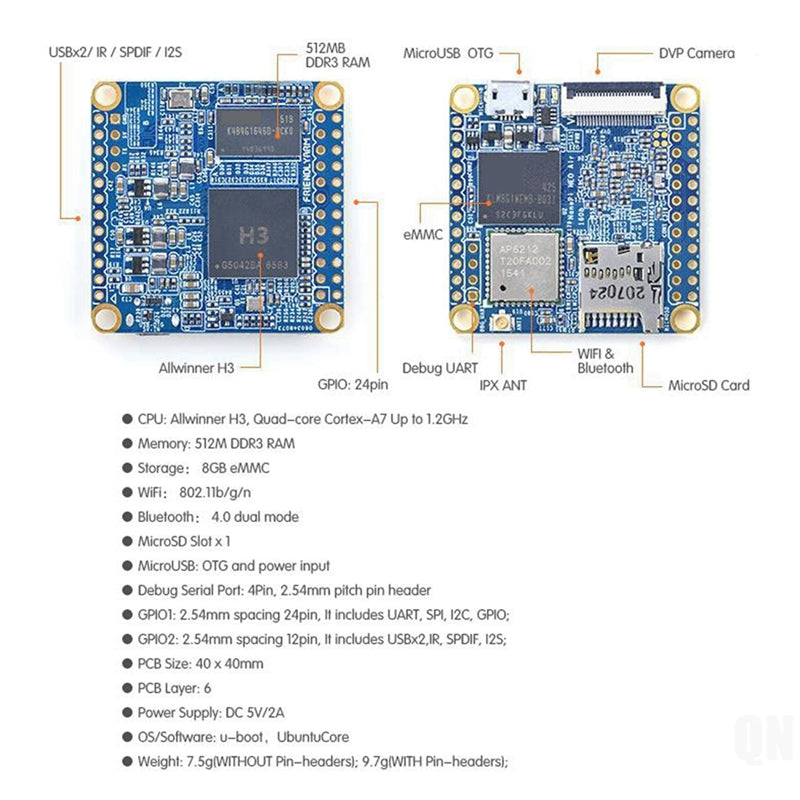

CPU:For Allwinner H3, Quad-core Cortex-A7 Up to 1.2GHz
RAM: 512MB DDR3 RAM
Storage: 8GB eMMC
WiFi: 802.11b/g/n
Bluetooth: 4.0 dual mode
DVP Camera: 0.5mm pitch 24 pin FPC seat
MicroUSB: OTG and power input
MicroSD Slot x 1

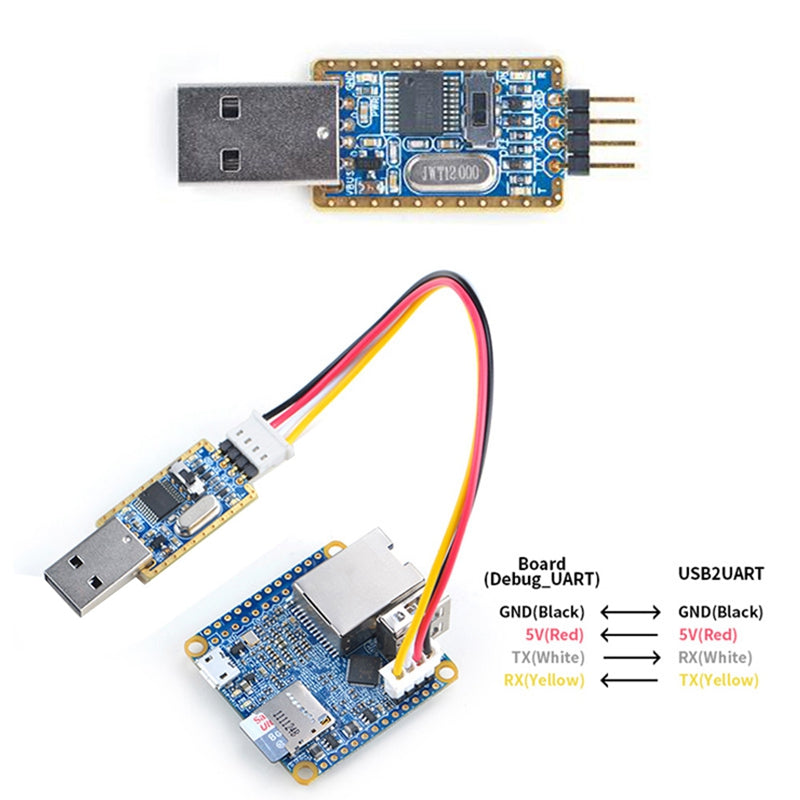

Debug Serial Port: 4Pin,2.54mm pitch pin header
GPIO1: 2.54mm spacing 24pin,It includes UART,SPI,I2C,GPIO
GPIO2: 2.54mm spacing 12pin,It includes USBx2,IR,SPDIF,I2S
PCB Size: 40 x 40mm
PCB layer: 6
Power Supply: DC 5V/2A
Working Temperature: -20℃ to 70℃
OS/Software: u-boot, UbuntuCore, eflasher

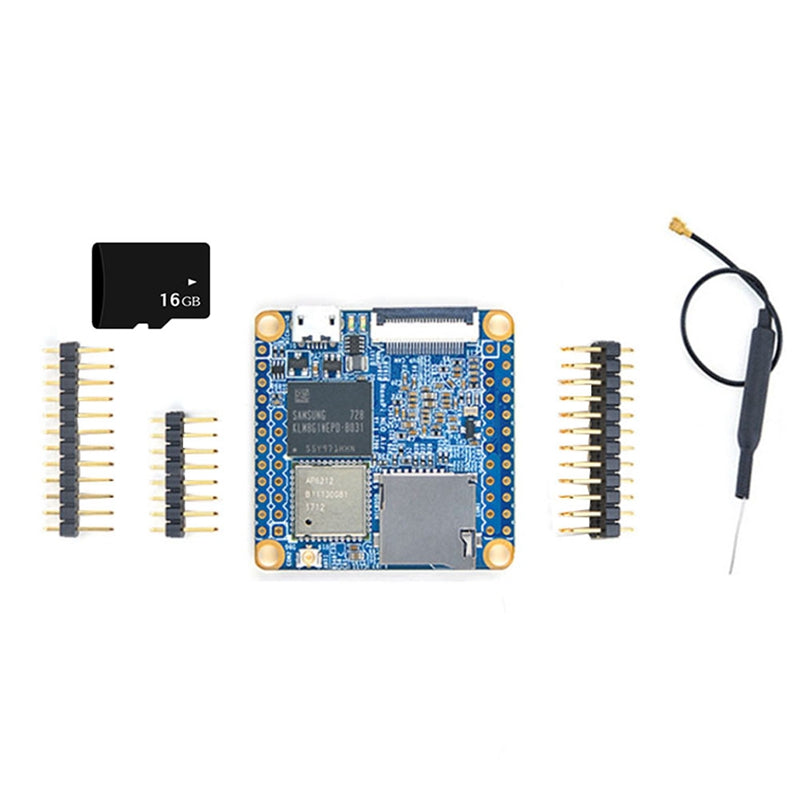

Package Contents:
1 x for NanoPi NEO Air Board (no welding)
1 x Antenna
1 x 16GB Memory card(Random color and appearance Do not accept designation)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
