  1. 24 DSP Effect

  2. Individual +48V phantom power

  3. Bluetooth

  4. USB play, record

  5. Computer play, record

  6. Mobile play, record-----Live broadcast

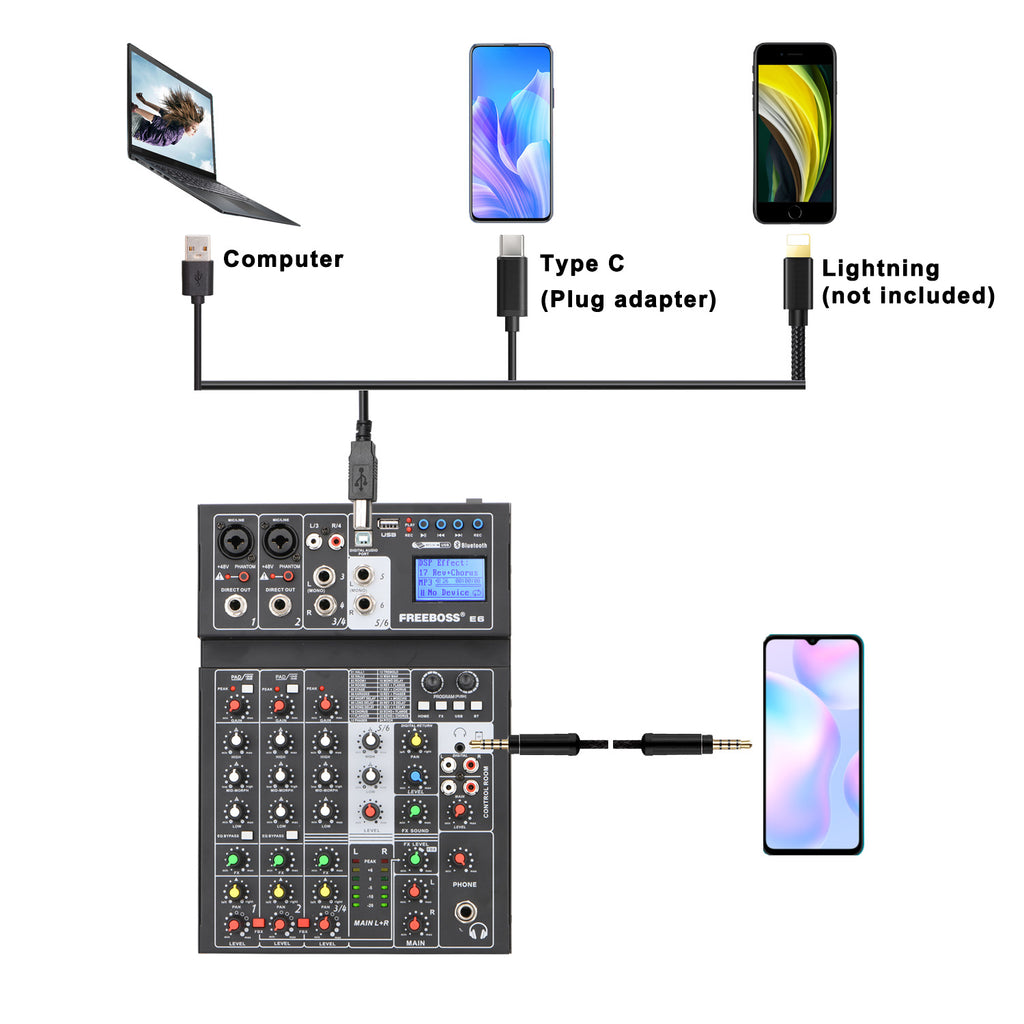

  1.You can connect your mobile to Mixer via the USB interface of the mixer

  2. Mixer can receive the signal from Mobile, and Mobile can receive the signal from Mixer.

  Please note:

  Type-B is for Mobile, PC

  Type-A is for USB stick. it is not for usb microphone.

  1. You can connect your computer to Mixer via the USB interface of the mixer

  2. Mixer can receive the signal from computer, and computer can receive the signal from Mixer.

  PC play: you can play music from PC to mixer.--You need a pc music play software

  PC record: You can record the sound from mixer--you need a pc record software.

  24 DSP Effect

  How to adjust the effect:

  1. Press "FX" button into choose effect status

  2. Rotate the "Select" Knob to choose the effect you like.

  3. Press the "Select" Knob to confirm the effect

  4. Press "FX" button again, come into the status of the parameters adjst.

  5. Rotate the "Select" knob to choose the parameter

  6. Rotate the "Edit" knob to adjust the parameter.

  7. Press the "Edit" knob to comfirm the parameter.

8. Rotate the "FX SOUND" knob to adjust the main input.

  9. Rotate the channel "FX" to adjust the channel output.

  1. There are 2 XLR channels, ecah channel has one phantom power switch.

  2. Dynamic microphone : Do not open phantom power

  (please use XLR plug,not a 6.3 plug,because use the 6.3 plug,the sound will be too small.)

  3. Condenser microphone: Press the button to supply +48V phantom power.

  (Please note: please confirm if your condenser microphone support +48V phantom power.)

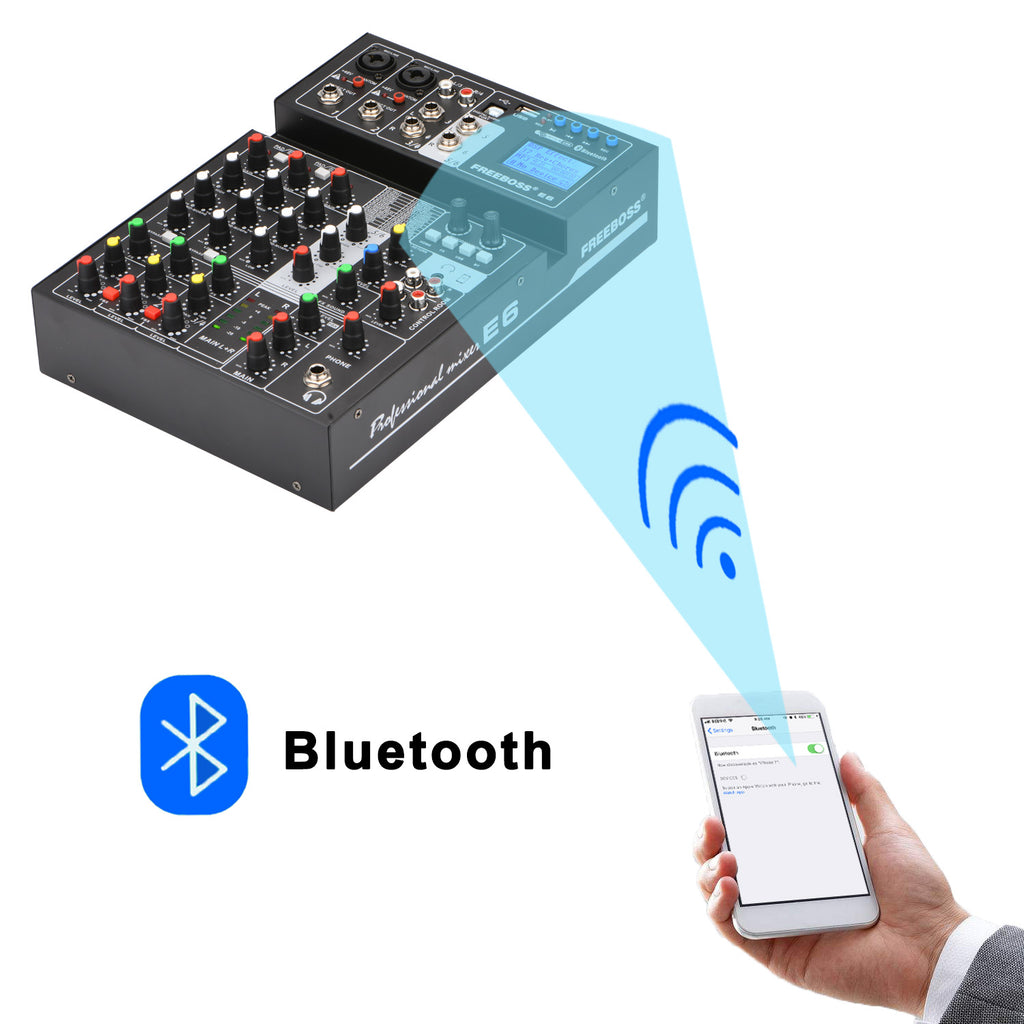

  1. Press "BT" for 3 seconds.

  2. Screen will show: Waiting BT

  3. Setting your mobile to Connect the audio mixer

  4. Screen will show: Playing BT

  5. Rotate the "Digital return-PAN" knob to adjust the Left and Right

  6. Rotate the "Digital return-LEVEL" knob to adjust the input volume.

  7. Rotate the Main mix knob to adjust the output volume.

  1. when there is no USB stick, Screen will show: NO Device

  2. Insert the USB stick with music, the screen will show the 1st music name, and will be in "PAUSE" status.

  3. Press the "Pause/Play" button, USB will play the music.

  4. Rotate the "Digital return-PAN" knob to adjust the Left and Right

  5. Rotate the "Digital return-LEVEL" knob to adjust the input volume.

  6. Rotate the Main mix knob to adjust the output volume.

  1. Press "REC" into record status.

  2. Press the left knob to DELETE, press the right knob to SAVE.

  3. Press the left knob not to play, press the right knob to play the record file.

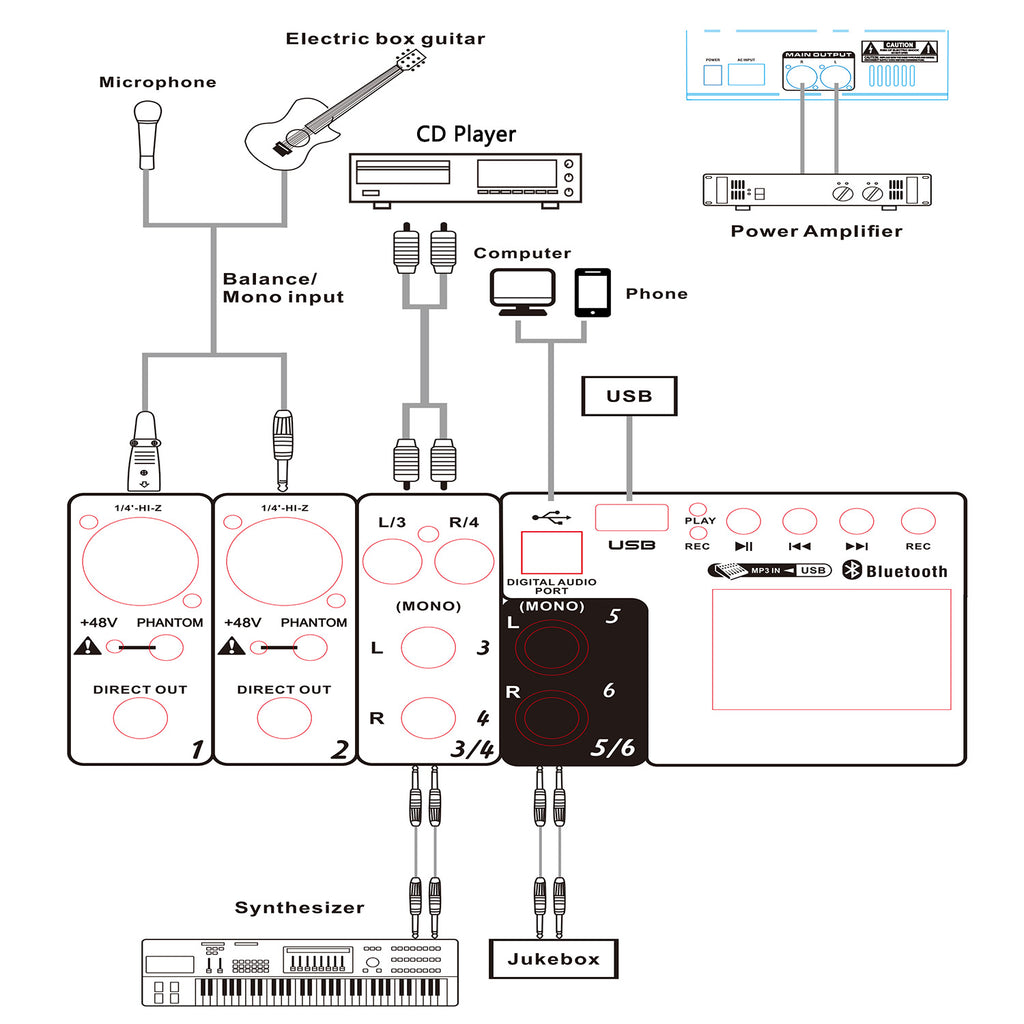

For connecting to Line-level devices such as an electric keyboard or an audio device. Use the [L/MONO] jack on channel 2 for instruments. etc. with mono output.

  Signal only input to [L/MONO] jack: Output is stereo.

  Signal only input to [R] jack: Output is only right.

  Signal input to [L/MONO] and [R] jacks: Output is stereo.

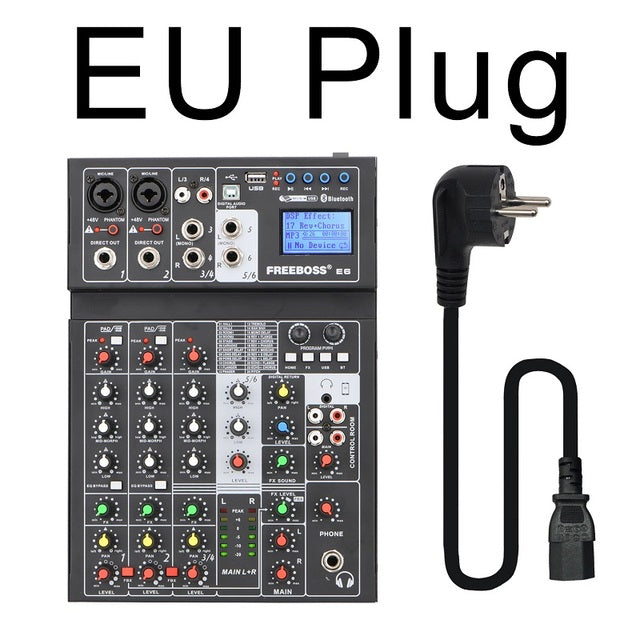

 Packing

 Product manual

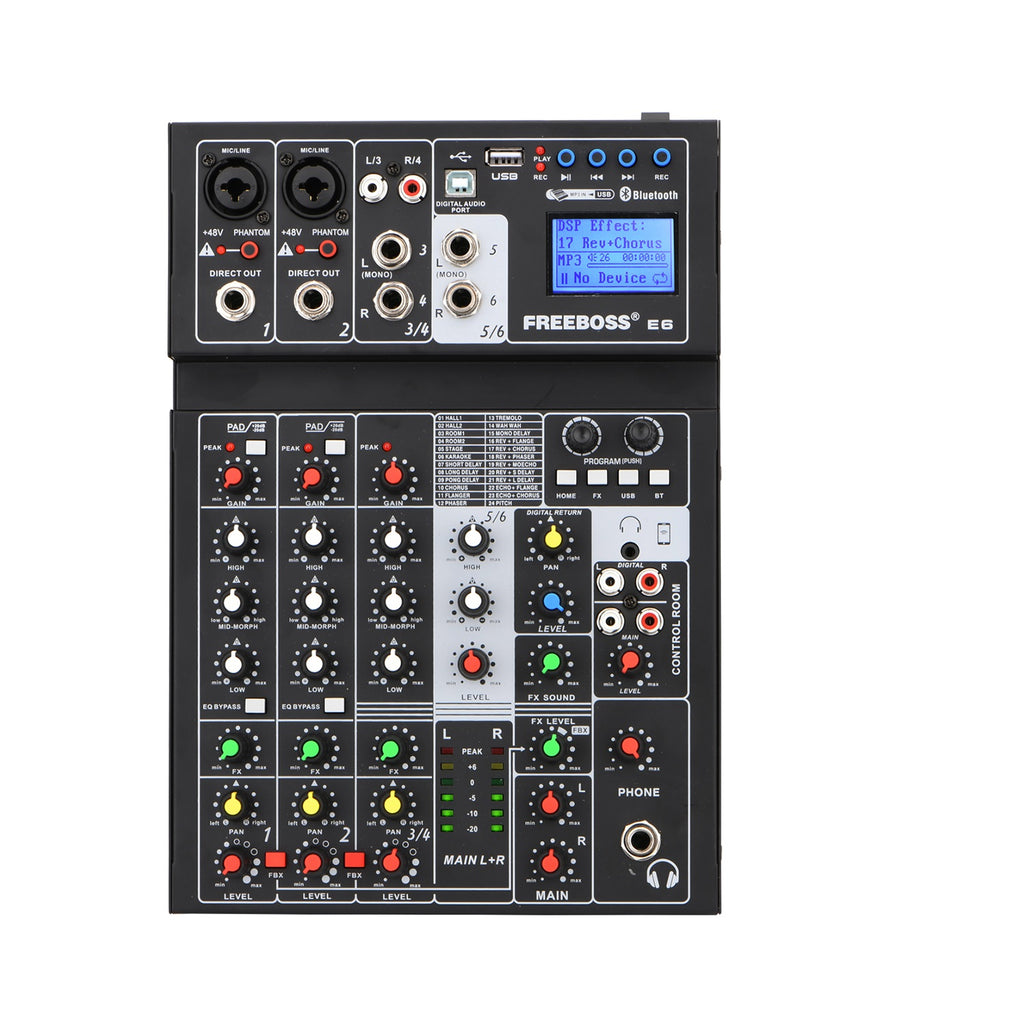

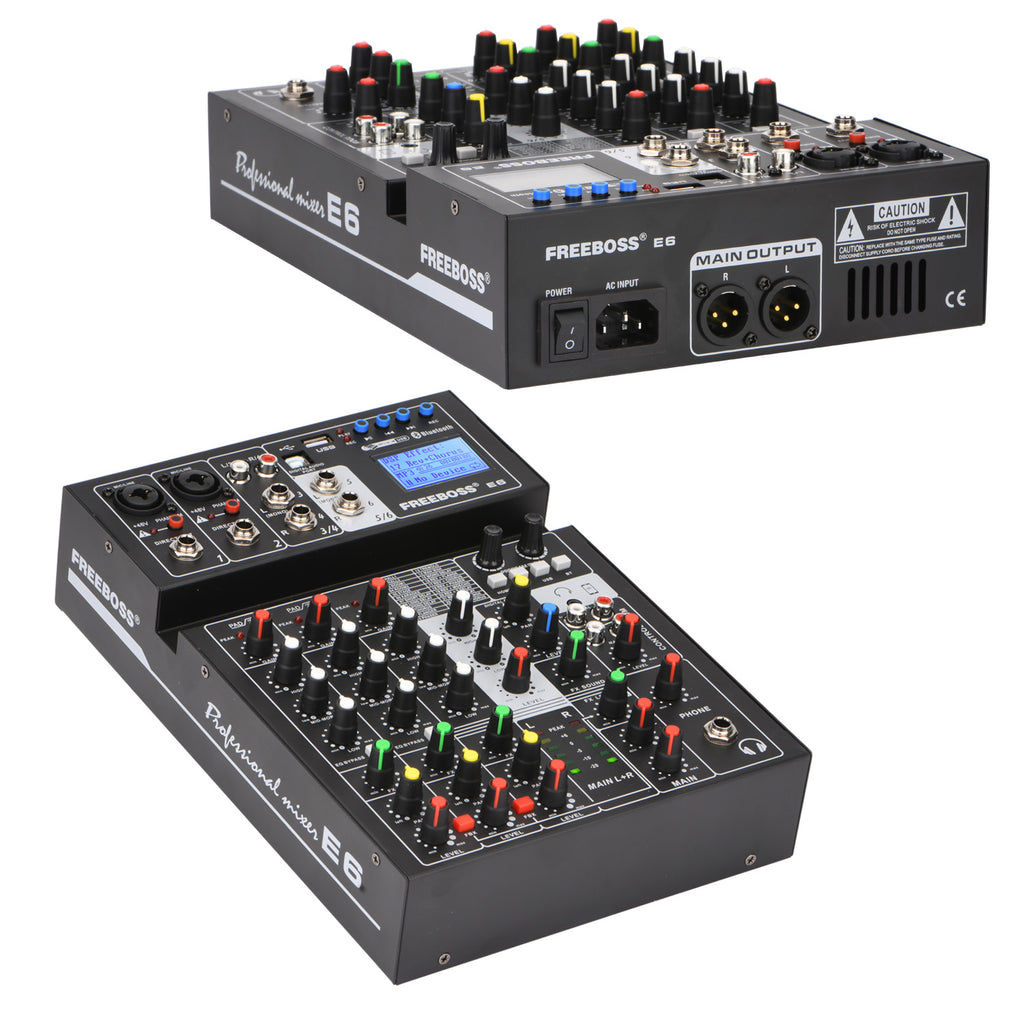

 1. Power Switch

Using the power switch to turn on the mixer. The power switch should always be in the "OFF" position when you are about to connect with your unit to the mains.

To disconnect the unit from the mains, pull out the main cord pulg. When installing the product, ensure the plug is easily sccessible.

2. Fuse holder/IEC mains power

The mixer is connected to the mains via the cable supplied, which meets the requirements safety standards. Blown fuse must only be replaced by fuses of the same type and rating. The mains connection is made via a cable with IEC mains connector, an appropriate mains cable is supplied with the equipments.

 3. Main output (Right and Left)

These jacks deliver the mixer's stereo output. You use these jacks, for example, connect with the power amplifier driving your main speaker.

 4. Combined connector support

XLR input jack: The balanced XLR socket accepts various balanced or unbalanced microphone input signals.( 1. Ground 2. Hot. 3. Cold )

1/4" jack: Connect balanced or unbalanced high impedance input signal.

5. Direct Out

The direce out is a break point in the input channel signal path.

It allows the signal to be taken out from the mixer, through an external equipment such as compressor, and taken back to the mixer to continue the final mix output.

6. +48V phantom power supply

You should press this button when you are using condenser microphone

 7. TAPE connector

Connecting with cassette deck

8. Stereo input-3rd channel and 4th channel

This is a stereo input channel, which consists of 2 sets of 1/4" jack. They are devided into "LEFT" and "RIGHT" inputs.

 9. Computer/Phone Port

The mixer connect with computer or phone

10. Stereo input-5th and 6th channel

This is a stereo input channel, which consists of 2 sets of 1/4" jack. They are devided into "LEFT" and "RIGHT" inputs.

 11. USB Port

To insert an external USB disk.

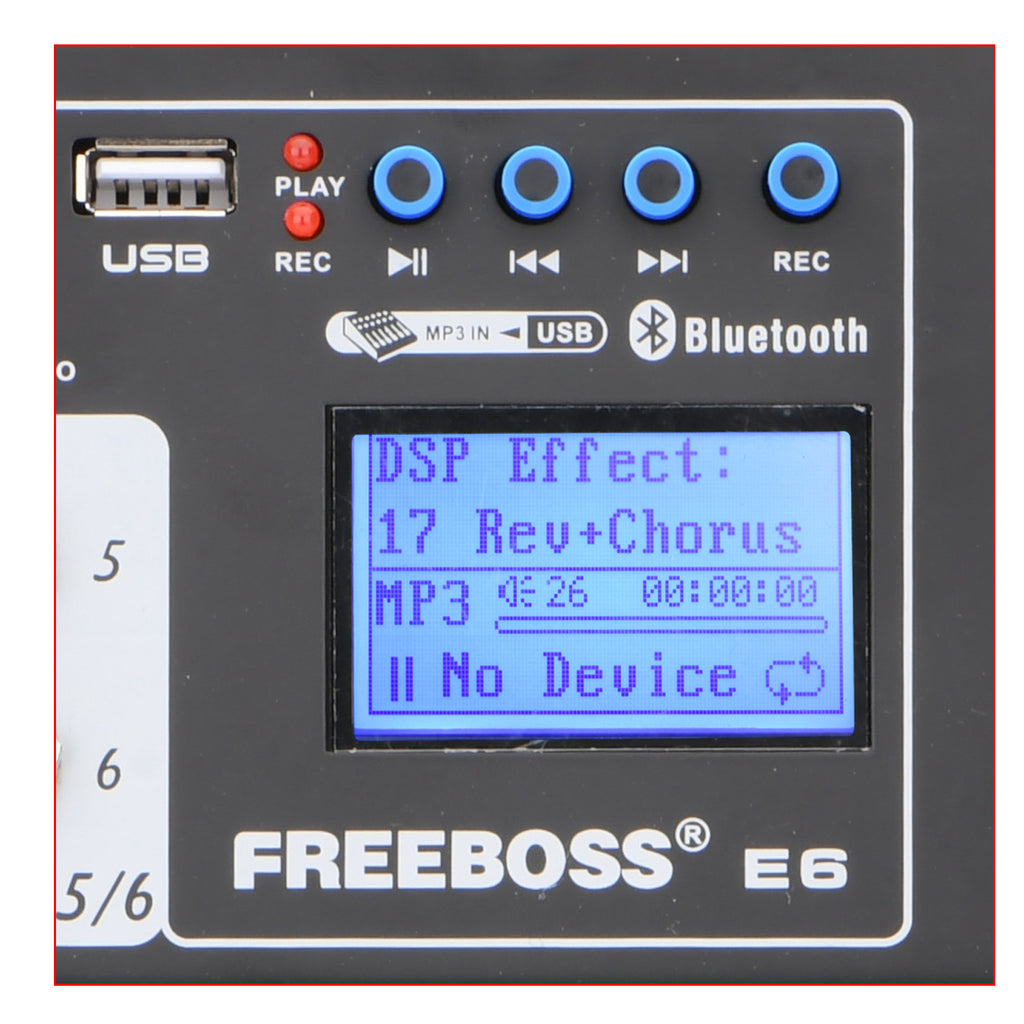

12. The controlling zone of MP3

Play/pause : Keep pressing to show the "LOD" on the screen, the "USB" is flashing, it is on the recording status. Short press to play/stop playing music.

Prev (Prev/volume-decrease control button): Short press the key to the previous song. Hold the key for seconds to decrease the master volume.

Next (Next/Volume+increase control button): Short press the key to the next song. Hold the key for seconds to increase the master volume.

REC: Get into recording interface after pressing this key. As followed interface.

13. Screen

 14. Program knob

15.Home Key

Return to the home page after pressing this key.

16. FX1 Key-Eff interface

Adjusting each FX from this key. There are 2 pages in this step. The interface will be changed after your second press "FX1".

For example, you can adjust EFFtime after the first press "FX1".

Adjusts another EFF parameters after second press "FX1".

17. USB Key

Get into USB interface after pressing this key.

18. BT Key

Long press this key for 3 seconds to connect Bluetooth.

19. Program knob

 20. Peak light

21. Gain control

Adjust the input signal level. To get the best balance between the S/N ratio and the dynamic range.

Adjust the Gain so that the PEAK indicator lights only occasionally and briefly on the highest input transients.

22. PAD +/-20dB

The input signal will be attenuated increase 20 dB after pressing this switch

 23. Equalizer ( High, Mid, Low)

This three-band equalizer adjusts the channel's high,mid, low frequency bands. Setting the knob to the "0" position produces a flat response in the corresponding band. Turning the knob to the right boosts the corresponding frequency band, while turning to the left attenuates the band.

24. EQ pass

The input signal will by pass EQ zone after pressing this key, in other words, the EQ button can not control the input signal after pressing the key.

 25. FX

When you want to get effect of each channel you can adjust the level of installed effect by this.

26. PAN

This has function which distributes the signal level between left and right channels to achieve the ideal stereo sound EFF.

27. Channel volume knob

Adjust the level of the channel signal.

Using these knobs to adjust the balance between the various channels.

All in all, adjust the volume of each channel.

28. FBX KEY-feedback exterminator

It can prevent the howling from Mic

 29. Equalizer (High and Low)-5th/6th Channel

This 2-band equalizer adjusts the channel's high,low frequency bands. Setting the knob to the "0" position producesa flat response in the corresponding band. Turning the knob to the right boosts the corresponding frequency band, while turning to the left attenuates the band.

30. Channel volume knob

Adjust the level of the channel signal. All in all, adjust the volume of 5th/6th channel

31. EFF send

Controlling volume from each channel to EFF board

32. Volume knob -Digital channel (Mp3 player, soundcard connect with phone or computer)

Adjusts the level MP3&USB signal. Using these knobs to adjust the balance of MP3 channel.

33. Pan-Digital Channel (MP3 Player, soundcard connect with phone or computer)

This has function which distributes the signal level between left and right channels to achieve the ideal stereo sound EFF.

 34. Outputs level indicator

Observing the output signal's strong.

35. Main Mix knob

This is used for adjusting volume of finally mixed output (L&R) and sending the relevant signal to input channel of main amplifier.

36. FX-Sound

Adjusting the volume of effector. The volume will decrease when the knob turning left. The volume will increase when the knob turning right.

 37. 3.5 output connector

It is used for earphone with 3.5 connector or connect with mobile phone.

38. Digital Connector

It consists of 2 sets of 1/4" jacks. They are devided into "LEFT" and "RIGHT" inputs. Connect with REC equipments.

39. Channel volume knob-digital channel

Adjust the level of the channel signal. All in all, adjust the volume of each channel.

40. Phones monitor volume

This knob is used for controlling the volume of earphone.

41. hones connector

Connect with the earphone.
