FX-AudioD01 HiFiBluetooth 5.0 DACDecoderHeadphone Amplifier with USB/Optical Fiber/Coaxial/RCA/6.35mm Interface, Aluminum Alloy Shell

Note: FX-AudioD01 is for pre-ordering now and it will be available for shipping by the end of March. Please extend the processing time after you place the order. Thank you very much!

【High-performance Chipset】For amplifiers, sound quality is everything. D01 built-in high-performance ES9038Q2M DAC decoder chip, supports 16Bit -24Bit / 44.1kHz-192kHz sampling rate. It equipped with a powerful chipset: STM32 MCU control chip + XMOS XU208 USB chip + TPA6120A2DWPR headphone amplifier chip + LME49720NA operational amplifier chip + CSR8675 Bluetooth chip. When the digital signal is transmitted to the analog signal, all these chips can ensure the stable operation of the digital-to-analog audio converter, bringing the ultimate music enjoyment

【Support Bluetooth 5.0.】D01 uses CSR8675 Bluetooth 5.0 chip with antenna, supports AAC/SBC/APTX/APTX LL/APTX HD/LDAC to ensure less signal loss and stable transmission. It applies to the current mainstream Bluetooth audio devices, such as mobile phones, laptops and tablets. The wireless connection makes the device more convenient to use.

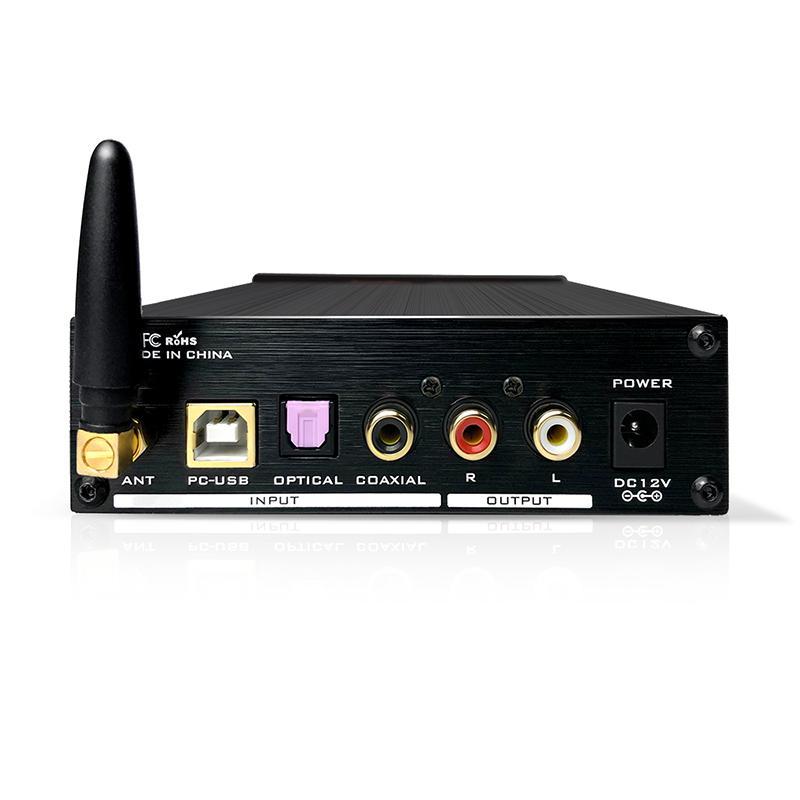

【Multiple Input and Output Interfaces.】Different input methods make your choices more diversified. You can easily convert signals from PC-USB/optical /coaxial/Bluetooth to L/R RCA and 6.35mm jack headphone analog signals. The corresponding sampling rate of each input is different. The sampling rate can reach PCM 24Bit/768kH. It is a nice product for home theater, conference room, appliance store, and many other occasions, let your equipment make the best use.

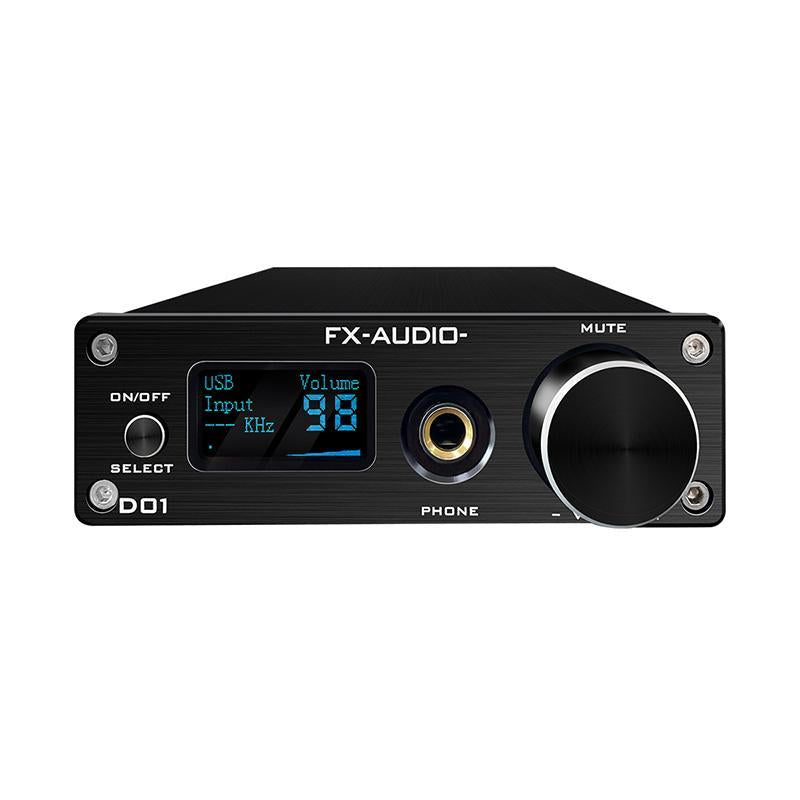

【Easy to Operate】Through short press“SELECT”you can easily switch signal and input while Long press to turn on/off. You can Turn counterclockwise to decrease volume and turn clockwise to increase volume, adjust to your favorite mode and enjoy your favorite music .

【Aluminum Alloy Shell】The case is made of aluminum alloy material with oxidation process. The appearance is stylish and beautiful, and it is integrated with modern home furnishings. It’s lightweight, durable and heat-resistant. it can smoothly enhance high-definition sound signals even in long-distance broadcasting.

Specification

Chipset:STM32+XMOSXU208+ES9038Q2M+TPA6120A2DWPR+LME49720NA+CSR8675Line Out level output: 2Vrms@0dBFSDistortion: <0.002%@1kHzSNR: 115dB @1kHzDynamic range: 115dB @1kHzSampling Rate:USB: 16bit-32bit /44.1kHz-768kHz, DSD64 DSD128 DSD256 DSD512;Coaxial/Optical: 16Bit/24Bit 44.1kHz~ 192kHz;BT: 16Bit/24Bit 44.1kHz~96 kHzAmplifier power output:400mW x2@32Ω2 THD+N< 1% 90mWx2@300ΩTHD+N<1%Headphone distortion: <0.004%@1kHzHeadphone amplifier signal-to-noise ratio:> 110dB @1kHzFrequency response: (+0, -0.5dB) (20Hz~ -20kHz)Amp impedance: 16Ω-300ΩOutput interface: LineOut, 6.35mm HeadphonePower supply: DC 12V1A

Product size: 11.4*17.8*82.5pxProduct weight: 0.47kg
