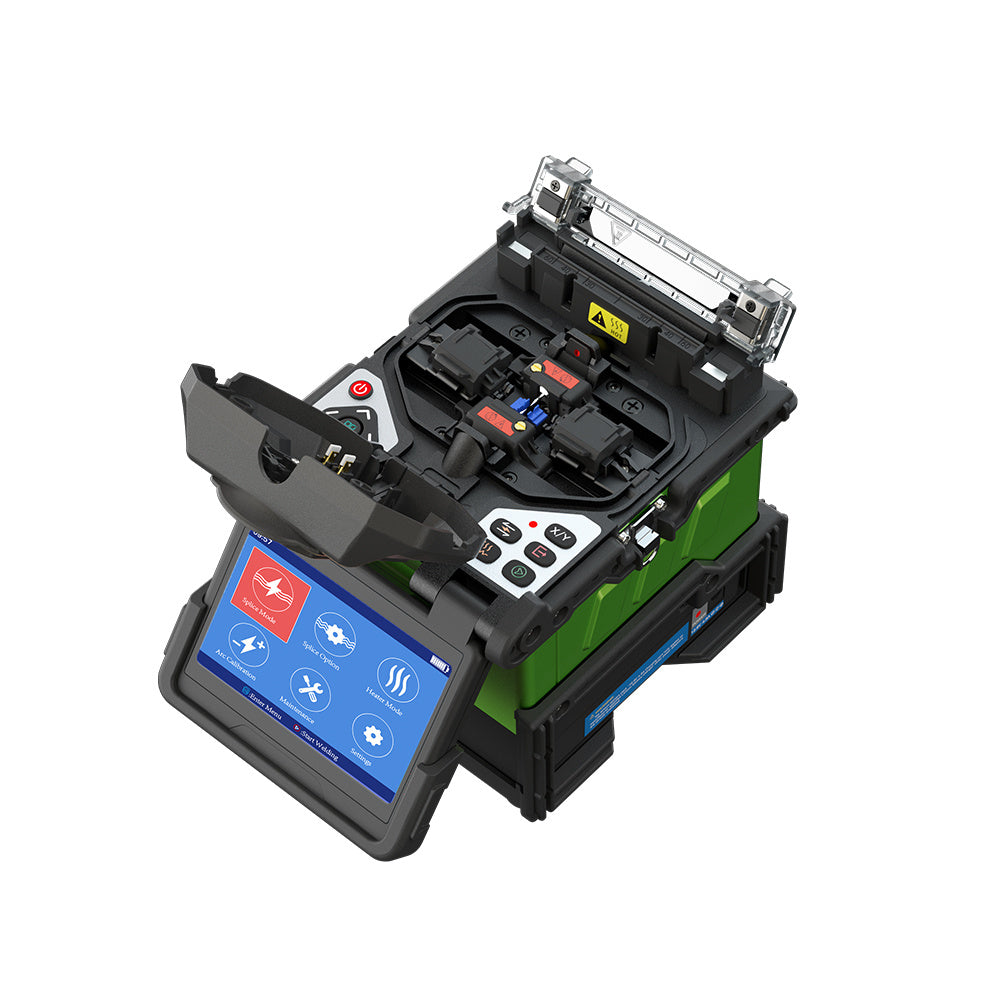

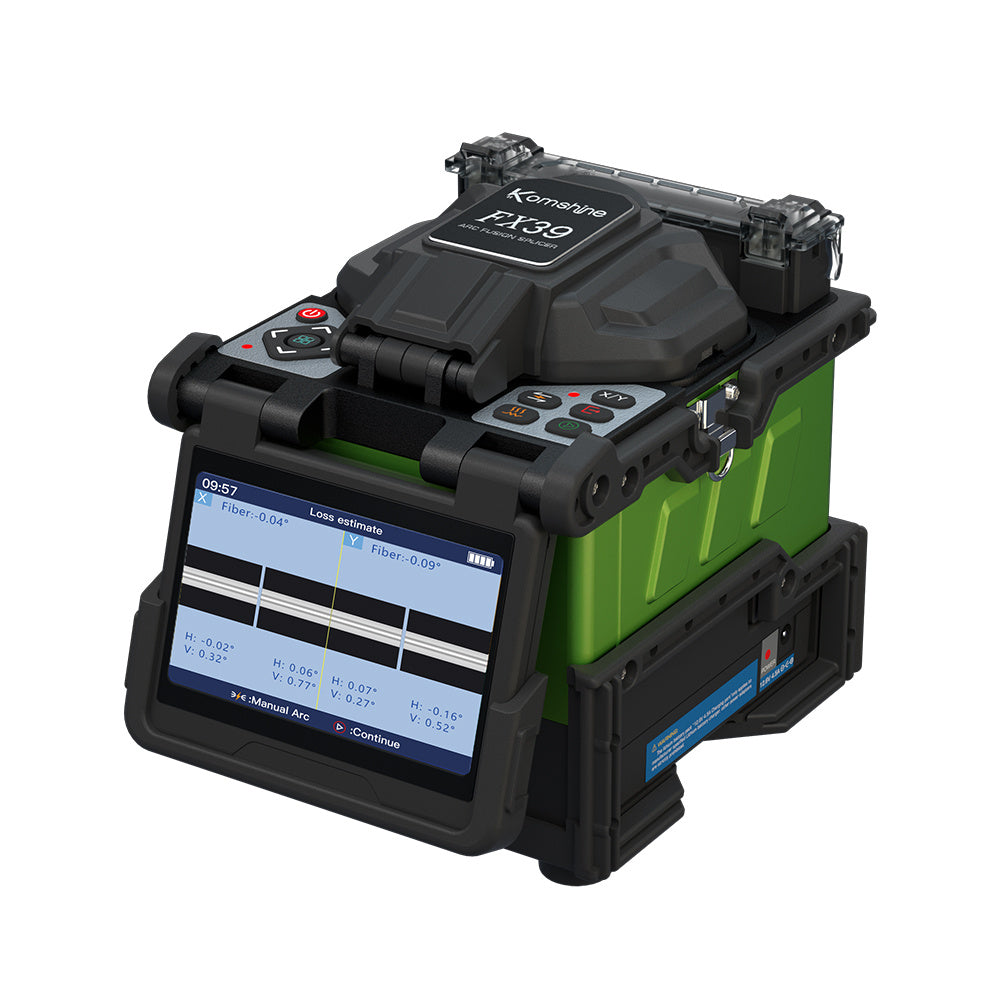

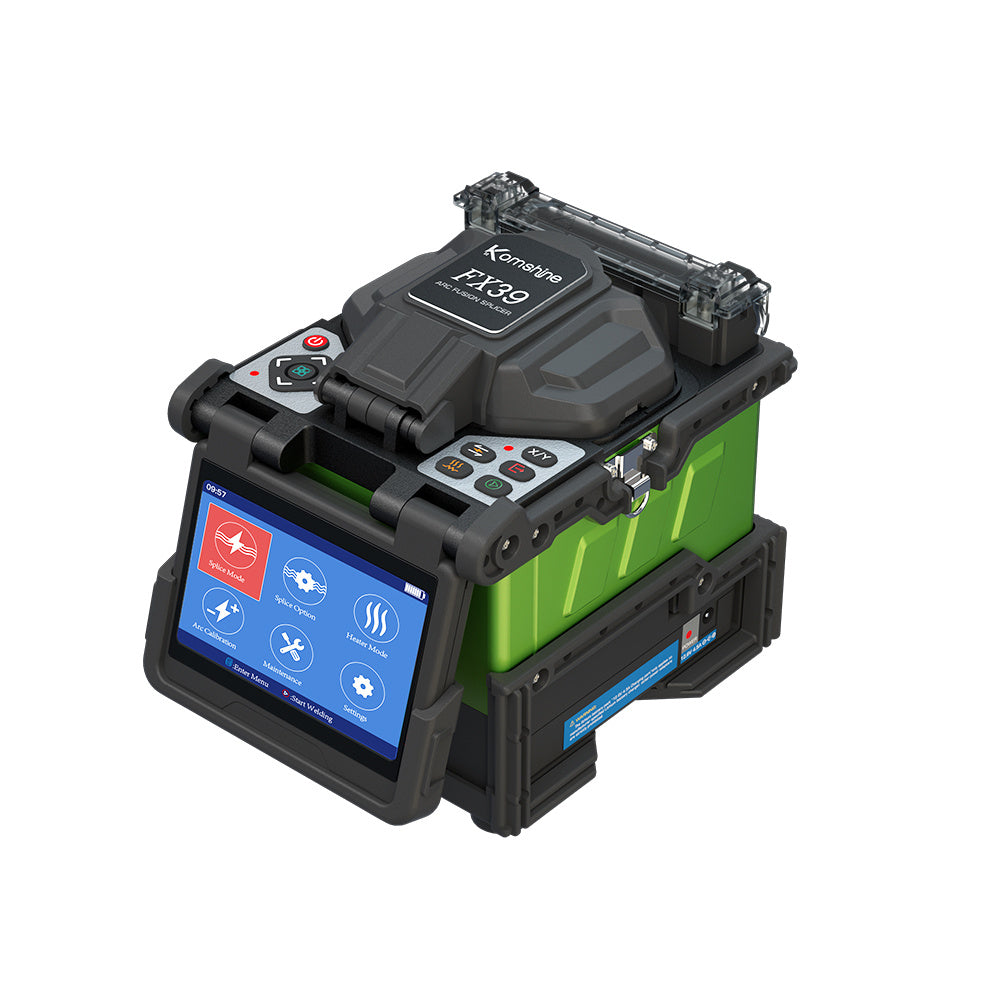

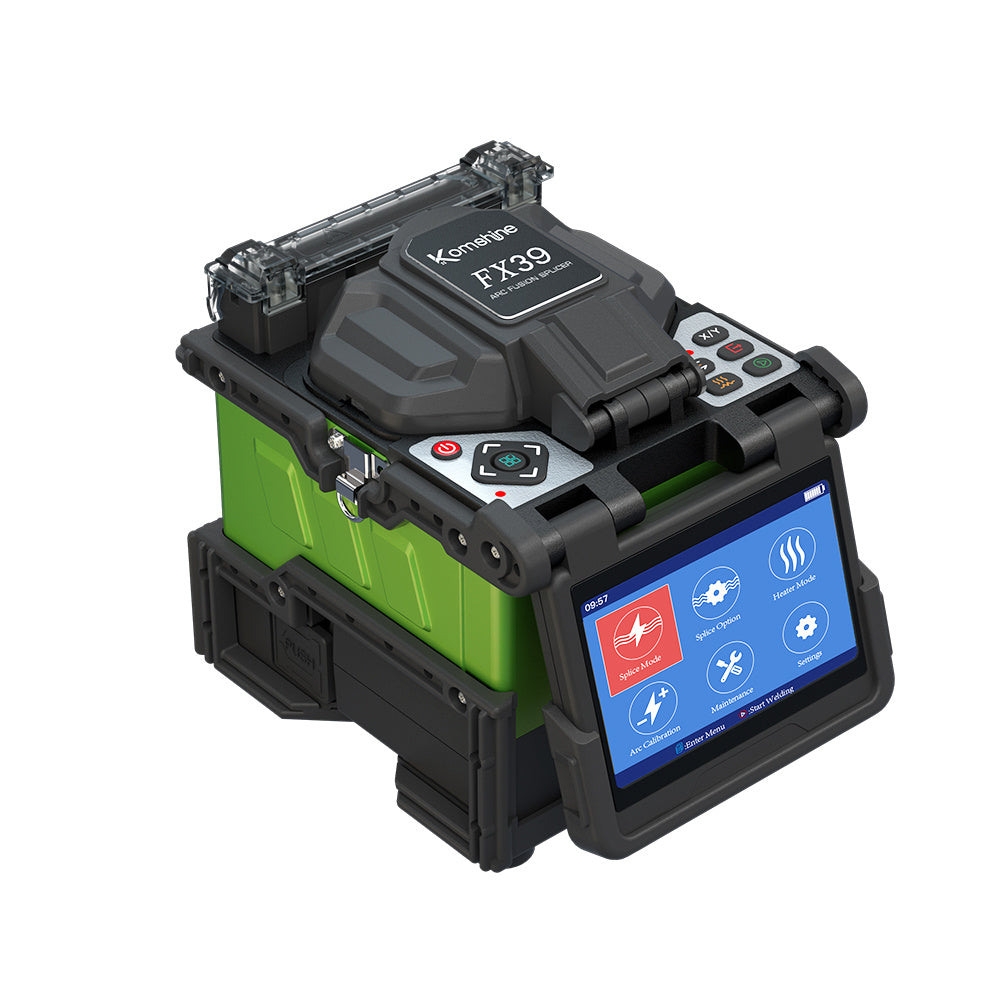

The advanced core to core fiber profile alignment system(PAS)
Friendly smart GUI
X/Y axes were displayed meanwhile,Magnification up to 304 times
8 Sec. splice time,25 Sec.Tube-heat time
High-resolution true color 4.3 inch LCD display
Store 4000 groups of splice results
USB interface - for updates + result transfers

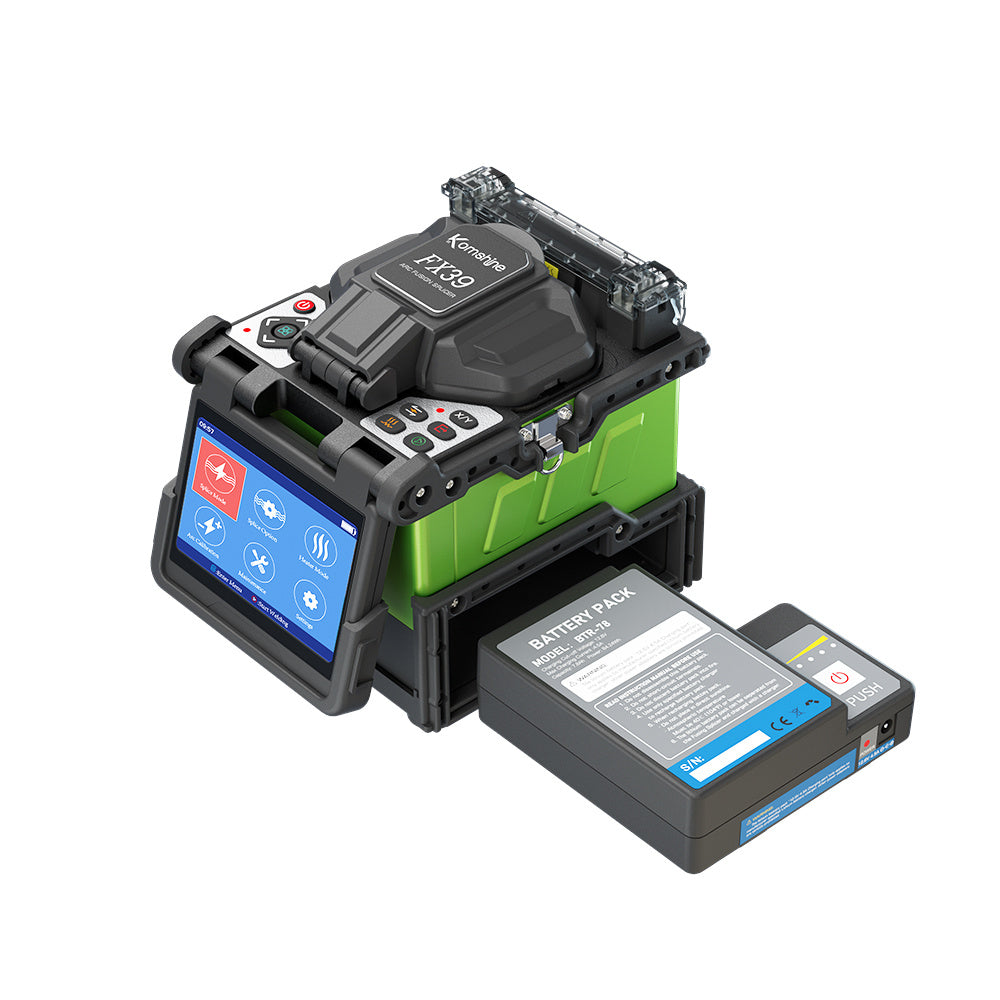

Built-in high capacity battery, support 300 times splicing and heating
Long Electrode Lifetime, up to 4000 times
Three Splicing modes:auto,half-auto,manual
One year warranty
Applicable fibers:SM/MM/DS/NZDS
Fiber count:Single
Fiber cleaved length:12-16mm (Coating diameter:250μm)
Actual average splice loss:0.02dB(SM),0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Typical splicing time:Typical 9 sec (standard SM fiber)
Return loss:60dB
Fiber aligning method:Meticulous,Core,Clad,Manual
Tube typical heating time:Typical 25 sec
Storage of splice result:4000 results, 20 parameter per result
Fiber image magnification:300X (X or Y view),150X (X and Y view)
Battery capacity:Typical 160 cycles (splice/tube heat with inner Li-battery)
Monitor:4.3 inch color LCD monitor
Electrode life:4000
Terminal:USB
Power supply:AC 100-240V with AC adapter Inner Li-battery (7800mAH) DC 13.5V
Weight:2.55Kg excluding battery,3.05Kg including battery
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
