Gasoline Engine Compression Tester Auto Petrol Gas Engine Cylinder Automobile Pressure Gauge Tester Automotive Test Kit 0-300psi

     Descriptions:

     This automotive compression tester works with most car models with gasoline engines. It comes with adapters and pipes in different size to fit different models. Widely used for checking compression on engine cylinder quickly and accurately.

     Features:

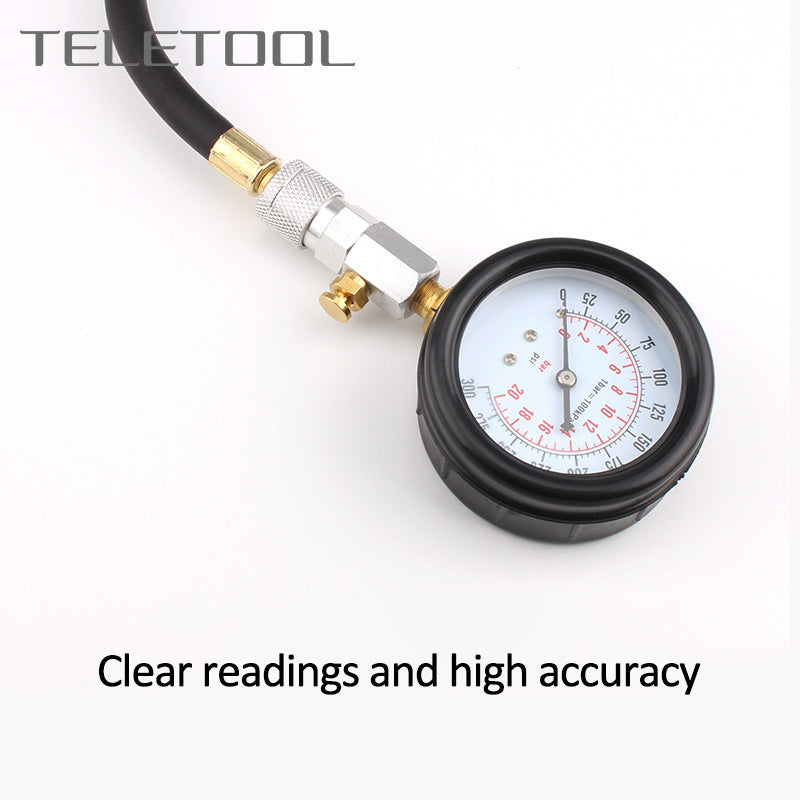

     1. 3''(75mm) diameter gauge with dual color coded scale, can be quickly set to your motor or car, get accurate readings in valves, piston rings, cylinder bores or head gaskets.

     2. Air gauge with quick coupling & pressure release button, manometer with two test pressure: 0-300psi, 0-20bar.

     3. Drain valve with full copper nickel plating, anti-oxidation and corrosion.

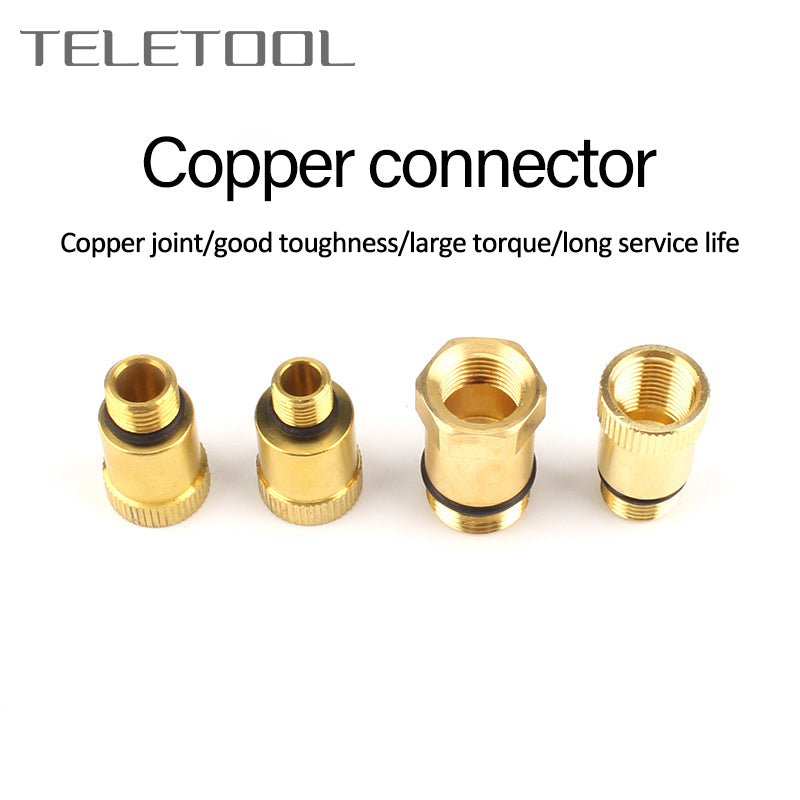

     4. Included 4 adapters: M10*1.0mm / M12*1.25mm / M14*1.25mm / M18*1.5mm.

     5. M10 thread is suitable for motorcycles, and M12 / M14 / M18 threads are suitable for cars.

     6. Included 2 pipes: crank shaft type & transverse axis type, both with rubber cone cap and can test the compression on almost any engine.

     Specifications:

     Type: Gasoline Compression Tester

     Case Color: Black

     Material: Copper

     Dual Gauge Readings: 0-300psi, 0-20bar (1bar=100kPa)

     Test Unit/Mode: bar, psi

     Special function: Get Accurate Readings

     Pressure Gauge Diameter: 3'' / 75mm

     Pressure Gauge Height: 5.04'' / 128mm

     Adapters Thread Size: M10 x 1.0mm, M12 x 1.25mm, M14 x 1.25mm, M18 x 1.5mm

     Hose overall length: 17.72'' / 450mm

     Straight Line Pressure Tube Length: 5.91'' / 150mm

     Angled Pressure Tube Length: 6.30'' / 160mm

     Package Size: 29.5 * 21 * 5.5cm / 11.61 * 8.27 * 2.16in

     Package Weight: Approx. 845g / 29.80oz

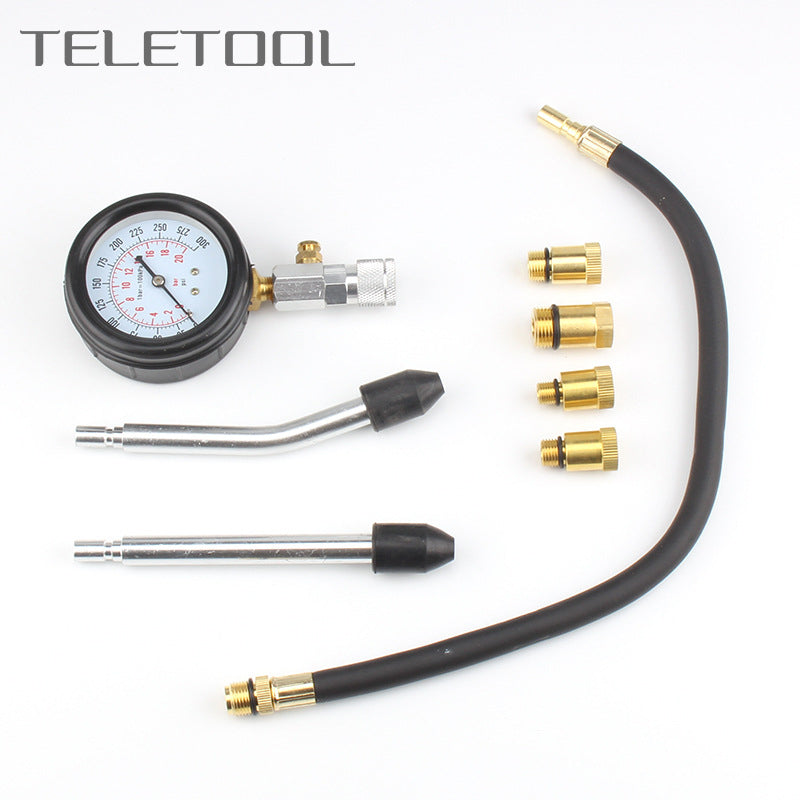

     Package List:

     Set A:

     1 * Gasoline Compression Tester

     1 * Angled Pressure Pipe

     1 * Storage Case

     Set B:

     1 * Gasoline Compression Tester

     1 * Hose

     4 * Thread Adapters

     1 * Straight Line Pressure Pipe

     1 * Angled Pressure Pipe

     1 * Storage Case

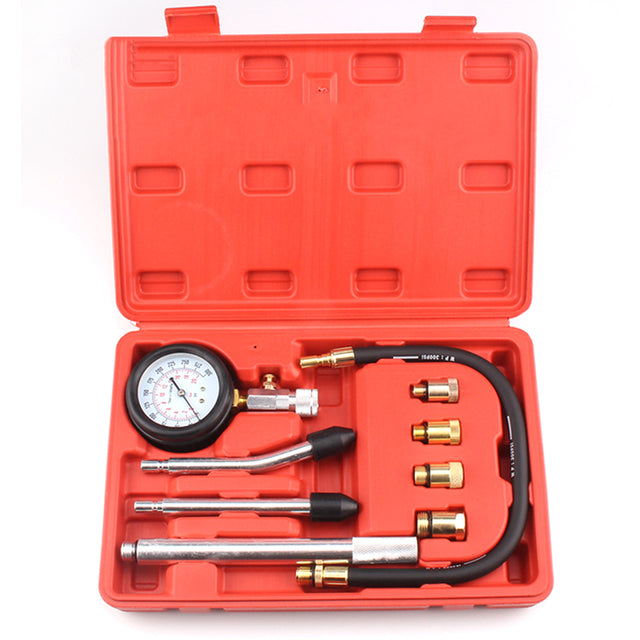

     Set C:

     1 * Gasoline Compression Tester

     1 * Hose

     4 * Thread Adapters

     1 * Straight Line Pressure Pipe

     1 * Angled Pressure Pipe

     1 * Extension Rod

     1 * Storage Case
