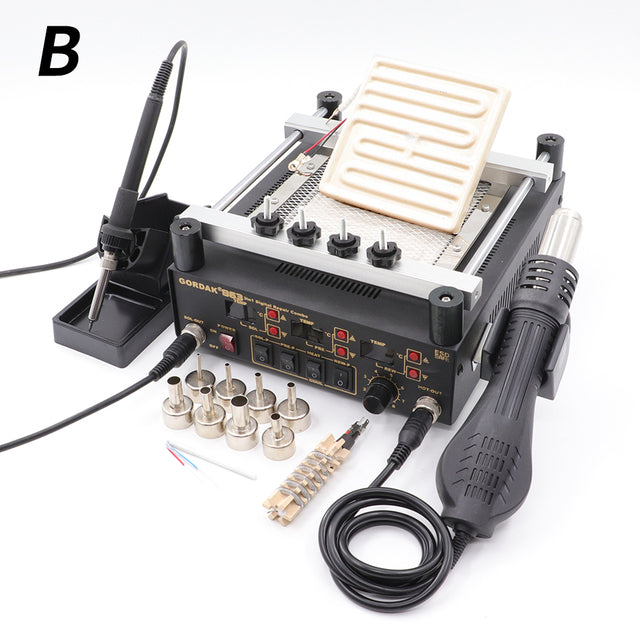

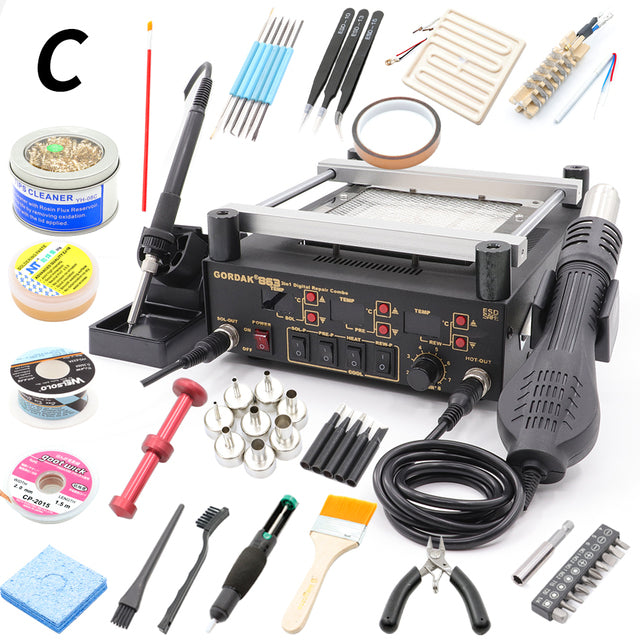

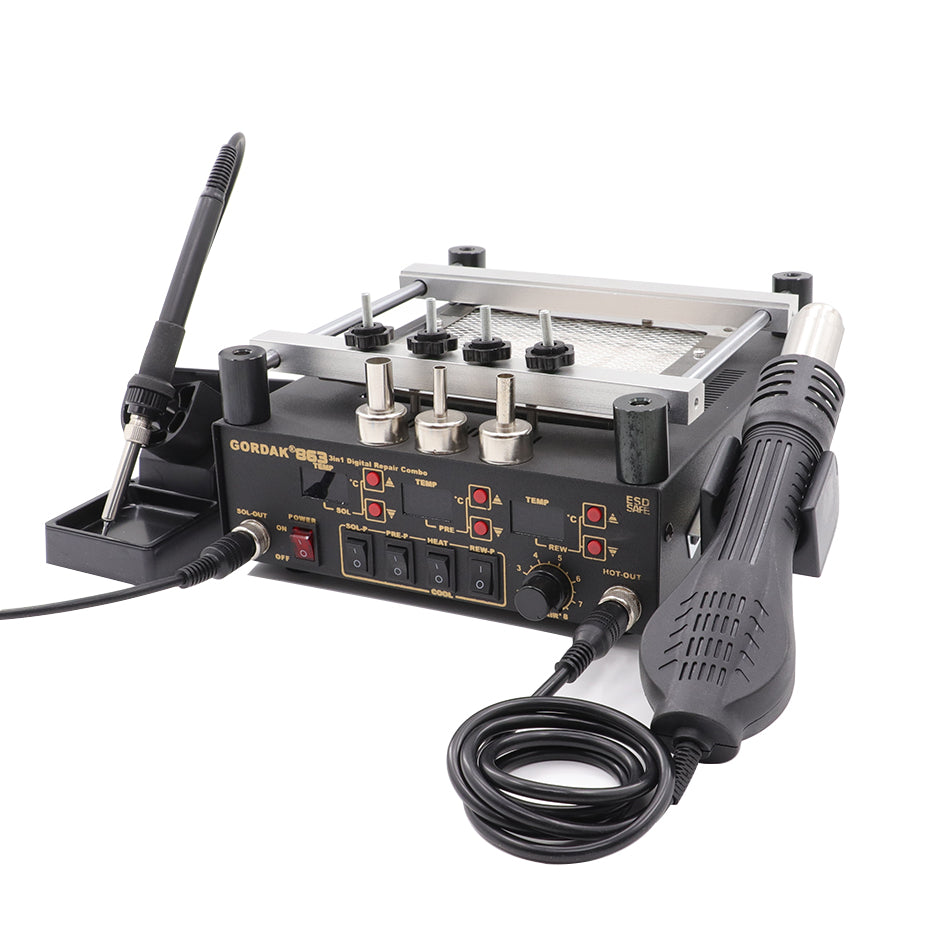

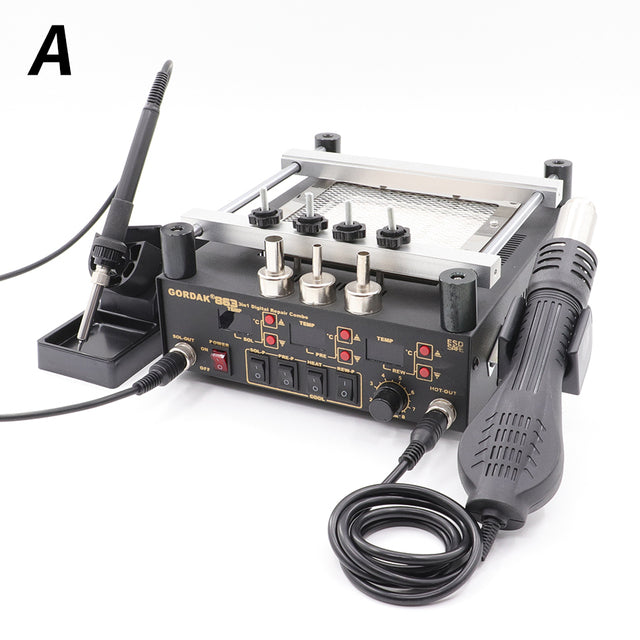

Gordak 863 3 in 1 soldering station Digital Hot Air Heat Gun BGA Rework Station Electric Welding iron infrared soldering station

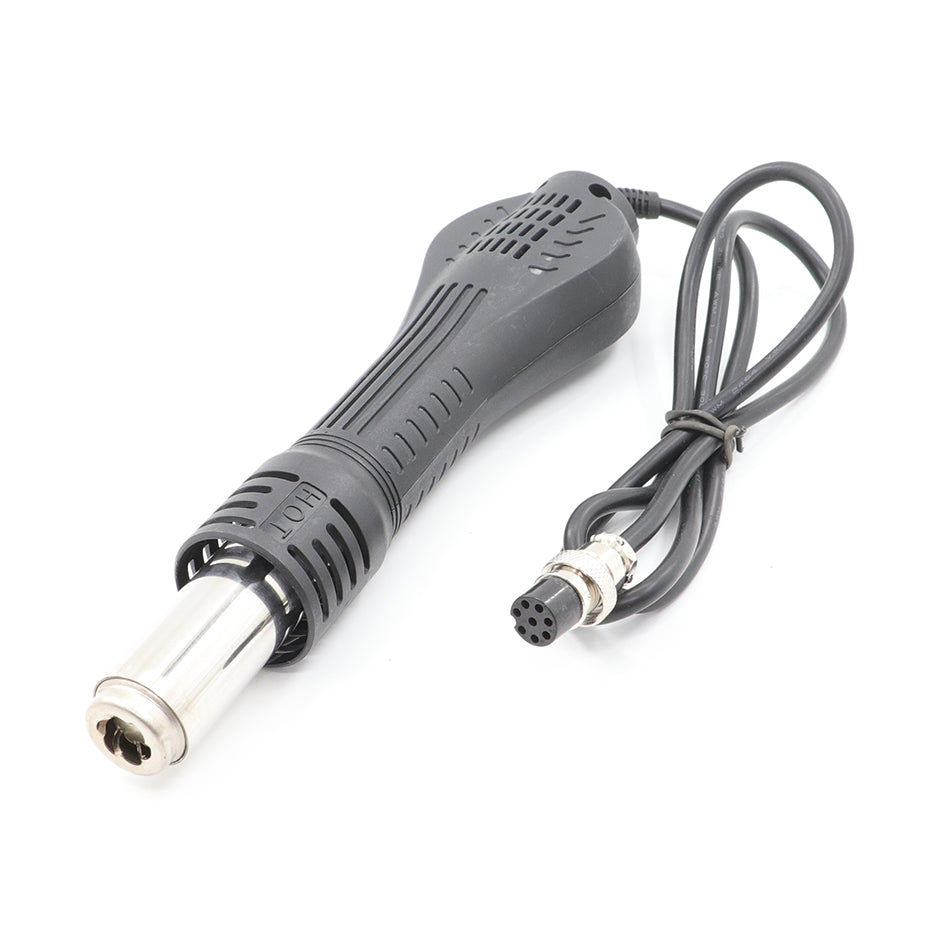

Hot air gun parameters:
Rated voltage: AC 220V 50HZ
Maximum power consumption: 450W
Type: brushless fan, soft wind
Air flow: 120L/min (max)
Temperature range: 100 Celsius degree -500 Celsius degree
Handle assembly length: 120CM
Noise: 45db

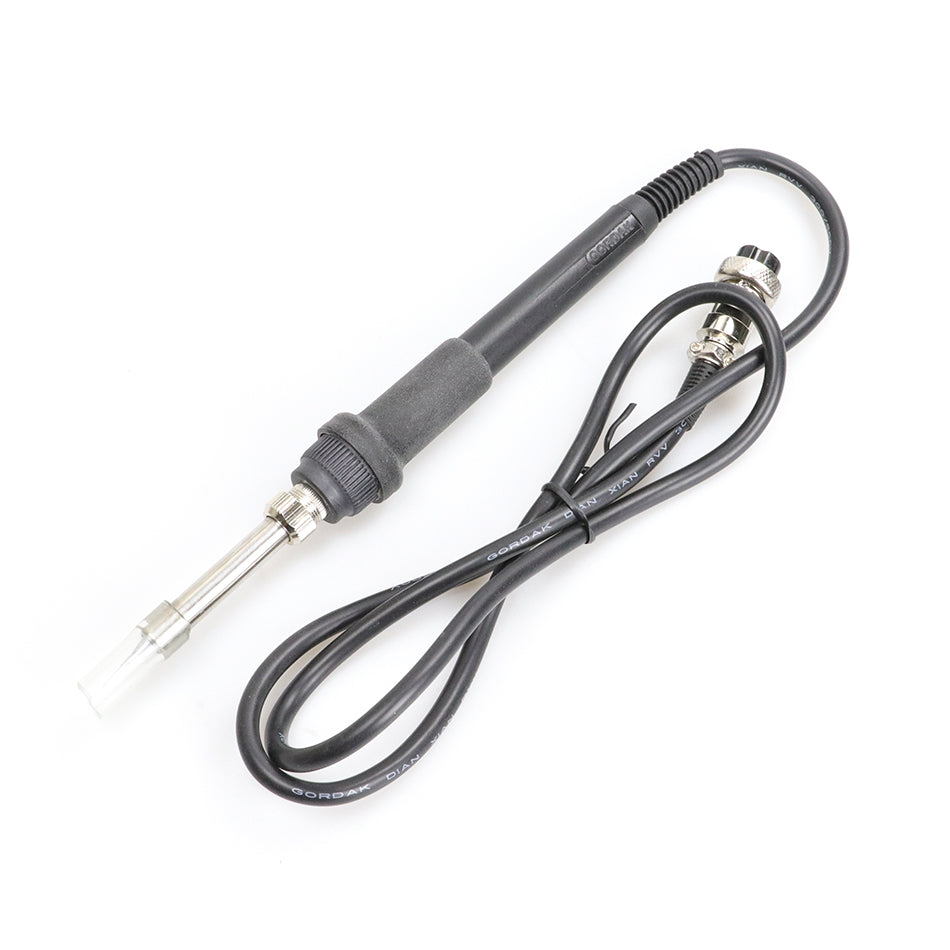

Soldering station parameters:
Output Voltage: AC 24V
Maximum power consumption: 50W
Temperature range: 100 Celsius degree -500 Celsius degree
Ground potential: 2mV less
Ground Impedance: 2 Ohms less
Heating element: ceramic heating element
Heater power: 50W

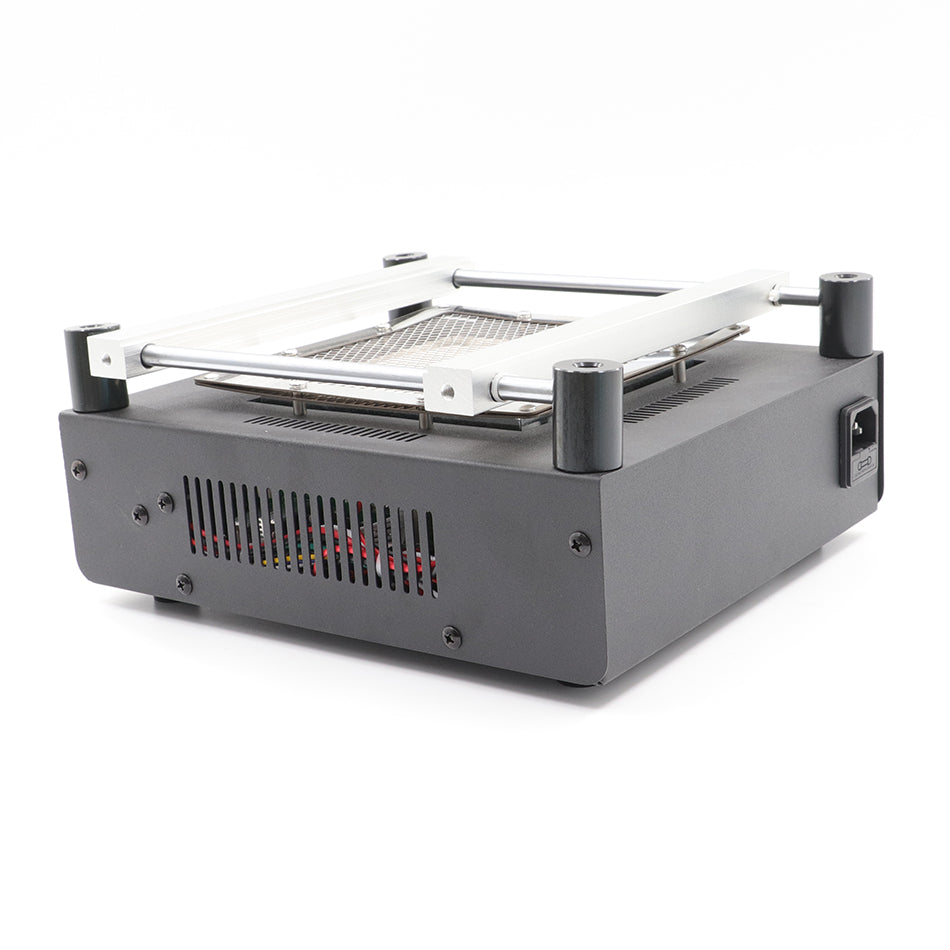

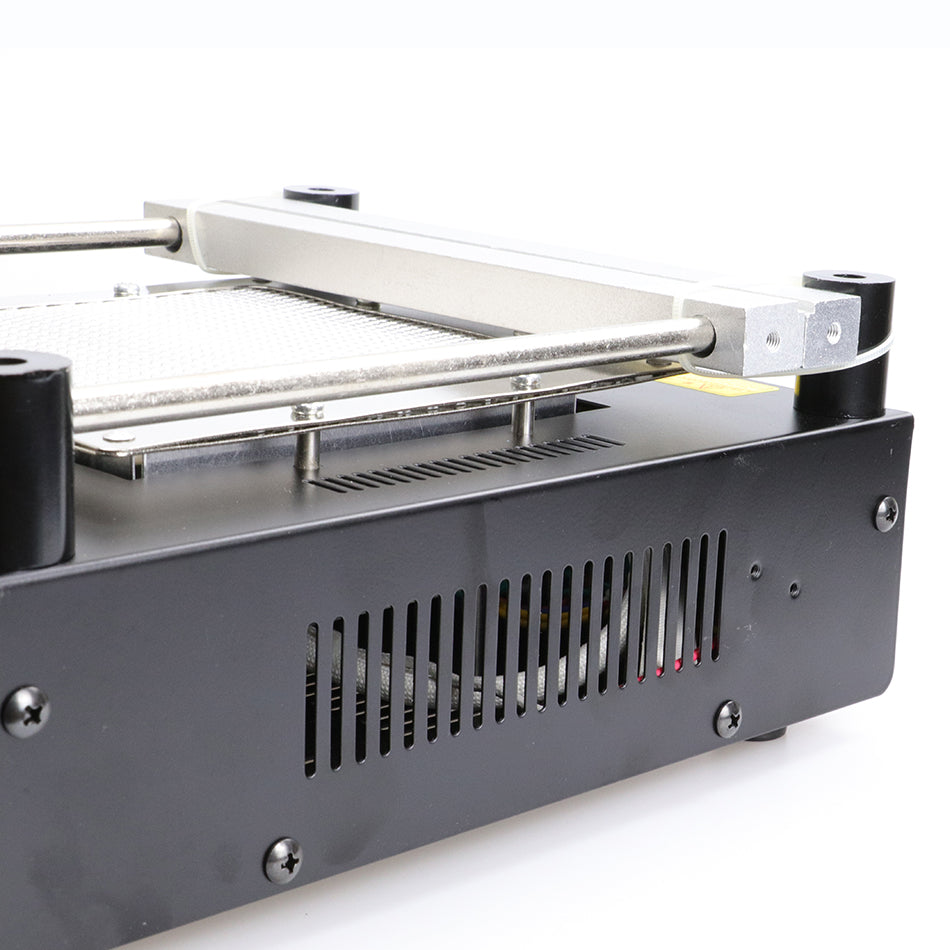

Preheater parameters:
Maximum power: 605W
Fever Type: far infrared heating plate
Temperature range: 100 Celsius degree -500 Celsius degree
Dimensions: 221 × 251 × 112MM

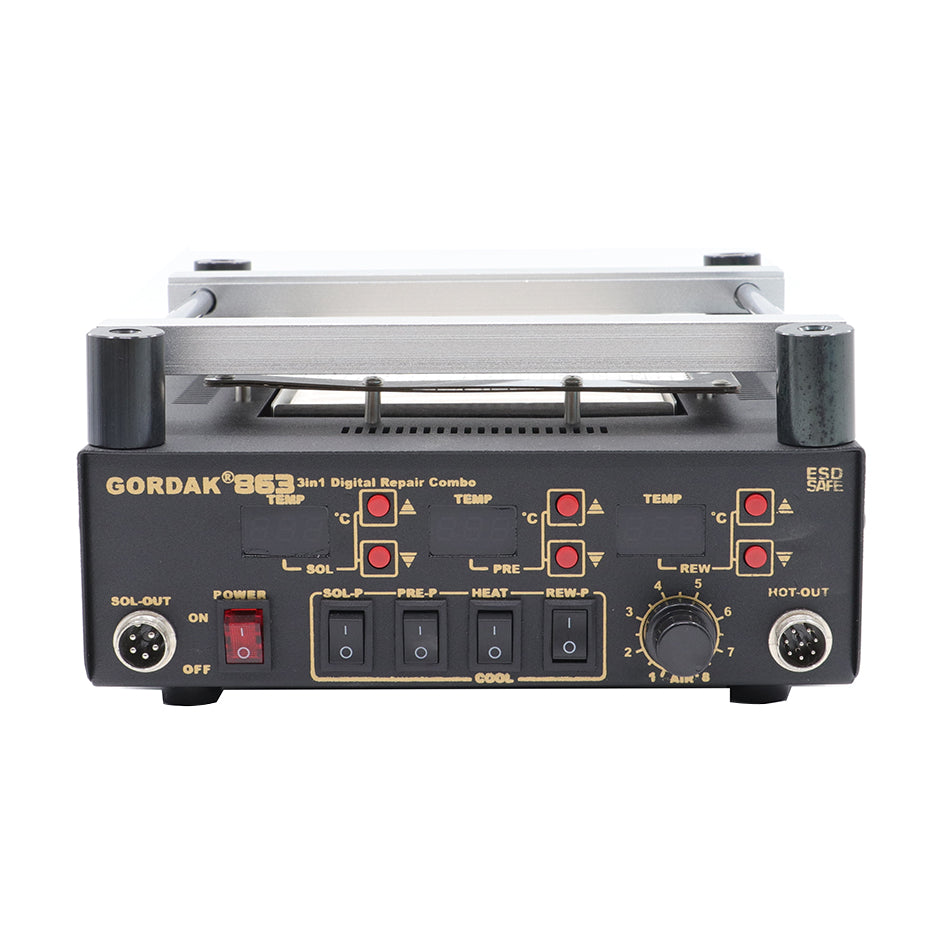

Panel function introduction
1. Soldering iron temperature display
2. Soldering iron temperature adjustment
3. Preheating table temperature display
4. Preheating table temperature adjustment
5. Hot air gun temperature display
6. Heat gun temperature adjustment
7. Sliding guide bar
8. Holder
9. Soldering iron handle socket
10. Power switch
11. Soldering iron switch
12. Preheater switch
13. Preheating station heating switch
14. Heat gun switch
15. Heat gun air volume adjustment
16.Heat gun handle socket
