Introduction

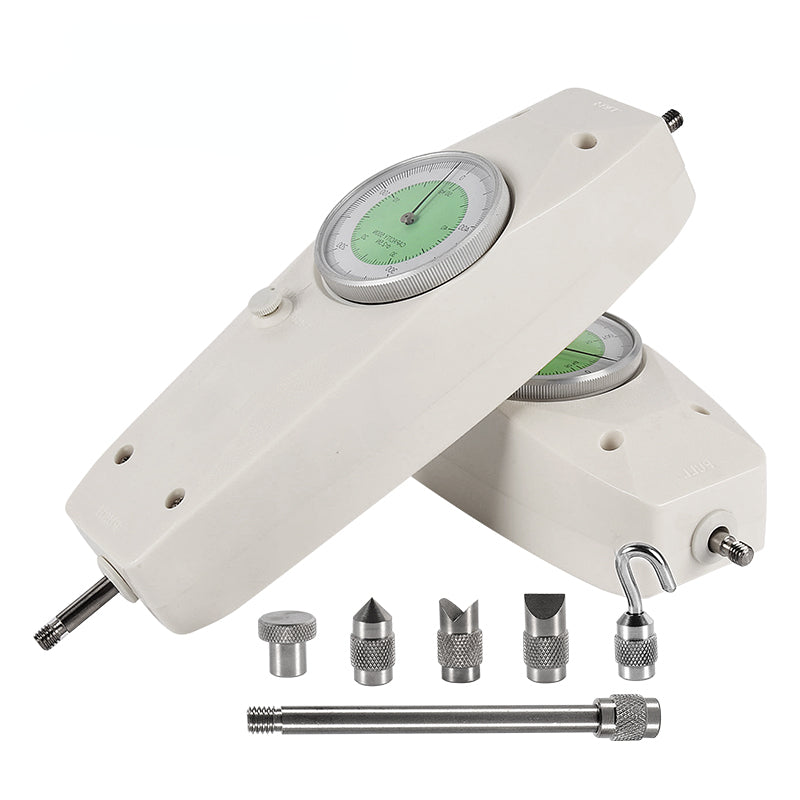

Analog Force Gauge with compact size,high accuracy,they are easy to operate and handy to carry out,and can show the unit of newton and kilogram at the same time.The PEAK/TRACK knob of it can switch between the peak value load test and the continuous load test.They are excellent products which can take the place of the old style force gauges, and widely applied in electric,high & low voltage electric appliance, hardware,automobile parts,lighter and ignition system,light industry, mechanical,textile and so on industries for test of pull or push load test insertion force or pull and destructive experiment.Please reading the manual carefully before using this instrument
Features
1. The detailed design, easy to carry
2. The operation is simple and can be used combining with all kinds of fixture;
3. The peak value holding function and duration test function switch freely;
4. Newton and kg, according to two units at the same time do not need to unit conversion;
5. Can be installed on a variety of test the machine as a dedicated tester use;
Specification
Parameter
Model
NK-20
NK-30
NK-50
NK-100
NK-200
NK-300
NK-500
Max load
20N
2kg
30N
3kg
50N
5kg
100N
10kg
200N
20kg
300N
30kg
500N
50kg
Min load
2N
0.2kg
3N
0.3kg
5N
0.5kg
10N
1kg
20N
2kg
30N
3kg
50N
5kg
Load graduation value
0.1N
20g
0.2N
20g
0.25N
50g
0.5N
100g
1.0N
200g
2.0N
200g
2.5N
500g
Rod journey
10mm
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
