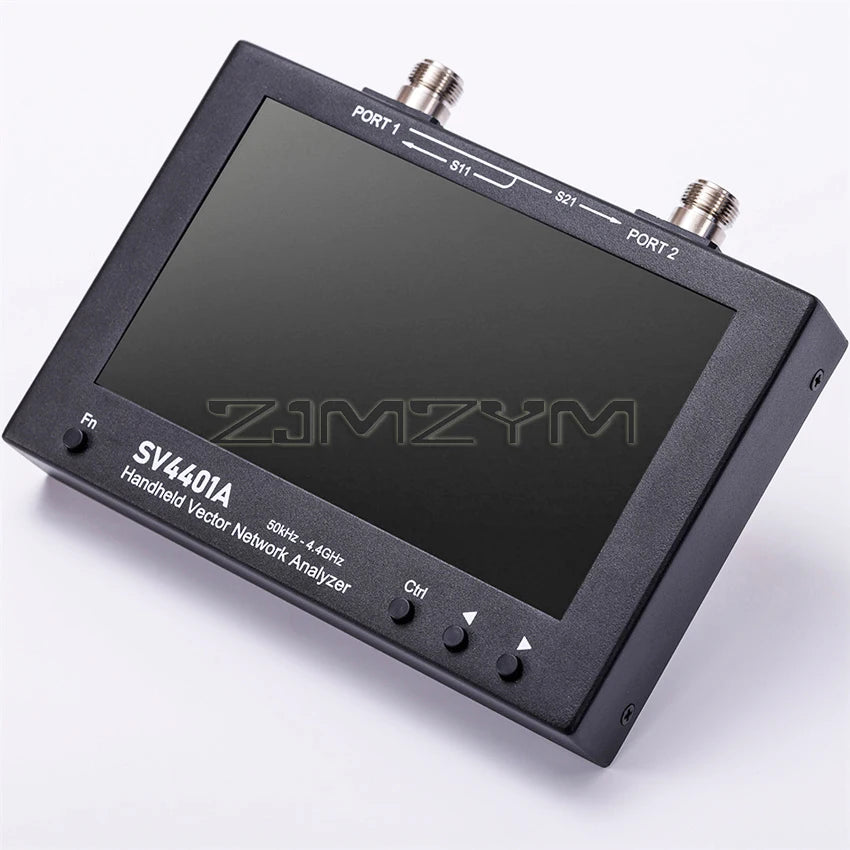

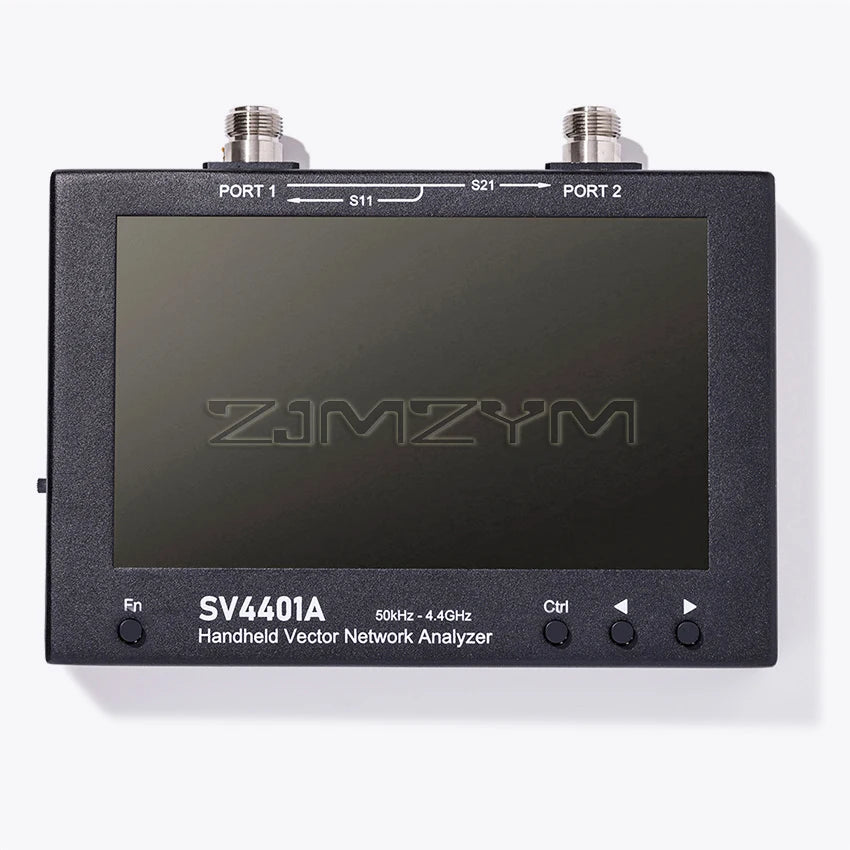

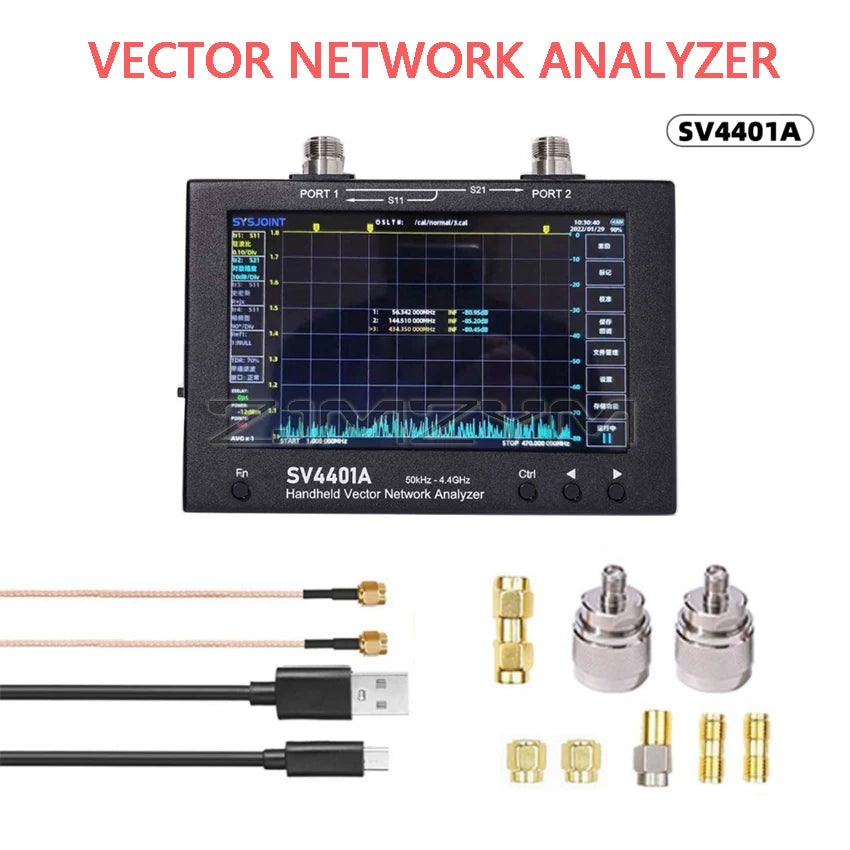

Name: SV4401A Vector Network Analyzer
- Frequency range: 50kHz~4.4GHz
- RF output power: -42dBm to -12dBm (1dB step)
- RF interface form: N-type negative connector (with N to SMA adapter)
- RF input power: 0dBm Max (DC<5V)
- Frequency accuracy: <±1ppm (<140MHz); <±5kHz (>140MHz)
- S21 dynamic range: 75dB (<3GHz); 60dB (>3GHz)
- S11 dynamic range: 50dB (<3GHz); 40dB (>3GHz)
- Scan points: 1001 (can be set to 101-1001)
- Scanning speed: 400 points/second (f>140MHz)
- IF bandwidth: 12.5kHz by default (optional 6.25k/3.12k/1k/300Hz/100Hz/30Hz)
- Smoothing: arithmetic mean (average coefficient: 1~25 times)
- Number of traces: 7 (4 measurement traces, 2 reference traces, 1 TDR trace)
- Number of markers: 8
- Calibration state storage number: 12 groups (supports file storage to internal memory card)
- Storage capacity: Built-in 8GB memory card
- Display: 7" high-brightness IPS LCD screen (resolution: 1024x600)

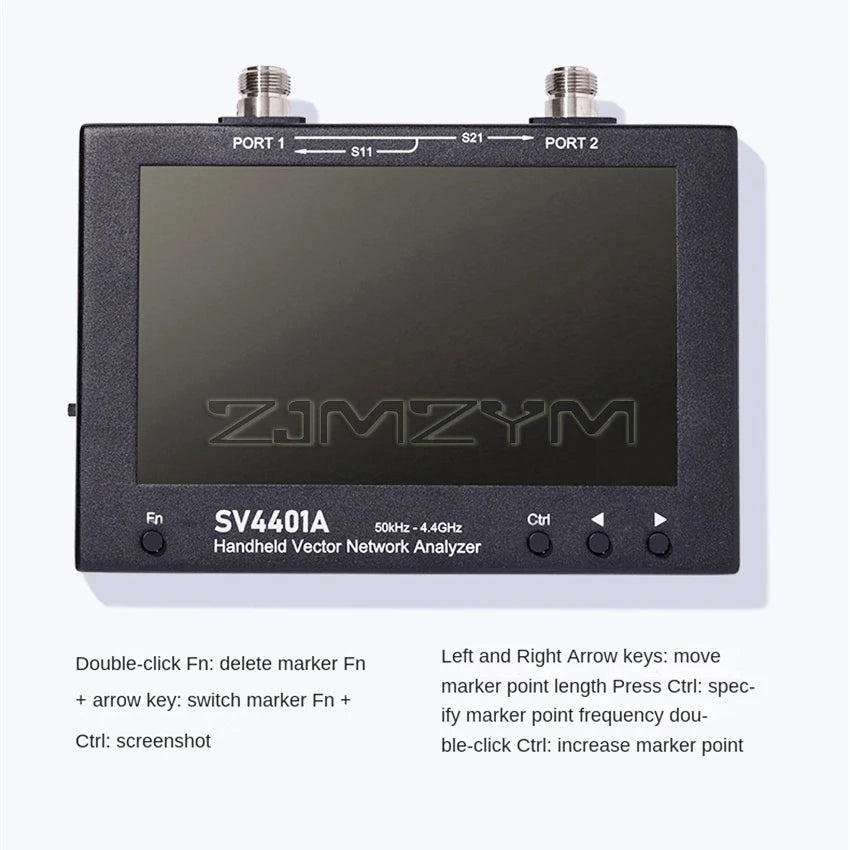

- Operation mode: capacitive touch + physical button
- Local screenshot: support
- Power consumption: 5W
- Battery life: 4 hours (50% screen brightness)
- Battery: two built-in 18650 lithium batteries (3.6V/3350mAh x 2)

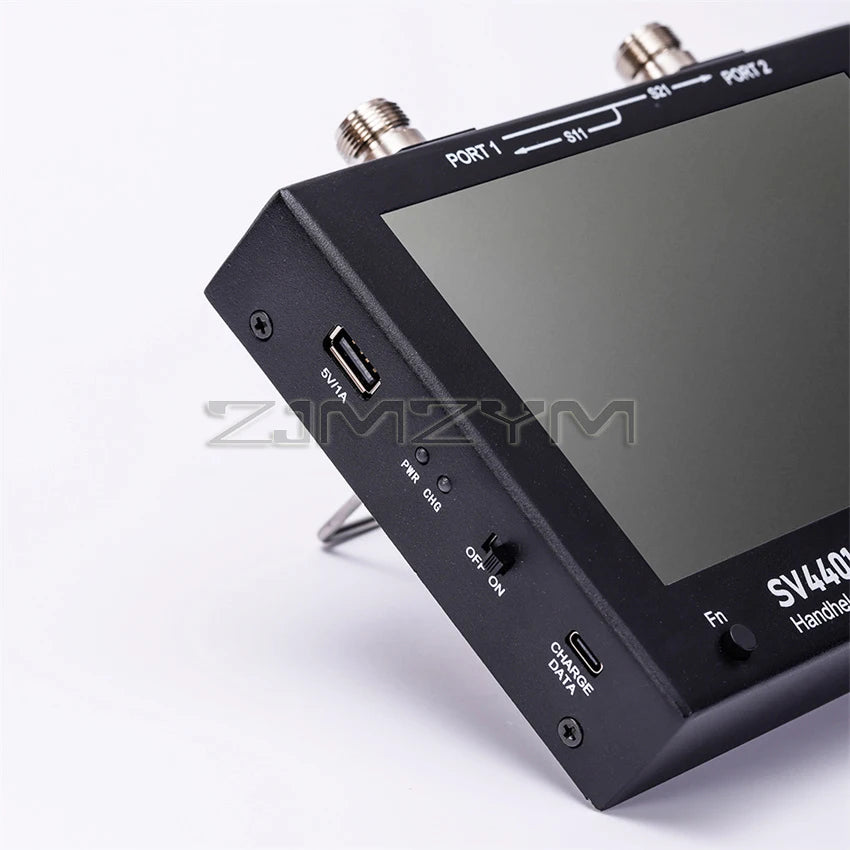

- Charging/Data Interface: USB Type-C
- Charging voltage: 4.7V~5.5V (5V/2A charging recommended)
- Power supply output: USB 5V/1A
- Shell material: iron
- Working temperature: 0℃~45℃
- Dimensions: 190 x 130 x 30mm/7.5 x 5.1 x 1.2" (without size of RF interface)
