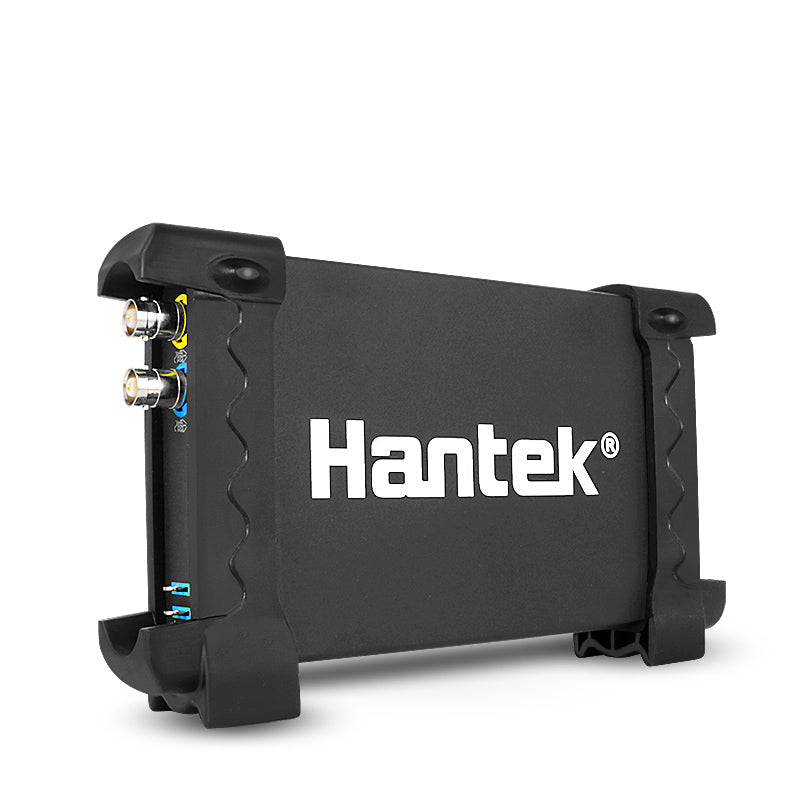

Hantek 6052BE PC-Based USB Oscilloscope 50MHz 2Channels 150MS/s Anodised

Aluminium

 Features:

 Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.

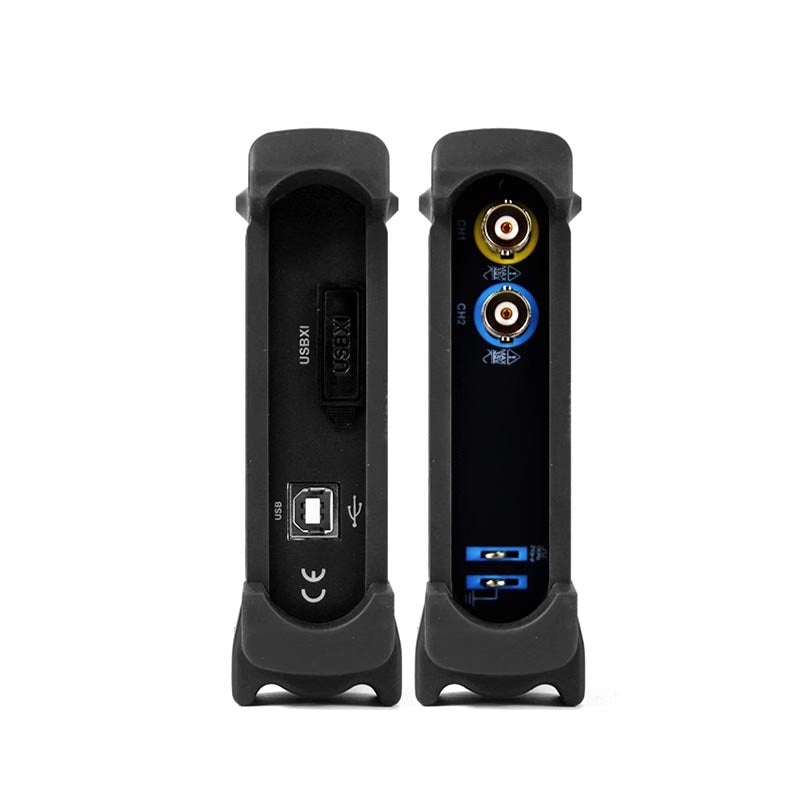

 Standard USBXI TM interface, easily inserts into USBXI TM housing to make up a combination instrument.

 USB2.0 interface, no external power source required, easy to use.

 Be suitable for notebook computer, product line maintenance,be used easily on business.

 Dimensions (mm):205(L) x120(W) x35(H), be carried easily.

 High performance, 150MS/s real-time sampling, 50MHz Bandwidth.

 Operating System: Windows 7, Windows NT, Windows 2000, Windows XP,VISTA.

 23 measurement functions, PASS/FAIL Check, be suitable for technical application.

 Waveform average, persistence, intensity,invert,addition, subtraction, multiplication, division,X-Y plot.

 Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.

 FFT

 One computer can connect many DSO, extend channel easily.

 LabviewVBVCDelphiC++Builder Second Design instance.

 Specifications:

      Channel

   2 Channels

       Bandwidth

   50MHz

       Shot bandwidth

   DC to 50MHz

       Input Impedance

   1MΩ 25pF

       Max. Sample rate

   150MS/s

       Coupling

   AC/DC/GND

       Vertical resolution

   8Bit

       Gain range

   10mV-5V, 9Steps

       DC accuracy

   +-3%

       Timebase range

   4ns-1h, 38 Steps

       Vertical adjustable

   Yes

       Input protection

   Diode clamping

       X-Y

   Yes

       Autoset

   Yes (30Hz to 50MHz)

       EXT. input

   Yes

       Trigger Mode

   Auto, Normal and Single

       Trigger Slope

   +/-

       Trigger level adjustable

   Yes

       Trigger Type

   Rising edge, falling edge

       Trigger Source

   CH1, CH2, EXT

       Pre/Post trigger

   0-100%

       Buffer size

   10K-64KB/Channel

       Sampling selection

   Yes

       Waveform Display

   port/line, waveform average, persistence, intensity

       Network

   Open/Close

       Vertical mode

   CH1, CH2, Dual, ADD

       Cursor measurement

   Yes

       Math

   FFT, addition, subtraction, multiplication, division.

       Cursor

   Frequency, Voltage

       Data Samples

   10K-64K/Channel

       Accessories

   software, probes x2, PDF manual, USB cord
