Features:
【Two Measuring Principles】Adopting principles of Magnetic Induction and Eddy Current Effect, it can measure the thickness of non-magnetic coatings on magnetic substrates such as iron / steel, and thickness of non-conductive coatings on non-magnetic substrates such as aluminum / copper / brass.

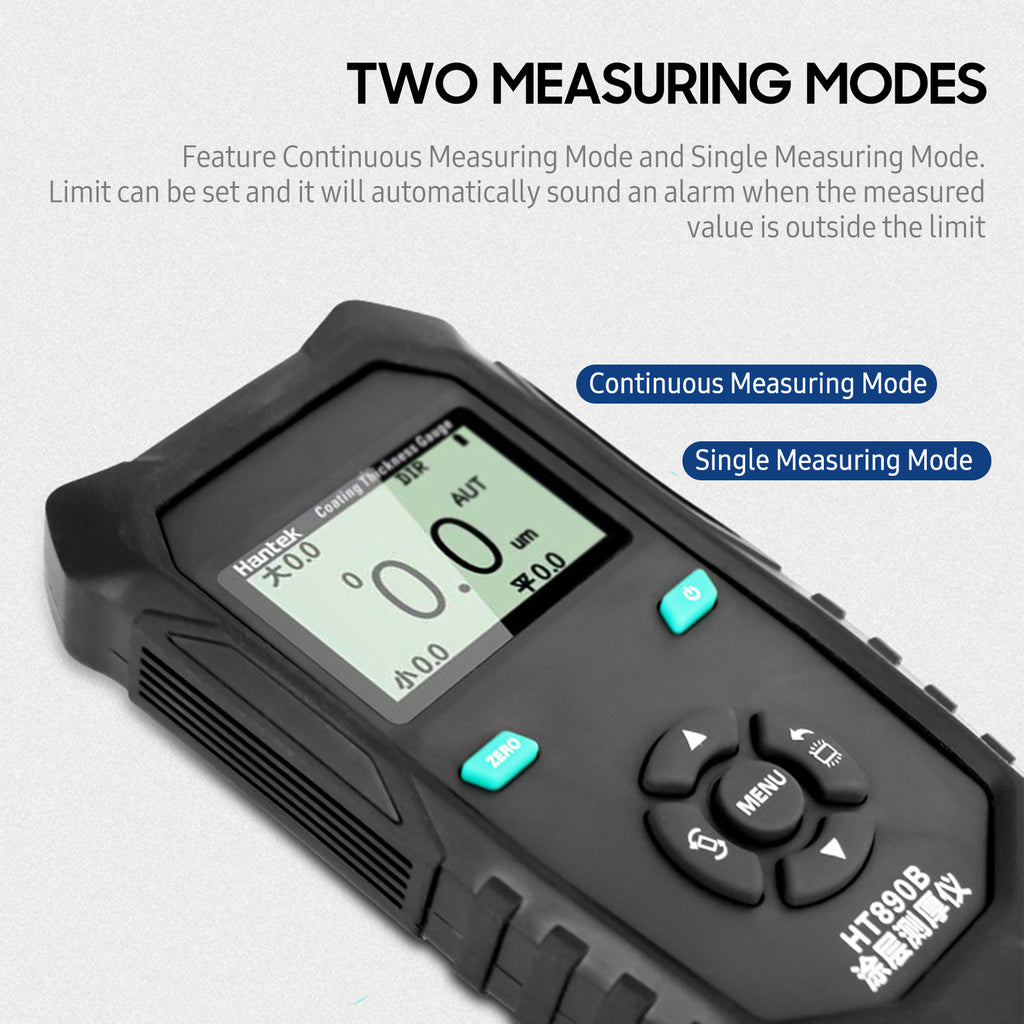

【Two Measuring Types】Feature Continuous Measuring Mode and Single Measuring Mode. Limit can be set and it will automatically sound an alarm when the measured value is outside the limit.

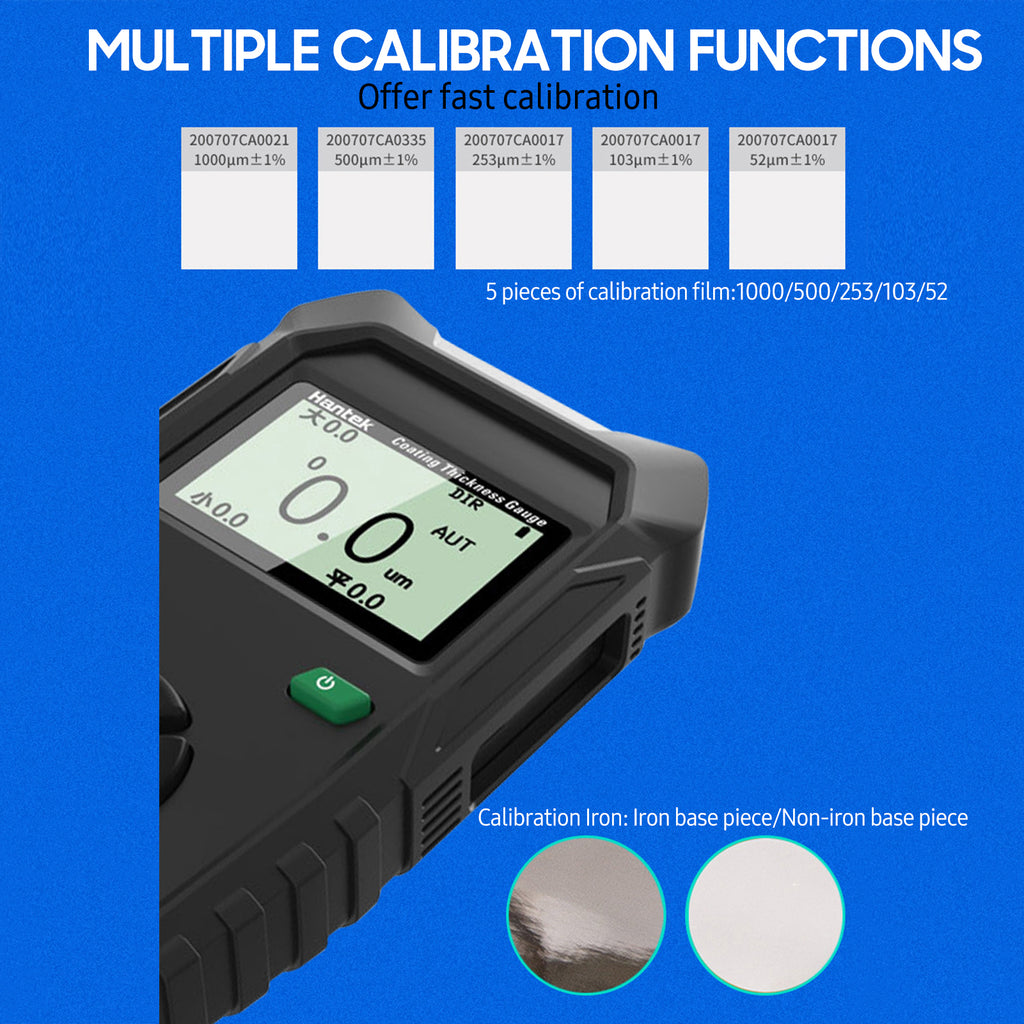

【Two Calibration Functions】Support both zero calibration and five-point calibration with 5 calibration films, offering you rapid and efficient calibration.
【High-sensitive Probe】Built-in integrated probe with high sensitivity, can automatically recognize basic material and test it quickly via one-button.
【Convenient Storage】Equipped with Type C interface, it can be connected to the computer easily for data transmission and sharing, convenient to operate.

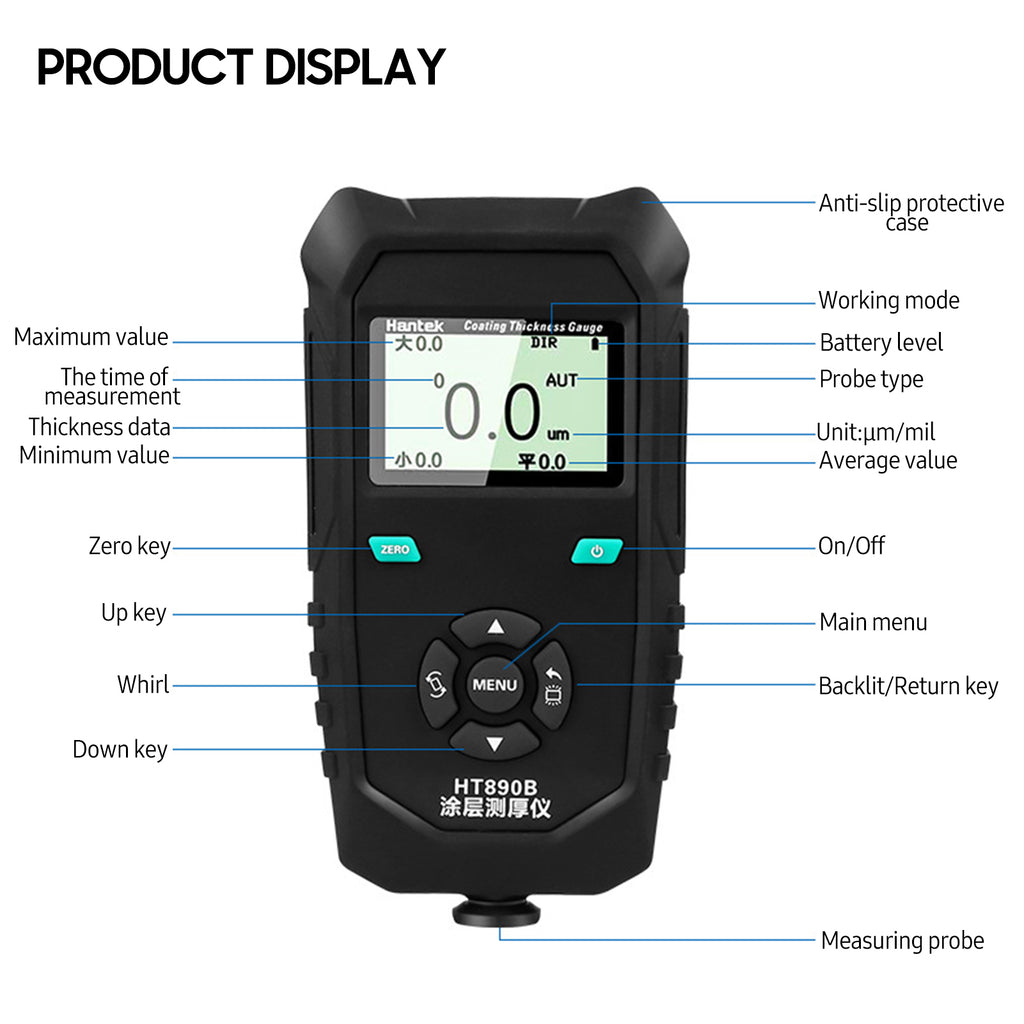

【Clear Display】Large backlit LCD display, shows everything clearly even in the darkness. Rotating screen design allows you to operate in a different direction.
【Wide Application】Lightweight and portable body, can be widely used in painting, plating, automotive industry, aircraft manufacturing, porcelain magnetic and other industries.
【More Functions】Five statistics display, automatic shutdown, buzzing prompt, delete function, etc.
Specifications:
Brand: Hantek
Model: HT890B
Material: ABS
Color: Black
Battery: 2×AAA Batteries (not included)
Item Size: 152 * 77 * 29mm / 5.98 * 3.03 * 1.14in
Item Weight: 156g / 5.5oz
Package Size: 25.8 * 19.8 * 5.1cm / 10.16 * 7.8 * 2.01in
Package Weight: 531g / 18.73oz
Measuring Range: 0~1500μm / 0-50mil
Measuring Error: ±(3%+2μm) / ±(3%+0.08mil)
Minimum Resolution: 0.1μm / 0.01mil
Measuring Unit: μm / mil
Minimum Curvature Radius: 1.5mm / 25mm
Diameter of Minimum Area: 6mm
Minimum Substrate Thickness: 0.5mm (magnetic induction) / 0.3mm (Eddy current effect)
Operating Temperature: 0~40℃ (temperature) / 20%~90%RH (humidity)

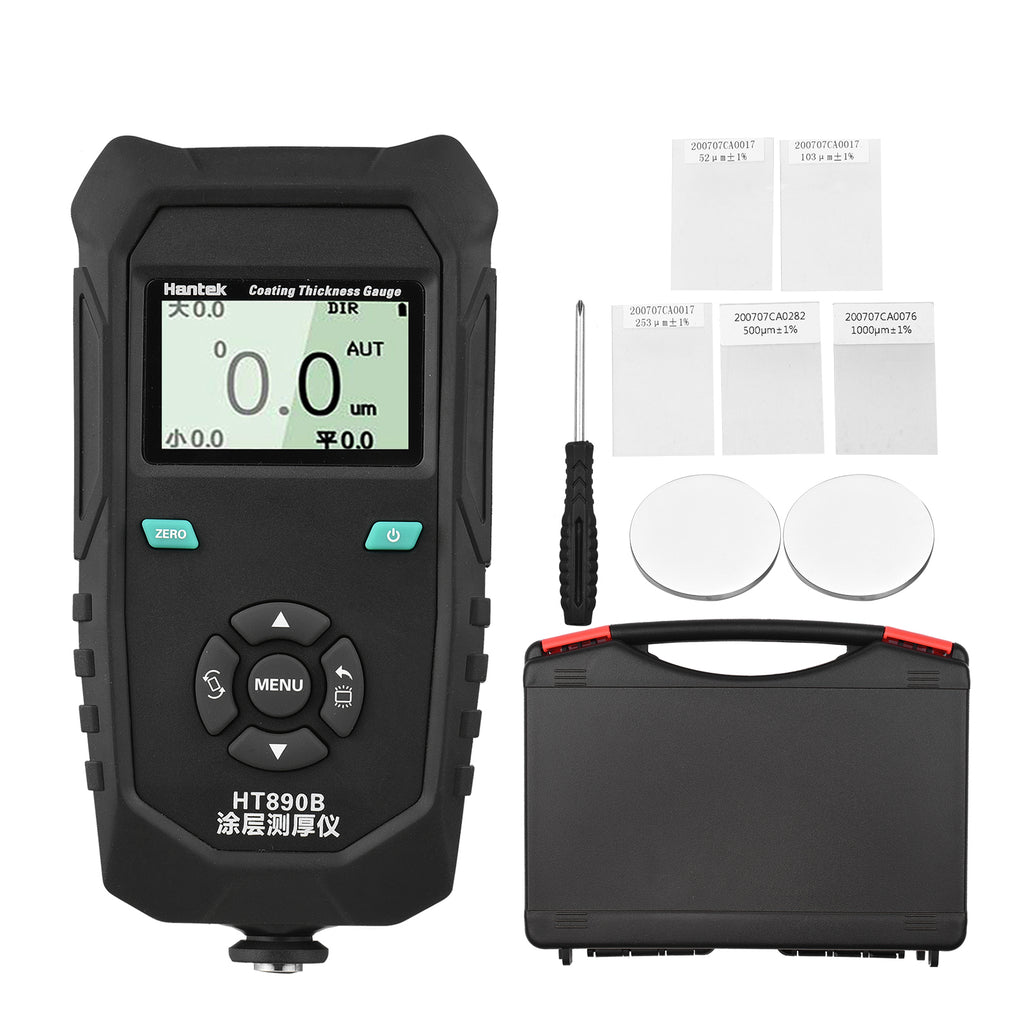

Package List:
1 * Thickness Gauge
1 * Screw Driver
1 * Iron Base Piece
1 * Non-Iron Base Piece
5 * Calibration Film
1 * Carrying Case
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
