Specifications:

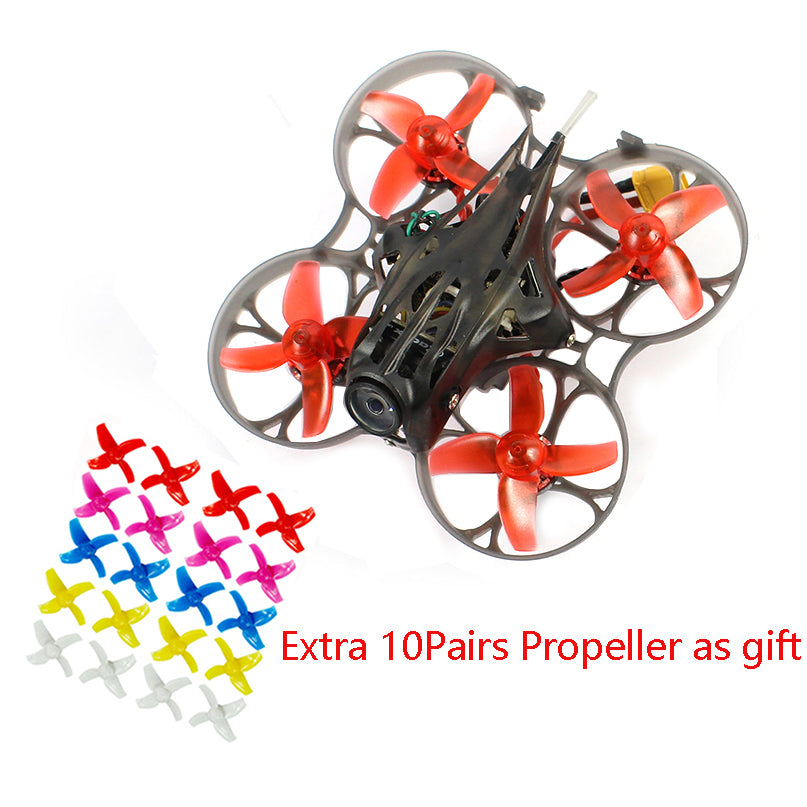

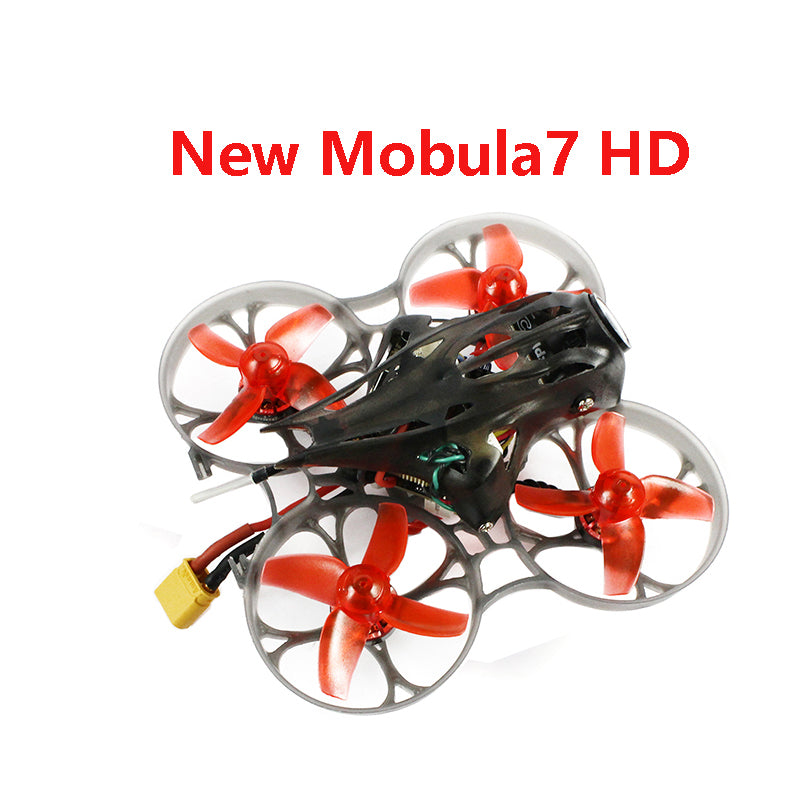

   Item Name: Mobula7 HD 2-3S 75mm Brushless whoop drone

   Wheelbase: 75mm

   Size: 98mm*98mm*45mm

   Weight: 48g(without battery)

   Weight:72g(with Original 3s 300mah Lipo battery )

   Features:

   New Crazybee F4 PRO V2.0 AIO Flight controller 1-3s Lipo Compatible

   2S for indoor Cine whoop mode

   3S for outdoor Freestyle whoop mode

   Betaflight support , multi flight mode: ACRO/AIR/ANGLE

   The lightest 1102 brushless motor only 2.7g with double ball bearings

   Powerful and smoothly

   Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles(DSM-X version no RSSI output)

   Runcam SPLITE3 LIITE + 1080p 60fps DVR ready

   Camera Angle adjustable

   VTX power switchable 25mw~200mw

   Smartaudio ready , change VTX bands, powers, channels via OSD

   Frsky Non-EU version support NON-EU Frsky transmitter D8/D16 compatible

   Flysky version support both AFHDS and AFHDS-2A protocol transmitter

   DSM-2/DSM-X version support DSM-2 and DSM-X compatible Spektrum transmitter

   No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc..

   Full telemetry function ready (Frsky Non-EU and Flysky version support)

   Special Breath light ready

   Real Bind and Fly version

   Compatible both for 2s-3s Lipo/LIHV

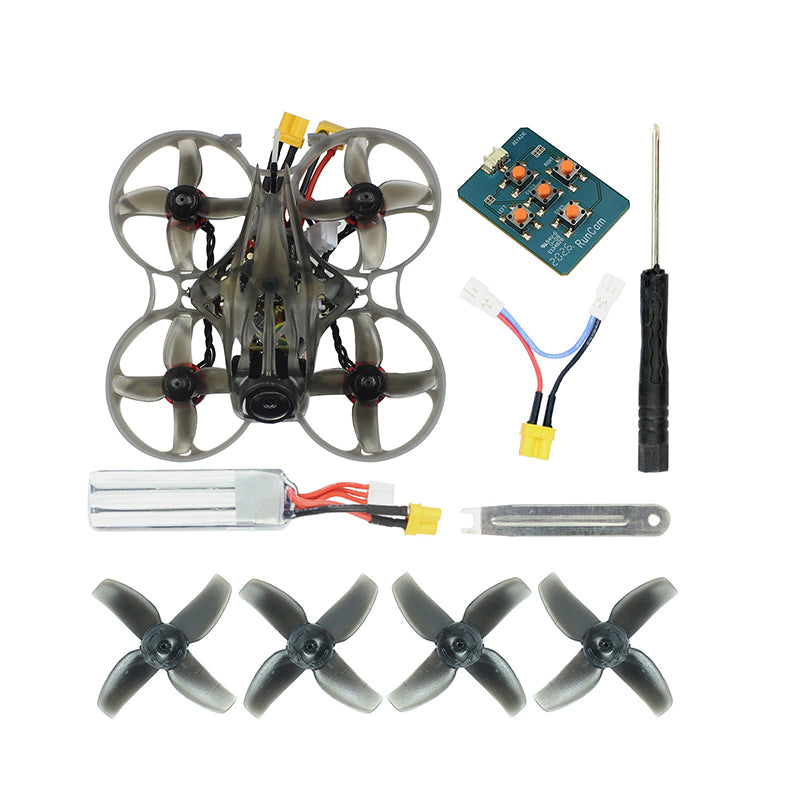

   Package includes:

   1xMobula7 V3 Frame

1xCrazybee F4 V2.0 PRO FC

4xEX1102 KV9000 Motor

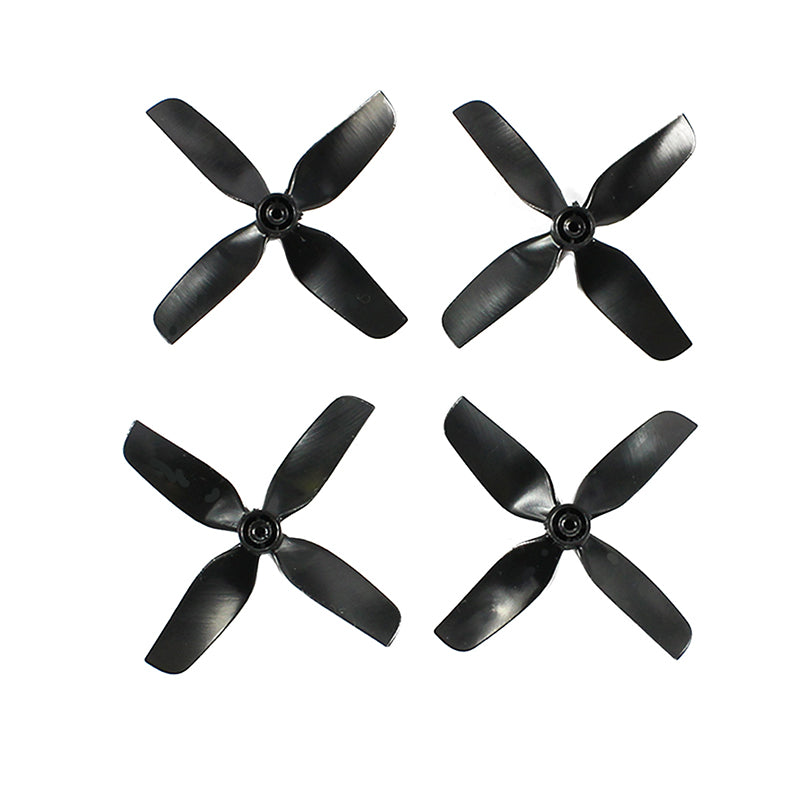

1x40mm propeller(4cw+4ccw)

1xRuncam SPLITE3 LIITE+1080p 60fps DVR

1x5.8G 40ch 25mw-200mw VTX

1x3S 11.4v 300mah 30C/60C battery

1xPropeller disassemble tool

1xScrewdriver

   Spare parts specifications:

                  Motor

      Mode: EX1102 KV9000

Configu-ration:9N12P

Stator Diamter:11mm

Stator Length:2mm

Shaft Diameter:Φ1mm

Motor Dimension(Dia.*Len):Φ13.5mm*16mm

Weight(g):2.8g

No.of Cells(Lipo):1S-3S

                Flight controller

      (Frsky version) CRAZYBEE F4FR PRO V2.0 Firmware target: CrazybeeF4FR

(Flysky version) CRAZYBEE F4FS PRO V2.0 Firmware target: CrazybeeF4FS

(DSM-2/DSM-X version) CRAZYBEE F4DX PRO V2.0 Firmware target: CrazybeeF4DX

(No RX version) CRAZYBEE F4 PRO V2.0 Firmware target: CrazybeeF4DX

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Board size: 28.5 * 28.5MM

Power supply: 1-3S battery input (DC 3.5-13V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable)

Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS2A switchable)

DSM-2/X Version built-in Serial-based DSM-2/DSM-X compatible satellite receiver

No RX version need to add external Receiver

Built-in Betaflight OSD(SPI Control)

Built-in Current meter Max 28A

Current meter scale set to 1175

Built-in 5V 1A Buck / Boost with LC filter

Built-in voltage detection

                Onboard 4in1 ESC

      MCU upgraded to EFM8BB21

Power supply: 1-3S LiPo/LiPo HV (3.5v/13v)

Current: 5A continuous peak 6A (5 seconds)

Support BLHeliSuite programmable

Factory firmware: S_H_50_REV16_7.Hex

Default protocol: DSHOT600

                Frsky NON-EU receiver Version

      SPI BUS receiver

Frsky D8/D16 switchable

Compatible Non EU transmitter both D8 and D16 mode

Channels: 8ch or 16ch

Failsafe support

No ground interference ( Transmitter and receiver 1 m from the ground): 300m

                Flysky receiver Version

      SPI BUS receiver

Protocol: AFHDS and AFHDS-2A Switchable

Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)

No ground interference ( Transmitter and receiver 1 m from the ground): 300m

Failsafe support

                DSM-2/DSM-X receiver version

      Serial bus receiver

Protocol: DSM-2/DSM-X compatible

Channels:6-9 (Depend on your radio)

No ground interference ( Transmitter and receiver 1 m from the ground): 300m

                PNP No RX version

      No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc.

                VTX

      Output power: 25~200mw switchable

Frequency: 40CH

Input voltage: 3.3V 5.5V

Current consumption: 300mA(type)

Antenna: RG178 antenna

Frequency: 5.8GHz 5bands 40 channels

With Raceband

Smartaudio ready

Weight: 3g

                Runcam SPLITE3 LIITE

      Image sensor: 1/2.7" CMOS sensor

Horizontal: 800TVL

TV system: NTSC/PAL changeable

Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps

Power Input: DC 4.5-20V

FPV FOV: 155°

Recording FOV: 170°

Mini Illumination: 0.01lux

Image Resolution: 2 Megapixels

Lens: 1.8mm Turbo Eye Lens

Working Current: 380mA@5V/160mA@12V (low consumption)

OSD Menu: Yes (Support Voltage Display)

Video Files: MP4

Audio: Support

Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100

S/N Ratio: >60dB (AGC OFF)

Video Output: CVBS

Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II)

Color: Red

                Lipo Battery

      Capacity:300mAh

Voltage:11.4v

Continuous Discharge Rate: 30C

Instantaneous discharge rate: 60C

Size: 65mmx18mmx11mm

Weight: 23g

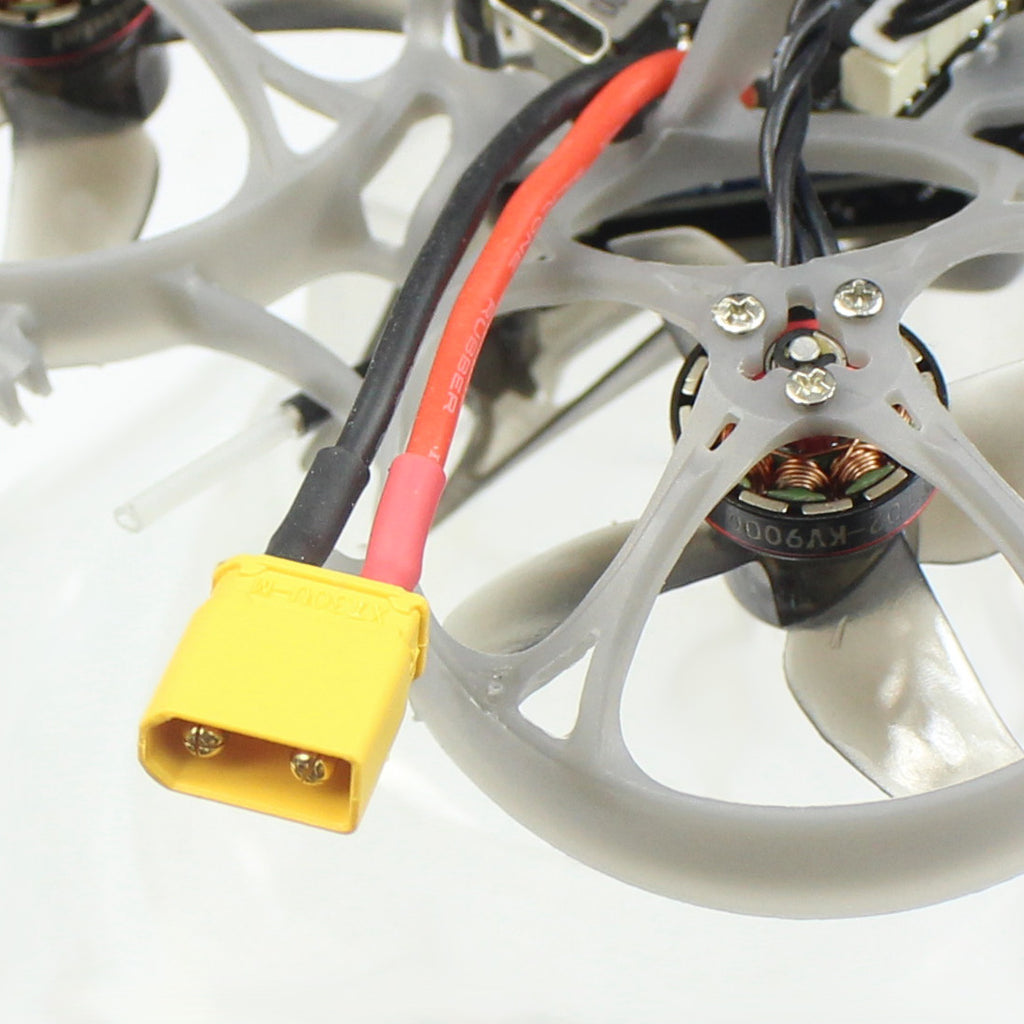

Connector: XT30
