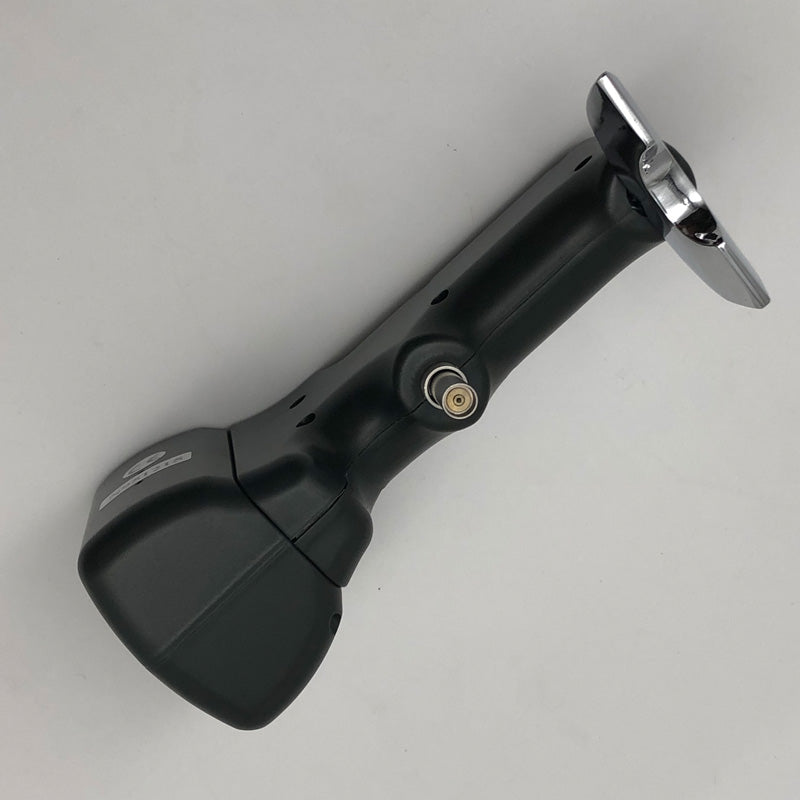

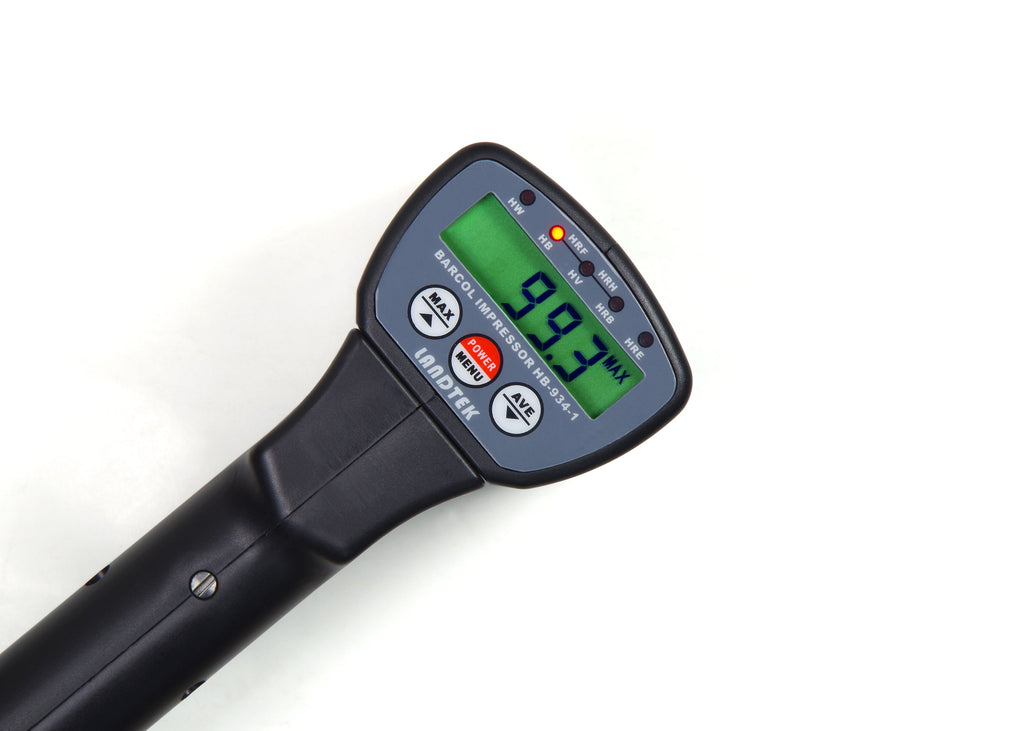

The Digital Display Barcol Hardness Tester HM-934-1+ is the Hand-held portable Indentation hardness tester,which is the lastest research anddevelopment of our company.

Used for measuring the hardness of:

*aluminum, aluminum alloys, soft metals

*fiberglass and other materials.

Follow the standards:ASTM B648-00;ASTM HD2583-07;GB/T3854-2005.

Features:

* A digital indentation hardness tester, is the latest design and development of our company.

* It is characterized in that provided with a balance positioning, a digital display of hardness value, and a non disassembly calibrationand adjusting.

* It is with good stability, convenient calibration, and high accuracy of detection.

* Small in size, portable. Single hand operation, easy to use. Can be used in any occasion as long as the hand can reach.

* Wide test range, can test from very soft pure aluminum to a particularly hard aluminum alloy. effective test range equivalent to theBrinell Hardness of 25~150HB.

* No need to be supported. Just test on one side of the sample with the hardness tester, no need to be supported. It is suitable for thetest of large and extra thick workpiece.

* With the maximum hold function, recording the maximum hardness value during measurements.

* Can be used for measuring not only Barcol Hardness, but also Brinell Hardness (HB), Vickers Hardness (HV), Webster Hardness (HW),Rockwell Hardness (HRB/HRE/HRF/HRH).

* With the function of calculating the average value, can calculate the average value of the 29 sets of data at most.

* Provide BT data output choice.

Specifications:

      Range

   0~100Hba,Amount to 25~135HBW

       Resolution

   0.1HBa

       Indication Error

   81~88Hba±1Hba

       42~48Hba±2Hba

       Repeatability Error

   81~88Hba±1.5Hba

       42~48Hba±2.5Hba

       Brinell Hardness

   √

       Vickers Hardness

   √

       Wenster Hardness

   √

       Rockwell hardness

   √

       Maximum Hold

   √

       Average Calculation

   √

       Operating Condition

   Temperature:0~50ºC   Humidity:<80%RH

       Power Supply

   2x1.5V AAA(UM-4)Battery

       Dimensions

   170x63x82mm

       Weight

   390g(Not Including Batteries)

       Standard

   Main Unit

       Accessories

   2 Pins

       2 Standard Blocks

       Pin Length Calibration Block

       Screw Driver

       Spanner

       Carrying Case

       Operation Manual

       Optional

   BT Data Adapter with Software

Accessories:

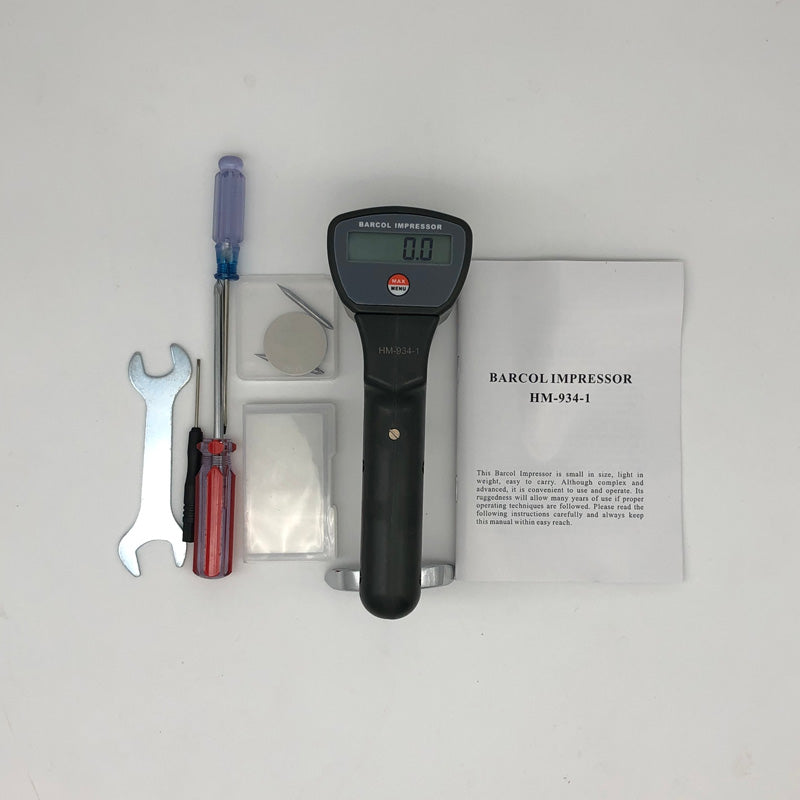

Standard Accessories:

* Main Unit

* 2 Pins

* 2 Standard Blocks

* Pin Length Calibration Block

* Screw Driver

* Spanner

* Carrying Case

* Operation Manual

Optional Accessories:

* BT data out put with software
