Specification
item
value
Place of Origin
China
Guangdong
Model Number
LSM3G
Product number

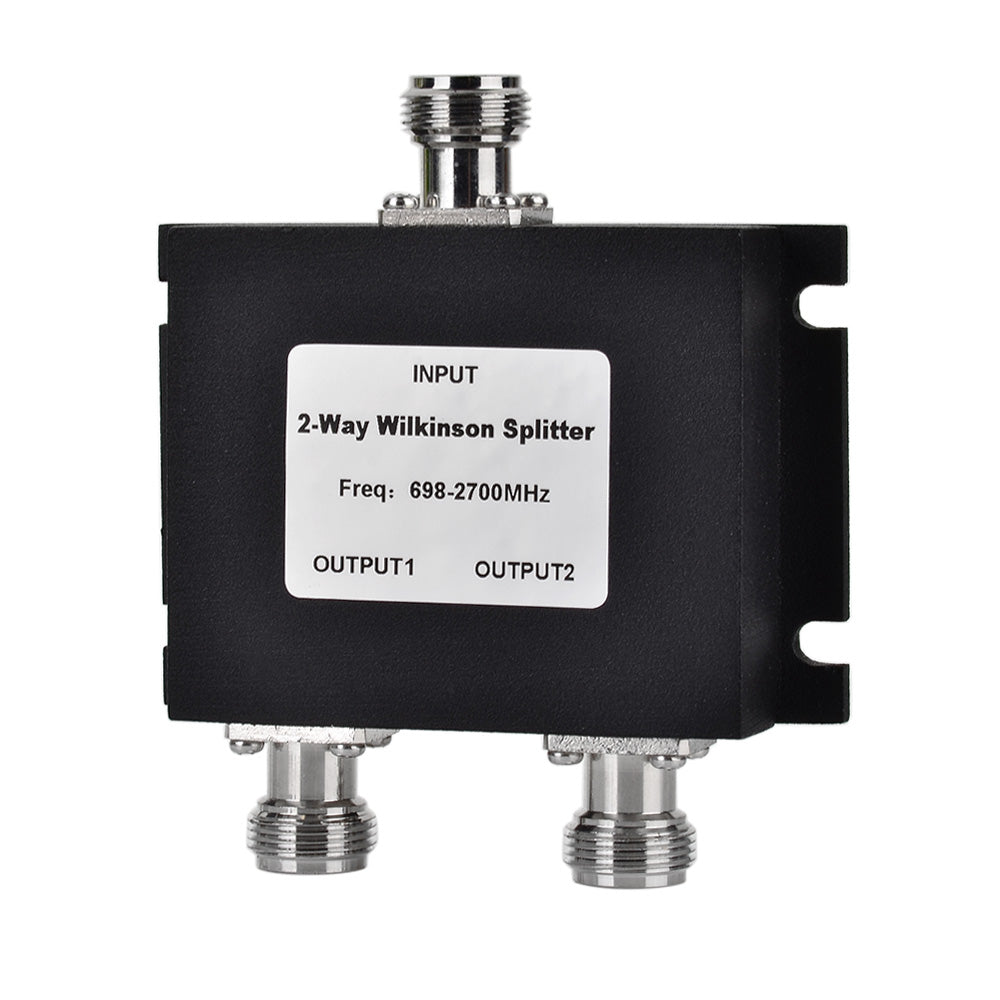

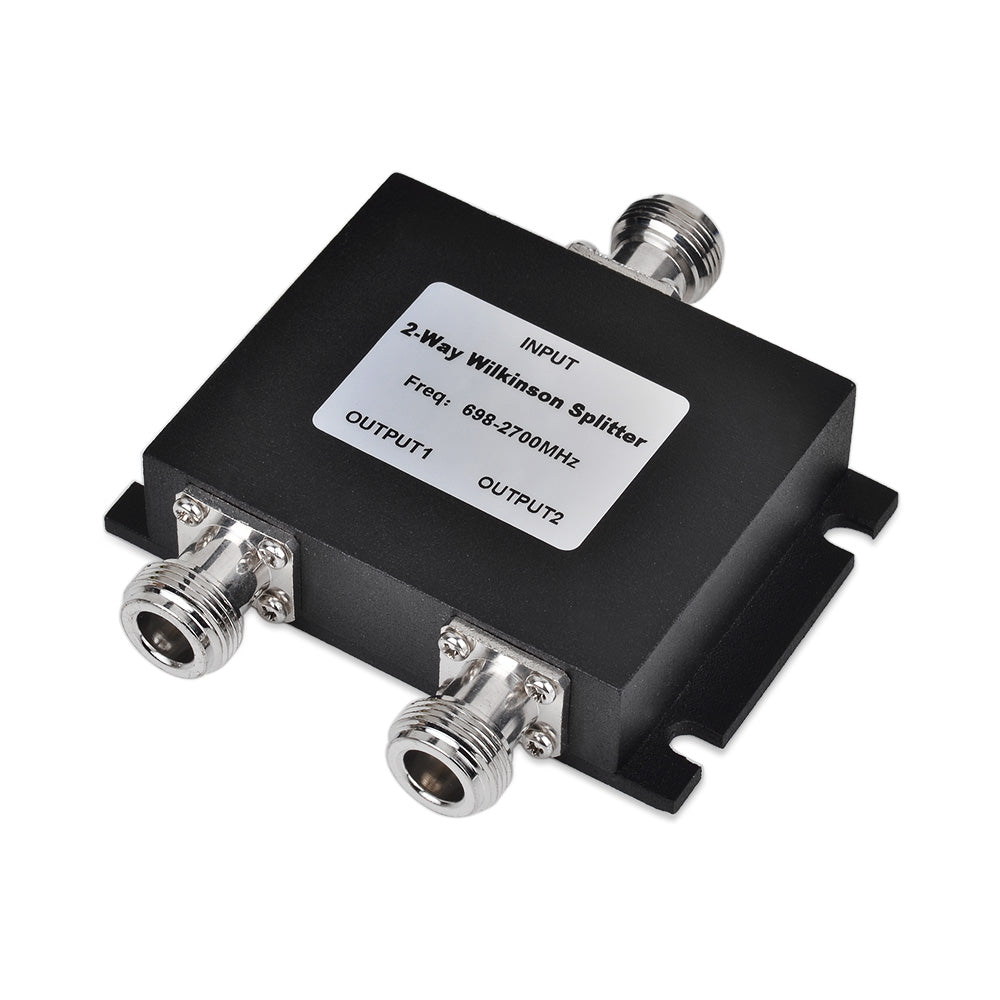

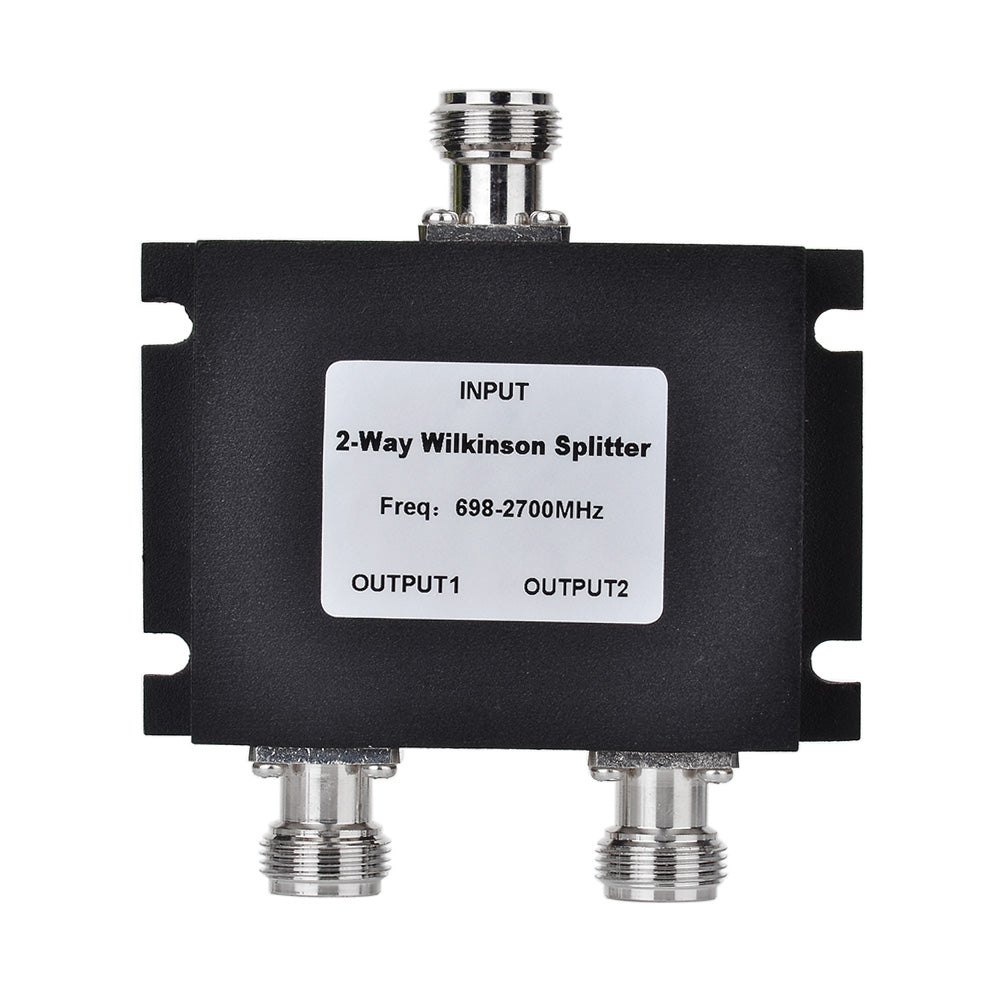

Microstrip power divider one in two
working frequency
698-2700mhz
Standing wave ratio
≤1.3:1
Insertion loss
≤2.1dB
Protection level
IP64
Seclusion
≥18dB
Work rate
50W
Third-order intermodulation
≤-120dBc 2*43dBm

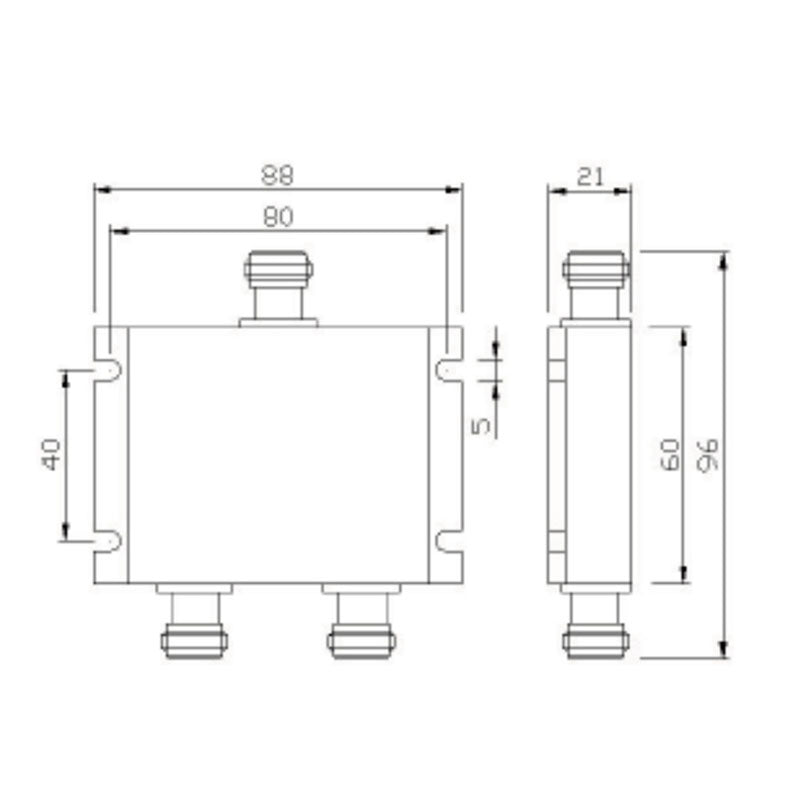

Package Size
13cm*12cm*2.5
Connect
N-F
Installation Method
1. Find the strongest direction and position of the received signal for mobiles at the top or the periphery of the building, as the location for installing the outdoor antenna, pay attention that the location should be paid to lightning protection. The installation height should not be higher than the lightning protection network of the building. If it is higher than the lightning protection network. If it is necessary, install a lightning rod 1 meter above the outdoor antenna and ground it well.
2. After selecting the appropriate location, fix the outdoor antenna to the wall or bracket. 3. Select an appropriate location in the relevant indoor location (close to the power supply and the outdoor antenna end, rain-proof, sunshine-proof and ventilation is best location) install indoor straight machine, and fixed to the wall or bracket. 4. Lead the outdoor antenna to the 'BTS' (outdoor) interface, and the connection between the outdoor antenna and the amplifier is completed. 6. The indoor antenna connected to the amplifier, one port connecting to the indoor antenna interface, and the other port connecting to the repeater's 'MOBILE' (indoor) port.
5. After defining the indoor antenna installation position, fix the antenna.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
