Applications:

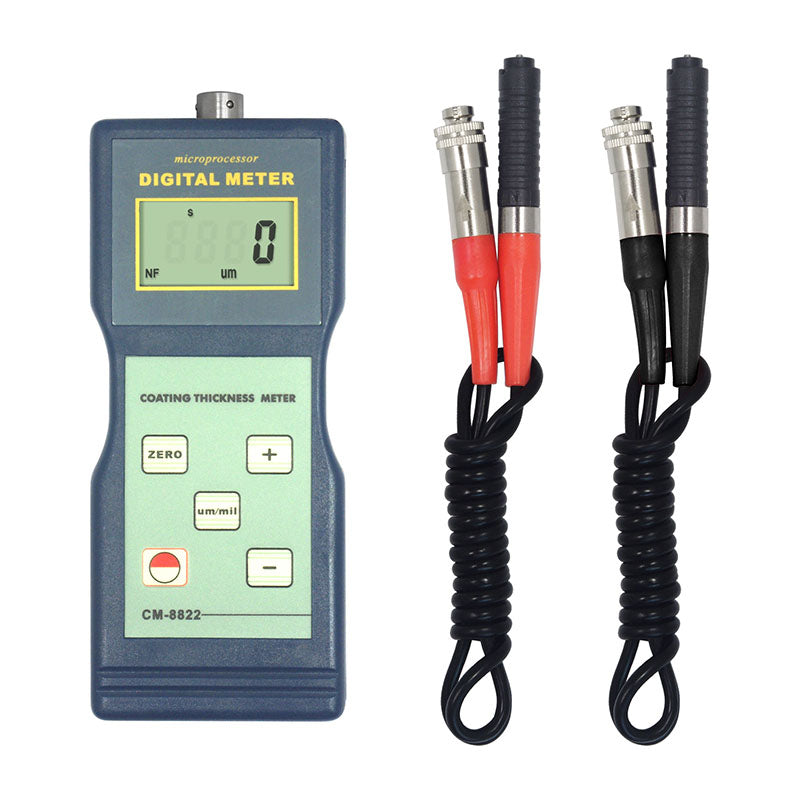

Coating thickness gauge is a kind of portable measuring instrument, can take fast, intact, precise measurement of coating thickness. It can not only be used in engineering field, laboratories, but also meet the demand of multiple measuring by using different probes. It is used widely in manufacturing, metal processing industry, chemical industry, commodity inspection field, etc. As an essential instrument in material protection industry.

The F probes measure the thickness of non-magnetic materials on magnetic materials. The N probes measure the thickness of non-conductive coatings on non-magnetic metals.

Features:

* Two measuring methods: magnetic induction (F) and eddy current (N)

* Two measurement mode: Single and Continuous（Notice：Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.）

* Metric/imperial system selectable.

* Manual or automatic shut down.

* Automatic memory of calibration value,and automatic recognize the substrate.

* Operation process have buzzing reminder,while no buzzing in continuous mode.

Principle：

      Principles

   Applications

   Examples

       F Type

Magnetic Induction

(Iron Base)

   Measure the thickness of non-magnetic materials on magnetic materials

   Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc

       NF Type

Eddy Current

(Aluminium Base)

   Measure the thickness of non-conductive coatings on non-magnetic metals

   Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc

Specifications:

               Principle

            F Magnetic Induction & NF Type Eddy Current

                Range

            0~1000µm/0~40mil

                Resolution

            0.1µm/1µm

                Accuracy

            ±1~3%n or ±2.5µm

                Min.Radius Workpiece

            F Type:convex 1.5mm/concave 25mm

                NF Type:convex 3mm/concave 50mm

                Min.Measuring Area

            6mm

                Min.Sample Thickness

            0.3mm

                Metric/Imperial

            Convertible

                Battery Indicator

            Low Battery Indicator

                Automatic Power Off

            √

                Operating Conditions

            Temperature:0~50ºC

                Humidity:<80%RH

                Power Supply

            4x1.5V AA (UM-3)Battery

                Dimensions

            161x69x32mm

                Weight

            250g(Not Including Batteries)

Standard Accessories:

Main Unit

Probe (F Type)

Probe (NF Type)

Calibration Base (F)

Calibration Base (NF)

Calibration Foils (1 set, 5 pieces)

Carrying Case (B04)

Operation Manual

Difference between CM-8821, CM-8822 and CM-8823:
