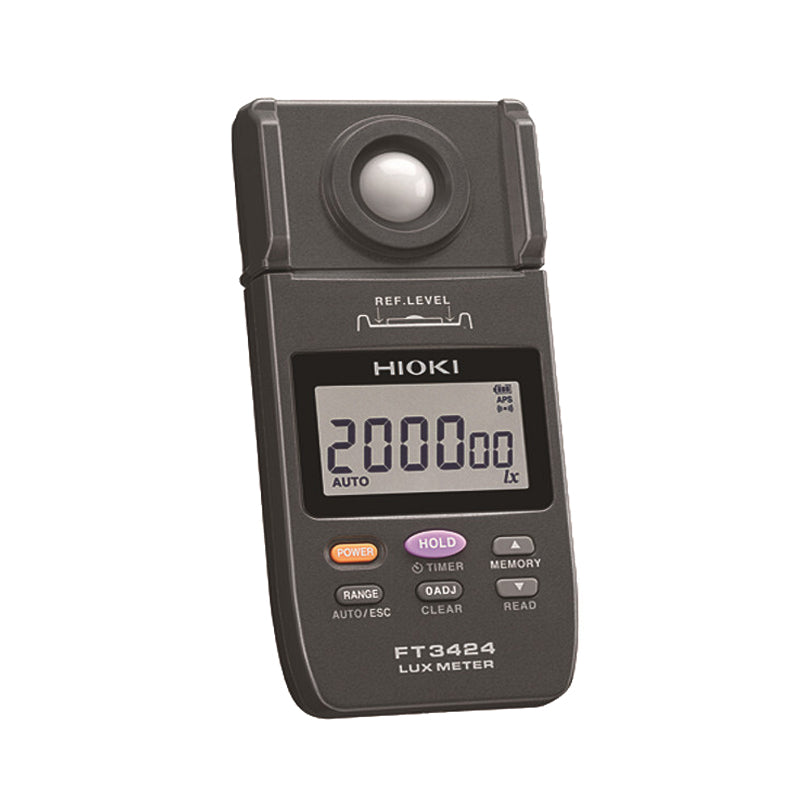

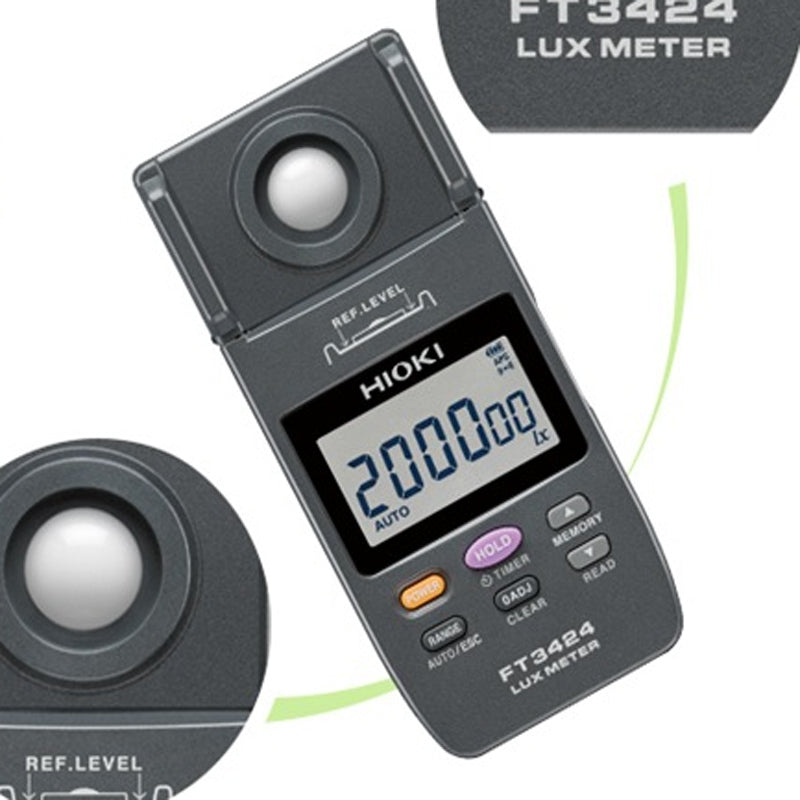

Features：
● Suitable for LED lighting measurement
●Suitable for measuring from low to high illuminance (200000 lx) from emergency lights, guide lights, etc
●Equipped with a timer holding function that can be measured in remote areas, avoiding the impact of shadows and reflections
● Memory can store up to 99 data, improving work efficiency by transferring it to a computer
Specifications：
Photosensitive Element
Silicon Photodiode
Measurement Range Switching
Auto/Manual
Linearity
±2% rdg. (or Display Values Exceeding 3000lx, It is 1.5 times)
Accuracy Assurance Temperature and Humidity Range
21 ° C~27 ° C, below 75% rh
(Non condensing)
Response Time
Automatic Range: within 5 seconds
Manual range: within 2 seconds
D/A Output
Output Level: 2 V/range f.s. (Output 2.5 V when exceeding range f.s.)
Output Accuracy: ± 1% rdg ± 5 mV (for display points)
Function
Timer hold, memory (up to 99), hold, automatic power saving, beep, backlight, zero setting
Standards
DIN 5032-7: 1985 class B
Power Supply
No.5 alkaline battery (LR6) × 2.
Maximum rated power 500mA,
Continuous use Time: 300h, or No. 5 dry battery (R6) × 2.
USB bus power supply DC 5V
Range
Measuring Range
Display Step
20 lx
0.00 lx~20.00 lx
1 point step
200 lx
0.0 lx~200.0 lx
2000 lx
0 lx~2000 lx
20000 lx
0(0) lx~2000(0) lx
10 point step
200000 lx
0(00) lx~2000(00) lx
100 point step
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
