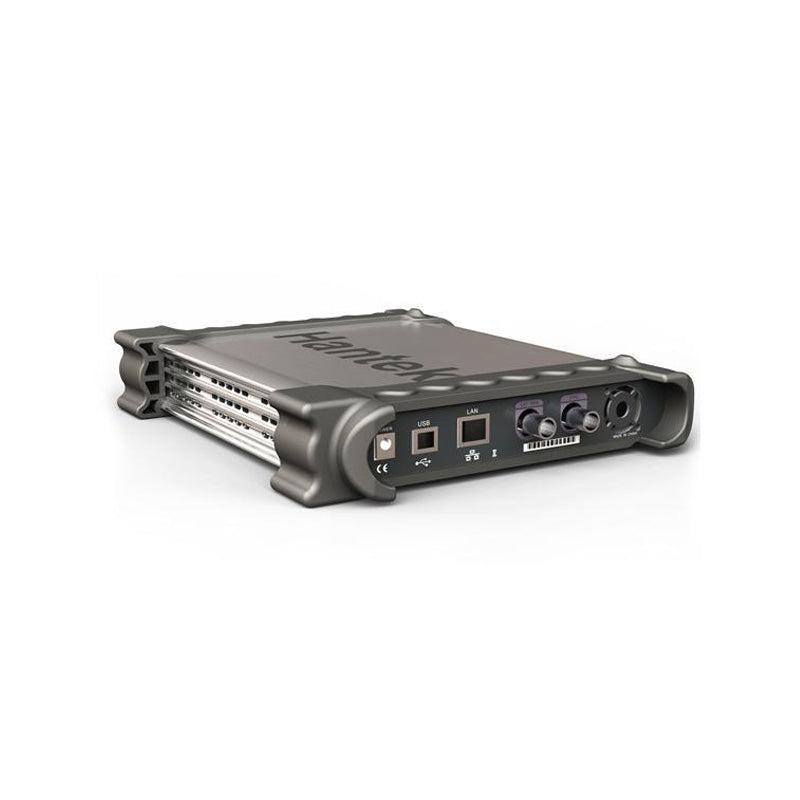

Hot selling Hantek DSO3064 KIT VII Automotive Diagnostic Oscilloscope 4CH 200MS/s

60MHz

 1.Characteristic:

 Vehicle Diagnosis:

 First Diagnosis (Cranking Exhaust Diagnosis)

 Ignition Action (Current/Voltage)

 The Sensor (Air Flow Meter, Camshaft, Crankshaft... )

 Bus Diagnosis (CAN Bus Data View)

 Performer (Petrol/Diesel)

 Startup&Charge (Charging Circuits Current/Voltage

 4 Channels and EXT trigger, 60MHz Bandwidth.

 200MS/s real-time sampling rate, 10k--16M memory depth per Channel.

 Frequency Counter, FFT spectrum analysis.

 8--36V Wide range of input voltage, suitable for vehicle power test.

 USB 2 interface plug and play, LAN and WIFI optional.

 More than 20 kinds of automatic measurement function, PASS/FAIL Check function, is suitable for engineering application.

 Excellent industrial design, similar interface with bench oscilloscope, Easy to use.

 Software support: Windows NT, Windows 2000, Windows XP, VISTA, Windows 7,

 Supply DEMO code (VC, VB, LABVIEW) and technical support.

   2.Hardware Specification:

               SPECIFICATIONS

     DSO3064

             VERTICAL

     Analog Channels

     4

             Bandwidth

     60MHz(-3dB)

             Rise Time

     5.8ns

             Input Impedance

     Resistance: 1M ohm  ; Capacitance: 25 pF

             Input Sensitivity

     10mV/div to 5V/div

             Input Coupling

     AC/DC/GND

             Vertical Resolution

     8 bits

             Memory Depth

     10K-16M/CH

             Maximum Input

     400V (DC+AC Peak)

             HORIZONTAL

     Real-Time Sampling Rate

     200MS/s

             Time Base Range

     5ns/div to 1000s/div(1-2-5 sequences)

             Time Base Precision

     +/-50ppm

             TRIGGER

     Source

     CH1, CH2,CH3,CH4,EXT

             Mode

     Edge,Pulse,Viedo,Alternative

             X-Y MODE

     X-Axis Input

     CH1

             Y-Axis Input

     CH2

             Phrase Shift

     Max.3 degree

             CURSORS AND

MEASUREMENT

     Voltage Measurement

     Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot

             Time Measurement

     Frequency,Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

             Cursors Measurement

     Horizontal ,Vertical, Track, Auto Measure Modes

             Waveform Signal Process

     +,- , x,÷, FFT, Invert

             AUTO SET

     Yes

             VOLTAGE RANGE

     10mV to 5V/div @ x 1 probe

             100mV to 50V/div @ x 10 probe

             1V to 500V/div @ x 100 probe

             10V to 5000V/div @ x 1000 probe

             100V to 50000V/div @ x 10000 probe

             200mV to 100V/div @ 20:1

             CURRENT RANGE

     CC65(20A),CC65(60A),CC650,CC1100

             CORSOR

     Time/frequency difference, voltage difference

             FFT

     Rectangular,Hanning,Hamming,Blackman Window

             MATH

     Adition,subtraction,multiplication,division

             INTERFACE

     USB  2.0(Lan ,WIFI Optional)

             POWER SOURCE

     8--36V Wide range of input voltage,suitable for vehicle power test

             MECHANICS

     255 x 190 x 45 (mm)

             Dimension

     1Kg

             Weight

     AC/DC/GND

   3.Software:

   Operating system: Windows 2000.Windows XP.VISTA.Windows 7

   4.SecondDesign:

   Supply DEMO code (VC.VB.LABVIEW) and technical support

   5.Kit VII Package Includes:

   1pc x PP-80,

   4pcs x HT30A,

   4pcs x HT25,

   4pcs x HT201,

   4pcs x HT18A,

   4pcs x HT19,

   1pc x HT307,

   4pcs X HT308,

   4pcs x HT310,

   1pc x CC-65,

   1PC X CC-650,

   1PC X HT301
