Sepcifications:
Pressure measuring range (relative pressure: -100 to 6000Kpa/-0.1 to 6Mpa/-14.5 to 870psi / -1 to 60bar
Overload pressure: 6500Kpa/6.5Mpa/940psi/65bar
Pressure accuracy: ±0.5%FS
Pressure resolution: 1Kpa, 0.01bar, 0.1psi, 0.001Mpa (0.01Mpa during negative pressure)
Temperature measuring range: -10-200℃/14-392℉
Temperature accuracy: ± (1℃+1digit);
Temperature resolution: 0.1℃/0.1℉
Optional refrigerants (83 kinds): R11, R12, R123, R124, R125, R1270,
R13, R134A, R14, R141b, R142b, R143A, R152A, R170, R21, R218,
R22, R227E, R23, R236E, R245C, R245, R290, R32, R401A, R401b,
R401C, R402A, R402b, R403A, R403b, R404A, R405A, R406A, R407A,
R407b, 407C, R407d, R407E, R408A, R409A, R409b, R41, R410A,
R410b, R11A, R411b, R412A, R413A, R414A, R414b, R415A, R415b,
R416A, R417A, R418A, R419A, R420A, R421A, R421b, R422A, R422b,
R422C, R422d, R423A, R424A, R425A, R426A, R427A, R428A, R50,
R500, R501, R502, R503, R504, R507A, R508A, R508b, R509A, R600, R600A, R717
Operating temperature: 0 to 45℃
Ambient humidity: 10%RH to 90%RH
Storage temperature: -20 to 60℃
Power supply: 4 AA batteries (not included package )
Dimension: 204mm×116mm×65mm

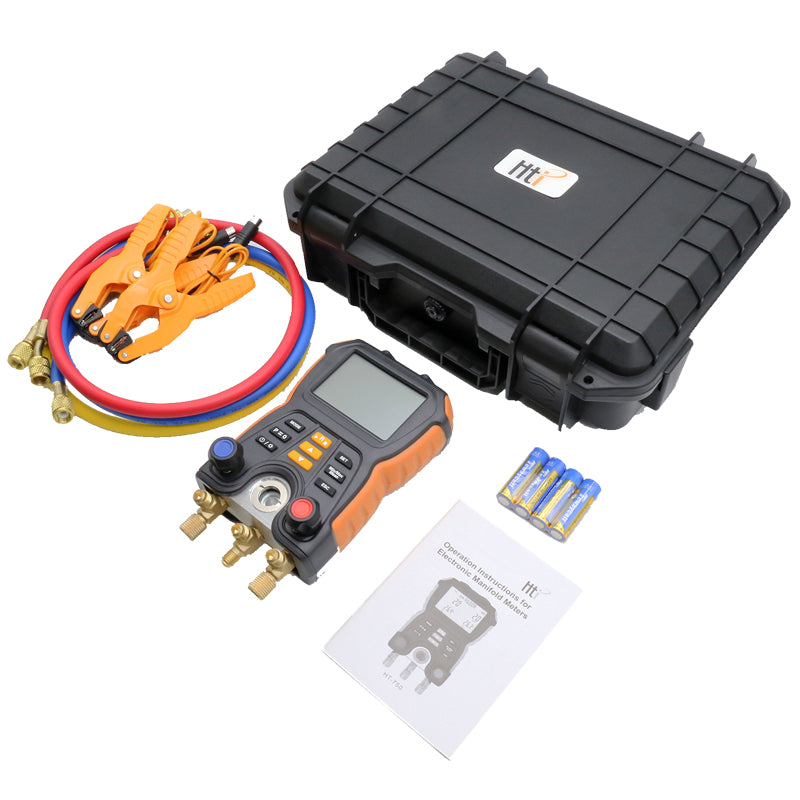

Accessories: tool box, hose (each in red, yellow and blue),
Operation Instructions, 4 AA alkaline batteries, temperature clamps x2
Item
Value
Warranty
12 months
Customized support
OEM, ODM
Place of Origin
China
Brand Name
HTI/XINTEST
Model Number
HT-750
Product name
refrigerant meter
Application: pressure
kPa/MPa/bar/psi
Pressure resolution
1Kpa, 0.01bar, 0.1psi, 0.001Mpa
Pressure accuracy
±0.5%FS
Temperature measuring range
-10-200℃/14-392℉
Temperature resolution
0.1℃/0.1℉
Temperature accuracy
± (1℃+1digit)
Size
197*116*65.5mm
Preassure medium
FCKW, FKW, N, H2O
Relative humidity
10 to 90%RH
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
