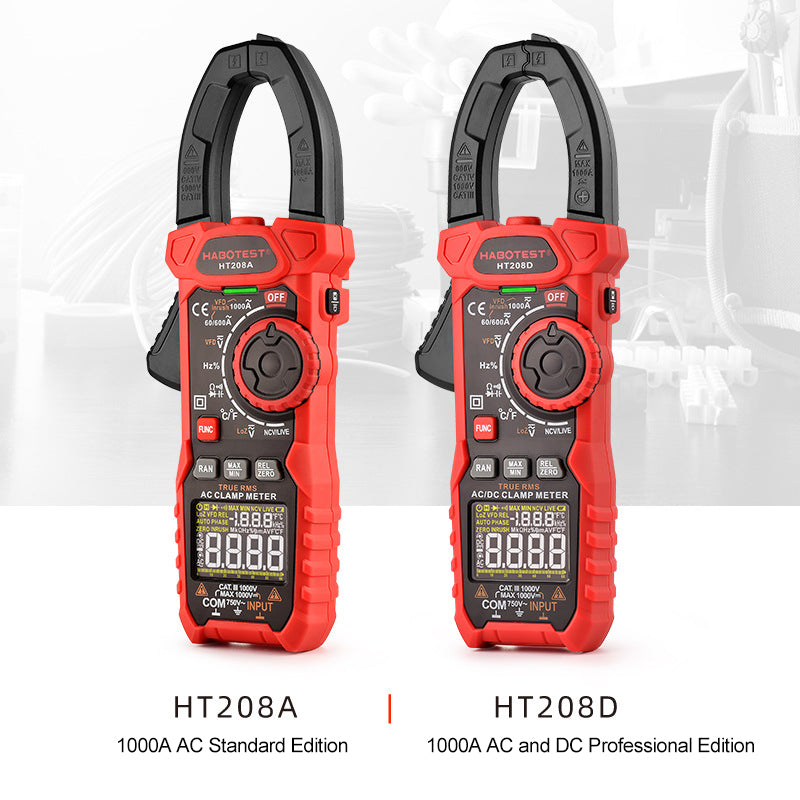

HT208A/D Professional Digital Clamp Meter Anto-Range 1000A 1000V AC DC Current Clamp True RMS VFD REL Ohm Capacitor NCV Tester

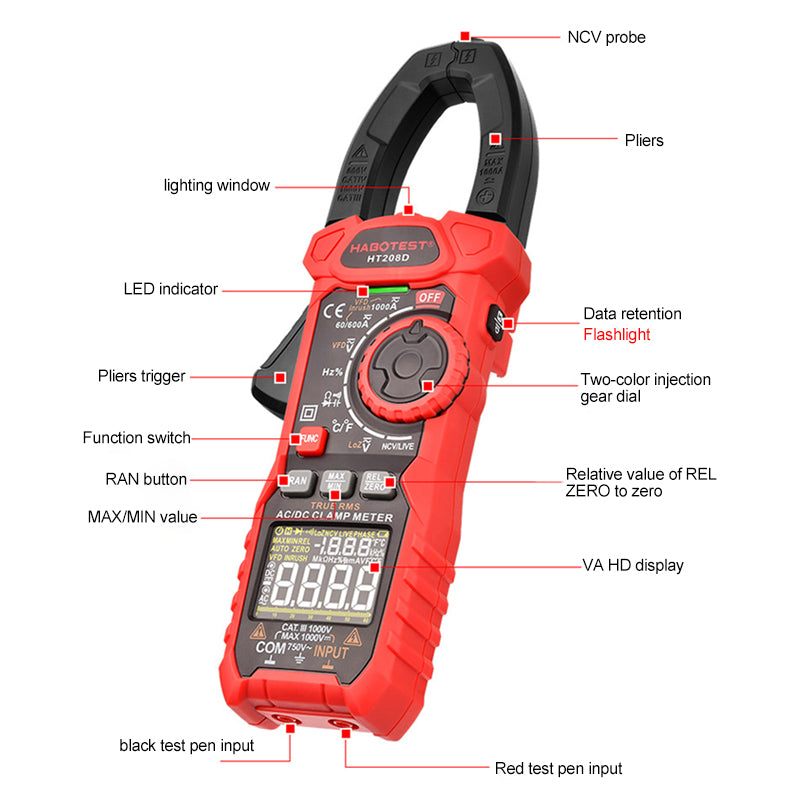

HT208D
This is a dual impedance true RMS digital multimeter integrating a variety of measurements like AC/DC voltage, AC/DC current, frequency, duty ratio, resistance, capacitance, temperature, diode, continuity, NCV, VFD, inrush current, etc.. And there are more functions like last data hold, flashlight, Max./Min./Relative value, Celsius/Fahrenheit degree, and zero key.
Features:
CLAMP MULTIMETER: Measures inrush current, VFD current/voltage, AC/DC current, AC/DC voltage, frequency, duty ratio, resistance, continuity, diode, capacitance, temperature, non-contact AC voltage (NCV) detection, and live detection.
WIDE OPENING JAW: Opening jaw capacity is 40mm, wide enough to measure without disturbing the circuit.
LOUD BEEP: NCV sensor send out audible and visual alarm once received electromagnetic signal.
MORE FUNCTIONS: Features data hold, flashlight, low battery display, Celsius/Fahrenheit degree, Max./Min./Relative value, and Zero(reset) key.
SAFE TO USE: Designed and conforms to IEC61010-1, CAT III 1000V, safe and reliable.
AUTO-OFF: Auto power off within 15 minutes if there is no operation, helps conserve the battery.
MULTI TESTER: Comes with 2 test leads and a thermocouple to be used as a multitester.
Note:
*MUST read the user manual carefully before use for safety.
*Battery not included.
Parameters:
Display: 6000 count
Clamp Opening Size: 40mm
Auto-off: approx. 15 minutes
Max. Voltage Between Terminals and Earth Ground: AC750V or DC 1000V
Range
Resolution
Accuracy
DC Current (MAX current: 1000A)
60A
0.01A
±(2.5%reading+8)
600A
0.1A
1000A
1A
AC Current (MAX current: 1000A, True RMS)
Frequency range: 0.1~600A: 40Hz~400Hz
600~1000A: 40Hz~60Hz
60A
0.01A
±(2.5%reading+8)
VFD: ±(5.0%reading+10)
INRUSH: ±(5.0%reading+10)
600A
0.1A
1000A
1A
DC Voltage
Input impedance: 10MΩ(LoZ: 300kΩ)
Overload protection: AC750V/DC1000V
Maximum input voltage: AC750V/DC1000V
600mV
0.1mV
±(0.5%reading+5)
6V
0.001V
60V
0.01V
600V
0.1V
1000V
1V
±(0.8%reading+5)
AC Voltage
Input impedance: 10MΩ(LoZ: 300kΩ)
Overload protection: AC750V/DC1000V
Maximum input voltage: AC750V/DC1000V
Frequency range: 40Hz~1kHz, True RMS
600mV
0.1mV
±(0.8%reading+5)
6V
0.001V
60V
0.01V
600V
0.1V
750V
1V
±(1.0%reading+5)
VFD(750V)
0.1V
±(2.0%reading+5)
Resistance
Overload protection: 250V
600Ω
0.1Ω
±(1.0%reading+5)
6kΩ
0.001kΩ
60kΩ
0.01kΩ
600kΩ
0.1kΩ
6MΩ
0.001MΩ
60MΩ
0.01MΩ
Diode
It displays the approximate forward voltage value of the diode.
Forward DC current is about 1.5mA;
Reverse DC voltage is about 3V;
Overload protection: 250V
Continuity
Test Voltage Approx. 1V
Overload protection: 250V
Capacitance
Overload protection: 250V
10nF
0.001nF
±(4.0%reading+5)
100nF
0.01nF
1000nF
0.1nF
10μF
0.001μF
100μF
0.01μF
1000μF
0.1μF
10mF
0.001mF
100mF
0.01mF
±(5.0%reading+10)
Frequency/Duty Ratio
Overload protection: 250V
10Hz
0.001Hz
±(1.0%reading+3)
100Hz
0.01Hz
1000Hz
0.1Hz
10kHz
0.001kHz
100kHz
0.01kHz
1000kHz
0.1kHz
10MHz
0.001MHz
±(3.0%reading+3)
1~99%
0.1%
Temperature
*The below precision does not inlcude the error of thermocouple probe.
℃
1℃
±3℃ (-20℃~0℃)
±1.0% or ±2℃ (0℃~400℃)
±2.0% (400℃~1000℃)
℉
1℉
±6℉ (-4℉~32℉)
±1.0% or 4℉ (32℉~752℉)
±2.0% (752℉~1832℉)
Specifications:
Brand: HABOTEST
Material: ABS
Color: Black and Red
Battery: 2pcs, 1.5V, AAA alkaline battery (batteries not included)
Item Size: 24*8*4.5cm / 9.44*3.14*1.77in
Item Weight: 311g / 10.97oz
Package Size: 27.5*13.5*5.5cm / 10.82*5.31*2.16in
Package Weight: 620g / 21.86oz

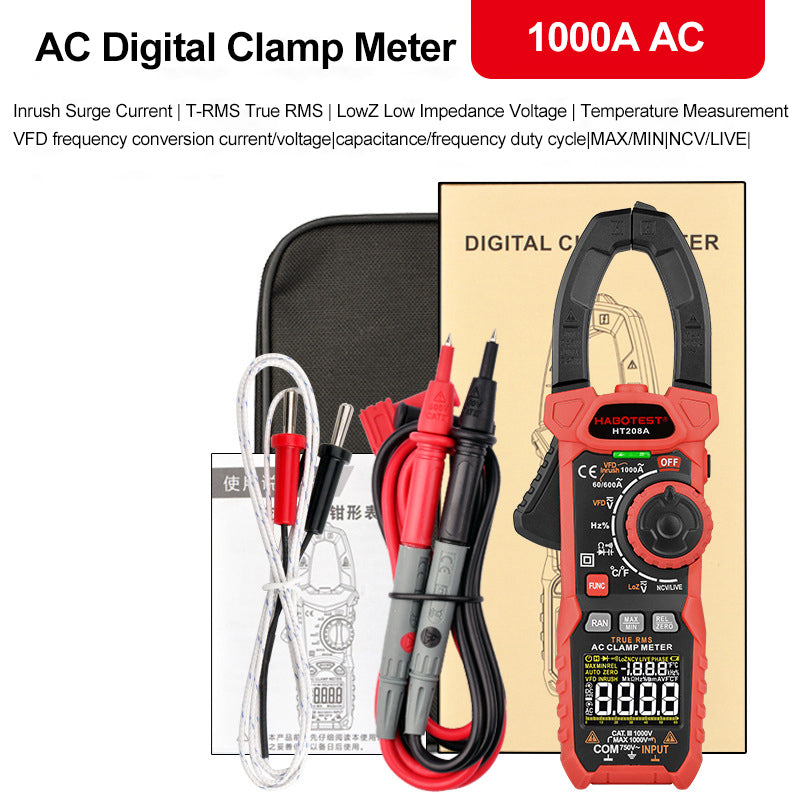

Packing List:
1 * Digital Clamp Meter
1 * Thermocouple
2 * Test Lead
1 * User Manual(English)

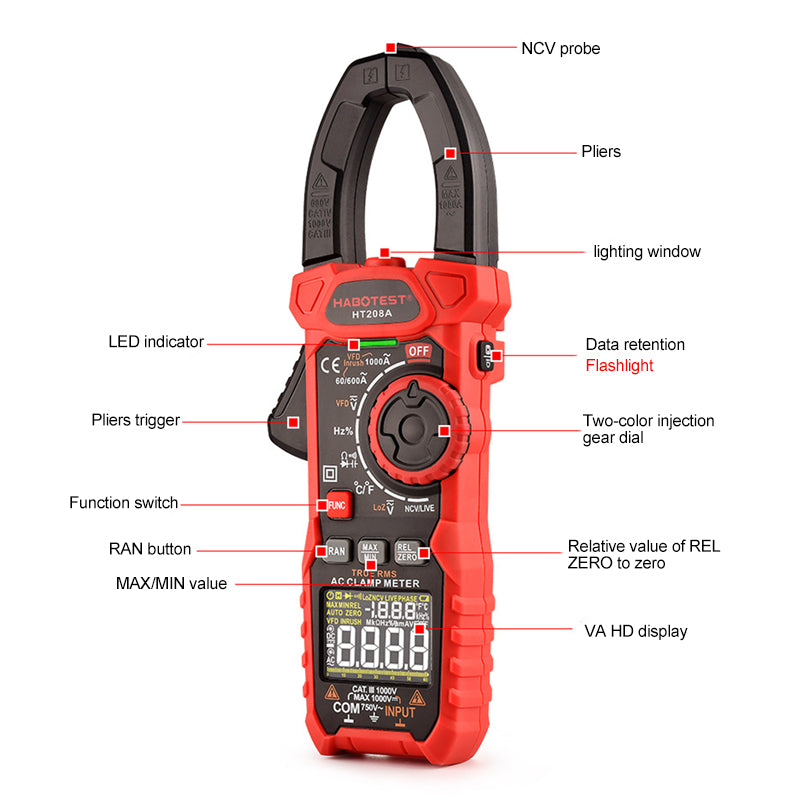

HT208A
This is a dual impedance true RMS digital multimeter integrating a variety of measurements like AC/DC voltage, AC current, frequency, duty ratio, resistance, capacitance, temperature, diode, continuity, NCV, VFD, inrush current, etc.. And there are more functions like last data hold, flashlight, Max./Min./Relative value, Celsius/Fahrenheit degree, and zero key.
Features:
CLAMP MULTIMETER: Measures inrush current, VFD current/voltage, AC current, AC/DC voltage, frequency, duty ratio, resistance, continuity, diode, capacitance, temperature, non-contact AC voltage (NCV) detection, and live detection.
WIDE OPENING JAW: Opening jaw capacity is 40mm, wide enough to measure without disturbing the circuit.
LOUD BEEP: NCV sensor send out audible and visual alarm once received electromagnetic signal.
MORE FUNCTIONS: Features data hold, flashlight, low battery display, Celsius/Fahrenheit degree, Max./Min./Relative value, and Zero(reset) key.
SAFE TO USE: Designed and conforms to IEC61010-1, CAT III 1000V, safe and reliable.
AUTO-OFF: Auto power off within 15 minutes if there is no operation, helps conserve the battery.
MULTI TESTER: Comes with 2 test leads and a thermocouple to be used as a multitester.
Note:
*MUST read the user manual carefully before use for safety.
*Battery not included.
Parameters:
Range
Resolution
Accuracy
AC Current (MAX current: 1000A, True RMS)
Frequency range: 0.1~600A: 40Hz~400Hz
600~1000A: 40Hz~60Hz
60A
0.01A
±(2.5%reading+8)
VFD: ±(5.0%reading+10)
INRUSH: ±(5.0%reading+10)
600A
0.1A
1000A
1A
DC Voltage
Input impedance: 10MΩ(LoZ: 300kΩ)
Overload protection: AC750V/DC1000V
Maximum input voltage: AC750V/DC1000V
600mV
0.1mV
±(0.5%reading+5)
6V
0.001V
60V
0.01V
600V
0.1V
1000V
1V
±(0.8%reading+5)
AC Voltage
Input impedance: 10MΩ(LoZ: 300kΩ)
Overload protection: AC750V/DC1000V
Maximum input voltage: AC750V/DC1000V
Frequency range: 40Hz~1kHz, True RMS
600mV
0.1mV
±(0.8%reading+5)
6V
0.001V
60V
0.01V
600V
0.1V
750V
1V
±(1.0%reading+5)
VFD(750V)
0.1V
±(2.0%reading+5)
Resistance
Overload protection: 250V
600Ω
0.1Ω
±(1.0%reading+5)
6kΩ
0.001kΩ
60kΩ
0.01kΩ
600kΩ
0.1kΩ
6MΩ
0.001MΩ
60MΩ
0.01MΩ
Diode
It displays the approximate forward voltage value of the diode.
Forward DC current is about 1.5mA;
Overload protection: 250V
Continuity
Test Voltage Approx. 1V
Overload protection: 250V
Capacitance
Overload protection: 250V
10nF
0.001nF
±(4.0%reading+5)
100nF
0.01nF
1000nF
0.1nF
10μF
0.001μF
100μF
0.01μF
1000μF
0.1μF
10mF
0.001mF
100mF
0.01mF
±(5.0%reading+10)
Frequency/Duty Ratio
Overload protection: 250V
10Hz
0.001Hz
±(1.0%reading+3)
100Hz
0.01Hz
1000Hz
0.1Hz
10kHz
0.001kHz
100kHz
0.01kHz
1000kHz
0.1kHz
10MHz
0.001MHz
±(3.0%reading+3)
1~99%
0.1%
Temperature
*The below precision does not inlcude the error of thermocouple probe.
℃
1℃
±3℃ (-20℃~0℃)
±1.0% or ±2℃ (0℃~400℃)
±2.0% (400℃~1000℃)
℉
1℉
±6℉ (-4℉~32℉)
±1.0% or 4℉ (32℉~752℉)
±2.0% (752℉~1832℉)
Specifications:
Brand: HABOTEST
Material: ABS
Color: Black and Red
Item Size: 24*8*4.5cm / 9.44*3.14*1.77in
Item Weight: 321g / 11.32oz
Package Size: 27.5*13.5*5.5cm / 10.82*5.31*2.16in
Package Weight: 626g / 22.08oz
Packing List:
1 * Digital Clamp Meter
1 * Thermocouple
2 * Test Lead
1 * User Manual(English)
