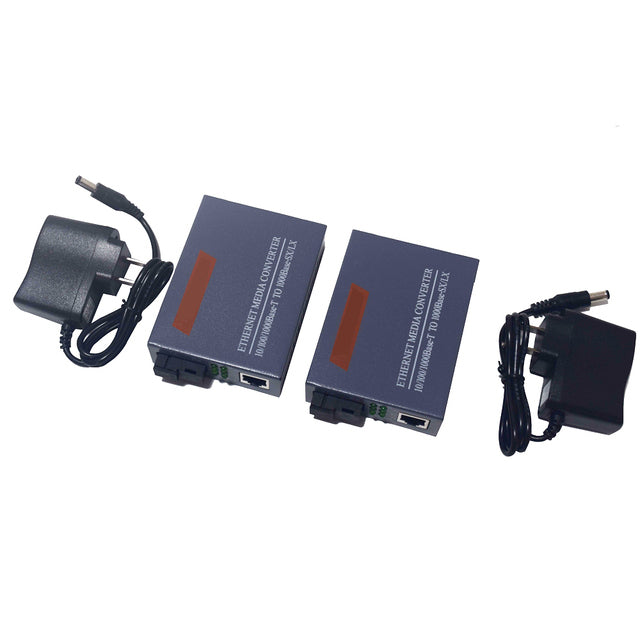

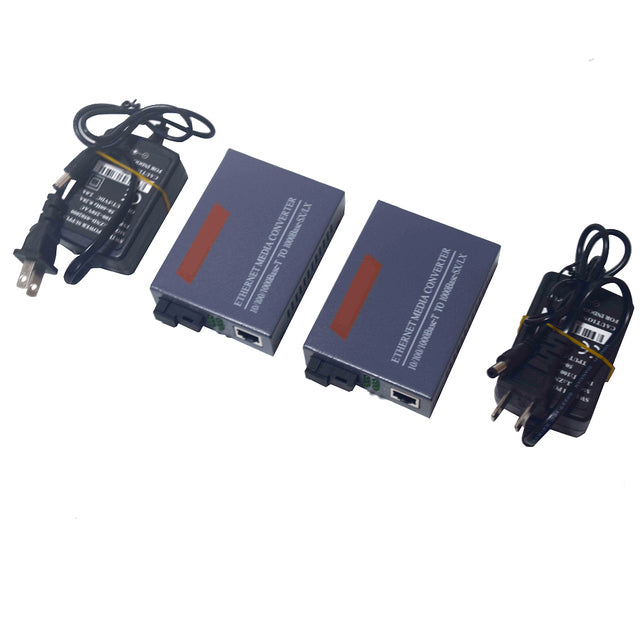

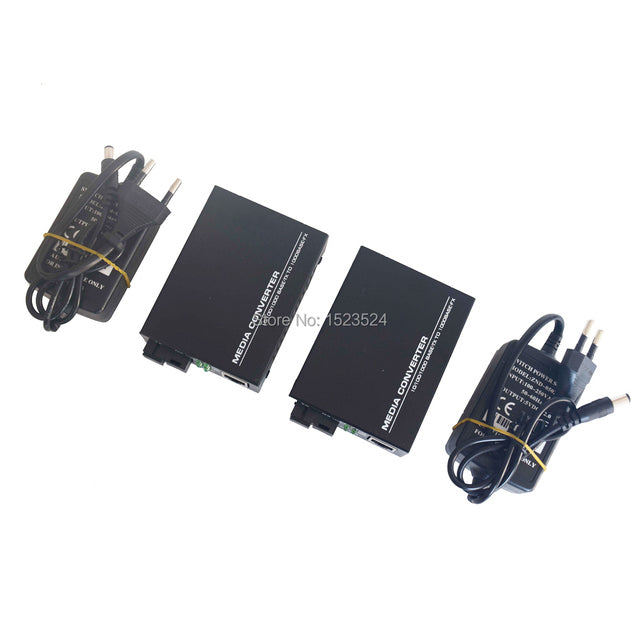

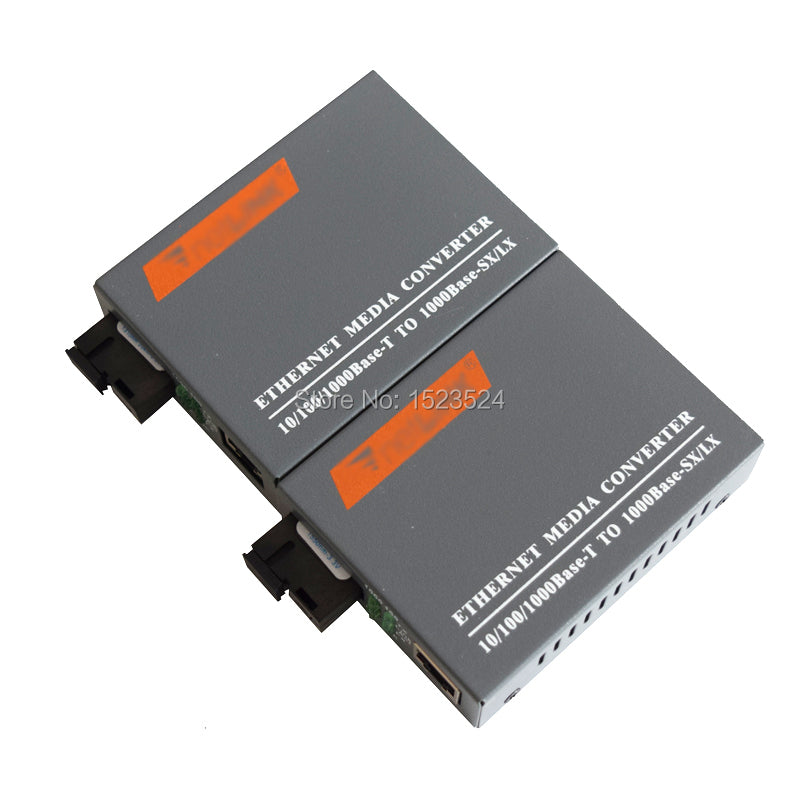

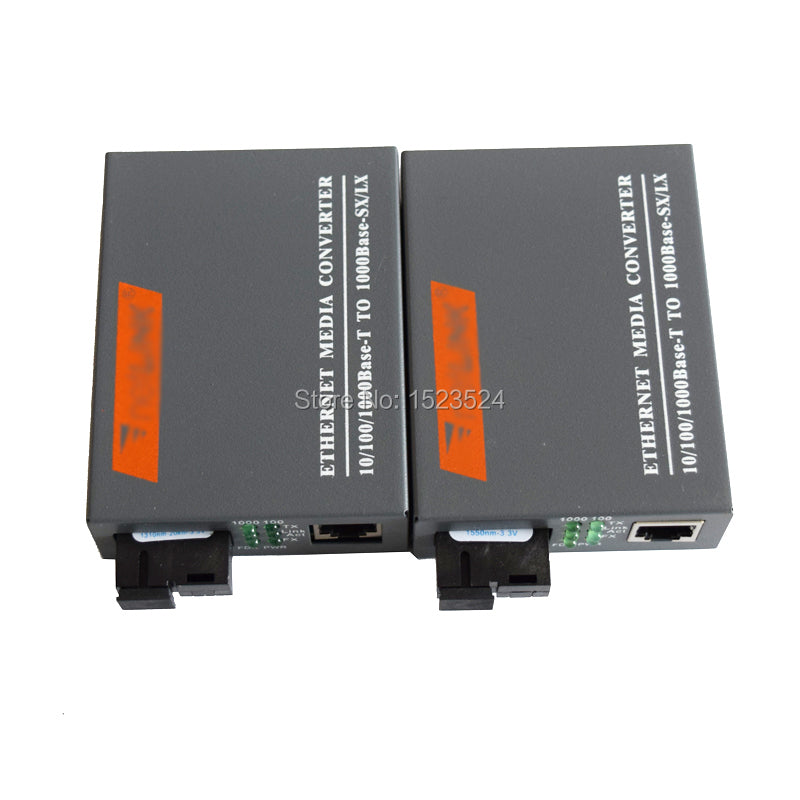

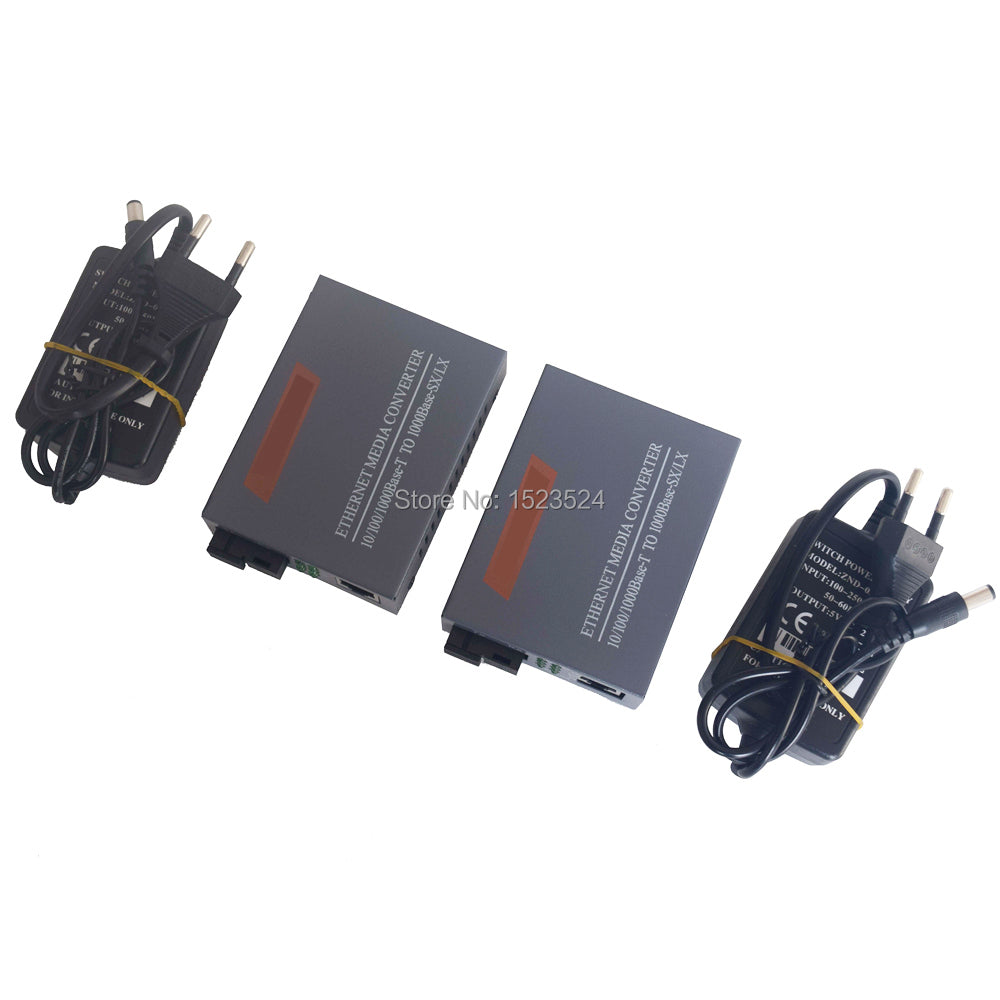

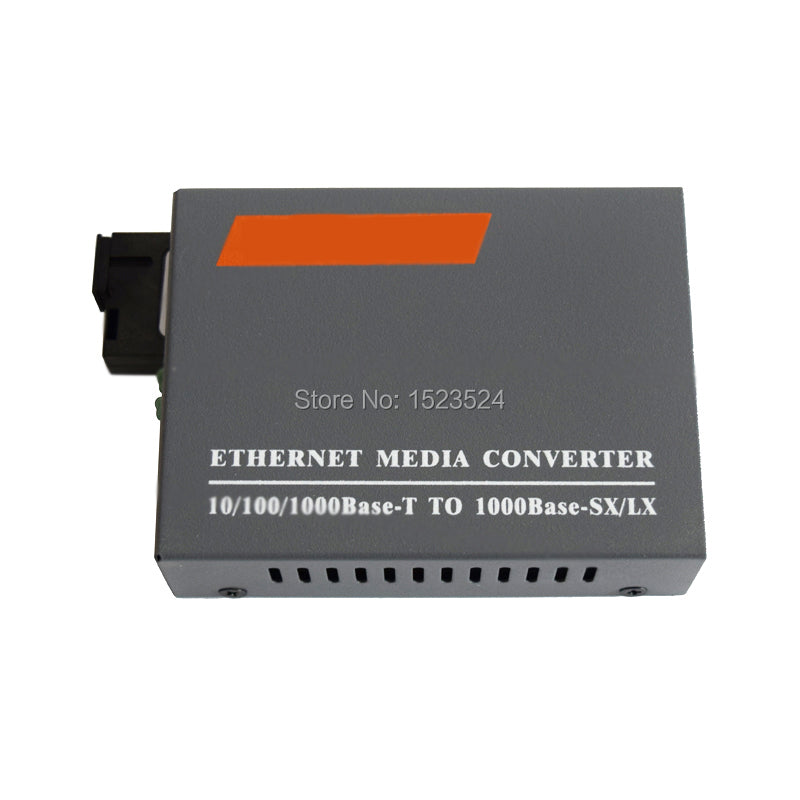

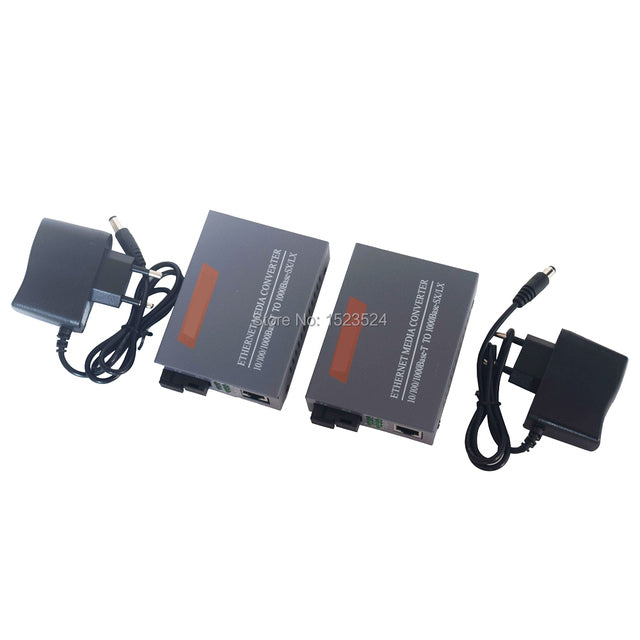

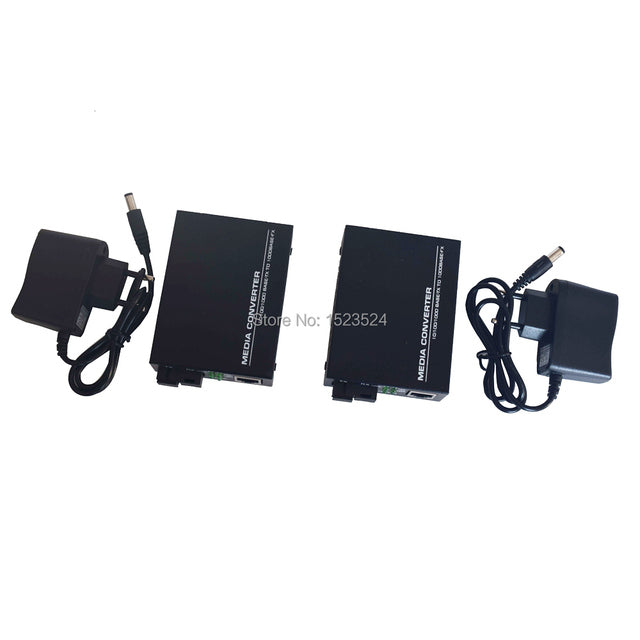

HTB-GS-03 A&B 3pairs Gigabit Fiber Optical Media Converter 1000Mbps Single Mode Single Fiber SC Port External Power Supply
Features:
Provide one SC fiber connector and one UTP connector
Fully Complies with IEEE802.3 10Base-T,IEEE802.3u 100Base-TX/IEEE802.3u 100Base-FX,IEEE802.3z 1000Base-FX Standard.
Auto-detection of half/full duplex transfer mode for Tx port
Auto-negotiation of 10/100/1000Mbps rate and Auto-MDI/MDIX for Tx port
Provide switch configuration of half/full duplex transfer mode for Fx port
Extend fiber distance up to 20km for single-mode fiber

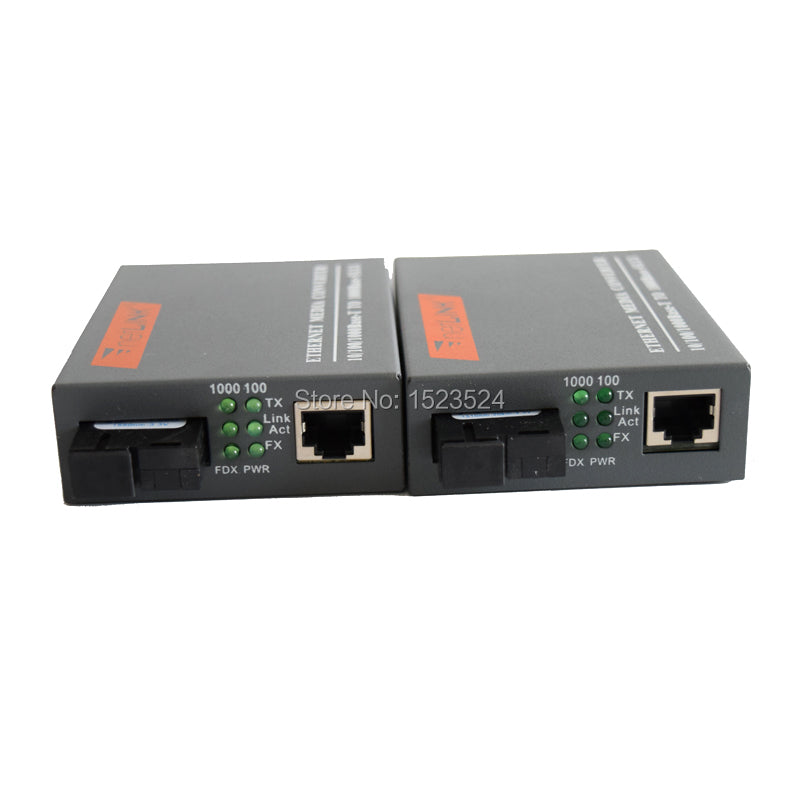

6 LED display for Power, FDX/Col, FX (Link/Act), TX (Link/Act), FX 1000, TX 100
Easy-to-view LED indicators provides status to easily monitor network activity
Specifications:
Standard
IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-TX/FX Fast-Ethernet IEEE802.3z/ab 1000BASE-FX/TX 100M-EthernetIEEE802.3x
RJ-45 Port
Auto-MDI/MDIX
Fiber Port
Fiber Type
Wavelength
Send-Power
SC
1310/1550nm
20dBm(min.) 0dBm(max.)
Frequency Offset
±125,000bps (or ± 100ppm)
MTU
More than 9036 bytes
Dimensions(WxDxH)
94x71x27mm (External power)
Input Voltage
DC5V2A( External power input : AC100V-AC240V/50-60HZ )
OperationTemperature
0°C~70°C
Store Temperature
-40°C~85°C
Humidity
5%~95% non-condensing
Weight
0.3kg/Piece (External Power)
