5 Color Palettes: The palette can be used to change the pseudo-color display of the infrared image on the display, the suitable selection of color palette displays the details of the target objective better. The color palette can be switched between Rainbow, iron, cold color, white hot, black hot.

Image Output: in order to increase the differentiation, the product is provided with a visible light camera. The thermal images and visible images are stored in the device and can be read through USB or stored in a computer to generate a report or for print.
Non Contact Modern Detection Technology: it is safe, reliable and quick, really a type of technical revolution compared with traditional contact detection method.
Wide Applications: with small volume, the imager is easy to operate and has strong function, it is the perfect selection for electric power, electronic manufacturing, industrial inspection and other fields.

Specifications:
Material: ABS
Infrared Detector Type: Vanadium oxide uncooled infrared focal plane
Infrared Resolution: 256x192
Infrared Response Band: 8-14μm
Cell Size: 12μm
NETD: ≤50mK @25℃, @F/1.1
Lens Focal Length: 3.2mm
IFOV: 3.75mrad

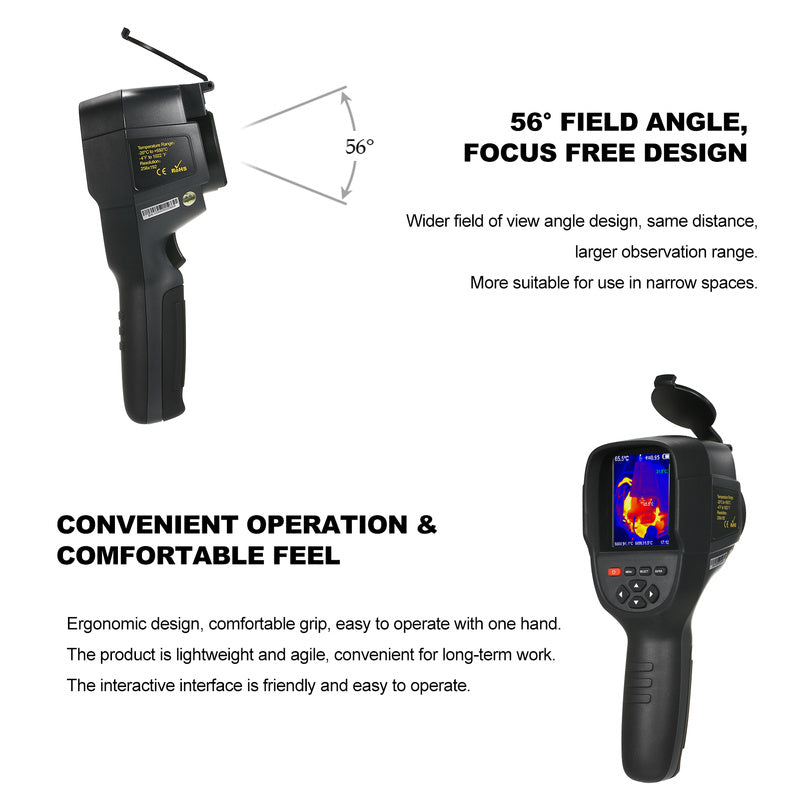

Field Angle: 56°×42°
Focus Mode: Free focus

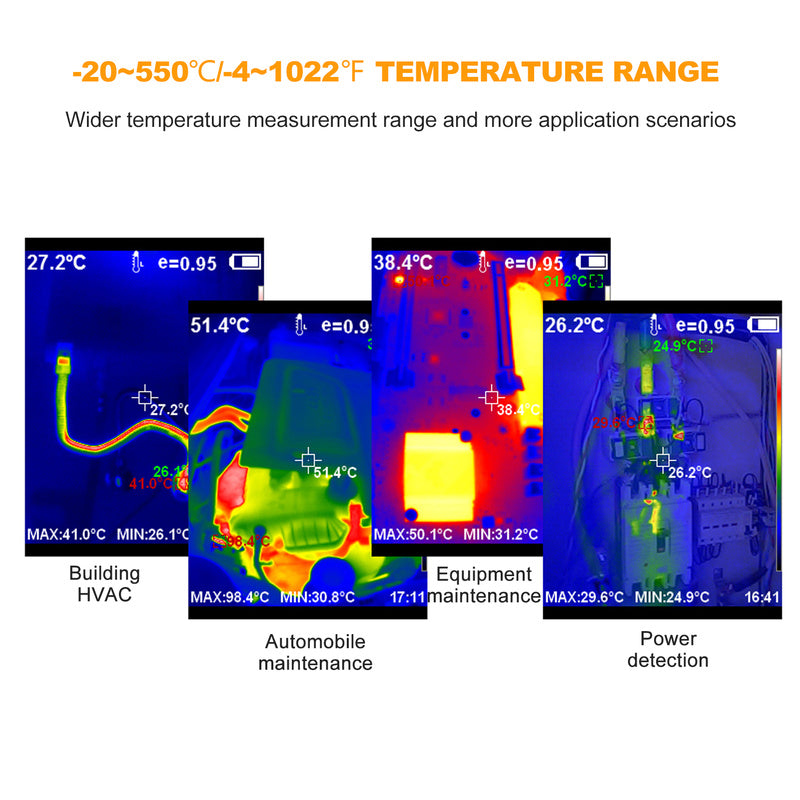

Temperature Measurement Range: -20~550℃(-4~1022℉)
Measurement Accuracy: -15~550℃: ±2℃/±2%; -20~-15℃: ±4℃
Temperature Measurement Resolution: 0.1℃

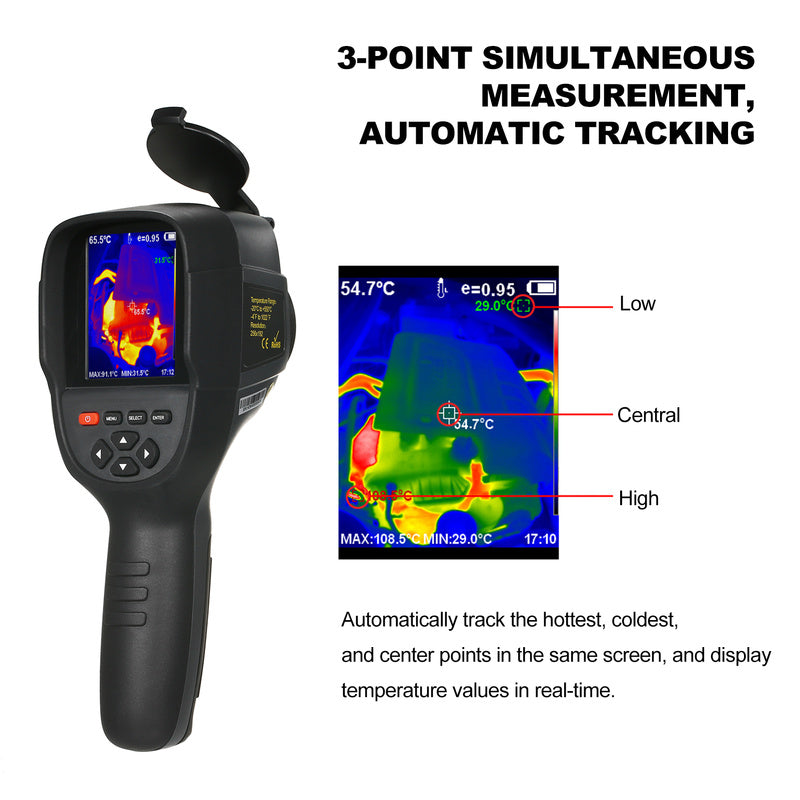

Temperature Measurement Mode: Center point/hot and cold spot tracking
Color Palette: Rainbow, iron, cold color, white hot, black hot
Emissivity: 0.01~1.00 adjustable
Thermal Imaging Frame Rate: ≤25Hz
Visible Light Resolution: 640×480
Display Size: 3.2-inch(240×320)
Image Display Mode: Infrared/visible light/dual light fusion
Device Storage: Built-in 4G eMMC (user available storage space is about 3G)
Storage Image/Video Format: JPG/MP4
Image/Video Export Method: USB connection to computer export

Menu Language: English, Chinese, Italian, German
Battery Type: Dedicated removable rechargeable lithium battery
Battery Capacity: 2200mAh
Working Time: 2-3 hours
Power Interface: Micro USB
Power Configuration: 5 minutes / 20 minutes / no automatic shutdown
Work Temperature: -10~50℃
Storage Temperature: -20~60℃
Relative Humidity: 10%~85%RH (non-condensing)

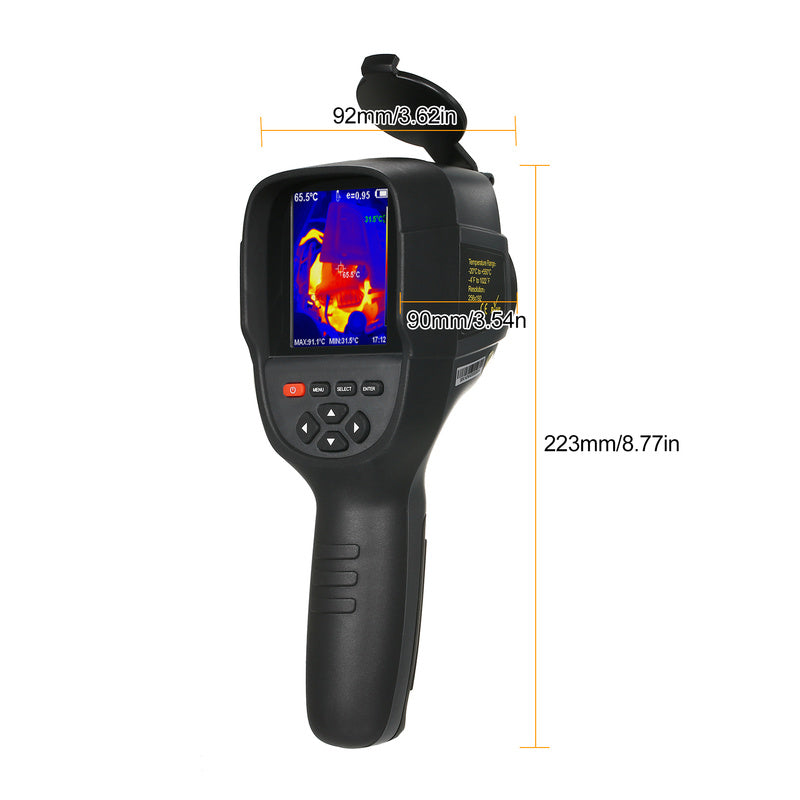

Item Size: 223 * 92 * 90mm / 8.78 * 3.62 * 3.54in
Item Weight: 378g / 13.35oz
Package Weight: 887g / 31.30oz
Package Size: 26.5 * 13 * 11.8cm / 10.43 * 5.12 * 4.65in

Package List:
1 * Thermal Imager
1 * USB Cable
1 * Manual (English)
