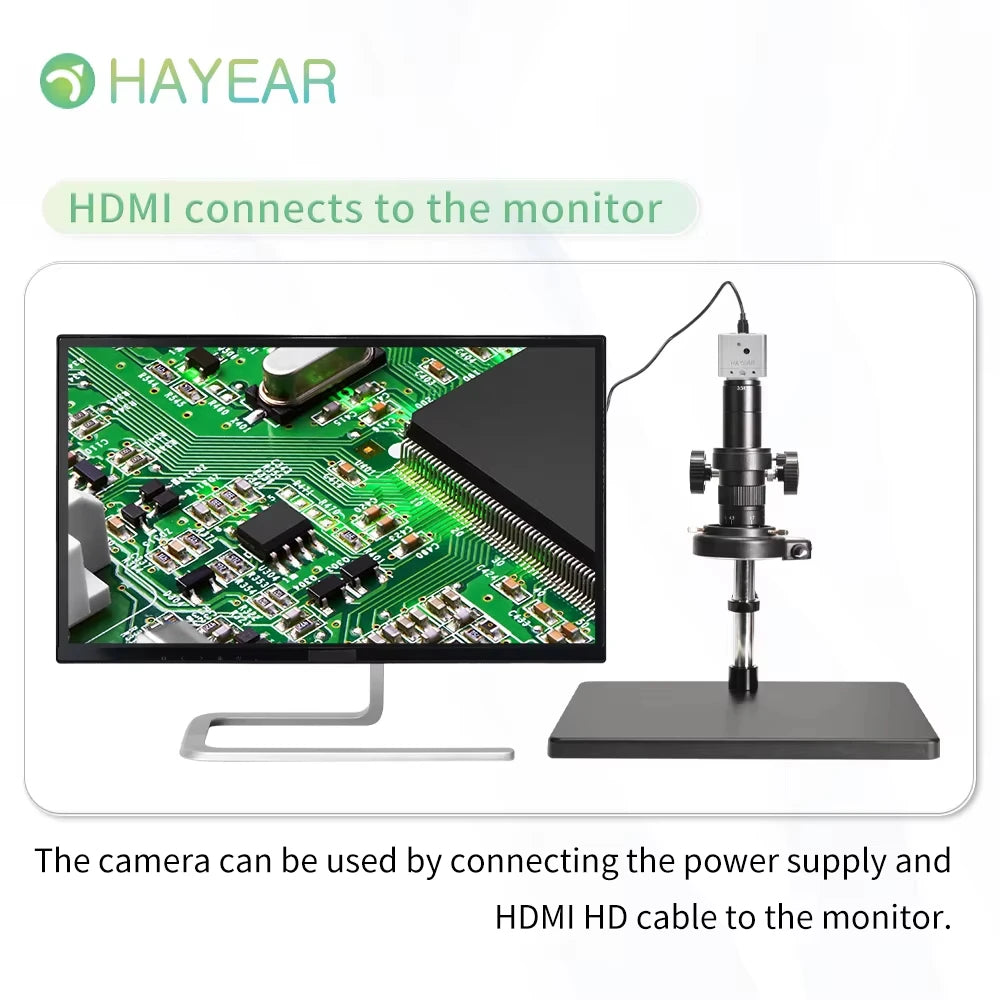

inspection,Use HDMI splitter to project to a large FHD TV for the best display.
Specification:
Item Type: Microscope Camera
Module: HY-6120s
Sensor: Sony CMOS IMX678 Sensor
Optical Format: 1/1.8inch
Pixel Size: 2.0μmx2.0μm
Interface: HDMI (Type A). USB (Type B). Small memory card
HDMI Image Resolution: 8MP
HDMIVideo Resolution: 4K:3840x2160P 30FPS 2K:1920x1080P at 60FPS
HDMI Scale: Support 4: 3,16: 9 screen
USB2.0 (Drive Free):3840x2160P 30FPS1920 x 1080 at 60FPS 1280 x 720 at 60FPS
Small Memory Card: Up to 512GB (not included)
AWB: AWB color correction/automatic/manual
R.G.B value setting independent
Exposure: Automatic/manual. AE value can be set
Cross Line: 8 lines, color, width, position can be set
Scale Line: 2 lines.
Dotted Line: 2 lines, color, width, position can be set
Sharpness Contrast Color Gain: Support
Mono Negative Film: Support
Mirror: Horizontal and vertical mirror
Language: English/Simplified Chinese/French/Spanish/Japanese/GermanAnd other languages.
Digital Zoom: Support
Infrared Remote Control: Support
Voltage Input: DC 12V
Power Supply Voltage: Input: AC100-240V
Output: DC12V
Power Consumption: Maximum 0.15W 12V, 0.12A
Lens Interface: C/CS port
Remote Control Battery: 1 x 2302 button battery (delivered without battery)
Product size 45x45x38MM(LxWxH)
Package size 160x100x80MM(LxWxH)
Product weight 106G
Product gross weight 350G
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
