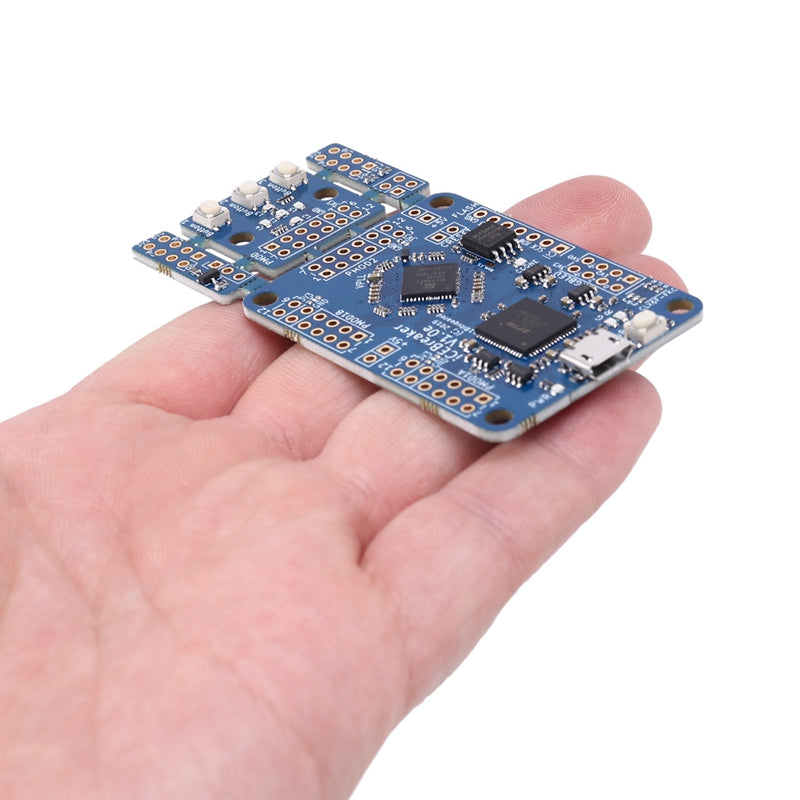

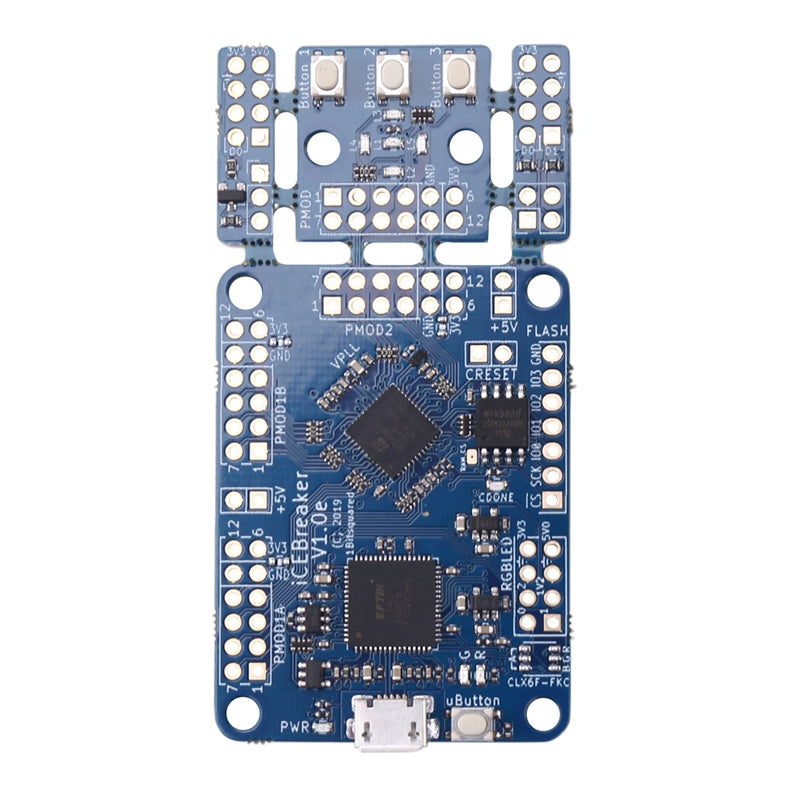

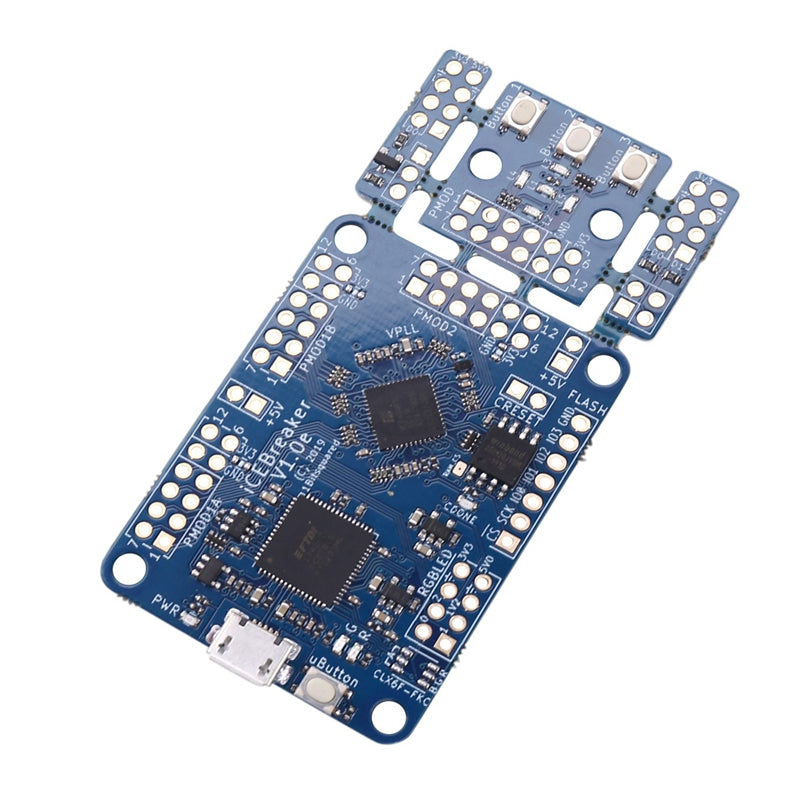

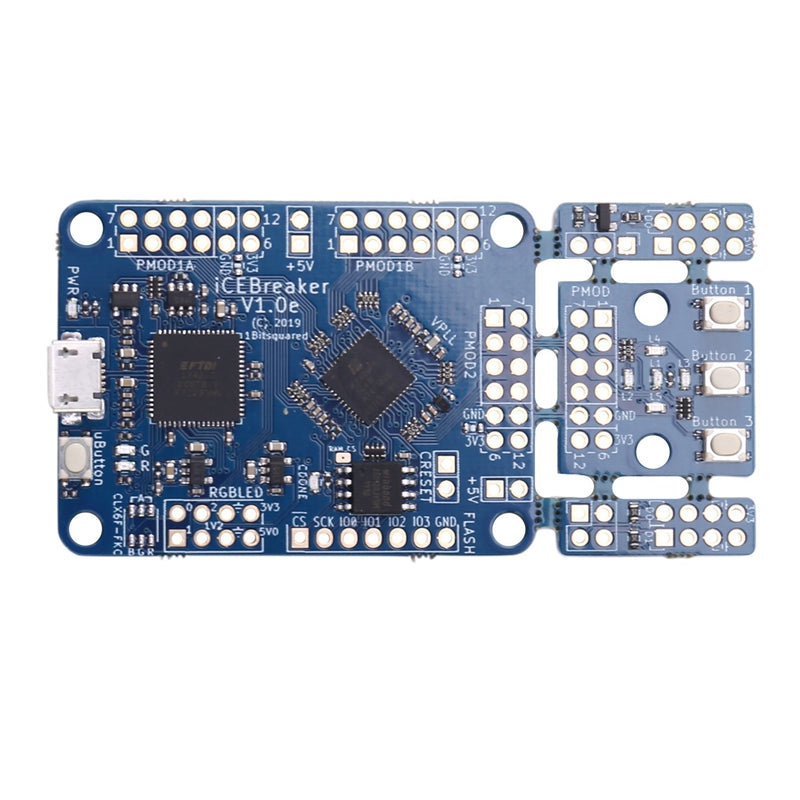

ICEBreaker 1.0E FPGA Lattice ICE40UP5K Development Board RISC-V Open Source Core Board Supports Nextpnr Yosys

              Two internal oscillators (10 kHz and 48 MHz) for simple designs.Eight DSP multiplier blocks for signal processing such as audio synthesis and even software defined radio

Low power consumption perfect for battery-powered applications.Three 24 mA drive and 3 x hard IP PWM (can drive RGB LEDs and small motors)

Plentiful, fast storage

128 Mbit (16 MB) quad SPI double data rate (QSPI-DDR) flash.Example: can stream video to LED matrix

Lots of I/O

Features & Specifications

Lattice iCE40UP5k FPGA

5280 logic cells (4-LUT + Carry + FF)

120 Kbit dual-port block RAM

1 Mbit (128 KByte) single-port RAM

PLL, 2 x SPI, 2 x I2C hard IPs

Three pins (header) for RGB LED

Two on-board LEDs

One UART, RX pin and TX pin accessible via virtual (USB) serial port

One pushbutton

Two available Pmod connectors (16 x pins total)

One breakaway Pmod (8 x pins)

Pre-wired, breakaway Pmod module

Input and output user accessible and usable in your own hardware design

Five LEDs in a star pattern

Three push buttons

Capable enough to host CPU softcores

picorv32

picosoc

RISC-V and others

On-board FPGA programmer and USB-to-serial adapter

Compatible with IceStorm iceprog tool

Easy, driverless connection as a serial device to host computer

USB high speed

On-board FT2232 USB chip

Up to 480 Mbit/s interface to host computer

Pmod Connectors & Breakaway Pmod

The iCEBreaker FPGA board has three standard Pmod connectors, which makes for a wide range of expansion options since Pmod is a standard followed by several hardware manufacturers. This gives you access to a massive library of modules - no matter what your project, you're sure to find a Pmod for it.

colour:blue

Material:PCB

size:8*4cm

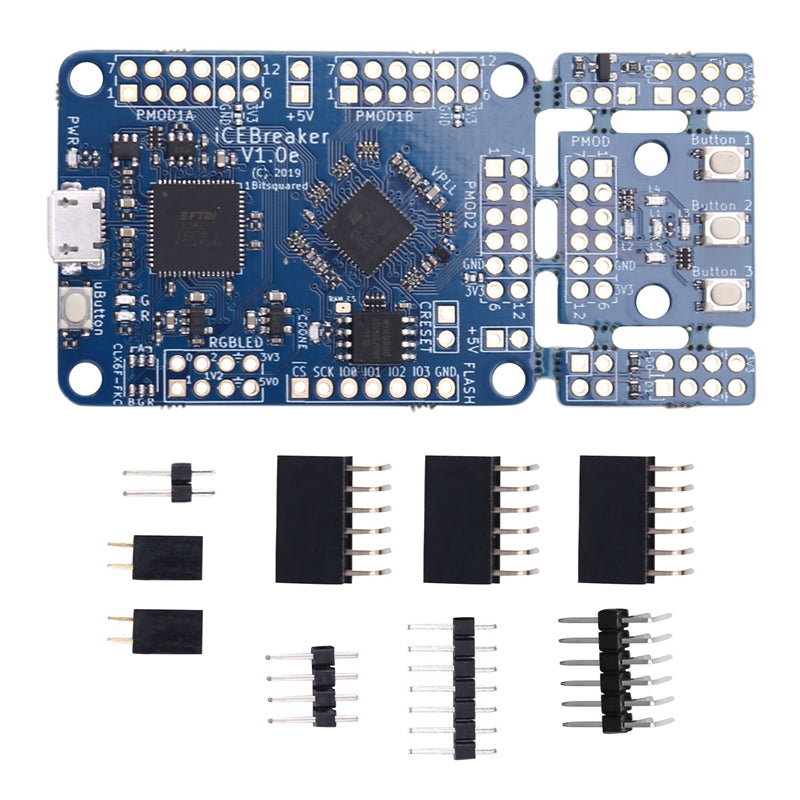

Package Contents:

1 x Digital Development Board

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
