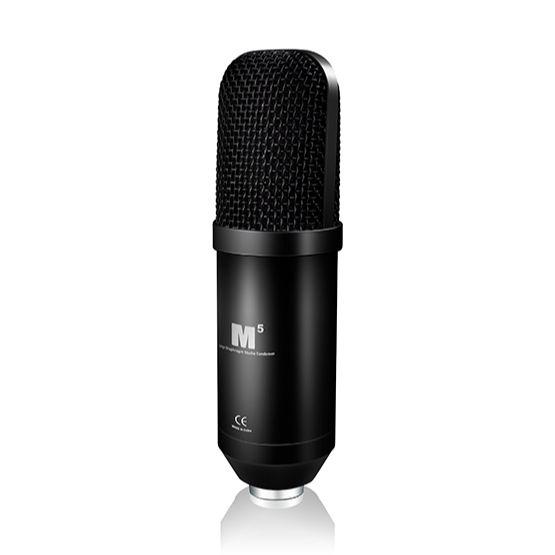

M5
Professional Large-diaphragm condenser microphone for unsurpassed audio quality
Ideal as main and support microphone for most differing recording situations
Cardioid pickup pattern for outstanding sound source separation and feedbackrejection
Pressure-gradient transducer with shock-mounted capsule
Prefect for vocals and acoustic instruments
External 36-52 Volt phantom power operation

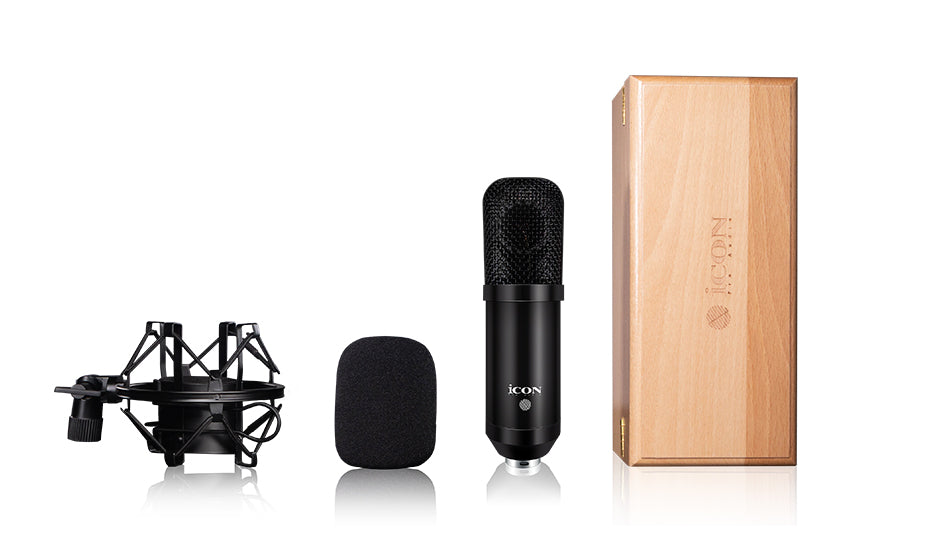

Heavy-duty suspension mount and wooden transport case included
Ultra-rugged construction with metal die-cast body
High-quality components and exceptionally rugged construction ensure long lift.
Tech Specs
Transducer type
electrostatic
Operating principle
pressure gradient
The diaphragm's active diameter
34 mm
Frequency range
20 Hz to 20 kHz
Polar pattern
unidirectional, cardioid
Output impedance
50 Ω
Rated load impedance
1000 Ω
Suggested load impedance
> 256 Ω
Maximum SPL for 0,5% THD at 1000 Ω load
138 dB
S/N Ratio DIN/IEC 651 A-weighted
82 dB
Equivalent noise level DIN/IEC A-weighted
10 dB
Dynamic range of the microphone preamplfier
124 dB
A.Phantom powering voltage on pin 2&3 of XLR
+48V (+/-4V)
Current consumption
≤4 mA
Output connector
3-pin XLR male
Dimension
44mm x 44mm x 161mm
Dimension
1.73"(L)x1.73"(W)x6.34"(H)
Weight
0.285 kg(0.62lb)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
