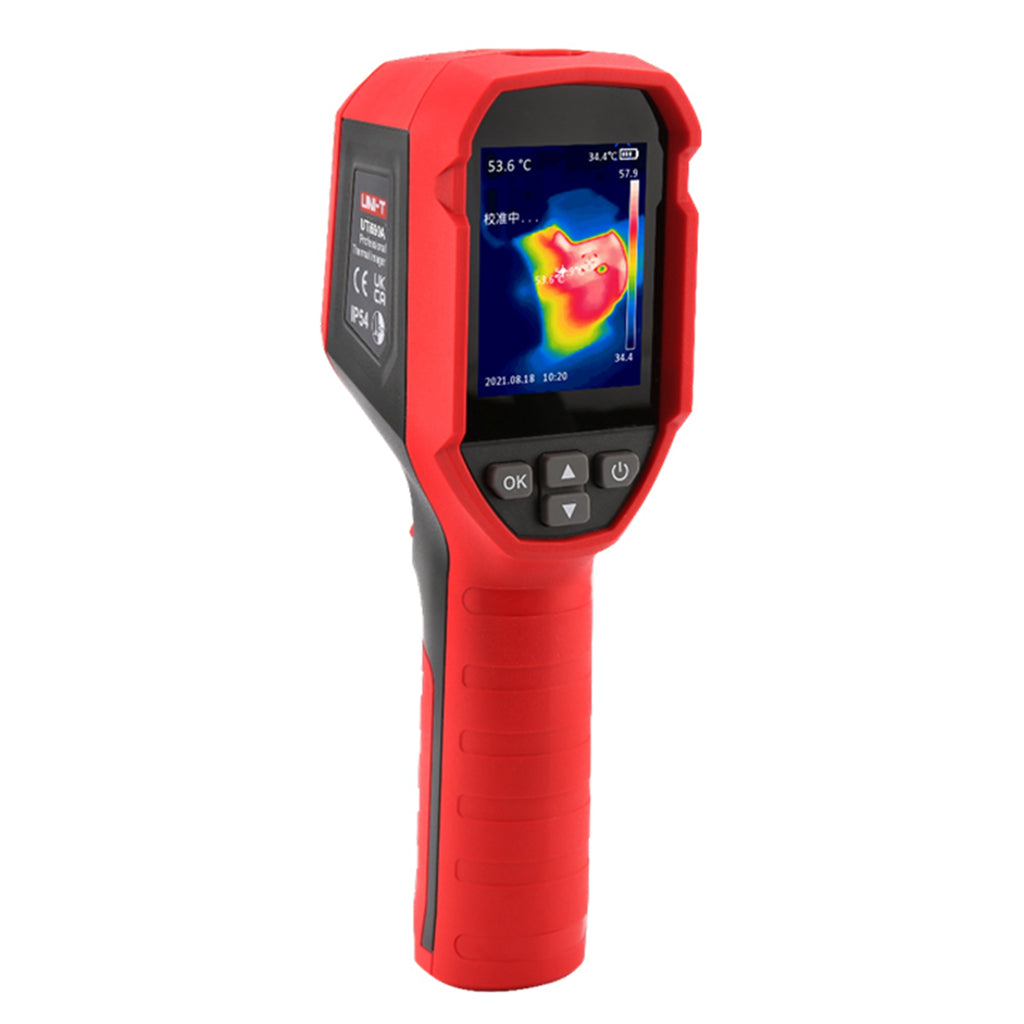

Infrared Thermal Imager Camera Portable UTI690A 2.4 Inch LCD Display Handheld Warm Floor Pipeline Leakage Detector 6 Palettes

    Description:

    This UTi690A infrared thermal imager with powerful functions such as ℃/℉ units switch, 6 palettes for you to choose, also with a 16G memory card for you to storage the images, big display can let you read more clearly, this tool is your perfect helper. Come and have a try, it will not let you down.

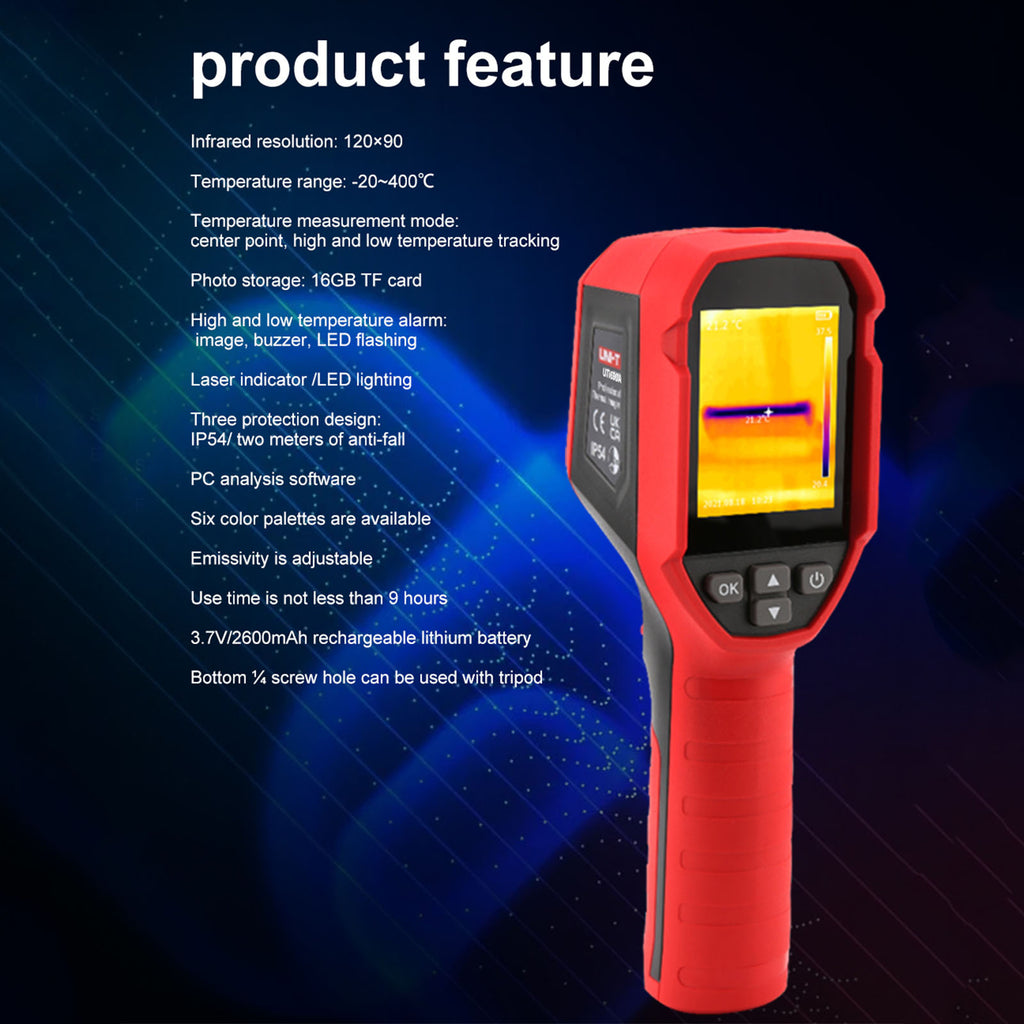

    Features:

    Wide ranges of applications: it can be used for electrical equipment, floor heating building, chemical equipment, communication device and so on.

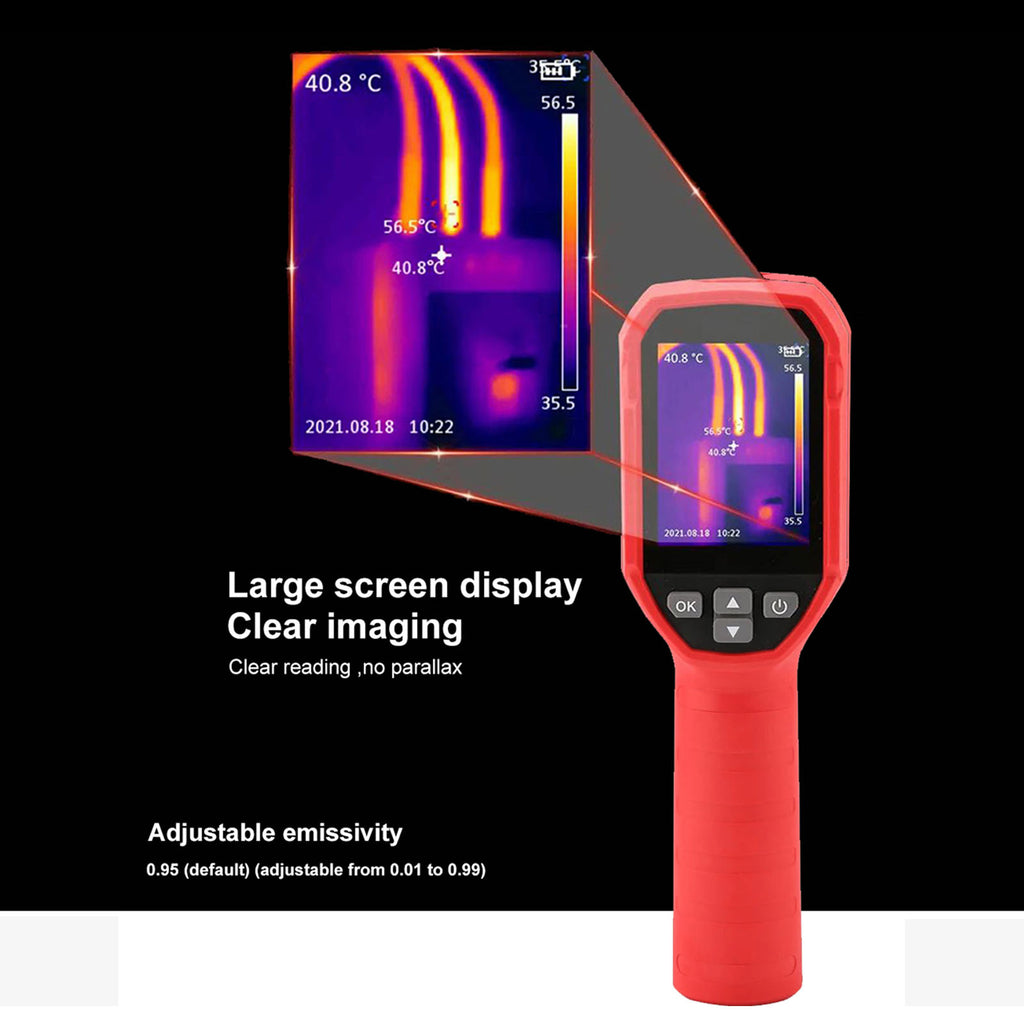

    Adopt 2.4 inch TFT LCD display screen, so you can see the data more clearly, give you a better using experience.

    6 Palettes: You can select the suitable palettes from lava, rainbows HC, black hot, white hot, ion, rainbows.

    Temperature alarm: You can set high and low temperature alarm value ans open or close the buzzers.

    With flashlight function, it can be used normally even in low-light environments.

    Multifunctions: English and Chinese language switchable, temperature units switchable, auto power off, brightness adjustable functions.

    Comes with a 16G memory card for you to storage the images, you can also use USB data cable to connect computers, then you can view images and analyze data via the PC software.

    Speicfications:

    Material: ABS

    Infrared resolution: 120 * 90

    Display: 2.4 inch LCD

    Pixel size: 17μm

    Infrared spectrum bandwidth: 8~14μm

    Thermal imaging pixels: 10800 (120*90)

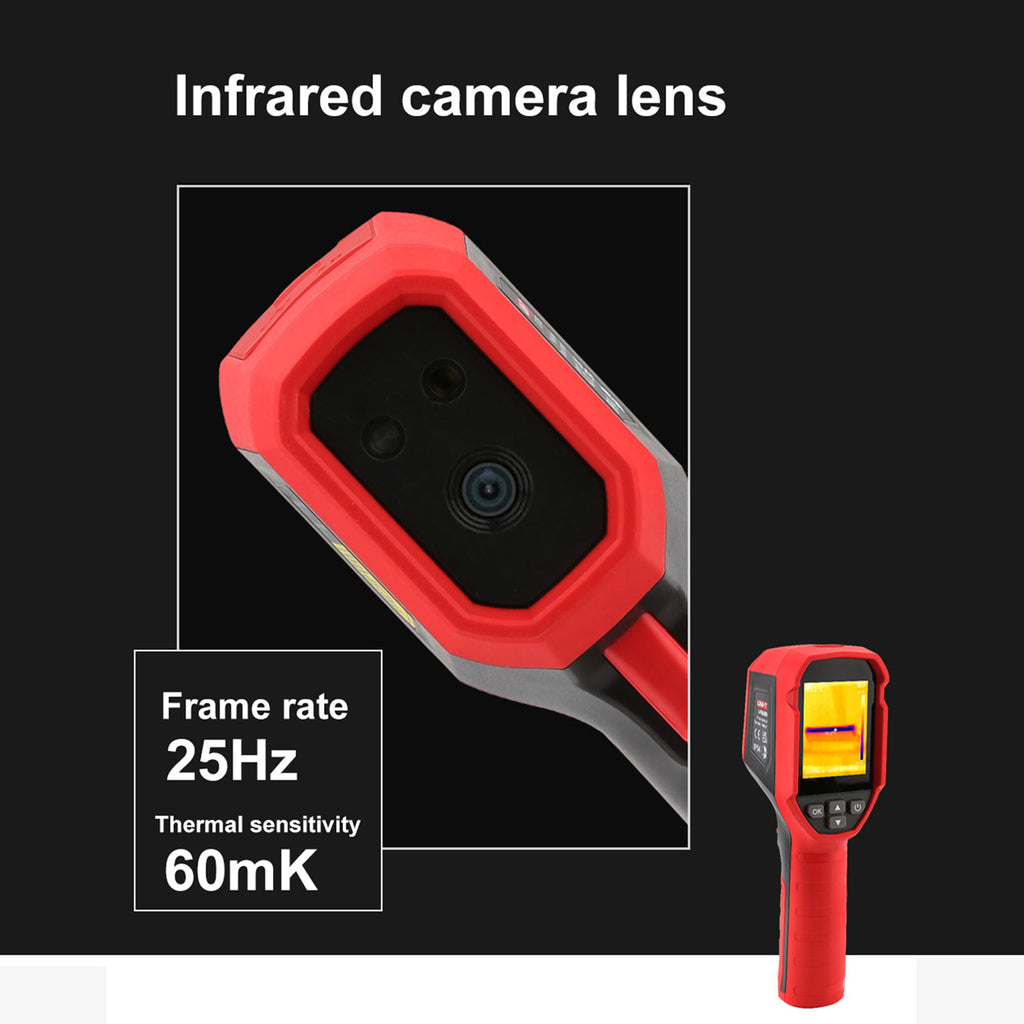

    Thermal imaging sensitivity: <60mK

    Field of view(FOV): 50°(H)*38°(V)

    Spatial resolution (IFOV): 7.6 mrad

    Rate: ≤25Hz

    Minium imaging distance: 0.1m

    Focus: Focus-free

    Temperature ranges: -20℃~400℃

    Accuracy: ±2°C or ±2%, whichever is greater(-10°C~400°C room temperature 25°C)

    Unit: ℃/℉

    Resolution: 0.1°C

    Emissivity: 0.95(default) 0.01~0.99

    Temperature display: center point temperature, high/low temperature tracking

    Palettes: lava, rainbows HC, black hot, white hot, ion, rainbows.

    Laser: √ (class 2)

    LED light: √

    Temperature alarms: LCD, LED, buzzers

    Images storage: memory card

    Images format: BMP

    PC analysis software: √

    Battery: 1 * lithium battery, 2600mAh (icnluded)

    Recharging time: 5V /2A

    Power on speed: 0s (wake up)/5s (power on)

    Auto power off: 5min/10min/30min/off

    Operating temperature: 0~50℃

    Storage temperature: -20~60℃

    Operature humidity: <85%RH (operature humidity)

    IP rating: IP54

    Drop proof: 2m

    Package size: 250 * 150 * 100mm / 9.8 * 5.9 * 3.9in

    Package weight: 566g / 1.2lb

    Packing list:

    1 * Infrared Thermal Imager

    1 * USB Data Cable

    1 * Memory Card

    1 * User Manual
